INSTRUMENTS AND CONTROLS
}}
* Option/accessory, for more information, see Introduction.111
Operating the laminated panoramic
roof*
When opened automatically, the sun shade androof open first to the "comfort" position thathelps reduce wind noise and then open com-pletely.
In the tilt (ventilation) position, the rear edge ofthe front section of the roof is raised.

Operation
WARNING
•During manual closing, if the laminatedpanoramic roof is obstructed, immediatelyopen it again.
•Never open or close the laminated panor-amic roof if it is obstructed in any way.
•Never allow a child to operate the lamina-ted panoramic roof.
•Never leave a child alone in a vehicle.
•When leaving the vehicle, ensure that theignition is in mode 0. Never leave aremote key in the vehicle.
•Never extend any object or body partthough the open laminated panoramicroof, even if the vehicle's ignition is com-pletely switched off.
CAUTION
The optional panoramic roof should not beopened while load carriers are installed onthe vehicle.
Manual open (arrow points toward the rear ofthe vehicle)
Auto open
Manual close
Auto close
The laminated panoramic roof and sun shade canbe operated when the ignition is in at leastmode I.
Manual operation
1.Opening the sun shade: Pull the controlback to the first stop (the manual open posi-tion) and hold it until the sun shade hasopened to the position of your choice.
2.Opening the laminated panoramic roof:Pulling the control back to the first stop (themanual open position) and holding it a sec-ond time will open the laminated panoramicroof to the "comfort" position that helpsreduce wind noise while driving. Pull the con-trol a third time to open the roof completely.
Perform this procedure in reverse order to closethe laminated panoramic roof and/or sun shade.
Movement of the laminated panoramic roof willstop if the control is released while it is in themanual open position.

NOTE
For manual opening, the sun shade must firstbe fully open before it will be possible to openthe laminated panoramic roof. When closing,the laminated panoramic roof must be fullyclosed before the sun shade can be closed.

Automatic operation
1.Opening the sun shade: Pull the control asfar back as possible (to the auto open posi-tion) and release it.

||
INSTRUMENTS AND CONTROLS
112
2.Opening the laminated panoramic roof:Pull the control as far back as possible asecond time (to the auto open position) andrelease it to open the laminated panoramicroof to the "comfort" position that helpsreduce wind noise while driving. Pull the con-trol a third time (to the auto open position)and release it to open the roof completely.
Perform this procedure in reverse order to closethe laminated panoramic roof/sun shade. Theroof will not stop at the "comfort" position if it isclosed from the fully open position.
The laminated panoramic roof will stop when itreaches the "comfort" position, the fully openposition or the closed position. Movement willalso stop if the control is moved in the oppositedirection to the movement of the roof.
The roof will not stop at the "comfort" position ifit is closed from the fully open position.

Quick open/close
The laminated panoramic roof and the sun shadecan be opened/closed at the same time:
•Open: pull the control back (to the autoopen position) twice in quick succession andrelease it.
•Close: push the control forward (to the autoclose position) twice in quick succession andrelease it.
The laminated panoramic roof will stop when itreaches the "comfort" position or the closedposition. Movement will also stop if the control ismoved in the opposite direction to the movementof the roof.
The roof will not stop at the "comfort" position ifit is closed from the fully open position. The sunshade never stops when the roof reaches the"comfort" position.
Tilt (ventilation) position
Tilt position, raised at the rear edge
Open (raise the rear edge of the front glasssection) by pressing the rear edge of thecontrol upward.
Close by pulling the rear edge of the controldownward/forward and holding it until the
laminated panoramic roof has closed com-pletely.
If the sun shade is completely closed, it will openapproximately 2 inches (5 cm) when the lamina-ted panoramic roof is opened to the tilt position.
Automatically closing the sun shade 6
When the vehicle is parked in sunny/warmweather, the sun shade can be closed automati-cally 15 minutes after the vehicle has beenlocked to help keep the temperature in the pas-senger compartment down and to protect theupholstery from the sun.
This function is deactivated by default and can beactivated/deactivated:
1.Tap Settings in the center display's Topview.
2.Tap My CarLocking.
Select Auto Close Sun Curtain to acti-vate/deactivate.

Closing using an outside door handle 7
To close the panoramic roof when locking thevehicle, hold the pressure sensitive surface onthe outside of a door handle until the panoramicroof has closed completely. The panoramic roofwill stop if the button is released before it is fullyclosed. (This also applies to the windows).

6
Not available in all markets
7
Vehicles with the optional keyless Passive Entry system only.

INSTRUMENTS AND CONTROLS
}}
* Option/accessory, for more information, see Introduction.113

Auto-stop
The laminated panoramic roof has an auto-stopfeature that is triggered if the glass section of theroof or the sun shade is blocked in any way whenbeing closed. In this case, the laminated panor-amic roof or sun shade will stop and reverseautomatically approximately 2 in. (5 cm) from thepoint at which it was blocked (or will open fully tothe tilt position).
The auto-stop feature also functions when thelaminated panoramic roof or sun shade is beingopened.

WARNING
For 10 minutes after the auto-stop functionhas been triggered, it will not function againthe first time the control is moved in the samedirection as when the auto-stop function wastriggered.
The auto-stop feature can be overridden if theclosing procedure has been interrupted (e.g., dueto ice around the moonroof) by pressing andholding the control forward/down until the moon-roof is closed.
Power windows
All power windows can be operated using thecontrol panel in the driver's door. The controlpanels in the other doors only operate the win-dow in the respective doors.
Driver's door control panel
Switch for power child safety locks* and dis-engaging rear power window buttons
Rear window controls
Front window controls

Related information
•Operating the power windows (p. 113)
•Child safety locks (p. 257)
Operating the power windows
WARNING
•Always put the ignition in mode 0 andremove the ignition key from the vehiclewhen the vehicle is unattended
•Never leave children unattended in thevehicle.
•Make sure that the windows are com-pletely unobstructed before they areoperated.

Operating
Operating the power windows
Manual up/down
Auto up/down.
For the power windows to function, the ignitionmust be in at least mode I. When the vehicle has

INSTRUMENTS AND CONTROLS
* Option/accessory, for more information, see Introduction.117
Sub-categoriesType of setting
Electric Parking BrakeCombination
SeatsCombination
WipersCombination
SuspensionGlobal

Sound
Sub-categoriesType of setting
Sound Experience*Personal
TonePersonal
BalancePersonal
System VolumesCombination

Navigation
Sub-categoriesType of setting
MapPersonal
RoutePersonal
TrafficPersonal
GuidancePersonal
SystemPersonal
Media
Sub-categoriesType of setting
AM/FM RadioAPersonal
SiriusXMPersonal
Gracenote®Personal
VideoPersonal
AAM radio is not available in hybrid models.

Communication
Sub-categoriesType of setting
Phone–
Text Messages–
Bluetooth–
Wi-FiGlobal
Vehicle Wi-Fi HotspotGlobal
Vehicle Modem InternetGlobal
Volvo On Call–
Volvo Service NetworksGlobal

Climate
The main category Climate has no sub-catego-ries.
System
Sub-categoriesType of setting
Driver ProfilePersonal
Date & Time–
LanguagePersonal
Keyboard LayoutsGlobal
Voice ControlPersonal
UnitsPersonal
Storage–
Software Updates–
Global Reset–
Services–

Related information
•Settings view (p. 115)
•Changing system settings in Settings view(p. 118)

INSTRUMENTS AND CONTROLS
* Option/accessory, for more information, see Introduction.118

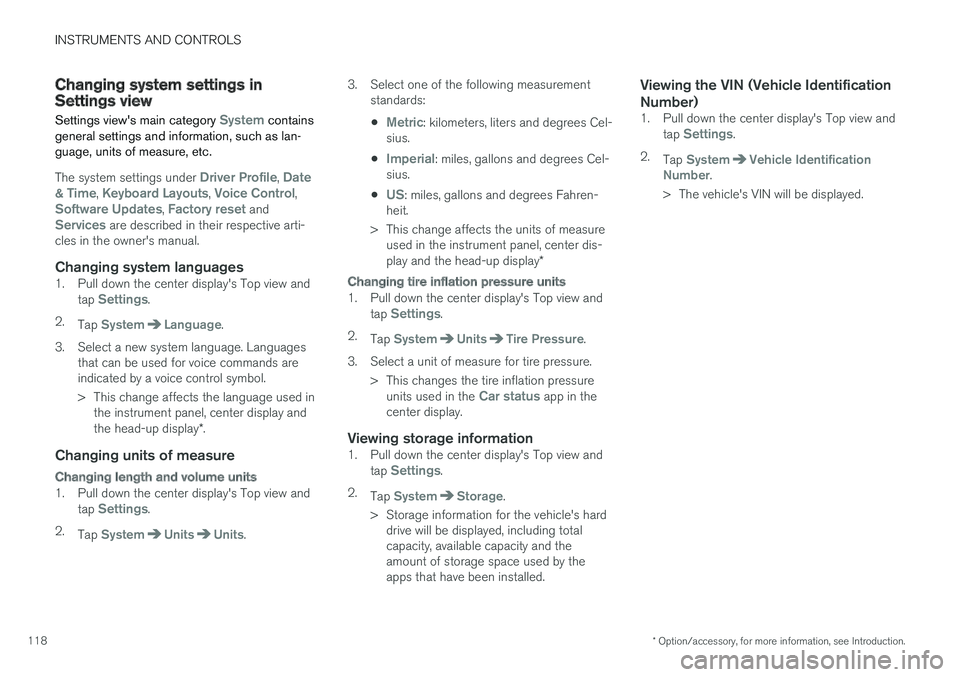

Changing system settings inSettings view
Settings view's main category System containsgeneral settings and information, such as lan-guage, units of measure, etc.
The system settings under Driver Profile, Date& Time, Keyboard Layouts, Voice Control,Software Updates, Factory reset andServices are described in their respective arti-cles in the owner's manual.

Changing system languages
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemLanguage.
3. Select a new system language. Languagesthat can be used for voice commands areindicated by a voice control symbol.
> This change affects the language used inthe instrument panel, center display andthe head-up display*.

Changing units of measure
Changing length and volume units
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemUnitsUnits.
3. Select one of the following measurementstandards:
•Metric: kilometers, liters and degrees Cel-sius.
•Imperial: miles, gallons and degrees Cel-sius.
•US: miles, gallons and degrees Fahren-heit.
>This change affects the units of measureused in the instrument panel, center dis-play and the head-up display*
Changing tire inflation pressure units
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemUnitsTire Pressure.
3.Select a unit of measure for tire pressure.
> This changes the tire inflation pressureunits used in the Car status app in thecenter display.

Viewing storage information
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemStorage.
>Storage information for the vehicle's harddrive will be displayed, including totalcapacity, available capacity and theamount of storage space used by theapps that have been installed.
Viewing the VIN (Vehicle Identification
Number)
1. Pull down the center display's Top view andtap Settings.
2.Tap SystemVehicle IdentificationNumber.
>The vehicle's VIN will be displayed.

INSTRUMENTS AND CONTROLS
}}
123

NOTE
The driver's ability to see information in theHUD may be impeded by:
•the use of polarizing sunglasses
•the use of an aftermarket or non-Volvoreplacement windshield
•not sitting in the center of the driver'sseat
•objects on the HUD projector glass onthe dashboard
•certain ambient lighting conditions
•certain types of vision problems, whichmay also result in headaches or eyestrain.
•Activating/deactivating and settings forHUD are only possible when an image isprojected on the windshield. The enginemust be running.

Activating/deactivating HUD
HUD can be activated in two ways in the centerdisplay:

Via Function view
Tap the Head-up display but-ton.
Via settings
1.Tap Settings in Top view.
2.Tap My CarDisplays.
3.Select/deselect Head-Up Display.
This selection can be stored as a personal set-ting in a driver profile.

Selecting display alternatives
1.Tap Settings in Top view.
2.Tap My CarDisplaysHead-UpDisplay Options.
Tap Go to the center display's Settings viewand select Driver Display & Head-upDisplay.
3.Select : Show Navigation In Head-UpDisplay, Road Sign Information In Head-Up Display, Show Driver Support InHead-Up Display or Show Phone InHead-Up Display.
This selection can be stored as a personal set-ting in a driver profile.
Adjusting HUD brightness and height
position
1.Tap Head-up display adjustments in thecenter display's Function view.
2.Use the right-side steering wheel keypad toadjust the HUD's brightness and height posi-tion on the windshield in the driver's field ofvision.
Reduce brightness
Increase brightness
Higher position

||
INSTRUMENTS AND CONTROLS
* Option/accessory, for more information, see Introduction.124
Lower position
Confirm

Adapting brightness
The brightness of the graphics displayed in theHUD are also automatically adjusted according toambient lighting conditions. HUD brightness isalso affected by adjustments to the brightness ofthe other displays in the vehicle.

Power front seat * memory function
The position of the HUD can be stored in thepower seat's memory function.

Replacing the windshield
Vehicles with a head-up display have a specialtype of windshield meeting the requirements fordisplaying projected information.
If the windshield has to be replaced, contact atrained and qualified Volvo service technician orauthorized workshop. The correct type of replace-ment windshield must be used for a head-up dis-play.

Calibrating the horizontal position
If the windshield has been replaced, it may benecessary to calibrate the HUD's horizontal posi-tion. This means that the projected image willhave to be rotated clockwise or counterclockwise.To do so:
1. Pull down the center display's Top view andtap Settings.
2.Select My CarDisplaysHead-UpDisplay Calibration.
3.Use the buttons on the right-side steeringwheel keypad to calibrate the horizontal posi-tion.
Rotate counterclockwise
Rotate clockwise
Confirm

Cleaning
Wipe the glass covering the HUD projection unitcarefully with a clean and dry (or very slightlydamp if necessary) microfiber cloth.
Never use strong stain removers. For difficultcleaning conditions, a special cleaning agent canbe purchased at a Volvo retailer.
Related information
•Center display overview (p. 33)
•Navigating in the center display's views(p. 43)

INSTRUMENTS AND CONTROLS
}}
* Option/accessory, for more information, see Introduction.125
Voice control
Voice commands make it possible for the driverto voice-control certain functions in the mediaplayer, a Bluetooth-connected cell phone, cli-mate system and the Volvo navigation system*.
Voice control offers convenience and enables thedriver to keep his/her hands on the steeringwheel and concentrate on driving and the trafficsituation around the vehicle.

WARNING
As the driver, you have full responsibility foroperating the vehicle safely and adhering toall applicable traffic regulations.
Input to the system is in dialog form and compri-ses commands from the driver and a verbalresponse from the system.
The voice control system uses the same micro-
phone as the Bluetooth hands-free system andsystem responses come via the infotainment sys-tem's speakers.
In certain cases, text messages are also providedin the instrument panel.
The functions are controlled using the right-sidesteering wheel keypad and settings are madefrom the center console.
System updates
The voice control system is being constantlyimproved and updates should be downloaded foroptimal functionality. See the support sitesupport.volvocars.com.

Related information
•Using voice commands (p. 125)
•Voice control settings (p. 130)
•Voice control for radio and media (p. 127)
•Voice control for cell phones (p. 126)
•System updates (p. 506)
•Navigation system voice commands (p. 129)
•Climate system voice commands (p. 128)
Using voice commands
The following is an introduction for using voicecommands.
Press the button on the right-side steering wheel keypad toactivate the system and initiatea voice command dialog.
Keep the following points in mind when usingvoice commands:
•When giving a command, speak at your usualspeed and in a normal tone of voice afterthe tone.
•Avoid speaking while the system is respond-ing. Commands cannot be processed duringa response.
•Avoid background noises in the cabin whenusing the system by closing the vehicle'sdoors, windows and panoramic roof* whengiving voice commands.
Voice command dialogs can be cancelled by:
•Saying "Cancel".
•By pressing and holding the button onthe right-side steering wheel keypad.
To speed up a command dialog or to skip system
responses, press the button on the right-side steering wheel keypad when the system isresponding and give your next command.
