2017 VOLVO V90 display

CLIMATE CONTROL
* Option/accessory.
184
Air quality
The materials selected for the passenger com- partment and the air cleaning system ensure thatthe air quality in the passenger compartment ishigh.
Materials in the passenger compartment
The interior of the passenger compartment is designed to be pleasant and comfortable, evenfor people with contact allergies and for asthmasufferers. Tested materials have been developed in order to minimise the quantity of dust in the passengercompartment and to contribute to making thepassenger compartment easier to keep clean. The carpets in both the passenger compartment and the cargo area are removable and easy toremove and clean. Use cleaning agents and car care products rec- ommended by Volvo to clean the interior.
Air cleaning systemIn addition to the passenger compartment filter,the modifications for Clean Zone Interior Package * and the air quality system Interior Air
Quality System * also help to maintain high air
quality in the passenger compartment.
Clean Zone *The Clean Zone function checks whether or not all conditions have been met for good air qualityin the passenger compartment.
The indicator is visible in the climate view in the centre display.
The indicator is visible in the climate row when the climate view is not open.
If the conditions have not been met then the
Clean Zone text is white. When all conditions
have been met, this is indicated by the text changing colour to blue. Conditions that are checked:
• That all doors and the tailgate are closed.
• That all side windows and the panorama roof
* are closed.
• That the air quality system Interior Air QualitySystem
* is activated. •
That the ventilation fan is activated.
• That the air recirculation is deactivated.
NOTE
Clean Zone does not indicate that the air quality is good. It only indicates that the con-ditions for good air quality have been met.
Related information
•Climate control (p. 182)
• Passenger compartment filter (p. 185)
• Clean Zone Interior Package
* (p. 185)
• Interior Air Quality System
* (p. 185)
• Cleaning the interior (p. 552)
• Climate controls in the centre display (p. 187)

||
CLIMATE CONTROL
* Option/accessory.
186 1.
Press
Settings in the top view in the centre
display.
2. Press
Climate.
3. Select
Air Quality Sensor to activate/deac-
tivate the air quality sensor.
Related information
• Air quality (p. 184)
• Passenger compartment filter (p. 185)
• Clean Zone Interior Package
* (p. 185)
• Activating/deactivating air recirculation (p. 196)
Climate controls
The climate control system's functions are con- trolled from the centre display, physical buttonsin the centre console and the climate panel at the rear of the tunnel console *.
Overview of climate controls
Climate controls in the centre display.
Defrost buttons in the centre console.
Climate controls at the rear of the tunnel console *.
Related information
• Climate control (p. 182)
• Climate controls in the centre display (p. 187)
• Climate controls at the rear of the tunnel console
* (p. 188) •
Activating/deactivating defrost of windows and door mirrors (p. 194)

CLIMATE CONTROL
}}
* Option/accessory.187
Climate controls in the centre display All climate functions can be regulated from the climate row and the climate view in the centredisplay.
Climate rowThe most common climate functions can be regulated from the climate row.
Temperature controls for driver and passen- ger side.
Controls for heated * and ventilated * driver
and front passenger seat, as well as heated steering wheel *.
Button for access to the climate view. The graphic on the button shows activated cli-mate settings.
Climate viewOne tap on the centre button in the climate rowgives access to the climate view. The climate view is divided into the tabs
Main climate, Rear
climate* and Parking climate*. Change
between the tabs by swiping left/right or by pressing the respective heading.
Main climate
In addition to the climate row's functions, other main climate functions can also be controlled in the
Main climate tab.
Max, Electric, Rear - Controls for defrosting
the windows and door mirrors.
AC - Controls for air conditioning.
Recirc - Controls for air recirculation.
Controls for air distribution.
Fan control for front seat (with 2-zone cli- mate, the control is shared with the rearseat).
AUTO - Auto regulating the climate.

CLIMATE CONTROL
* Option/accessory.189
•
Regulating the fan level (p. 193)
• Regulating the temperature (p. 190)

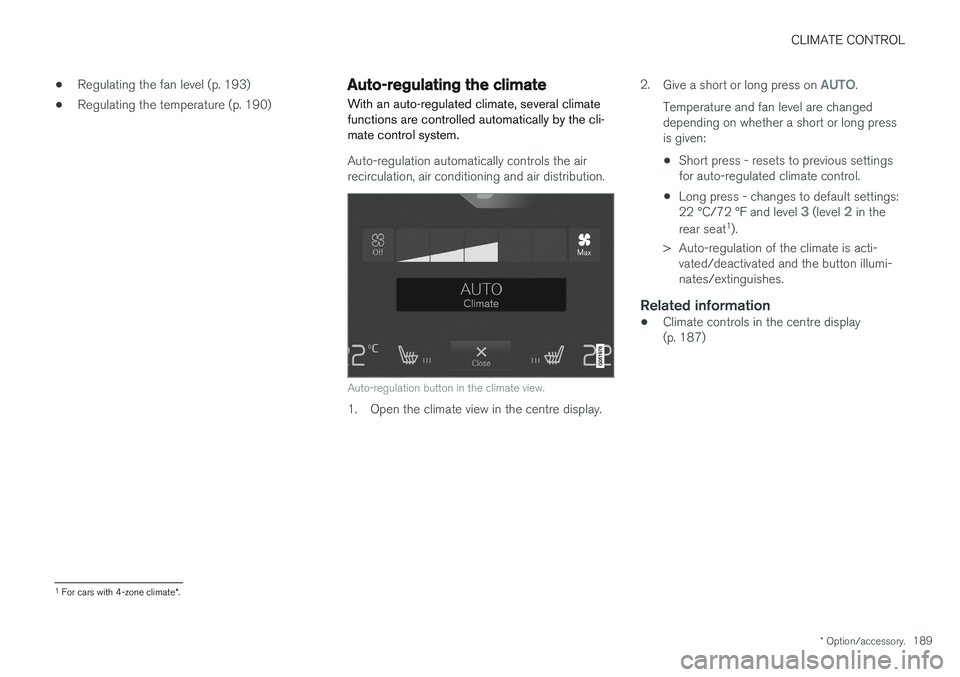

Auto-regulating the climate
With an auto-regulated climate, several climate functions are controlled automatically by the cli-mate control system.
Auto-regulation automatically controls the air recirculation, air conditioning and air distribution.
Auto-regulation button in the climate view.
1. Open the climate view in the centre display. 2.
Give a short or long press on
AUTO.
Temperature and fan level are changed depending on whether a short or long pressis given:
• Short press - resets to previous settingsfor auto-regulated climate control.
• Long press - changes to default settings: 22 °C/72 °F and level
3 (level 2 in the
rear seat 1
).
> Auto-regulation of the climate is acti- vated/deactivated and the button illumi- nates/extinguishes.
Related information
• Climate controls in the centre display(p. 187)
1
For cars with 4-zone climate *.

CLIMATE CONTROL
* Option/accessory.
190
Activating/deactivating air conditioning
The air conditioning cools and dehumidifies incoming air as required.
Activating/deactivating the main air conditioning
The air conditioning button in the climate view.
1. Open the climate view in the centre display. 2. Press
AC.
> The air conditioning is activated/deacti- vated and the button illuminates/extin- guishes. When the air conditioning is activated, the climate control system automatically con-trols starting and switching off asrequired.
NOTE
Close all side windows and the panorama roof * for air conditioning to work optimally.
NOTE
It is not possible to activate the air condition- ing when the fan control is in Off position.
Related information
• Climate controls in the centre display (p. 187)
Regulating the temperature
The temperature can be set separately for the left and right-hand sides. With 4-zone climate *
the temperature can also be set separately for the front and rear seats.
Regulating temperature for front seat 2
Temperature buttons in the climate row.
1. Press the left or right-hand side temperature
button in the centre display's climate row to open the controls.
2For 2-zone climate, also rear seat.

CLIMATE CONTROL
}}
* Option/accessory.191
Temperature control.
2. Regulate the temperature by either of the
following:
• drag the control to the desired tempera- ture, or
• press
+/− to raise/lower the temperature
gradually.
> The temperature changes and the button shows the set temperature.
Synchronising the temperature
Synchronisation button on the driver's side temperature controls.
1. Press the driver's side temperature button in the centre display's climate row in order to open the controls.
2. Press
Synchronise temperature.
> The temperature for all zones in the car is synchronised with the temperature set for the driver's side and the synchronisationsymbol is shown adjacent to the tempera-ture button.
Synchronisation is stopped by a further press on
Synchronise temperature or by changing the
passenger side or rear seat * temperature set-
tings.
Regulating temperature for rear seat *
From the front seat
Temperature buttons in the Rear climate tab in the cli-
mate view.
1. Open the climate view in the centre display
and select the tab for Rear climate.
2. Press the left or right-hand side temperature button to open the control.

||
CLIMATE CONTROL
* Option/accessory.
192
Temperature control.
3. Regulate the temperature by means of the
following:
• drag the control to the desired tempera- ture
• press
+/− to raise/lower the temperature
gradually.
> The temperature changes and the button shows the set temperature.
From the rear seat
Temperature control on the climate panel at the rear of the tunnel console.
–Press the left or right-hand side buttons
on the tunnel console's climate panel in order to lower/raise the temperature gradu-ally.
> The temperature changes and the screen in the climate panel shows the set tem- perature.
NOTE
Heating or cooling cannot be hastened by selecting a higher or lower temperature thanthe actual desired temperature.
Related information
• Climate controls (p. 186)
• Climate controls in the centre display (p. 187)
• Climate controls at the rear of the tunnel console
* (p. 188)
• Perceived temperature (p. 183)

CLIMATE CONTROL
}}
* Option/accessory.193
Regulating the fan level
The fan can be set to five different automatic fan levels as well as
Off and Max. With 4-zone cli-
mate * the fan level can be set separately for the
front and rear seats.
Regulating fan level for front seat 3
Fan control buttons in the climate view.
1. Open the climate view in the centre display. 2.
Tap on the desired fan level,
Off, 1-5 or Max.
> Fan level is changed and the buttons for the selected level illuminate.
IMPORTANT
If the fan is fully switched off then the air con- ditioning is not engaged, which results in arisk of misting on the insides of the windows.
Regulating fan level for rear seat *
From the front seat
The fan control buttons in the tab Rear climate in the
climate view.
1. Open the climate view in the centre display
and select the tab for Rear climate.
2. Tap on the desired fan level,
1-5.
The rear seat's fan level can be switched off by tapping on
2nd row climate.
> Fan level is changed and the buttons for the selected level illuminate.
From the rear seat
Fan controls on the climate panel at the rear of the tun- nel console.
–Press the desired fan level, Off or 1-5 on the
tunnel console climate panel.
> Fan level is changed and the buttons for the selected level illuminate.
NOTE
The fan level for the rear seat cannot be set if the fan level for the front seat is in position
Off.
3For 2-zone climate, also rear seat.
