1052. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
These images are examples only, and may vary slightly from actual condi-
tions.
When the vehicle is powered by
both the gasoline engine and the
electric motor
(traction motor)
When the vehicle is charging the
hybrid battery
(traction battery)
When there is no energy flow
Hybrid battery
(traction battery) status
Low Full

Navigation/Multimedia system

1062. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
Press the button on the
navigation/multimedia system.
Select “Trip information”.
Displays the average vehicle
speed since the hybrid system
was started.
Cruising range ( P. 108)
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.
Displays the elapsed time since the hybrid system was started.
Resetting the consumption data
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
This image is an example only.
Trip information (navigation/multimedia system)
1
2
1
2
3
4
5
6

1072. Instrument cluster
2
Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
Press the button on the
navigation/multimedia system.
Select “Past record”.
Best recorded fuel consump-
tion
Previous fuel consumption
record
Average fuel consumption
Updating the average fuel
consumption data
Resetting the past record
data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
This image is an example only.
Past record (navigation/multimedia system)
1
2
1
2
3
4
5

1082. Instrument cluster
YARIS_HV_OM_Europe_OM52G76E
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.
■ Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

109
3
Operation of
each component
YARIS_HV_OM_Europe_OM52G76E
3-1. Key information
Keys ................................... 110
3-2. Opening, closing
and locking the doors
Side doors.......................... 122
Back door........................... 128
Smart entry &
start system ..................... 134
3-3. Adjusting the seats
Front seats ......................... 148
Rear seats ......................... 150
Head restraints .................. 153
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 155
Inside rear view mirror ....... 157
Outside rear view mirrors... 159
3-5. Opening and closing
the windows
Power windows .................. 162

1103-1. Key information
YARIS_HV_OM_Europe_OM52G76E
Keys
The following keys are provided with the vehicle.
Vehicles without a smart entry & start system (type A)
Keys
Key number plate
Vehicles without a smart entry & start system (type B)
Key (with a wireless remote
control function)
Operating the wireless remote con-
trol function ( P. 123)
Key (without a wireless remote
control function)
Key number plate
Vehicles without a smart entry & start system (type C)
Keys
Operating the wireless remote con-
trol function ( P. 123)
Key number plate
The keys
1
2
1
2
3
1
2

1113-1. Key information
3
Operation of each component
YARIS_HV_OM_Europe_OM52G76E

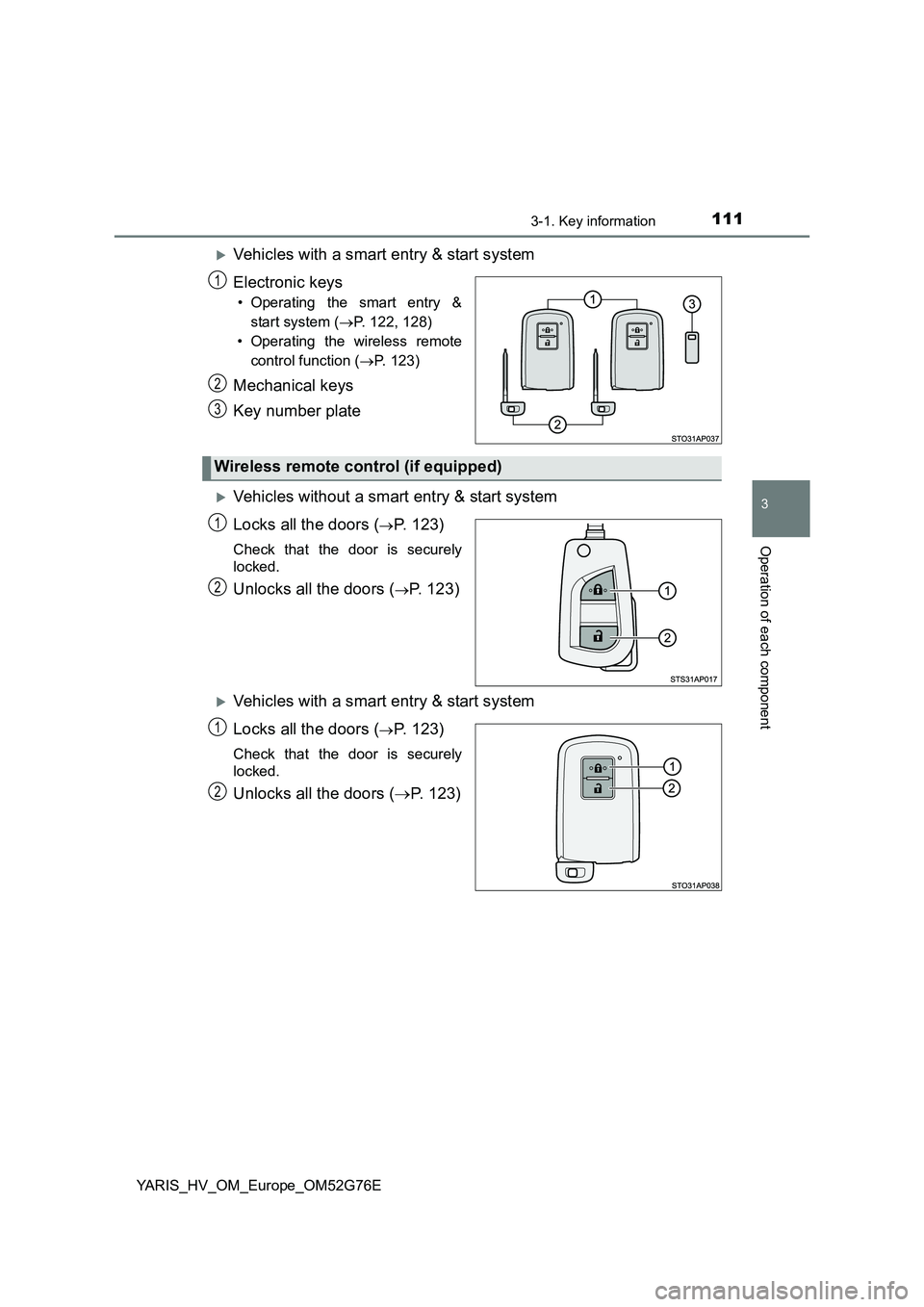

Vehicles with a smart entry & start system
Electronic keys
• Operating the smart entry &
start system ( P. 122, 128)
• Operating the wireless remote
control function ( P. 123)
Mechanical keys
Key number plate
Vehicles without a smart entry & start system
Locks all the doors (P. 123)
Check that the door is securely
locked.
Unlocks all the doors (P. 123)
Vehicles with a smart entry & start system
Locks all the doors (P. 123)
Check that the door is securely
locked.
Unlocks all the doors ( P. 123)
1
2
3
Wireless remote control (if equipped)
1
2
1
2

1123-1. Key information
YARIS_HV_OM_Europe_OM52G76E
Press the button to open the key.
To stow, press the button then fold
the key.
To take out the mechanical key,
push the release button and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function (if equipped) does not
operate properly, you will need the
mechanical key. ( P. 448)
■If you lose your keys
New genuine keys can be made by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional using the other key and
the key number stamped on your key number plate. Keep the plate in a safe
place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remo te control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying a key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
Using the master key (vehicles without a smart entry & start sys-
tem)
Using the mechanical key (vehicles with a smart entry & start
system)
