7-3. Do-it-yourself maintenance
7
Maintenance and care
Air conditioning filter
Vehicles without smart key system: Turn the engine switch to the
“LOCK” position.
Vehicles with smart key system: Turn the engine switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
Remove the filter cover.
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4

585
RAV4_OM_OM0R005U_(U)
7-3. Do-it-yourself maintenance
7
Maintenance and care
Wireless remote control/electronic key battery
●Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without smart key system), or
CR2032 (vehicles with smart key system)
Vehicles without smart key system
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the module.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery.
Insert a new battery with the “+”
terminal facing up.
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

586
RAV4_OM_OM0R005U_(U)
7-3. Do-it-yourself maintenance
Vehicles with smart key system
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
1
2
3

RAV4_OM_OM0R005U_(U)
5877-3. Do-it-yourself maintenance
7
Maintenance and care
■Use a CR2016 (vehicles without smar t key system), or CR2032 (vehicles
with smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
●The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

588
RAV4_OM_OM0R005U_(U)
7-3. Do-it-yourself maintenance
Checking and replacing fuses
Vehicles without smart key system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart key system:
Turn the engine switch off.
Open the fuse box cover or instrument panel.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment type AEngine compartment type B
Push the tabs in and lift the cover
off. Push the tabs in and lift the cover
off.
Under the instrument panelBehind the instrument panel
Remove the cover. Remove the instrument panel.

603
RAV4_OM_OM0R005U_(U)
8When trouble arises
8-1. Essential informationEmergency flashers .......... 604
If your vehicle has to be stopped in an
emergency ...................... 605
8-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 607
If you think something is wrong ......... 613
Fuel pump shut off system ............................ 614
If a warning light turns on or a warning buzzer
sounds ............................ 615
If a warning message is displayed......................... 625
If you have a flat tire.......... 641
If the engine will not start ..................... 654
If the electronic key does not operate properly
(vehicles with
smart key system) ........... 656
If the vehicle battery is discharged ................... 658
If your vehicle overheats ... 662
If the vehicle becomes stuck ............................... 665

605
RAV4_OM_OM0R005U_(U)
8-1. Essential information
8
When trouble arises

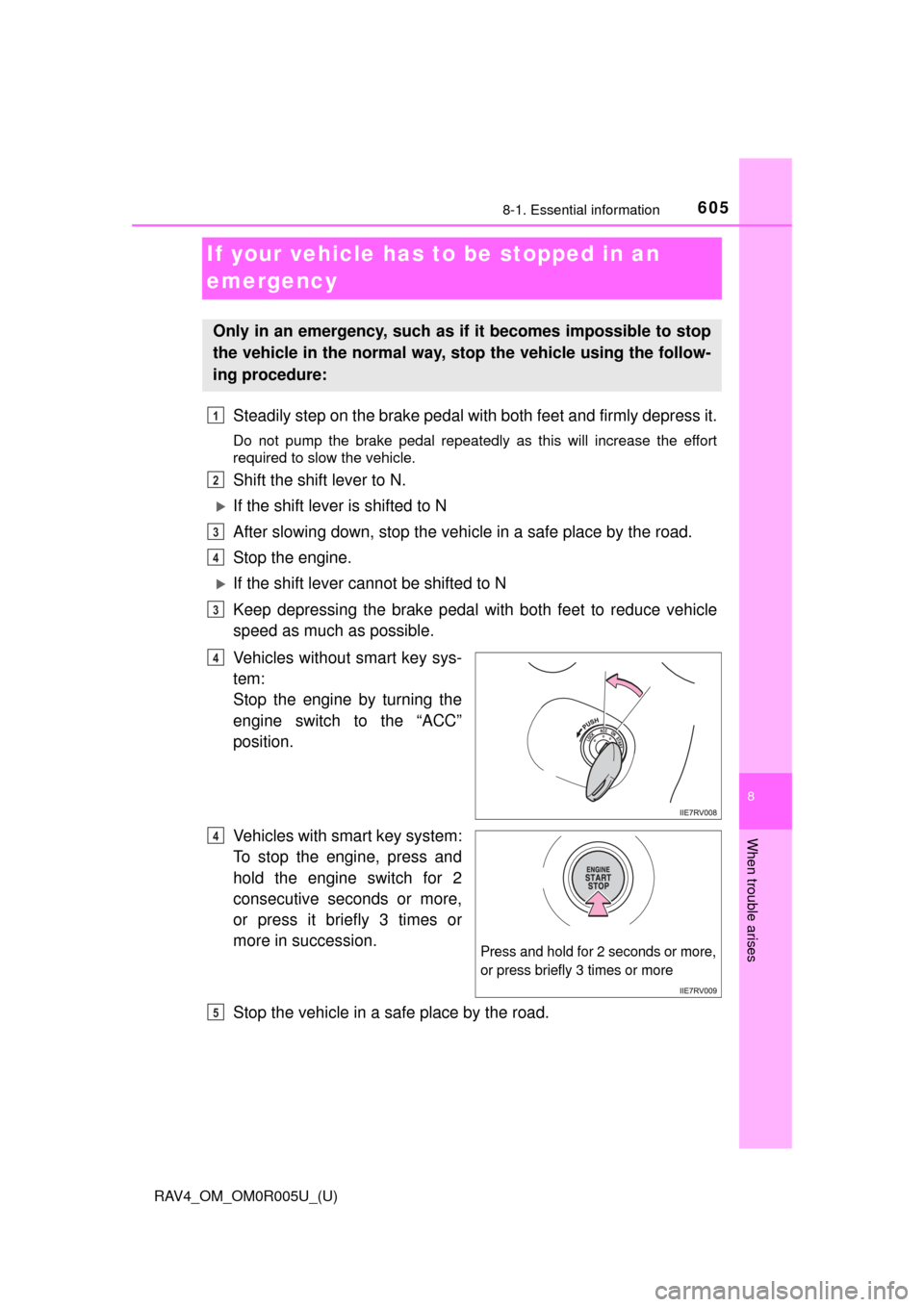

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without smart key sys-
tem:
Stop the engine by turning the
engine switch to the “ACC”
position.
Vehicles with smart key system:
To stop the engine, press and
hold the engine switch for 2
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, st op the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
5

6068-1. Essential information
RAV4_OM_OM0R005U_(U)
WARNING
■If the engine has to be turned off while driving
● Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Vehicles without smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
