6658-2. Steps to take in an emergency
PRIUS PRIME_OM_OM47A88U_(U)
8
When trouble arises
■Warning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
■ System warning lights
The master warning light does not come on or flash in the following cases.
Instead, a separate system warning light will come on along with a message
shown on the multi-information display.
●“Antilock Brake System Malfunction Visit Your Dealer”:
The ABS warning light comes on. ( →P. 654)
● “Braking Power Low Visit Your Dealer”:
The brake system warning light (yellow) will come on. ( →P. 653)
● Indicates that a door is not fully closed while the vehicle is stopped.:
The Open door warning light comes on. ( →P. 655)
■ If “Visit Your Dealer” is shown
The system or part shown on the multi-information display is malfunctioning.
Have the vehicle inspected by your Toyota dealer.
■ If a message about an operation is shown
●If a message about an operation of the accelerator pedal or brake pedal is
shown
A warning message about an operation of the brake pedal may be shown
while the driving assist systems such as PCS (Pre-Collision System) or the
dynamic radar cruise control with full-speed range is operating. If a warning
message is shown, be sure to decelerate the vehicle or follow an instruction
shown on the multi-information display.
● A warning message is shown when Drive-Start Control, Brake Override Sys-
tem or Intelligent Clearance Sonar (if equipped) operates ( →P. 308, 308,
435). Follow the instructions on the multi-information display.
● If a message about an operation of the power switch is shown
An instruction for operation of the power switch is shown when the incorrect
procedure for starting the hybrid system is performed or the power switch is
operated incorrectly. Follow the instructions shown on the multi-information
display to operate the power switch again.
● If a message about a shift operation is shown
To prevent the shift position from being selected incorrectly or the vehicle
from moving unexpectedly, the shift position may be changed automatically
(→P. 332) or shift operation may be required. In this case, change the shift
position following the instructions on the multi-information display.
● If a message or image about an open/close state of a part or replenishment
of a consumable is shown
Confirm the part indicated by the multi-information display or a warning light,
and then perform the coping method such as closing the open door or
replenishing a consumable.

738
PRIUS PRIME_OM_OM47A88U_(U)
9-2. Customization
■Automatic light control system*1 (→ P. 338)
*1: If equipped
*2: This function cannot be customized for vehicles sold in Canada.
■
Rain-sensing windshield wipers* ( → P. 352)
*: If equipped
■
Intuitive parking assist* ( → P. 420)
*: If equipped
FunctionDefault
settingCustomized setting
Time elapsed before the
headlights turn off 30 secondsOff
–OO
60 seconds
90 seconds
Light sensor sensitivityLevel 0Level -2 to 2–OO
Daytime running lights*2OnOff–OO
123
FunctionDefault
settingCustomized setting
Wiper operation when the
wiper switch is in the “AUTO”
positionRain-sensing operation
Intermittent operation
linked to vehi- cle speed
(with interval
adjuster)
––O
123
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorsFarNear––O
Detection distance of the rear
center sensorsFarNear––O
Buzzer volume31 to 5––O
123

740
PRIUS PRIME_OM_OM47A88U_(U)
9-2. Customization

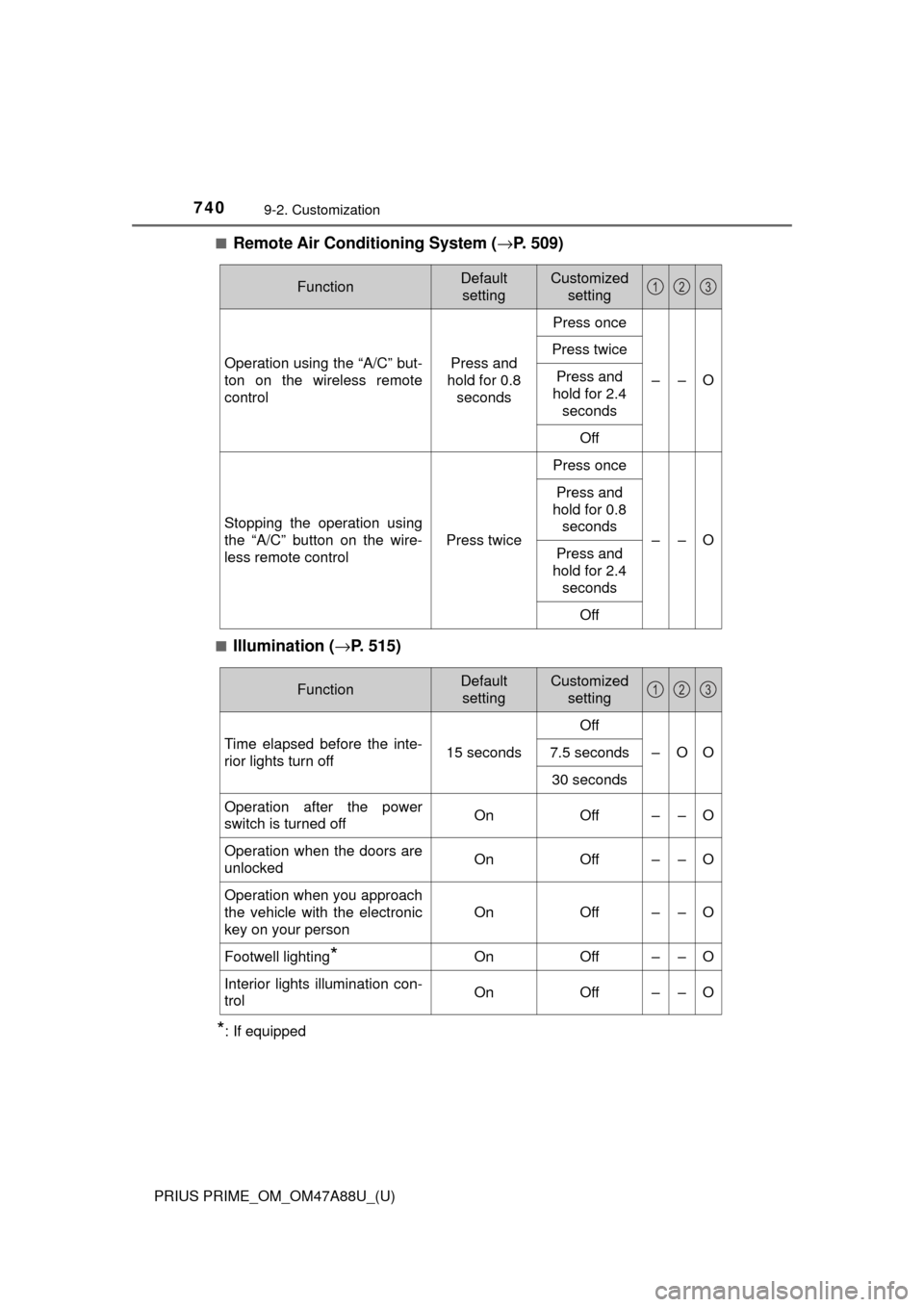

■Remote Air Conditioning System (→P. 509)
■Illumination ( →P. 515)
*: If equipped
FunctionDefault
settingCustomized setting
Operation using the “A/C” but-
ton on the wireless remote
controlPress and
hold for 0.8 seconds
Press once
––O
Press twice
Press and
hold for 2.4
seconds
Off
Stopping the operation using
the “A/C” button on the wire-
less remote control
Press twice
Press once
––O
Press and
hold for 0.8 seconds
Press and
hold for 2.4
seconds
Off
123
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off 15 secondsOff
–OO
7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
Interior lights illumination con-
trolOnOff––O
123

770Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Drive information ..................... 207
Drive-Start Control .................. 308
Driver’s seat belt reminder light......................................... 656
Driving ...................................... 306
Break-in tips .......................... 309
Correct posture ....................... 28
Driving in the rain .................. 307
Driving mode select switch ... 406
Plug-in hybrid vehicle driving tips ........................................ 97
Procedures ........................... 306
Winter drive tips .................... 482
Dynamic radar cruise control
with full-speed range ............ 391
ECB (Electronically Controlled Brake System) .... 476
Eco drive mode ........................ 406
EDR (Event data recorder) ........ 11
Electric motor (traction motor) ....................... 78
Location .................................. 78
Specification ......................... 711
Electric Power Steering (EPS)....................................... 477
Function ................................ 477
Warning light ......................... 654
Electronic key .......................... 262
Battery-saving function ......... 280
If the electronic key does not operate properly ........... 690
Replacing the battery ............ 627
Electronically Controlled Brake System (ECB) ............. 476 Emergency, in case of
If a warning buzzer sounds... 653
If a warning light turns on ..... 653
If a warning message is displayed ............................ 663
If the 12-volt battery is discharged.......................... 694
If the electronic key does
not operate properly ........... 690
If the hybrid system will not start .............................. 688
If you have a flat tire ............. 671
If you lose your keys ..... 263, 266
If you think something is wrong .............................. 652
If your vehicle becomes stuck ................................... 705
If your vehicle has to be stopped in an emergency ... 645
If your vehicle needs to be
towed.................................. 646
If your vehicle overheats....... 700
Emergency flashers ................ 644
Emergency tire puncture
repair kit ................................. 671
Energy monitor ........ 208, 247, 253
Engine Accessory mode ................... 326
Compartment ........................ 580
Engine switch ....................... 324
Exhaust gas precautions ........ 56
Hood ..................................... 577
How to start the hybrid system .......... ...................... 324
Identification number ............ 710
If the hybrid system will not start .............................. 688
If your vehicle has to be stopped in an emergency ... 645
Ignition switch (power switch) .................... 324
Overheating .......................... 700
Power switch ........................ 324
E

772Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Hands-free system (for cellular phone)
*
Head restraints ........................ 291
Head-up display ....................... 238
Headlights ................................ 338
Automatic High Beam system ......... ....................... 343
Headlight aim ................ 633, 758
Light switch ........................... 338
Replacing light bulbs............. 640
Heated steering wheel............. 514
Heaters
Automatic air conditioning system .... 488, 498
Heated steering wheel .......... 514
Outside rear view mirrors ........................ 491, 502
Seat heaters ......................... 513
High coolant temperature
warning light .......................... 655
High mounted stoplight Replacing .............................. 640
High-voltage components ........ 90
Hill-start assist control............ 477
Hood ......................................... 577
Hooks Coat hooks............................ 540
Grocery bag hook ................. 524
Retaining hooks (floor mat)..... 26
Horn .......................................... 294
HV mode ..................................... 79 Hybrid battery
(traction battery) ..................... 90
Air intake vent ......................... 91
Charging ............................... 102
Location .................................. 90
Specification ......................... 711
Status indicator ..................... 104
Hybrid battery (traction battery)
air intake vent .......................... 91
Hybrid system............................ 78 Brake Override System ........ 308
Consumption
screen ................ 218, 250, 256
Drive-Start Control ................ 308
Emergency shut off system .... 91
Energy monitor ..... 208, 247, 253
High voltage components ....... 90
Hybrid System Indicator ....... 210
If the hybrid system will not start .............................. 688
Overheating .......................... 700
Plug-in hybrid system precautions........................... 90
Plug-in hybrid vehicle driving tips........................................ 97
Power switch ........................ 324
Regenerative braking ............. 86
Starting the hybrid system .... 324
Vehicle proximity notification system................ 85
Hybrid System Indicator ......... 210
Hybrid transmission................ 330
H

773Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
I/M test ...................................... 573
Identification ............................ 709Engine................................... 710
Vehicle .................................. 709
Ignition switch
(power switch) ....................... 324 Auto power off function ......... 326
Changing the power switch modes...................... 326
If your vehicle has to be stopped in an emergency ... 645
Starting the hybrid system .... 324
Illuminated entry system ........ 517
Immobilizer system ................... 75
Indicators ................................. 188
Initialization .............................. 743 Intelligent Clearance
Sonar .................................. 439
Items to initialize ................... 743
Maintenance data ................. 568
Power windows ..................... 301
S-APGS (Simple Advanced Parking Guidance
System) .............................. 466
Tire pressure warning system ......... ....................... 596
Inside rear view mirror ............ 296
Instrument cluster light
control .................................... 182
Intelligent Clearance Sonar .... 430
Interior lights............................ 515
Switch ........................... 516, 517
Wattage ................................ 717
Intuitive parking assist............ 420 Jack .......................................... 610
Positioning a floor jack.......... 579
Vehicle-equipped jack .......... 610
Jack handle .............................. 610
Jam protection function ......... 301
Keyless entry ........................... 262 Smart key system ................. 278
Wireless remote control ........ 262
Keys .......................................... 262
Battery-saving function ......... 280
Electronic key ....................... 262
Engine switch ....................... 324
If the electronic key does not operate properly ........... 690
If you lose your keys ..... 263, 266
Key number plate ................. 262
Keyless entry ........................ 262
Keys...................................... 262
Mechanical key ..................... 263
Power switch ........................ 324
Replacing the battery............ 627
Smart key system ................. 278
Warning buzzer .................... 279
Wireless remote control key...................................... 262
Knee airbags .............................. 36
IJ
K
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.

774Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Language (multi-information display)................................... 233
LATCH system ........................... 60
LDA (Lane Departure Alert with steering control)............ 381
Lever Auxiliary catch lever .............. 577
Hood lock release lever ........ 577
Shift lever .............................. 330
Tilt and telescopic steering lock release lever ............... 294
Turn signal lever ................... 336
Wiper lever............................ 350
License plate lights ................. 338
Light switch ........................... 338
Replacing light bulbs............. 640
Light
Automatic High Beam system ......... ....................... 343
Door courtesy lights .............. 515
Emergency flasher switch ..... 644
Fog light switch ..................... 348
Headlight switch.................... 338
Illuminated entry system ....... 517
Interior lights ................. 516, 517
Interior light list...................... 515
Luggage compartment
light ..................................... 274
Personal lights ...................... 516
Replacing light bulbs............. 635
Shift lever light ...................... 515
Turn signal lever ................... 336
Vanity lights .......................... 530
Wattage ................................ 717
Light bulbs Replacing .............................. 635
Wattage ................................ 717
Load capacity........................... 321
Luggage cover ......................... 525 Main display ............................. 196
Maintenance
Do-it-yourself maintenance... 574
General maintenance ........... 570
Maintenance data ................. 708
Maintenance requirements ... 567
Malfunction indicator lamp..... 653
Master warning light ............... 663
Meter ......................................... 180 Clock adjustment .................. 185
Combination meter ............... 180
Head-up display.................... 238
Indicators .............................. 191
Instrument cluster light control ................................ 182
Main display.......................... 196
Multi-information display ....... 205
Warning lights ....................... 189
Warning messages ............... 663
Microphone
*............................ 548
Mirrors Inside rear view mirror .......... 296
Outside rear view mirror defoggers ................... 491, 502
Outside rear view mirrors ..... 298
Vanity mirrors ....................... 530
MP3 disc
*
Multi-information display........ 205
Air conditioning system settings screen ................... 226
Audio system-linked display ................................ 225
BSM (Blind Spot Monitor) ..... 408
Display contents ................... 205
Drive information .................. 207
Driving assist system
information ......................... 230
Dynamic radar cruise control with full-speed range .......... 391
LM

775Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Energy monitor ..................... 208
Intelligent Clearance Sonar .................................. 435
Intuitive parking assist .......... 421
Language .............................. 233
LDA (Lane Departure Alert with steering control) .......... 385
Navigation system-linked
display ................................ 225
Pre-collision warning............. 369
S-APGS (Simple Advanced Parking Guidance
System) .............................. 446
Settings ................................. 231
Warning message ................. 230
Navigation system
*
Noise from under vehicle............ 8
Odometer.................................. 198
Oil Engine oil .............................. 712
Opener Back door.............................. 273
Fuel filler door ....................... 358
Garage door.......................... 541
Hood ..................................... 577
Outside rear view mirrors ....... 298
Adjustment ............................ 298
Blind Spot Monitor ................ 408
Folding .................................. 298
Outside rear view mirror defoggers ................... 491, 502
Outside temperature
display .................................... 196
Overhead console ................... 522
Overheating.............................. 700 P position switch ..................... 331
Panic mode .............................. 263
Parking assist sensors
Intelligent Clearance Sonar.................................. 430
Intuitive parking assist .......... 420
S-APGS (Simple Advanced Parking Guidance
System) .............................. 442
Parking brake........................... 337 Operation .............................. 337
Parking brake engaged
warning buzzer ................... 337
Parking lights........................... 338
Light switch ........................... 338
Replacing light bulbs ............ 640
Parking lock ............................. 331
PCS (Pre-Collision System).... 369
Enabling/disabling the system .......... ...................... 373
Function ................................ 369
Warning light......................... 654
Personal lights......................... 515
Switch ................................... 516
Wattage ................................ 717
Plug-in hybrid system ............... 78 Driving tips .............................. 97
EV auto mode ......................... 79
EV driving range ................... 100
EV mode ................................. 79
EV/HV mode selection
switch ................................... 82
Features ................................. 78
How to charge ...................... 136
HV mode................................. 79
Hybrid battery (traction
battery) charge mode ........... 79
N
O
P
*: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
