HIGHLANDER_U (OM0E017U)
2. Instrument cluster
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

872. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)

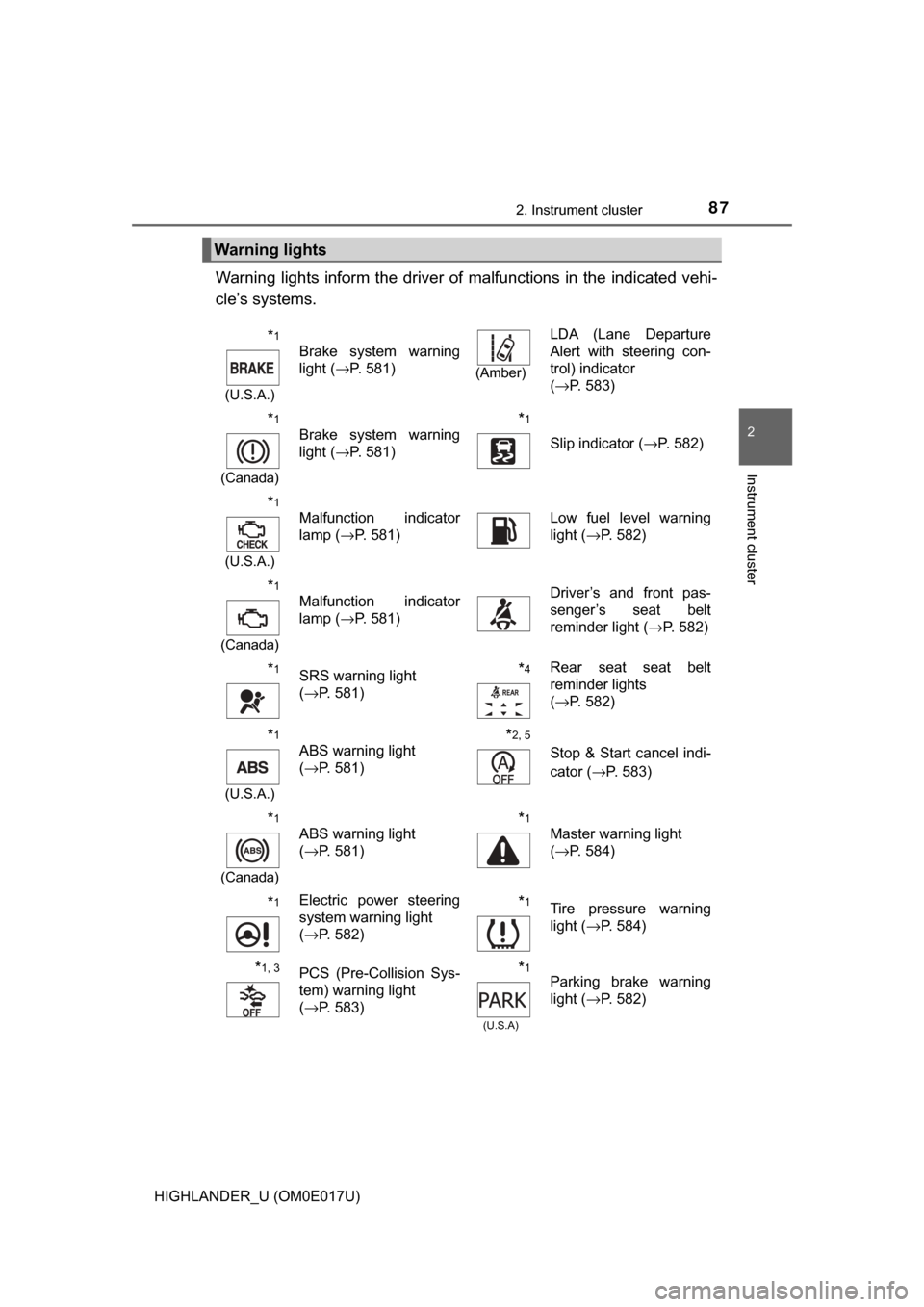

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( →P. 581)
(Amber)
LDA (Lane Departure
Alert with steering con-
trol) indicator
(→P. 583)
*1
(Canada)
Brake system warning
light ( →P. 581)*1
Slip indicator ( →P. 582)
*1
(U.S.A.)
Malfunction indicator
lamp (→P. 581)Low fuel level warning
light (→P. 582)
*1
(Canada)
Malfunction indicator
lamp ( →P. 581)Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 582)
*1SRS warning light
(→P. 581)*4Rear seat seat belt
reminder lights
(→P. 582)
*1
(U.S.A.)
ABS warning light
(→P. 581)*2, 5
Stop & Start cancel indi-
cator
(→P. 583)
*1
(Canada)
ABS warning light
(→P. 581)*1
Master warning light
(→P. 584)
*1Electric power steering
system warning light
(→P. 582)*1Tire pressure warning
light ( →P. 584)
*1, 3PCS (Pre-Collision Sys-
tem) warning light
(→P. 583)*1
(U.S.A)
Parking brake warning
light ( →P. 582)

882. Instrument cluster
HIGHLANDER_U (OM0E017U)
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system), to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
a light does not come on, or turn off. Have the vehicle inspected by your
Toyota dealer.
*2: If equipped
*3: The light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.
*5: The light flashes to indicate a malfunction. Additionally, it will turn on if thesystem is turned off.
*1
(Canada)
Parking brake warning
light ( →P. 582)

892. Instrument cluster
2
Instrument cluster
HIGHLANDER_U (OM0E017U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( →P. 233) LDA (Lane Departure
Alert with steering con-
trol) indicator
(
→P. 275)
(U.S.A.)
Headlight indicator
(→P. 235)*2, 3 Intuitive parking assist
indicator
(Canada)
Tail light indicator
(→P. 235) *2BSM (Blind Spot Moni-
tor) indicator( →P. 316)
Headlight high beam
indicator ( →P. 236)
*2, 6, 7BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(→P. 316)
Automatic High Beam
indicator ( →P. 239)
*1, 4 Slip indicator ( →P. 333)
*2Front fog light indicator
(→P. 243)*1VSC OFF indicator
(→P. 333)
Dynamic radar cruise
control (constant speed
control mode) indicator
( →P. 293)
*1, 2All-wheel drive lock indi-
cator ( →P. 330)
Dynamic radar cruise
control (vehicle-to-vehi-
cle distance control
mode) indicator
( →P. 289)
*2Downhill assist control
system indicator
(→P. 337)
Dynamic radar cruise
control “SET”
indicator ( →P. 289, 293)
*8Security indicator
(→P. 80, 82)
*1, 5PCS (Pre-Collision Sys-
tem) warning light
(→P. 261)*1, 9Eco Driving Indicator
Light ( →P. 102)

902. Instrument cluster
HIGHLANDER_U (OM0E017U)
*1: These lights turn on when the engine switch is turned to the “ON” position(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system), to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
a light does not come on, or turn off. Have the vehicle inspected by your
Toyota dealer.
*2: If equipped
*3: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-UAL”.
*4: The light flashes to indicate that the system is operating.
*5: The light comes on when the system is turned off.
*2“PWR MODE” indicator
(→
P. 229)
*2, 5Stop & Start cancel indi-
cator ( →P. 297)
Snow mode indicator
( →P. 228)
*1, 8
(U.S.A.)
“AIR BAG ON/
OFF” indicator
(→P. 53)
*2
Stop & Start indicator
(→P. 297)
*1, 8
(Canada)
“AIR BAG ON/
OFF” indicator
(→P. 53)
