2017 TOYOTA GT86 sensor

134
1-7. Safety information
86_EE (OM18071E)
●
Side airbag sensor
• Center pillar right-hand side
• Center pillar left-hand side
● Side airbag module
• Driver’s side
• Front passenger’s side
● Curtain shield airbag sensor
• Rear wheel house right-hand side
• Rear wheel house left-hand side
● Curtain shield airbag module
• Right-hand side
• Left-hand side
● Satellite safing sensor (under the center of the rear seats)
● Seat belt pretensioner
• Driver’s side
• Front passenger’s side
● All related wiring
● Door impact sensor
• Right-hand side
• Left-hand side
● Front passenger’s front airbag cut off switch (passenger's side of
instrument panel)
● Front passenger’s front airbag ON and OFF indicator

233
2-3. Operating the lights and windshield wipers
2
When driving
86_EE (OM18071E)
■
Daytime running light system
●Vehicles with an automatic transmission: To make your vehicle more visi-
ble to other drivers during daytime dr iving, the daytime running lights turn
on automatically whenever the engine is started and the parking brake is
released with the headlight switch off or in the “AUTO” position. (Illumi-
nate brighter than the front position lights.) Daytime running lights are not
designed for use at night.
● Vehicles with a manual transmission: To make your vehicle more visible
to other drivers during daytime drivi ng, the daytime running lights turn on
automatically whenever the engine is started and the parking brake is
released with the headlight switch off or in the “AUTO” position. (Illumi-
nate brighter than the front position lights.) Daytime running lights are not
designed for use at night.
■ Headlight control sensor (if equipped)
Headlight control sensor is located on the
passenger's side.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

236
2-3. Operating the lights and windshield wipers
86_EE (OM18071E)
■
Turning on the low beam headlights when the vehicle is parked in dark
areas
■ Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 487)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
Turn off the engine with the light switch
in or off, and pull the light switch
toward you and release it. The low
beam headlights will turn on for about
30 seconds to light up the area around
the vehicle.
The lights are turned off in the following
situations.
●Vehicles without a smart entry &
start system: The engine switch is
turned to the “ON” position.
● Vehicles with a smart entry & start
system: The “ENGINE START
STOP” switch is turned to IGNITION
ON mode.
● The light switch is turned on.
● The light switch is pulled toward you
and then released.

5
401
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
*: Driver's and front passenger’s seat belt buzzer:
The driver’s and front passenger’s seat belt buzzer sounds to alert the driver
and front passenger that his or her s eat belt is not fastened. The buzzer
sounds for 30 seconds after the vehicle has reached a speed of at least 20
km/h (12 mph). Then, if the seat belt is still unfastened, the buzzer will sound
in a different tone for 90 more seconds.
■ Front passenger detection sensor and passenger seat belt reminder
and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger
detection sensor may cause the warning light to flash and warning
buzzer to sound, even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
■ When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing
the tire pressure warning reset switch will not turn off the tire pressure warn-
ing light.
■ The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as
natural air leaks or tire inflation pressure changes caused by temperature. In
this case, adjusting the tire inflation pressure will turn off the warning light
(after a few minutes).

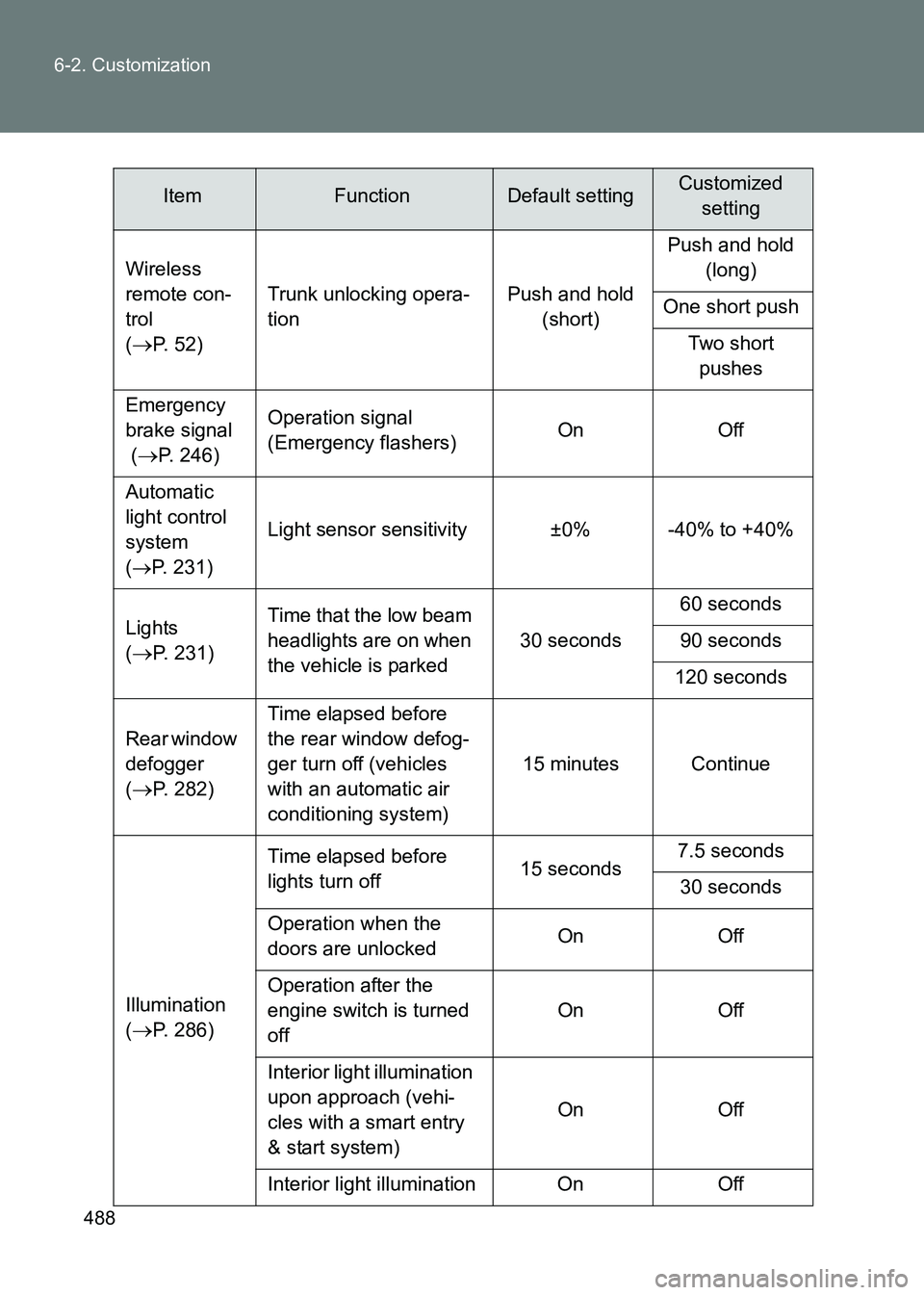

488
6-2. Customization
86_EE (OM18071E)
Wireless
remote con-
trol
(
→P. 52)
Trunk unlocking opera-
tion
Push and hold
(short) Push and hold
(long)
One short push Two short pushes
Emergency
brake signal
(
→P. 246) Operation signal
(Emergency flashers)
On Off
Automatic
light control
system
( → P. 231) Light sensor sensitivity ±0% -40% to +40%
Lights
(
→P. 231) Time that the low beam
headlights are on when
the vehicle is parked
30 seconds60 seconds
90 seconds
120 seconds
Rear window
defogger
(
→P. 282) Time elapsed before
the rear window defog-
ger turn off (vehicles
with an automatic air
conditioning system)
15 minutes Continue
Illumination
(
→P. 286) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
off On Off
Interior light illumination
upon approach (vehi-
cles with a smart entry
& start system) On Off
Interior light illumination On Off
ItemFunctionDefault settingCustomized setting
