3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Steering wheel controls
with color MID(SE, XSE grades)
Type A
Type B
Audio control switches2Meter control switches1Paddle shift switches1
Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Key ignition
Windshield wiper and washer switch
Emergency flasher switch
Entune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system
Tire pressure monitor(warning) system (TPMS)reset switch
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch
“SPORT” mode switch1
“ECO MODE” switch1
“ENGINE START STOP” button (Smart Key)1
Telephone switches2
Dynamic Radar Cruise Control (DRCC)Vehicle-to-vehicle distance switch
Lane Departure Alert with Steering Assist (LDA w/SA) switch
106535_2017_Corolla_QRG_D7_1_R1.indd 39/29/16 8:51 AM
34

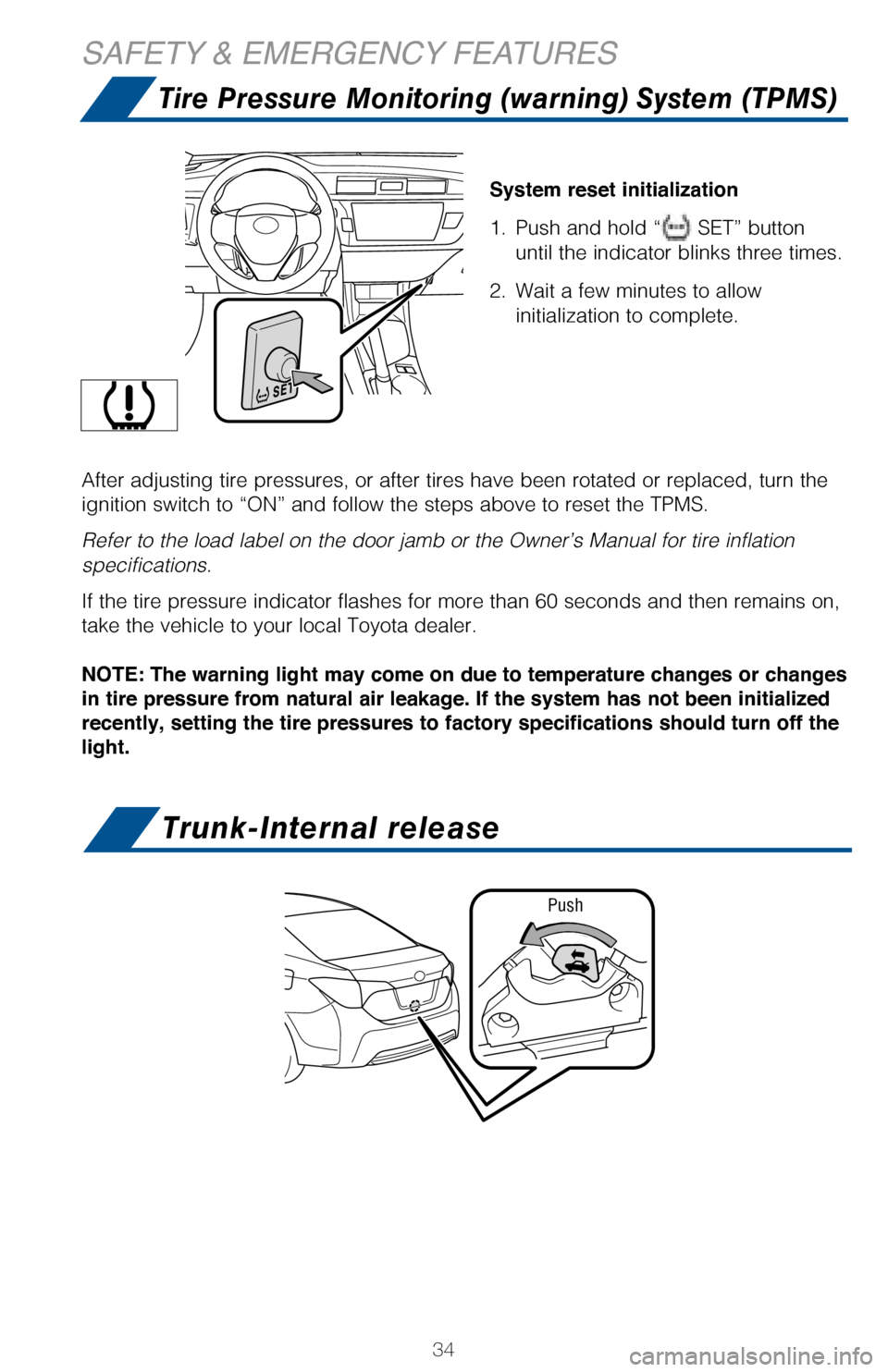

SAFETY & EMERGENCY FEATURES
Trunk-Internal release
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning) System (TPMS)
After adjusting tire pressures, or after tires have been rotated or replaced, turn the
ignition switch to “ON” and follow the steps above to reset the TPMS.
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Push
106535_2017_Corolla_QRG_D7_1_R1.indd 349/29/16 11:23 AM
