2017 TOYOTA COROLLA Quick Reference Guide

QUICK REFERENCE GUIDE
COROLLA
2017
106535_16-MKG-09465_QRGuide_Corolla_2_0F_lm_R1.indd 39/29/16 11:53 AM

COROLLA
2017
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your new
Corolla.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla operations.
Every Corolla owner should review the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:31 AM

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6-7
Light control-Instrument cluster 9
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auto lock/unlock1,2 11
Auxiliary storage 20
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Multi-Information Display (MID)1 15
Lights1 & turn signals 13
Manual transmission 10
Moon roof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-Folding rear 12
Seats-Head restraints 12
Sport drive mode 11
Steering wheel switches &
telephone controls (Bluetooth®) 19
Tilt & telescopic steering wheel 11
TRAC/VSC OFF switch 21
USB/AUX Port 14
Windows-Power 15
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)

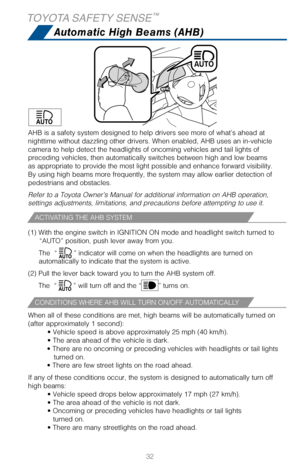

Automatic High Beams (AHB) 32
Dynamic Radar
Cruise Control (DRCC) 29-31
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-28
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 23-25
Quick overview-
Toyota Safety Sense™ P (TSS-P) 22
Sensors 22
BLUETOOTH® DEVICE PAIRING SECTION 38-47
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 34
106535_2017_Corolla_QRG_D7_1_R1.indd 19/29/16 8:41 AM

2
OVERVIEW
Instrument panel
1 If equipped.2 For vehicles with Entune™ Premium Audio or Entune™ Audio Plus, refer to
“Navigation And Multimedia System Owner’s Manual.”
Steering wheel controls
with monochrome MID(L, LE, LE Eco, XLE grades)
Audio control switches2Telephone switches2Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view mirror switches
Instrument cluster light control dial1
Tilt and telescopicsteering control lever
Dynamic RadarCruise Control (DRCC)Vehicle-to-vehicle distance switch
“DISP” switch1
Lane Departure Alert with Steering Assist (LDA w/SA) switch
Headlights, turn signals andAutomatic High Beam (AHB) controls
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:50 AM

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Steering wheel controls
with color MID(SE, XSE grades)
Type A
Type B
Audio control switches2Meter control switches1Paddle shift switches1
Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Key ignition
Windshield wiper and washer switch
Emergency flasher switch
Entune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system
Tire pressure monitor(warning) system (TPMS)reset switch
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch
“SPORT” mode switch1
“ECO MODE” switch1
“ENGINE START STOP” button (Smart Key)1
Telephone switches2
Dynamic Radar Cruise Control (DRCC)Vehicle-to-vehicle distance switch
Lane Departure Alert with Steering Assist (LDA w/SA) switch
106535_2017_Corolla_QRG_D7_1_R1.indd 39/29/16 8:51 AM

4
OVERVIEW
Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Anti-lock Brake System warning
Automatic High Beam (AHB)indicator
Arrow direction indicatesfuel tank door position
Brake system warning1
“AIRBAG ON/OFF” indicator1
Service indicators and reminders
Monochrome display
Color display
Tachometer
Tachometer
Fuel gauge
Fuel gauge
Display change buttonEngine coolant temperature gauge
Engine coolant temperature gauge
Multi-Information Display
Multi-Information Display
Outside temperature displayOdometer/Trip meterShift position/gear position display
Speedometer
Speedometer
106535_2017_Corolla_QRG_D7_1_R1.indd 49/29/16 8:54 AM

5
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Master warning1
Low fuel level warning
Cruise control indicator1/Cruise control SET indicator
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control (VSC) OFF indicator
Traction Control OFF indicator1,2
Malfunction/Check Engine indicator
Electric power steering system warning
ECO mode indicator2
Eco Driving Indicator1,2
SPORT mode indicator2
SRS airbag warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.2 If equipped.
Headlight low2/high beam indicators
Pre-Collision System (PCS) warning light1
Lane Departure Alert (LDA) indicator
Slip indicator indicator1
Security indicator
Low outside temperature indicator2
Dynamic Radar Cruise Control (DRCC) indicator
106535_2017_Corolla_QRG_D7_1_R1.indd 59/29/16 9:26 AM

6
OVERVIEW
Keyless entry
Type AType B
Type AType B
Type AType B
Push
Carry Type BSmart key feature
Front door lock
Touch
Carry Type BSmart key feature
Grasp
Front door unlock*
Push
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details.
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
LOCKING OPERATION
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
Push ONCE: Driver door TWICE: All doors
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
