Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM02494U)■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity:
SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However,
it must be replaced with SAE 0W-
20 at the next oil change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label
The International Lubricant Specification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.

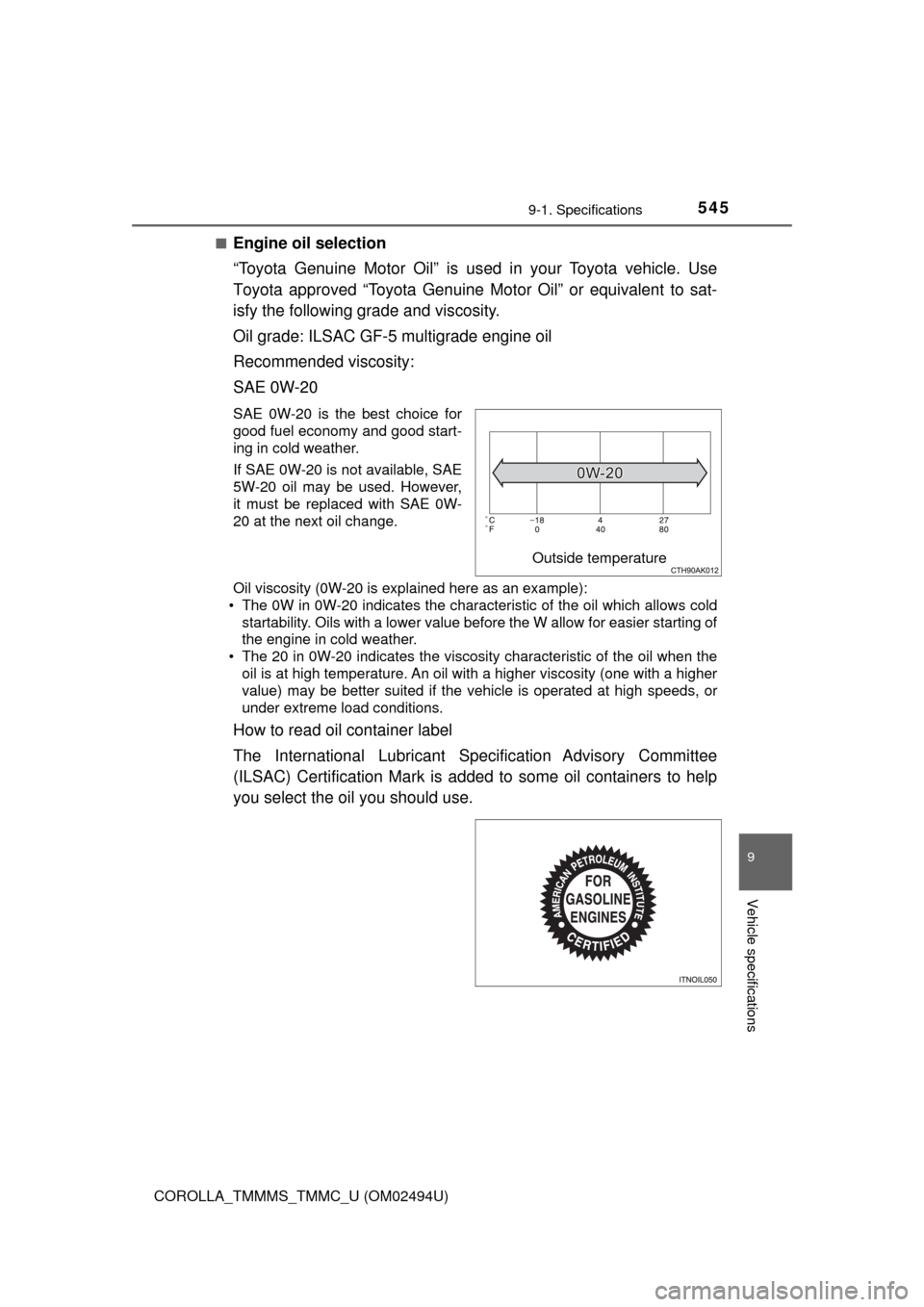

Outside temperature

5469-1. Specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
Cooling system
Capacity (Reference)5.8 qt. (5.5 L, 4.8 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and non-
borate coolant with long-life hybrid organic
acid technology
Do not use plain water
Ignition system
Spark plug
MakeDENSO SC20HR11
DENSO SC16HR11
Gap0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

5479-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
Electrical system
Battery
Open voltage at
68°F (20°C):
12.3 V or More
If the voltage is lower than the standard value,
charge the battery.
(Voltage checked 20 minutes after the engine
and all the lights turned off)
Charging rates5 A max.
Manual transaxle
Gear oil capacity
(Reference)2.5 qt. (2.4 L, 2.1 Imp. qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■Manual transmission gear oil
●Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle' s transmission. Toyota recommends to use “TOYOTA Genu-
ine Manual Transmission Gear Oil LV GL-4 75W” to achieve optimal per-
formance.
●Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory. Use Toyota approved “TOYOTA
Genuine Manual Transmission Gear Oil LV GL-4 75W” or an equivalent oil
matching quality that satisfies the above specifications. Please contact
your Toyota dealer for further details.

5489-1. Specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Toyota dealer.

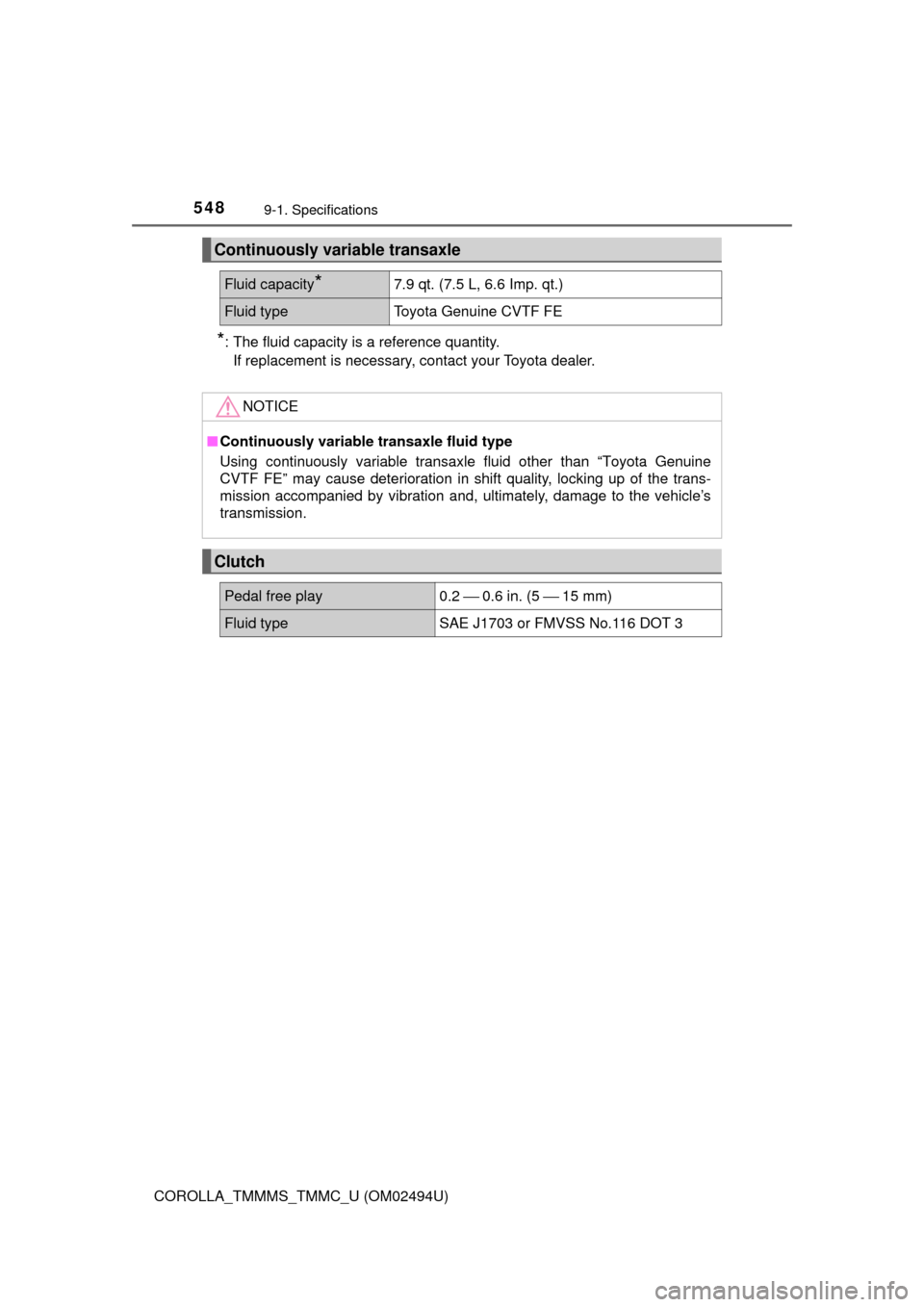

Continuously variable transaxle
Fluid capacity*7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid typeToyota Genuine CVTF FE
NOTICE
■Continuously variable transaxle fluid type
Using continuously variable transaxle fluid other than “Toyota Genuine
CVTF FE” may cause deterioration in shift quality, locking up of the trans-
mission accompanied by vibration and, ultimately, damage to the vehicle’s
transmission.
Clutch
Pedal free play 0.2 ⎯ 0.6 in. (5 ⎯ 15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3

5499-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30
kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20
kgf)
Brakes
Pedal clearance*1
1.8 L 4-cylinder (2ZR-FE) engine
2.9 in. (74 mm)
1.8 L 4-cylinder (2ZR-FAE) engine
2.8 in. (71 mm)
Pedal free play 0.04 ⎯ 0.24 in. (1 ⎯ 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*26 ⎯ 9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3

5509-1. Specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
Ty p e A
Ty p e B
Ty p e C

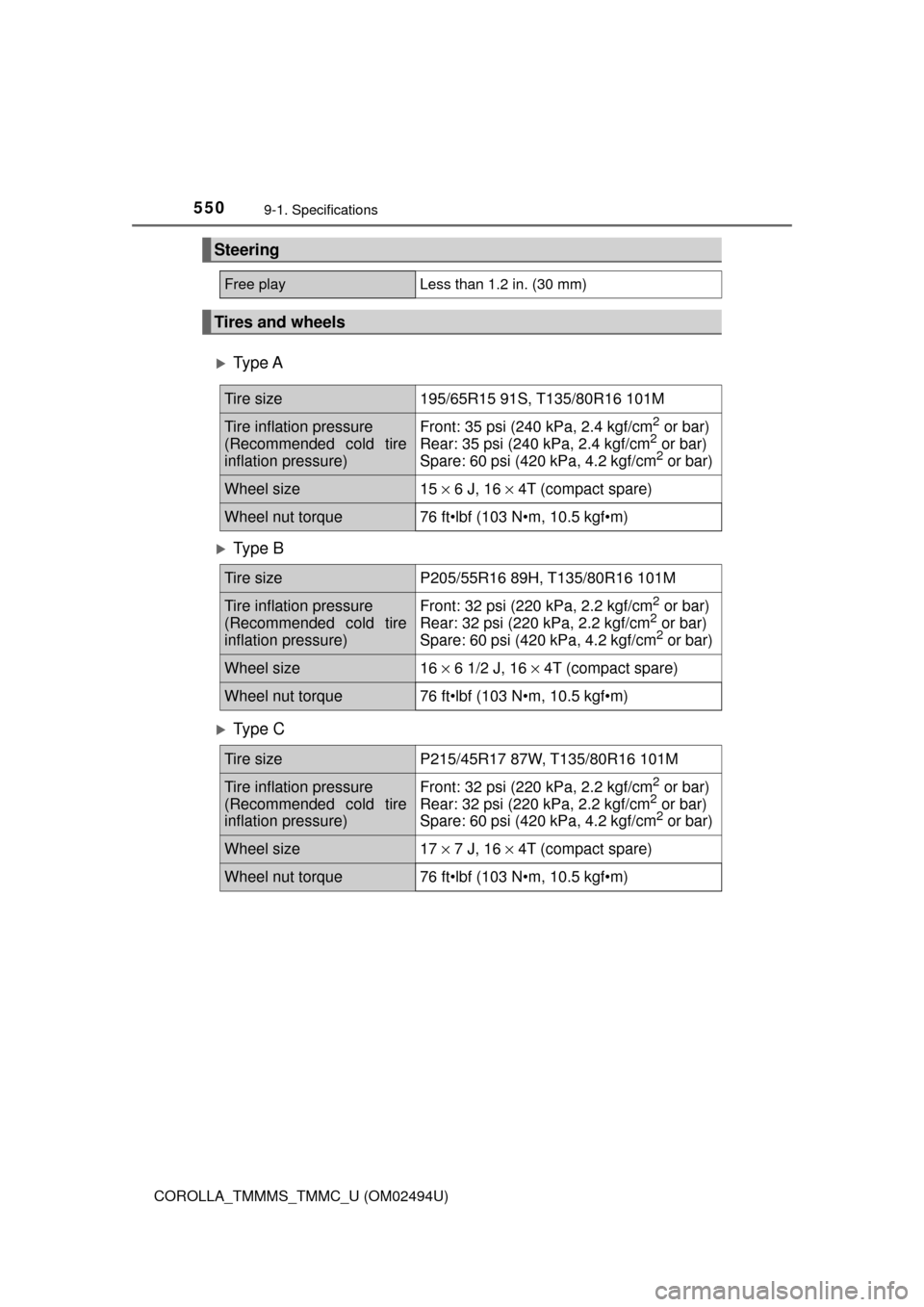

Steering
Free play Less than 1.2 in. (30 mm)
Tires and wheels
Tire size 195/65R15 91S, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 15 × 6 J, 16 × 4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P205/55R16 89H, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 16 × 6 1/2 J, 16 × 4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size P215/45R17 87W, T135/80R16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear: 32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size 17 × 7 J, 16 × 4T (compact spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

5519-1. Specifications
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
*1: Light bulbs not listed in this table are LED bulbs.
*2: If equipped
Light bulbs*1
Light bulbsBulb No.WTy p e
ExteriorFront side marker
lightsW5W 5 B
Front turn signal/park-
ing lights
Ty pe A
Ty pe B7444NA
WY21W28/8
21B
Side turn signal
lights*2⎯5B
Rear turn signal lights⎯21 B
Stop/tail and rear side
marker lights 7443 21/5 A
License plate lights⎯5A
Back-up lights
(bulb
type)
*2921 16 A
InteriorFront personal/inte-
rior lights (vehicles
without a moon roof)⎯8A
Front personal/inte-
rior lights (vehicles
with a moon roof)⎯5A
Rear interior light⎯8C
Trunk light⎯3.8 A
A: Wedge base bulbs (clear)
C: Double end bulbsB: Wedge base bulbs (amber)

5529-1. Specifications
COROLLA_TMMMS_TMMC_U (OM02494U)
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■Recommendation of the use of gasoline containing detergent additives
●Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
●Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
Fuel information
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..
