2017 TOYOTA AVALON fuse box

3306-3. Do-it-yourself maintenance
Engine compartment
Engine oil filler cap (→P. 332)
Engine oil level dipstick (→ P. 331)
Brake fluid reservoir (→ P. 337)
Fuse box ( →P. 362)
Battery ( →P. 338) Radiator (
→P. 336)
Electric cooling fans
Condenser ( →P. 336)
Engine coolant reservoir (→ P. 334)
Washer fluid tank ( →P. 341)1
2
3
4
5
6
7
8
9
10

3626-3. Do-it-yourself maintenance
Turn the engine switch off.
Open the Fuse box cover.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.

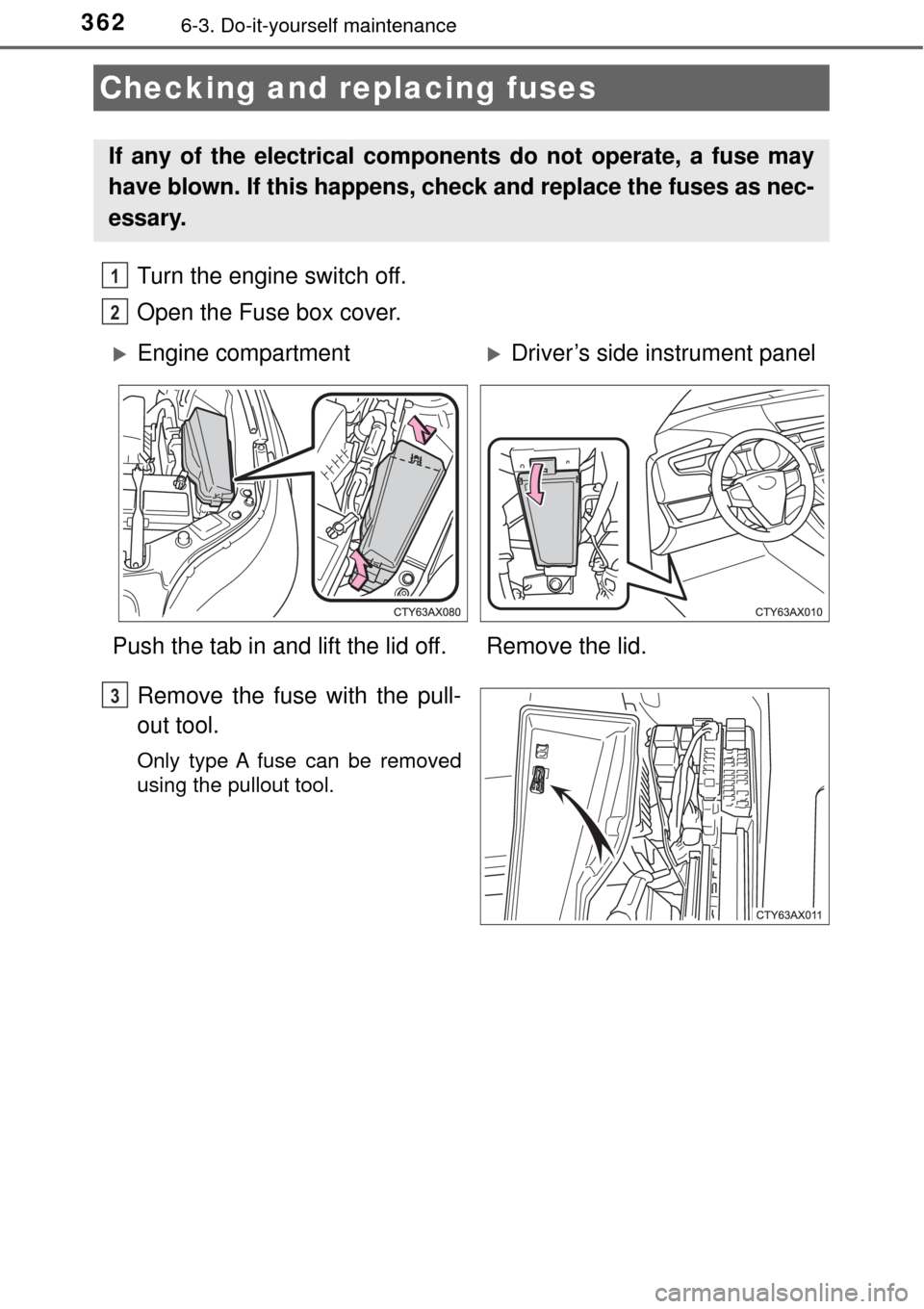

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartmentDriver’s side instrument panel
Push the tab in and lift the lid off. Remove the lid.
3

3636-3. Do-it-yourself maintenance
6
Maintenance and care
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e C
1
2

3646-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( →P. 365)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
