4737-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
■Engine oil (1ND-TV engine only)
Using an engine oil other than ACEA C2 may damage the catalytic con-
verter.
■Engine oil (1WW engine only)
Using engine oil other than “Toyota Genuine Motor Oil 5W-30 Premium Fuel
Economy for 1WW/2WW engines” or any other approved engine oil, may
damage the catalytic converter.
If “Toyota Genuine Motor Oil 5W-30 Premium Fuel Economy for 1WW/2WW
engines” or any other approved engine oils are not available at the time, up
to 1 L (1.1 qt., 0.9 Imp. qt.) of ACEA C3 can be used to refill. (P. 615)
UK AURIS_HB_OM_Europe_OM12K97E.book 473 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4757-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
■Intercooler coolant reservoir (8NR-FTS engine only)
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
■Coolant selection
Except 1WW engine
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35C [-31F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
1WW engine
Only use “Toyota Genuine Premium Long Life Coolant 1WW/2WW” or equiv-
alent.
“Toyota Genuine Premium Long Life Coolant 1WW/2WW” concentrated prod-
uct always needs to be mixed as 50% coolant and 50% deionized water.
(Minimum temperature: -35C [-31F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
1
2
3
WARNING
■When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
UK AURIS_HB_OM_Europe_OM12K97E.book 475 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4767-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
Check the radiator, condenser and intercooler* and clear away any
foreign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*: 1ND-TV and 1WW engines only
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator, condenser and intercooler
WARNING
■When the engine is hot
Do not touch the radiator, condenser or intercooler as they may be hot and
cause serious injuries, such as burns.
UK AURIS_HB_OM_Europe_OM12K97E.book 476 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4807-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)

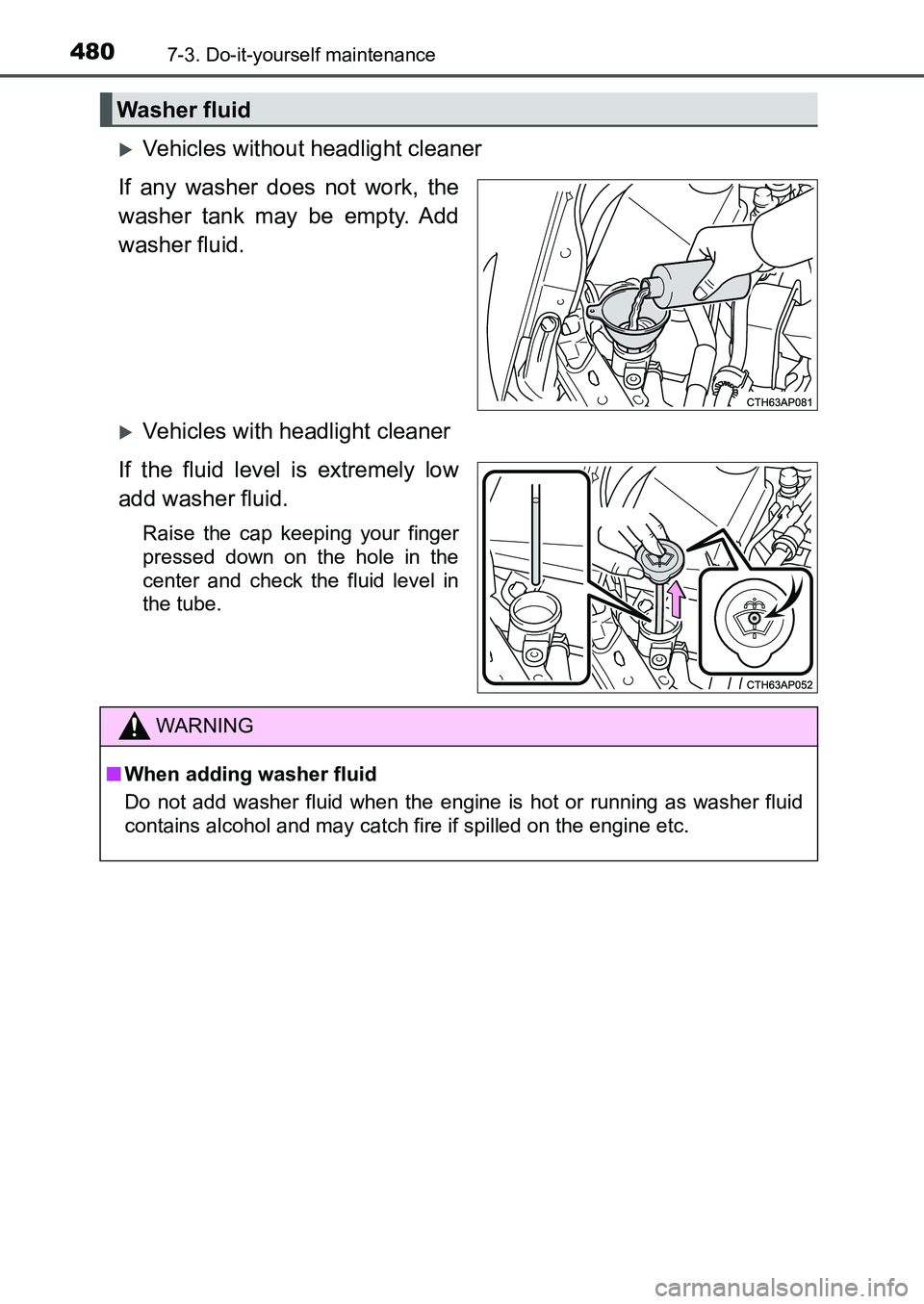

Vehicles without headlight cleaner
If any washer does not work, the
washer tank may be empty. Add
washer fluid.
Vehicles with headlight cleaner
If the fluid level is extremely low
add washer fluid.
Raise the cap keeping your finger
pressed down on the hole in the
center and check the fluid level in
the tube.
Washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
UK AURIS_HB_OM_Europe_OM12K97E.book 480 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5087-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
Turn the engine switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 508 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5448-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
(If equipped)
Fuel filter warning light
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
P. 481
(If equipped)
Low engine oil level warning light
Indicates that engine oil level is low, but does not indicate
a malfunction.
Check the level of engine oil, and add if necessary.
(P. 467)
(If equipped)
Engine oil change reminder light
When the light flashes:
Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the oil mainte-
nance date has been reset).
Check the engine oil, and change if necessary. After
changing the engine oil, the oil change system
should be reset. (P. 472)
When the light comes on:
Indicates that the engine oil should be changed.
After the engine oil is changed and the oil maintenance
data has been reset.
Check and change the engine oil, and oil filter by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. After changing
the engine oil, the oil change system should be reset.
(P. 472)
(If equipped)
DPF system warning light
• Indicates that the DPF catalytic converter needs to be
cleaned due to repeated short trips and/or low-speed
driving.
• Indicates that the amount of accumulated deposits in the
DPF catalytic converter has reached the specified level.
To clean with DPF catalytic converter, drive the vehi-
cle at a speed of 65 km/h (40 mph) or greater for 20 to
30 minutes as much as possible until the DPF system
warning light turns off
*2.
Do not turn off the engine as much as possible until
the DPF system warning light turns off.
If it is not possible to drive the vehicle at speeds of 65
km/h (40 mph) or greater, or the DPF system warning
light does not turn off even after driving for more than
30 minutes, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly quali-
fied and equipped professional.
Warning lightWarning light/Details/Actions
UK AURIS_HB_OM_Europe_OM12K97E.book 544 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5458-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
8
When trouble arises
(If equipped)
Open door warning light (warning buzzer)*3
Indicates that a door is not fully closed
Check that all the doors are closed.
(Flashes in yellow for
15 seconds.)
(If equipped)
Smart entry & start system indicator
Indicates a malfunction in the smart entry & start system.
Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional immediately.
Low fuel level warning light
3-ring meter:
Indicates that remaining fuel is approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
2-ring meter:
• Gasoline engine: Indicates that remaining fuel is approx-
imately 7.5 L (2.0 gal., 1.6 Imp. gal.) or less
• Diesel engine: Indicates that remaining fuel is approxi-
mately 8.3 L (2.2 gal., 1.8 Imp. gal.) or less
Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)
*4
Warns the driver and/or front passenger to fasten their
seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the warning light (warning buzzer) turn off.
(If equipped)
Rear passengers’ seat belt reminder lights (warning
buzzer)
*4
Warns the rear passengers to fasten their seat belts.
Fasten the seat belt.
Warning lightWarning light/Details/Actions
UK AURIS_HB_OM_Europe_OM12K97E.book 545 ページ ２０１６年６月２７日　月曜日　午後５時４２分

5468-2. Steps to take in an emergency
UK AURIS_HB_EE (OM12K97E)
*1: Parking brake engaged warning buzzer:
The buzzer sounds to indicate that the parking brake is still engaged (with
the vehicle having reached a speed of 5 km/h [3 mph]).
*2: The DPF system warning light may not turn off when the engine oil change
reminder light is on. In this event, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
*3: Open door warning buzzer:
A buzzer will sound if the vehicle reaches a speed of 5 km/h (3 mph) or
more with any door open.
*4: Driver’s and passengers’ seat belt buzzer:
The driver’s and passengers’ seat belt buzzer sounds to alert the driver and
passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of at least 20 km/h (12 mph).
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 90 more seconds.
(If equipped)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 549)
• Flat tire (P. 559, 573)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case the
light does not turn off even if the tire inflation pres-
sure is adjusted, have the system checked by any
authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system (P. 550)
Have the system checked by any authorized Toyota
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
P. 553
Warning lightWarning light/Details/Actions
