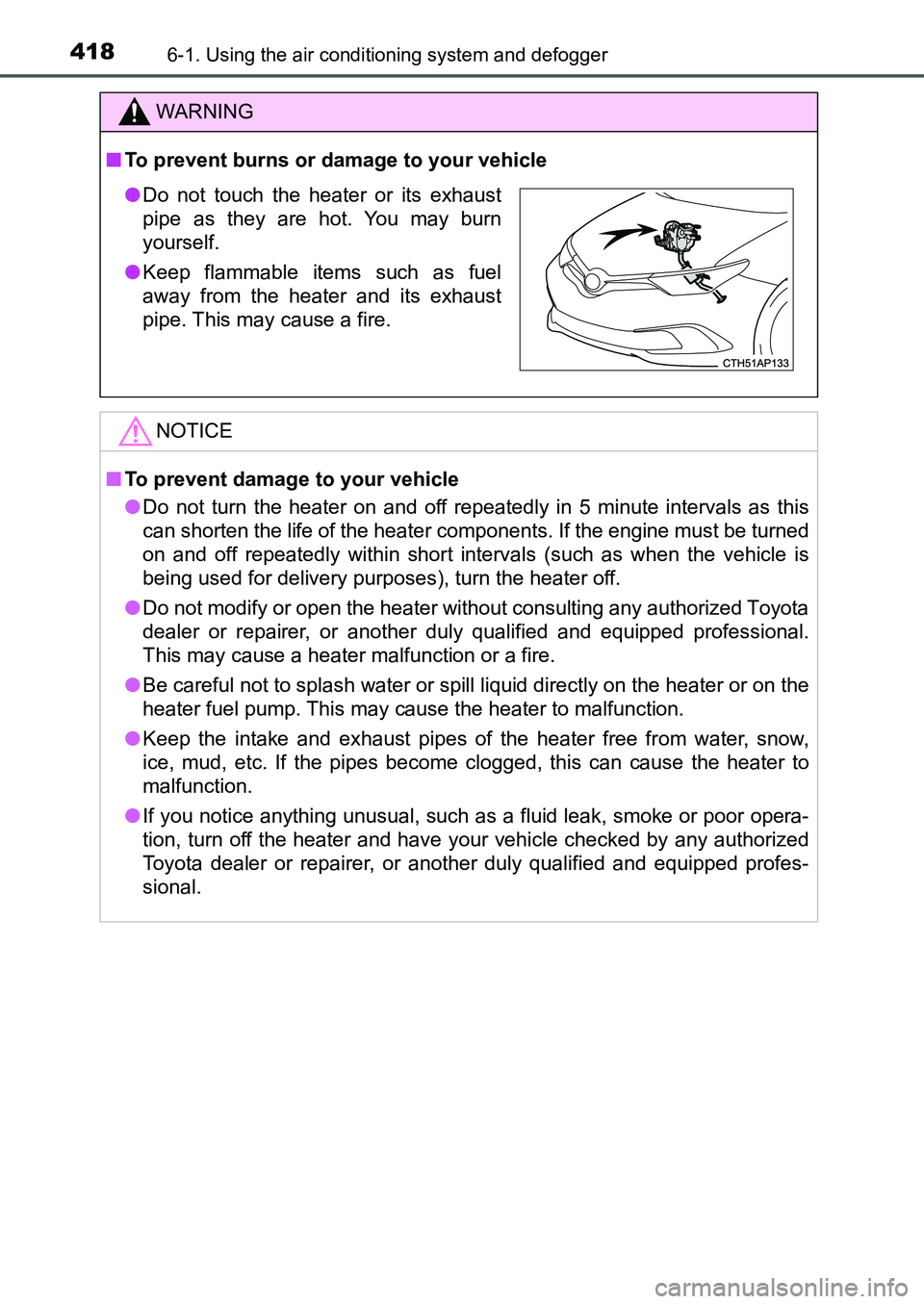

4186-1. Using the air conditioning system and defogger
UK AURIS_HB_EE (OM12K97E)
WARNING
■To prevent burns or damage to your vehicle
NOTICE
■To prevent damage to your vehicle
●Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
●Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
●Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
●Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
●If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
●Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
●Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.
UK AURIS_HB_OM_Europe_OM12K97E.book 418 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4426-4. Other interior features
UK AURIS_HB_EE (OM12K97E)
Use the overhead switch to open or close the panoramic roof shade.
Closing
Automatic full-closing (press
and hold)*
Opening
Automatic full-opening (press
and hold)*
*: Pressing either side of the switch
will stop the panoramic roof shade
travel partway.
■The panoramic roof shade can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
■Jam protection function
If an object is detected between the panoramic roof shade and the frame
while closing, travel is stopped and the panoramic roof shade opens slightly.
■If the panoramic roof shade does not open/close automatically
Press the open side of the switch to open the panoramic roof shade.
Press and hold the open side of the switch until the panoramic roof shade
opens fully and then closes slightly.
After this procedure is completed, check that the automatic opening/closing
function is available.
If the automatic opening/closing function does not work properly, have the
vehicle inspected by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Panoramic roof shade (if equipped)
1
2
3
4
1
2
UK AURIS_HB_OM_Europe_OM12K97E.book 442 ページ ２０１６年６月２７日　月曜日　午後５時４２分

445
7Maintenance and care
UK AURIS_HB_EE (OM12K97E)7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior .......... 446
Cleaning and protecting
the vehicle interior ........... 450
7-2. Maintenance
Maintenance
requirements.................... 453
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 456
Hood .................................. 459
Positioning a floor jack ....... 461
Engine compartment.......... 462
Tires ................................... 483
Tire inflation pressure ........ 498
Wheels ............................... 500
Air conditioning filter .......... 503
Wireless remote
control/electronic key
battery.............................. 505
Checking and replacing
fuses ................................ 508
Light bulbs ......................... 514
UK AURIS_HB_OM_Europe_OM12K97E.book 445 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4547-2. Maintenance
UK AURIS_HB_EE (OM12K97E)
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota dealers or repairers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota dealer or repairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota dealers or repair-
ers for non-warranty repairs and services, as members of the Toyota network
will be able to expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
■Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
●Engine missing, stumbling, or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driving straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor, vehi-
cle pulls to one side when braking
●Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.
UK AURIS_HB_OM_Europe_OM12K97E.book 454 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4677-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Gasoline engine: Park the vehicle on level ground. After turning
off the engine, wait more than 5 minutes for the oil to drain back
into the bottom of the engine.
Diesel engine: Park the vehicle on level ground. After warming
up the engine and turning it off, wait more than 5 minutes for the
oil to drain back into the bottom of the engine.
Engine oil
1
UK AURIS_HB_OM_Europe_OM12K97E.book 467 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4697-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.3
4
5
1
2
3
Flat dipstickNon-flat dipstick type A
Non-flat dipstick type B
6
UK AURIS_HB_OM_Europe_OM12K97E.book 469 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4707-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)■
Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
1NR-FE engine1ZR-FAE engine
8NR-FTS engine1ND-TV engine
1WW engine
UK AURIS_HB_OM_Europe_OM12K97E.book 470 ページ ２０１６年６月２７日　月曜日　午後５時４２分

4717-3. Do-it-yourself maintenance
UK AURIS_HB_EE (OM12K97E)
7
Maintenance and care
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 615
Oil quantity
(Low  Full)
Gasoline engine
1.5 L (1.6 qt., 1.3 Imp. qt.)
Diesel engine
1.3 L (1.4 qt., 1.1 Imp. qt.)
Items Clean funnel
1
2
3
