2017 TOYOTA 86 Owners Manual

217 3
Interior features 3-2. Using the audio system
Using the AUX/USB port
■ Operating portable audio devi ces connected to the audio system
The volume and sound quality can be adjusted using the vehicle’s audio
controls. All other adjustments must be made on the portable audio device
itself.
■ When using a portable audio devi ce connected to the power outlet
Noise may occur during playback. Use the battery power source of the por-
table audio device to reduce noise.This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Depending on the type of portable audio device, some device opera-
tion may not be available.
Open the cover and connect
the portable audio device.

2183-2. Using the audio system
Steering wheel audio switches
WARNINGTo reduce the risk of an accident, exercise care when operating the audio
switches on the steering wheel.Some audio features can be controlled using the switches on the
steering wheel.
Operation may differ depending on th e type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.

2193-2. Using the audio system
3
Interior features

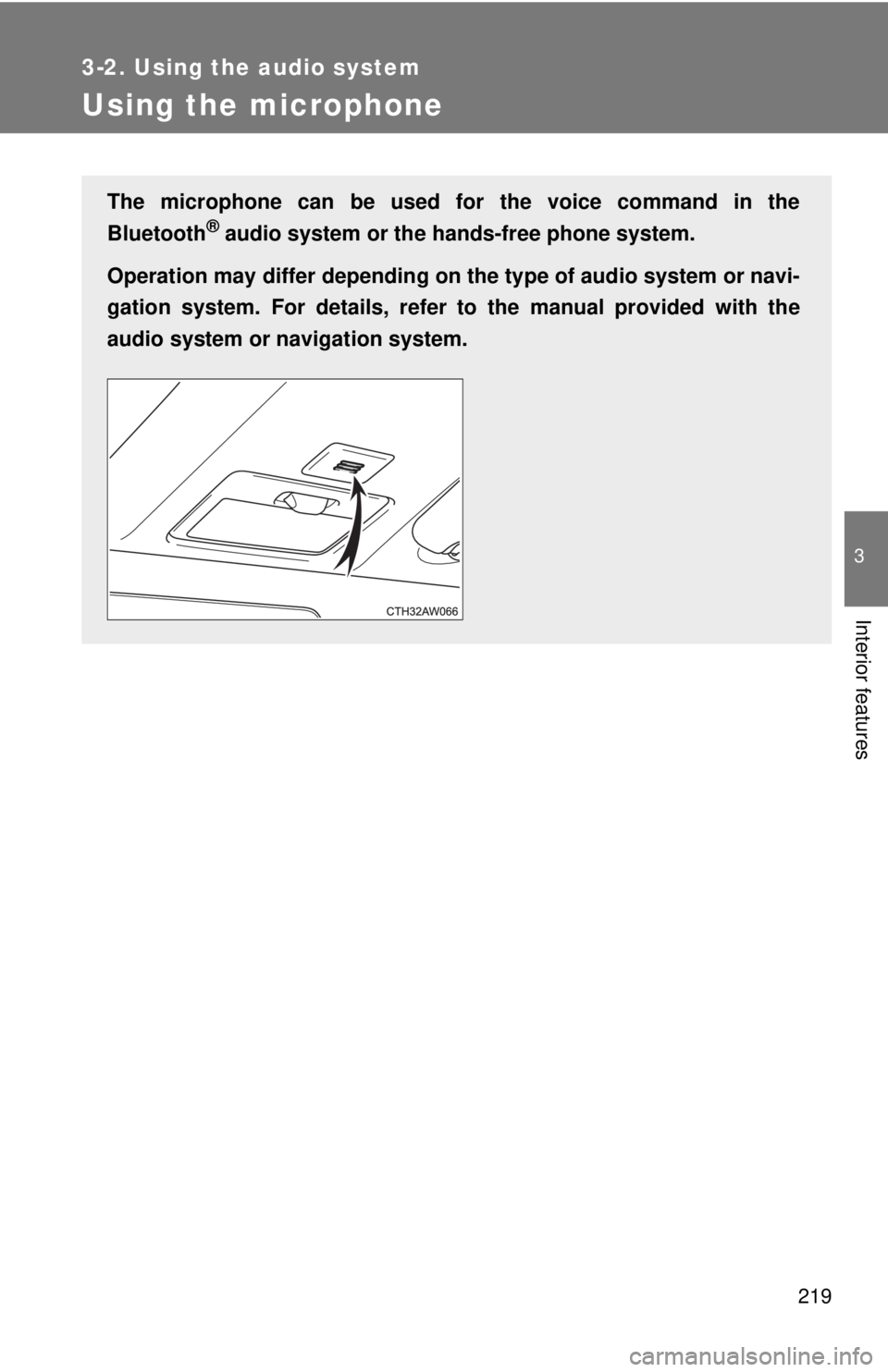

Using the microphone The microphone can be used for the voice command in the
Bluetooth ®
audio system or the hands-free phone system.
Operation may differ depending on th e type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.

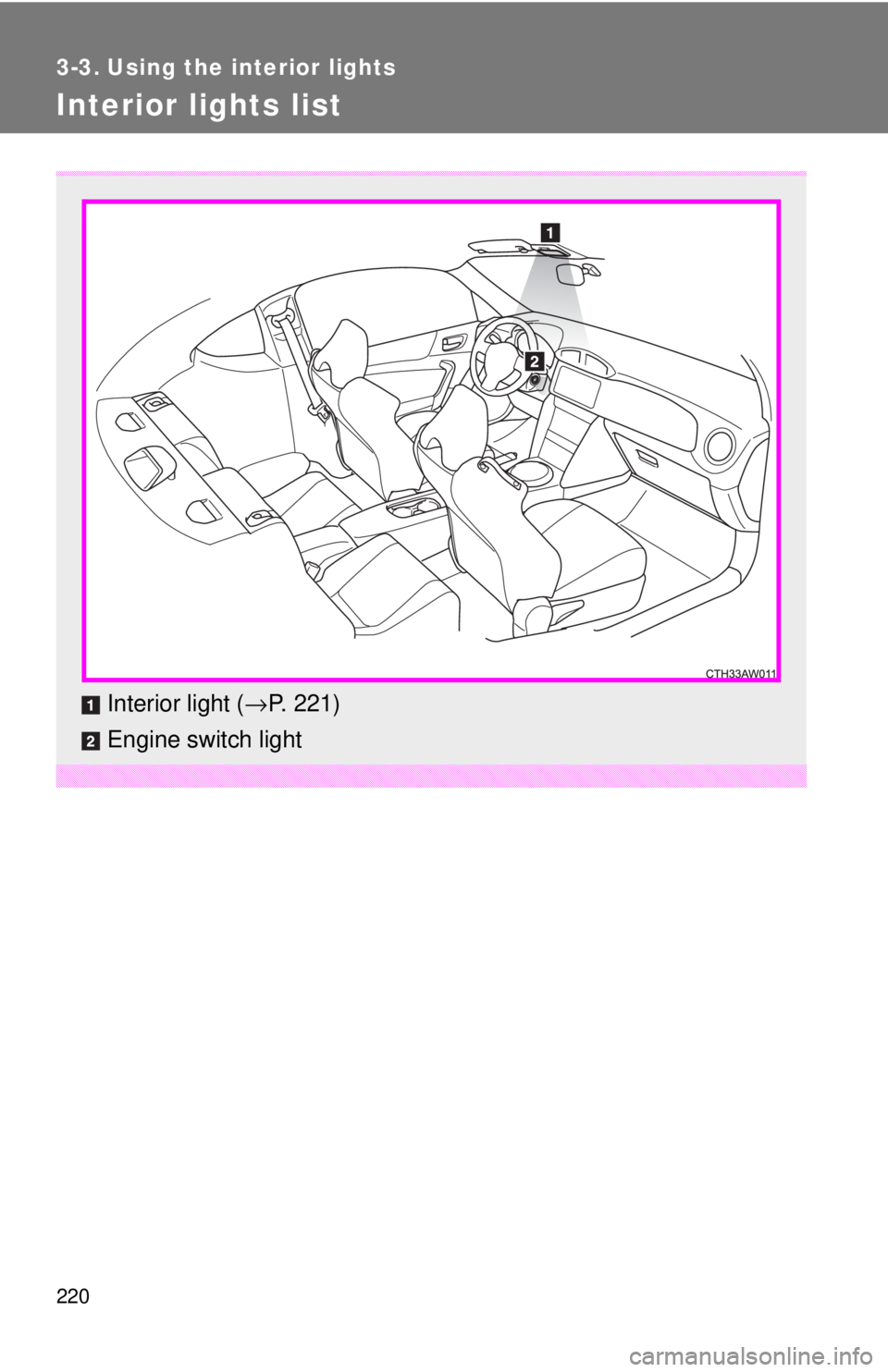

2203-3. Using the interior lights
Interior lights list
Interior light ( → P. 221)
Engine switch light

2213-3. Using the interior lights
3
Interior features Interior light
Turns the light off
Turns the door position on
Turns the light on
■ Illuminated entry system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are open/
closed.
■ To prevent battery discharge
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
● Interior light (when the switch is in the “DOOR” position)
● Engine switch light
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features
→ P. 383) Interior light

2223-4. Using the storage features
List of storage features
WARNING
■ Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
● Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
● Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.Glove box
Bottle holders
Cup holders/console tray

2233-4. Using the storage features
3
Interior features Glove box
Pull up the lever to open the
glove box.
WARNING■ Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside. Glove box

2243-4. Using the storage features
Bottle holders
■ When using the bottle holder
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
WARNING■ Items unsuitable for the bottle holder
Do not place anything other than a pet bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■ Items unsuitable for the bottle holder
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break. Bottle holders
