2017 TOYOTA 86 Owners Manual

2012-5. Driving information
2

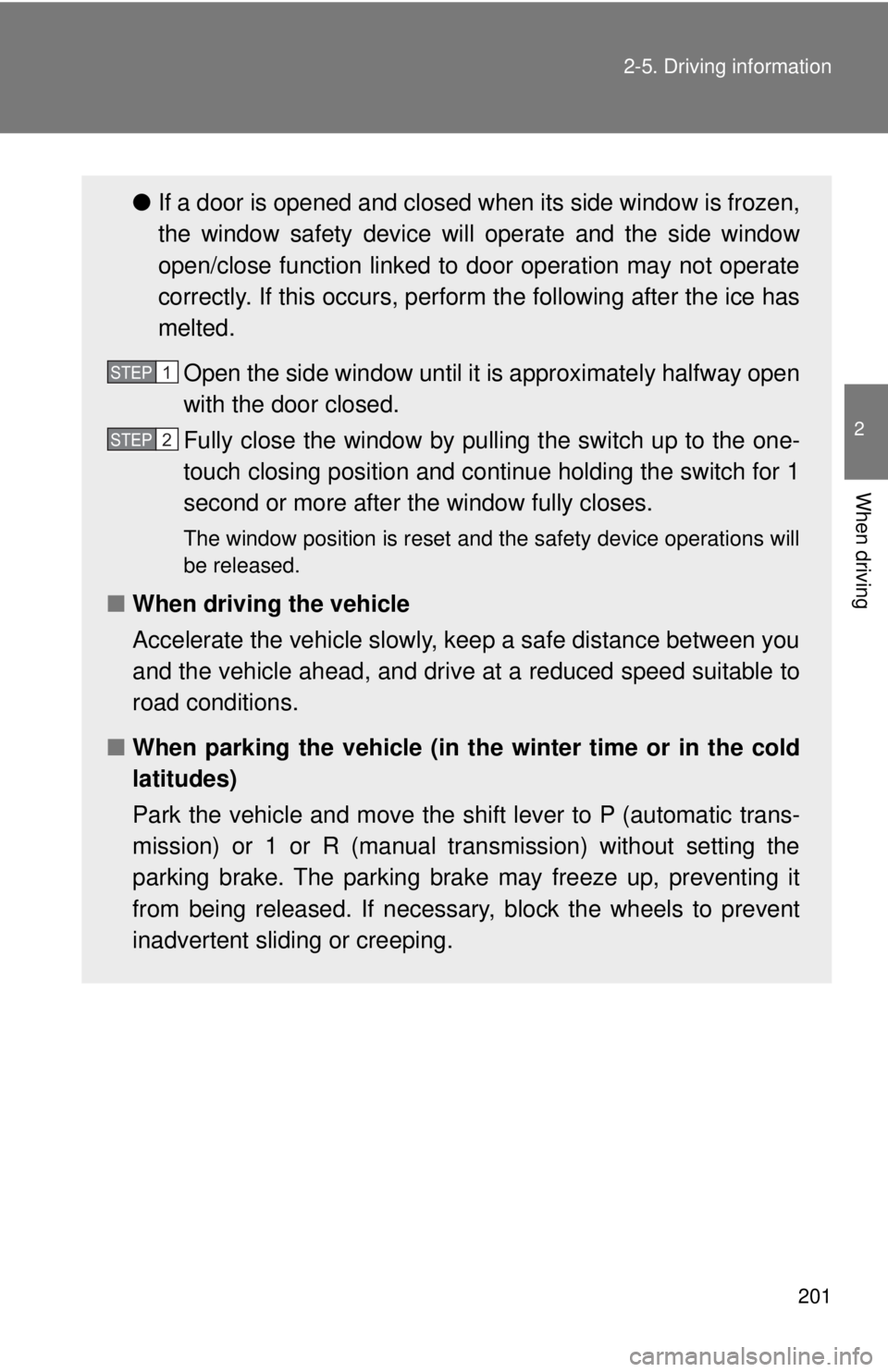

When driving ● If a door is opened and closed wh en its side window is frozen,
the window safety device will operate and t he side window
open/close function linked to door operation may not operate
correctly. If this occurs, perform the following after the ice has
melted.
Open the side window until it is approximately halfway open
with the door closed.
Fully close the window by pullin g the switch up to the one-
touch closing position and conti nue holding the switch for 1
second or more after the window fully closes. The window position is reset and the safety device operations will
be released.
■ When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■ When parking the vehicle (in the winter time or in the cold
latitudes)
Park the vehicle and move the shift lever to P (automatic trans-
mission) or 1 or R (manual transmission) without setting the
parking brake. The parking brak e may freeze up, preventing it
from being released. If necessary , block the wheels to prevent
inadvertent sliding or creeping. STEP 1
STEP 2

2022-5. Driving information
Tire chains
Tire chains cannot be used on your vehicle because of the lack of
clearance between the tires and vehicle body.
When tire chains cannot be used, use of another type of traction
device (such as spring chains) may be acceptable if use on your vehi-
cle is recommended by the device manufacturer, taking into account
tire size and road conditions.
Follow the device manufacturer's instructions, especially regarding
maximum vehicle speed.
To help avoid damage to your vehicle, drive slowly, readjust or
remove the device if it is contacti ng your vehicle, and do not spin your
wheels. Damage caused to your vehi cle by use of a traction device is
not covered under warranty.
Make certain that any traction de vice you use is an SAE class “S”
device, and use it on the rear wheels only.
Always use the utmost care when driving with a traction device. Over-
confidence because you are using a tr action device could easily lead
to a serious accident.
Selecting tire chains
We recommend that you consult your Toyota dealer for information
about the chains that you can use.

2032-5. Driving information
2
When driving WARNING■
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury. ●
Use tires of the specified size, and that are the same size, same
maker, same brand and tread pattern. ●
Maintain the recommended level of air pressure.●
Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.●
Use snow tires on all, not just some wheels.
NOTICE■
Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
■
Fitting tire chains
The tire pressure warning valves and transmitters may not function cor-
rectly when tire chains are fitted.

2042-5. Driving information
Trailer towing Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend th e installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.

2052-5. Driving information
2
When driving
Dinghy towing
NOTICE■ To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

2062-5. Driving information

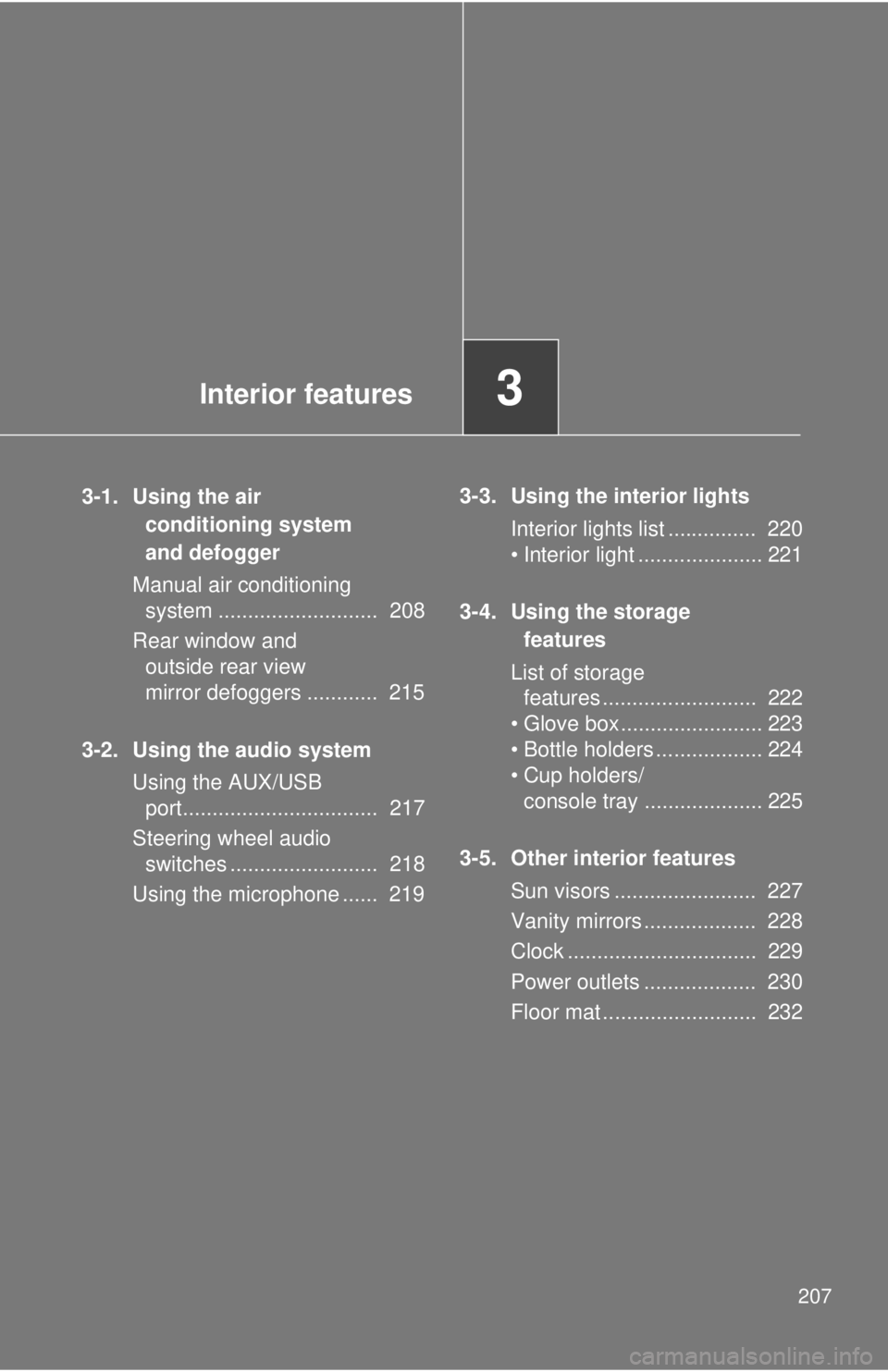

Interior features
3
2073-1. Using the air
conditioning system
and defogger
Manual air conditioning
system ........................... 208
Rear window and
outside rear view
mirror defoggers ............ 215
3-2. Using the audio system
Using the AUX/USB
port................................. 217
Steering wheel audio
switches ......................... 218
Using the microphone ...... 219 3-3. Using the interior lights
Interior lights list ............... 220
• Interior light ..................... 221
3-4. Using the storage
features
List of storage
features .......................... 222
• Glove box........................ 223
• Bottle holders .................. 224
• Cup holders/
console tray .................... 225
3-5. Other interior features
Sun visors ........................ 227
Vanity mirrors ................... 228
Clock ................................ 229
Power outlets ................... 230
Floor mat .......................... 232

2083-1. Using the air conditioning system and defogger

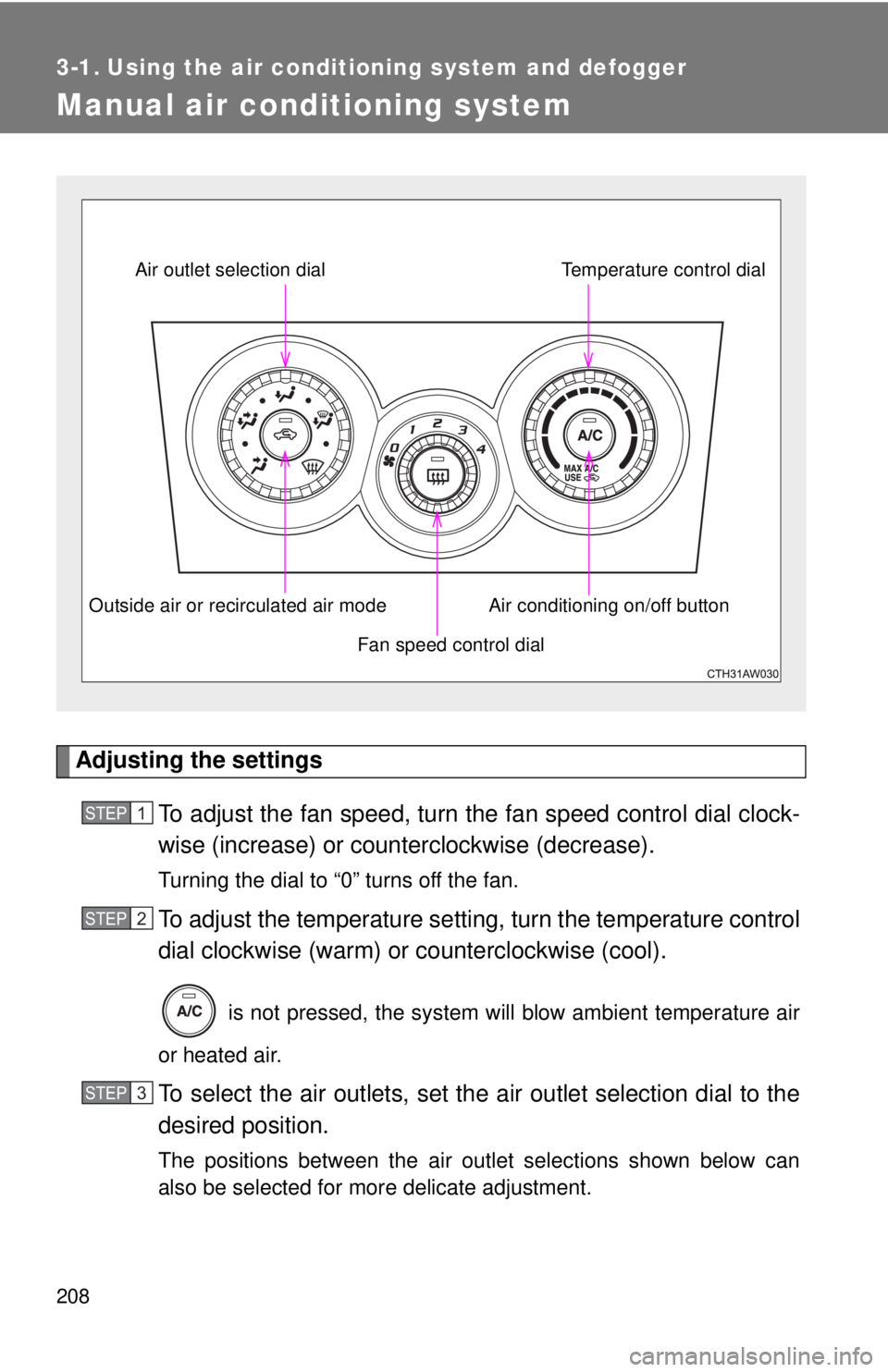

Manual air conditioning system
Adjusting the settings
To adjust the fan speed, turn the fan speed cont rol dial clock-
wise (increase) or count erclockwise (decrease).Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment. Fan speed control dialAir outlet selection dial
Air conditioning on/off button Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3
