2017 TESLA MODEL S Owner's Manual (UK)

Overview............................................................. 2
Interior Overview.........................................................................2
Exterior Overview....................................................................... 3
Opening and Closing..................................... 4 Doors............................................................................................... 4
Keyless Locking and Unlocking 4Using the Key 4Using Exterior Door Handles 6Opening Doors from the Interior 6Interior Locking and Unlocking 6Door Unlock Mode 6Child-protection Lock 7Drive-away Locking 7Walk-away Locking 7Unlocking When the Key Doesn

Note: On RHD (Right Hand Drive) vehicles, the controls illustrated above are arranged similarly,but are mirrored on the right side of the vehicle.
1. Interior door handles ( Opening Doors from the Interior on page 6)
2.
Traffic-Aware Cruise Control (Traffic-Aware Cruise Control on page 70) and Autosteer (see
Autosteer on page 76)
3. High beams ( High Beam Headlights on page 54), Turn signals ( Turn Signals on page 54),
Wipers and washers ( Wipers and Washers on page 56)
4. Steering wheel buttons - left ( Using Left Steering Wheel Buttons on page 39)
5. Instrument panel ( Instrument Panel on page 45)
6. Steering wheel buttons - right ( Using Right Steering Wheel Buttons on page 40)
7. Gear selector ( Shifting Gears on page 44)
8. Touchscreen ( Touchscreen Overview on page 93)
9. Glove box button ( Glove Box on page 14)
10. Power window switches ( Opening and Closing on page 9)
11. Exterior mirror adjustment switches ( Mirrors on page 42)
12. Seats ( Front and Rear Seats on page 17)
13. Steering column adjuster (hidden from view in the above image) ( Steering Wheel on page
39)
14. Horn ( Horn on page 41)
15. Brakes ( Brakes on page 57)
16. Hazard warning lights ( Hazard Warning Flashers on page 55)
17. Cabin climate control ( Climate Controls on page 105)
18. Cup holders ( Cup Holders on page 16)
Interior Overview
2Model S Owner

1. Exterior lights (Lights on page 51)
2. Door handles ( Using Exterior Door Handles on page 6)
3. Sunroof (optional) ( Sunroof on page 15)
4. Charge port ( Charging Instructions on page 134)
5. Forward looking camera ( About Driver Assistance on page 68)
6. Exterior mirrors ( Mirrors on page 42)
7. Hood/Front trunk ( Front Trunk on page 12)
8. Radar sensor (hidden from view in the above image) ( About Driver Assistance on page 68)
9. Wheels and tires ( Wheels and Tires on page 167)
10. Rear view camera ( Rear View Camera on page 67)
11. Rear trunk/liftgate ( Rear Trunk on page 10)
12. Ultrasonic sensors ( Park Assist on page 60 and About Driver Assistance on page 68)
Exterior Overview
Overview3

Keyless Locking and UnlockingLocking and unlocking Model S is convenient.
Although you must be carrying a valid key,
there is no need to use it. Model S has sensors that can recognize the presence of a key
within a range of approximately three feet
(one meter). So you can keep your key in your
pocket or purse and Model S detects it.
When you walk up to Model S carrying your
key, doors automatically unlock. If a door
handle is retracted, press it and it extends. If
the Auto-Present Handles setting is turned on
(see Using Exterior Door Handles on page
6), you do not need to touch the door
handle. Instead, door handles extends
automatically as you approach Model S. To
open the rear trunk, press the switch located
under the trunk

If Model S is unable to detect the key, the
touchscreen displays a message indicating that a key is not inside. Place the key where
Model S can best detect it, which is below the
12V power socket (see Key Not Inside on page
43).
Radio equipment on a similar frequency can
affect the key. If this happens, move the key at
least one foot (30 cm) away from other electronic devices (phone, laptop, etc). If the
key does not work, you may need to change
its battery. If the key

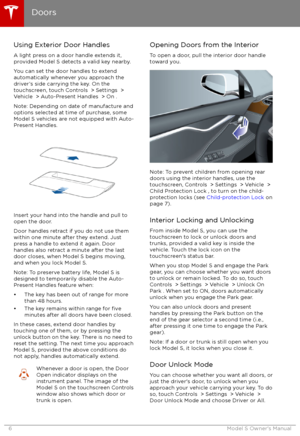

Using Exterior Door HandlesA light press on a door handle extends it,
provided Model S detects a valid key nearby.
You can set the door handles to extend
automatically whenever you approach the
driver

Child-protection Lock
Model S has child-protection locks on the rear
doors and liftgate to prevent them from being
opened using interior handles. Use the
touchscreen to turn child protection locks on
or
off. Touch Controls > Settings > Vehicle >
Child Protection Lock .
Note: It is recommended that you turn child- protection locks on whenever children are
seated in the rear seats.
Drive-away Locking
Model S automatically locks all doors
(including the trunks) whenever your driving
speed exceeds 5 mph (8 km/h).
Walk-away Locking
Doors and trunks can automatically lock whenever you walk away carrying the key.
To turn this feature on or
off, touch Controls >
Settings > Vehicle > Walk-Away Door Lock .
Note: Depending on date of manufacture and
options selected at time of purchase, some Model S vehicles are not equipped with the
Walk-Away Door Lock feature.
Note: If all doors are closed and you use the
key to unlock Model S, walk-away locking is temporarily suspended until the next time
Model S powers on (such as when you press
the Brake pedal to engage a driving gear), or
until you use the key again to lock Model S.
This allows you to keep Model S unlocked in
your garage.
Unlocking When the Key Doesn

Opening Interior Doors with NoPower
If Model S has no electrical power, the front
doors open as usual using the interior door handles. To open the rear doors, fold back the
edge of the carpet below the rear seats to
expose the mechanical release cable. Pull the mechanical release cable toward the center ofthe vehicle.
Doors
8Model S Owner
