2017 SUBARU LEGACY audio

SETUP
98
SETUP
AUDIO SETTINGS
Detailed audio settings can be programmed.
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectAudio (Audio).
4.Select the items to be set.
AUDIO SETTINGS SCREEN

SETUP
99
AUDIO
3
No.Function Page
Select to specify the sound settings. 56
Select to change the number of preset radio
stations/channels displayed on the screen. 99
Select to specify the iPod/SD*1/USB auto play
settings on/off. -
Select to specify the iPod sound signal input
settings.100
Unsupported.
-
Select to specify cover art settings on/off. -
*2Select to specify automatic sound levelizer
settings.100
Select to enable cache radio.
-
Select to reset all setup items. -
*1: With navigation function
*2 7KLVVHWWLQJFDQEHPDGHGHSHQGLQJRQWKHFRQQHFWHGDPSOL

SETUP
100
iPod SETTINGS
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectiPod Sound Input (iPod Sound Input).
3.Select a screen button for the desired setting.
AUTOMATIC SOUND LEVELIZER (ASL)
The system adjusts to the optimum volume and tone quality
according to vehicle speed to compensate for increased
vehicle noise.
1.Display the “Audio Settings (Audio Settings)” screen.

:3
2.SelectAutomatic Sound Levelizer (Automatic Sound
Levelizer).
3.SelectHigh (High), Mid (Mid), Low (Low), or Off
(Off).

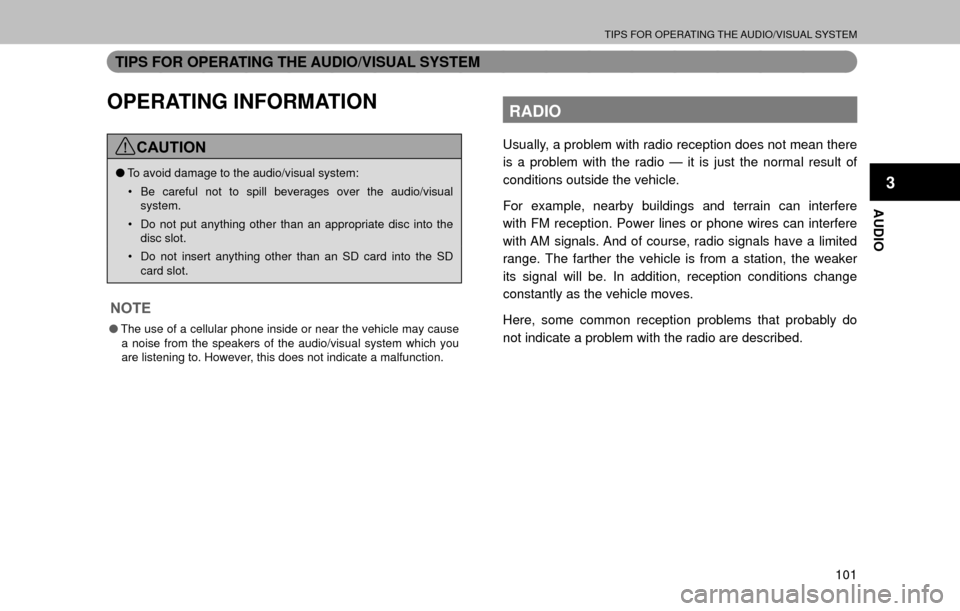

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
101
AUDIO
3
TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
OPERATING INFORMATION
CAUTION
OTo avoid damage to the audio/visual system:
‡ Be careful not to spill beverages over the audio/visual
system.
‡ Do not put anything other than an appropriate disc into the
disc slot.
‡ Do not insert anything other than an SD card into the SD
card slot.
NOTE
OThe use of a cellular phone inside or near the vehicle may cause
a noise from the speakers of the audio/visual system which you
are listening to. However, this does not indicate a malfunction.
RADIO
Usually, a problem with radio reception does not mean there
is a problem with the radio — it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere
with FM reception. Power lines or phone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther the vehicle is from a station, the weaker
its signal will be. In addition, reception conditions change
constantly as the vehicle moves.
Here, some common reception problems that probably do
not indicate a problem with the radio are described.

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
102
FM
Fading and drifting stations: Generally, the effective range
of FM is about 25 miles (40 km). Once outside this range,
you may notice fading and drifting, which increase with
the distance from the radio transmitter. They are often
accompanied by distortion.
0XOWLSDWK )0 VLJQDOV DUH UH

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
103
AUDIO
3
CD PLAYER AND DISC

”Extremely high temperatures can keep the CD player
from working. On hot days, use the air conditioning
system to cool the inside of the vehicle before using
the player.

” Bumpy roads or other vibrations may make the CD
player skip.

” If moisture gets into the CD player, the discs may
not be able to be played. Remove the discs from the
player and wait until it dries.
WARNING
O CD players use an invisible laser beam which could cause
hazardous radiation exposure if directed outside the unit. Be
sure to operate the player correctly.
Audio CDs

”Use only discs marked as shown above. The
following products may not be playable on your
player:
‡SACD
‡ dts CD
‡ Copy-protected CD
‡ Video CD
X Special shaped discs
XTransparent/translucent discs

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
104 XLow quality discs
XLabeled discs
CAUTION
O Do not use special shaped, transparent/translucent,
low quality or labeled discs such as those shown in the
illustrations. The use of such discs may damage the player, or
it may be impossible to eject the disc.
O This system is not designed for use of Dual Discs. Do not use
Dual Discs because they may cause damage to the player.
O Do not use discs with a protection ring. The use of such discs
may damage the player, or it may be impossible to eject the
disc.
O Do not use printable discs. The use of such discs may
damage the player, or it may be impossible to eject the disc.
Correct Wrong

”
Handle discs carefully, especially when inserting
them. Hold them on the edge and do not bend them.
$YRLG JHWWLQJ

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
105
AUDIO
3

”Dirt, scratches, warping, pin holes or other disc
damage could cause the player to skip or to repeat a
section of a track. (To see a pin hole, hold the disc up
to the light.)

” Remove discs from the players when not in use.
Store them in their plastic cases away from moisture,
heat and direct sunlight.
To clean a disc: Wipe it with a soft, lint-free cloth that has
been dampened with water. Wipe in a straight line from
the center to the edge of the disc (not in circles). Dry it
with another soft, lint-free cloth. Do not use a conventional
record cleaner or anti-static device.
CD-R/RW DISCS

” CD-R/CD-RW discs that have not been subject to
WKH
