INTRODUCTION
6
OUsing the unit during extremely high or low temperature may
result in mistaken operation or a malfunction. In particular, the
temperature inside the vehicle can often rise to a high level
during the summer. Cool the vehicle, for example by opening
a window, before using the unit.
O Be careful if metal or water enters the unit, or the unit is
exposed to a strong impact, because it may result in a
malfunction.
O The touch buttons on the display screen may not operate
correctly if condensation forms inside them. If this happens,
do not attempt to operate the switches until the condensation
has disappeared.
O If juice or similar liquid is spilled on the display, wipe
off immediately. Failure to do so may result in product
malfunction.
O 7KH VFUHHQ LV HDVLO\ PDUNHG E\

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
108
”
The player is compatible with VBR (Variable Bit Rate).

” MP3 (MPEG Audio Layer 3), WMA (Windows Media
Audio) and AAC (Advanced Audio Coding) are audio
compression standards.

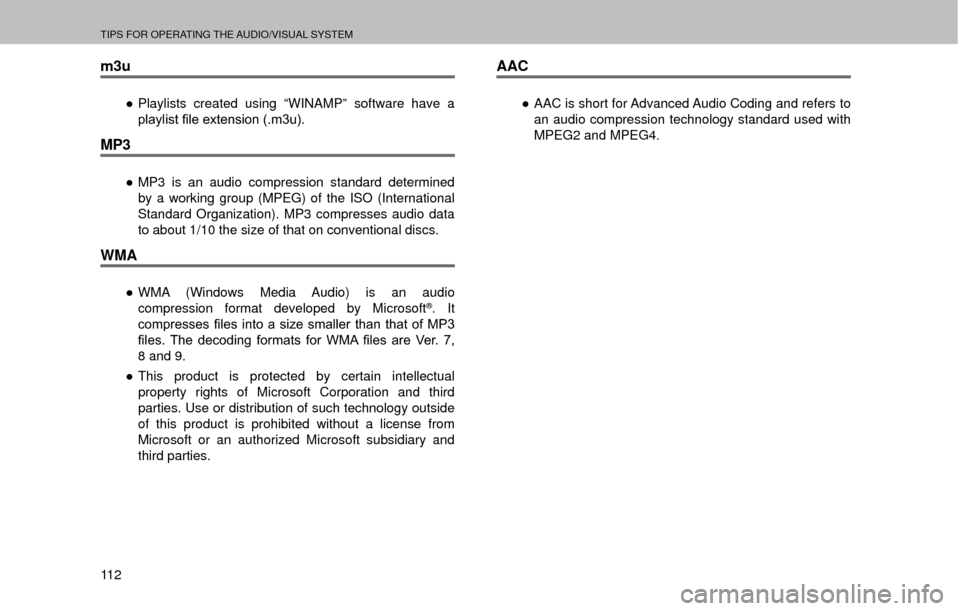

TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
11 2
m3u

”Playlists created using “WINAMP” software have a
SOD\OLVW¿OHH[WHQVLRQPX
MP3

”MP3 is an audio compression standard determined
by a working group (MPEG) of the ISO (International
Standard Organization). MP3 compresses audio data
to about 1/10 the size of that on conventional discs.
WMA

”WMA (Windows Media Audio) is an audio
compression format developed by Microsoft®. It
FRPSUHVVHV

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
11 6
NOTE
OKeep call volume down. Otherwise, the other party’s voice
may be audible outside the vehicle and voice echo may
increase. When talking on the phone, speak clearly towards the
microphone.
O The other party may not hear you clearly when:
‡ 'ULYLQJRQDQXQSDYHGURDG0DNLQJH[FHVVLYHWUDI¿FQRLVH
‡ Driving at high speeds.
‡ Driving with a window open.
‡ When air from the ventilator blows directly toward the
microphone.
‡ The sound of the air conditioning fan is loud.
‡ There is a negative effect on sound quality due to the phone
and/or network being used.
REGISTERING/CONNECTING A Bluetooth
PHONE
To use the hands-free system for cellular phones, it is
necessary to register a cellular phone with the system.

:3
Bluetooth PHONE CONDITION DISPLAY
The condition of the Bluetooth phone appears on the upper
ULJKWVLGHRIWKHVFUHHQ
:3
USING THE PHONE SWITCH/MICROPHONE
XSteering switch
By pressing the phone switch, a call can be received or
ended without taking your hands off the steering wheel.
Volume control switch
” Press the “+” side to increase the volume.

” Press the “-” side to decrease the volume.
Off hook switch
On hook switch

TIPS FOR THE NAVIGATION SYSTEM
248
CAUTION
OThe installation of window tinting may obstruct the GPS
signals. Most window tinting contains some metallic content
that will interfere with GPS signal reception of the antenna in
the instrument panel. We advise against the use of window
tinting on vehicles equipped with navigation systems.

” Accurate current position may not be shown in the
following cases:
‡When driving on a small angled Y-shaped road.
‡ When driving on a winding road.
‡ When driving on a slippery road such as in sand,
gravel, snow, etc.
‡ When driving on a long straight road.
‡ When freeway and surface streets run in parallel.
‡ After moving by ferry or vehicle carrier.
‡ When a long route is searched during high speed
driving.
‡ After repeating a change of direction by going
forward and backward, or turning on a turntable in
a parking lot.
‡ When leaving a covered parking lot or parking
garage.
‡ When a roof carrier is installed.
‡ When driving with tire chains installed. ‡
When the tires are worn.
‡ After replacing a tire or tires.
‡ When using tires that are smaller or larger than the
IDFWRU\VSHFL¿FDWLRQV
‡ When the tire pressure in any of the 4 tires is not
correct.

” Inappropriate route guidance may occur in the
following cases:
‡When turning at an intersection off the designated
route guidance.
‡ If you set more than 1 destination but skip any of
them, auto reroute will display a route returning to
the destination on the previous route.
‡ When turning at an intersection for which there is
no route guidance.
‡ When passing through an intersection for which
there is no route guidance.
‡ During auto reroute, the route guidance may not be
available for the next turn to the right or left.
‡ During high speed driving, it may take a long time
for auto reroute to operate. In auto reroute, a detour
route may be shown.
‡ After auto reroute, the route may not be changed.
‡ If an unnecessary U-turn is shown or announced.

Siri
254
”
If required to say more, the system will notify you with
the beep sound. Continue speaking.

” If the system fails to recognize what is being said, or
to request a different operation, select
, or press
the talk switch.

” To cancel Siri, select
Cancel (Cancel), or press and
hold the talk switch.
NOTE
O Siri cannot be started while placing or receiving hands-free
calls with your iPhone and iPod touch (including while holding
incoming calls), or while having a hands-free conversation.
O Siri cannot be used while using the system's voice recognition
function. Start Siri after exiting the voice recognition function.
O The system screen will display the calling screen when a hands-
free call is placed.
O Unit operation while using Siri will differ depending on your
iPhone or iPod touch.
O Siri may not recognize what is being said if:
‡ Spoken too quickly.
‡ Spoken at a low or high volume.
‡ Driving with a window open.
‡ Passengers are talking while using Siri.
‡ The air conditioning speed is set high.
‡ When air from the ventilator blows directly toward the
microphone.
NOTE
OIn the following conditions, the system may not recognize what is
being said properly, and use of Siri may not be possible.
‡ What is being said is incorrect or unclear. Note that certain
ZRUGV DFFHQWV RU VSHHFK SDWWHUQV PD\ EH GLI
