Page 185 of 308
SETTINGS
7
Bluetooth® SETTINGS
183
4. & K H F N W K D W D F R Q
Page 186 of 308
Bluetooth® SETTINGS
184
EDITING THE Bluetooth DEVICE
INFORMATION
The Bluetooth device’s information can be displayed on the
screen. The displayed information can be edited.
1.Display the “Bluetooth Settings (Bluetooth Settings)”
V F U H H Q : 3
2.Select the desired device to be edited.
3.SelectDevice Info (Device Info).
4. & R Q ¿ U P D Q G F K D Q J H W K H % O X H W R R W K G H Y L F H L Q I R U P D W L R Q
No.
Information
The name of the Bluetooth device. Can be changed to a
G H V L U H G Q D P H : 3
Select to set the Bluetooth audio device connection
P H W K R G : 3
Device address is unique to the device and cannot be
changed.
Phone number of the Bluetooth phone.

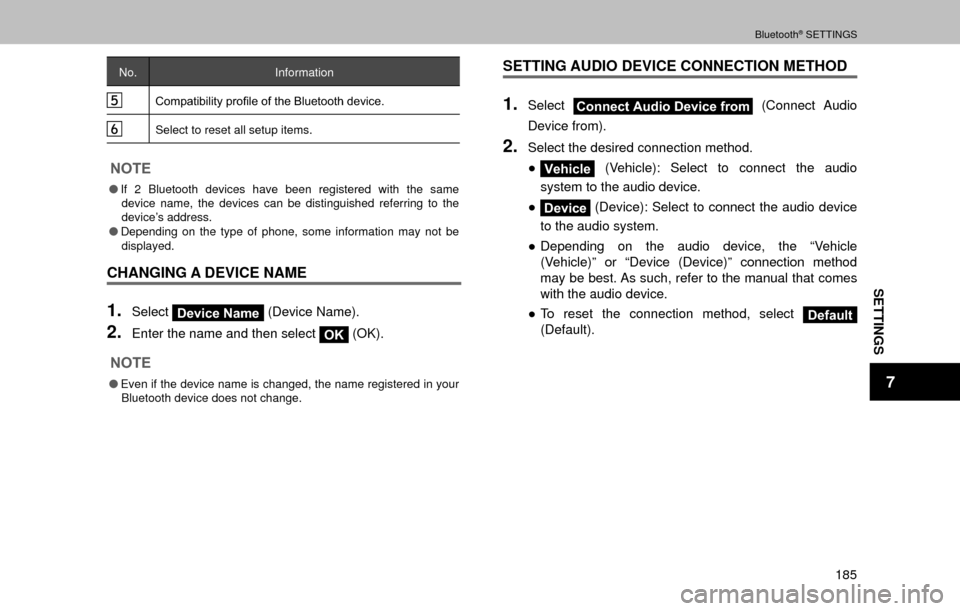

Page 187 of 308
SETTINGS
7
Bluetooth® SETTINGS
185
No.Information
& R P S D W L E L O L W \ S U R ¿ O H R I W K H % O X H W R R W K G H Y L F H
Select to reset all setup items.
NOTE
OIf 2 Bluetooth devices have been registered with the same
device name, the devices can be distinguished referring to the
device’s address.
O Depending on the type of phone, some information may not be
displayed.
CHANGING A DEVICE NAME
1.SelectDevice Name (Device Name).
2.Enter the name and then select OK (OK).
NOTE
O
Even if the device name is changed, the name registered in your
Bluetooth device does not change.
SETTING AUDIO DEVICE CONNECTION METHOD
1.SelectConnect Audio Device from (Connect Audio
Device from).
2.Select the desired connection method.
”
Vehicle (Vehicle): Select to connect the audio
system to the audio device.
”
Device (Device): Select to connect the audio device
to the audio system.
” Depending on the audio device, the “Vehicle
(Vehicle)” or “Device (Device)” connection method
may be best. As such, refer to the manual that comes
with the audio device.
” To reset the connection method, select
Default
(Default).
Page 188 of 308
Bluetooth® SETTINGS
186
“System Settings (System Settings)”
SCREEN
7 K H % O X H W R R W K V H W W L Q J V F D Q E H F R Q ¿ U P H G D Q G F K D Q J H G
1.Display the “Bluetooth Settings (Bluetooth Settings)”
V F U H H Q : 3
2.SelectSystem Settings (System Settings).
3.Select the desired item to be set.
No.
Information Page
Select to set Bluetooth connection on/off. 187
Displays system name. Can be changed to a
desired name. 187
PIN-code used when the Bluetooth device
was registered. Can be changed to a desired
code.187
Device address is unique to the device and
cannot be changed.
-
Select to set the phone connection status
display on/off.-
Select to set the connection status display of
the audio device on/off.-
& R P S D W L E L O L W \ S U R ¿ O H R I W K H V \ V W H P G H Y L F H
-
Select to reset all setup items. -
Page 189 of 308
SETTINGS
7
Bluetooth® SETTINGS
187
CHANGING “Bluetooth Power (Bluetooth Power)”
1.SelectBluetooth Power (Bluetooth Power).
Q WHEN “Bluetooth Power (Bluetooth Power)” IS ON
The Bluetooth device is automatically connected when
the ignition switch is turned to the “ACC” or “ON” position.\
Q WHEN “Bluetooth Power (Bluetooth Power)” IS OFF
The Bluetooth device is disconnected, and the system will
not connect to it next time.
NOTE
O While driving, the auto connection state can be changed from off
to on, but cannot be changed from on to off.
EDITING THE Bluetooth NAME
1.SelectBluetooth Name (Bluetooth Name).
2.Enter a name and then select OK (OK).
EDITING THE PIN-CODE
1.SelectBluetooth PIN (Bluetooth PIN).
2.Enter a PIN-code and then select OK (OK).
Page 191 of 308
OTHER SETTINGS
189
SETTINGS
7
No.Function
*1 6 H O H F W W R F K D Q J H W K H Y H K L F O H F O R F N V H W W L Q J V : 3
Select to change the language.
Select to turn the beep sound on/off.
Select to change the button and screen color.
Select to change the keyboard layout.
Select to turn on/off the setting that returns the display
to the split screen automatically after 20 seconds when
a screen other than the split screen is displayed.
Select to turn the animation function on/off.
6 H O H F W W R F X V W R P L ] H W K H V F U H H Q R I I L P D J H : 3
6 H O H F W W R G H O H W H S H U V R Q D O G D W D : 3
No.Function
Select to set the connected device when using aha.
Select
USB (USB) when using an iPhone, and then
select
Bluetooth (Bluetooth) when using Android
devices.
Select to set the connected device when using
Pandora*2. Select USB (USB) when using an iPhone,
and then select
Bluetooth (Bluetooth) when using
Android devices.
Select to update the Gracenote® database. For details,
contact your SUBARU dealer.
Select to display the software information. Notices
related to third party software used in this product are
enlisted. (This includes instructions for obtaining such
software, where applicable.)
Select to set the back camera delay control on/off.
When set to on, the back camera image displays for
approximately 6 seconds after moving the shift lever/
select lever “R” to any position other than “R”.
The display disappears when the shift lever/select lever
is moved to “P”, or when the vehicle speed reaches
approximately 5 mph (8 km/h) or faster.
Select to set the welcome display on/off when getting
into the vehicle.
*1Select to set the low fuel - gas station search on/off.
Page 204 of 308
BASIC OPERATION
202
No. OperationFunction
Point
informationSelect to open another screen
displaying information on the
selected map position (cursor). When
Bluetooth is enabled on your cellular
phone, a call can be placed if the
displayed information screen contains
phone number information.
Return to
normal
navigation
Select to return the map to the current
GPS position. Auto map rotation is
also enabled. The map operation
buttons are not displayed, and
navigation restarts.
Tilt up/down
Select to change the vertical display
angle of the map in 3D mode. Select
and hold to continue changing the
motion of the map screen.
No. Operation
Function
Selecting a
destinationSelect to select the cursor as a new
destination. The route is researched
automatically.
Additional
functionsSelect to display the additional
functions list. For example, saving
the cursor to the destination list, and
searching the area around the cursor.
Zoom in/out
Select to change the area of the map
displayed on the screen. Select and
hold to continue changing the scale of
the map screen.
NOTE
O
The map screen scale can be changed by double-touching or
S L Q F K L Q J W K H V F U H H Q : 3
O The map direction can be changed by rotating the screen.
: 3
Page 254 of 308
Siri
252
Siri
Siri®
Siri is a function that allows your iPhone and iPod touch to
be used without any manual operation by connecting your
device to the unit.
To use Siri, connect your device via Bluetooth.
BEFORE USING Siri
This section describes the preparation required to use Siri.”Register your iPhone or iPod touch in the unit.
: 3
” Connect your iPhone or iPod touch to the unit.
: 3
‡ When using the hands-free system, turn Phone on
(Connected).
‡ When listening to music, turn Phone and Audio
device on (Connected).
” Enable Siri in your iPhone or iPod touch settings.
(See Apple website for details.) ”
An iPhone and iPod touch data plan: If the data plan
for your iPhone and iPod touch does not provide for
unlimited data usage, additional charges from your
carrier may apply for accessing app-based connected
content via 3G, 4G, Wi-Fi, or 4G LTE wireless
networks.
” Connection to the internet via 3G, 4G, Wi-Fi, or 4G
LTE networks.
NOTE
O Available operations will differ based on your iPhone and iPod
touch.
O Be careful not to exceed the data usage limits for your iPhone
and iPod touch. Doing so will result in additional data usage
charges from your phone carrier.
