2017 SUBARU LEGACY Multimedia System Manual

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
127
PHONE
4
3.SelectOK (OK).
NOTE
O
The sound quality of the voice heard from the other party’s
speaker may be negatively impacted.
O To reset the transmit volume, select
Default (Default).
O The volume cannot be adjusted while muted.
INCOMING CALL WAITING
When a call is interrupted by a third party while talking, this
screen is displayed.
1.Select or press the switch on the steering
wheel to start talking with the other party.
To refuse to receive the call: Select or press the switch on the steering wheel.

”Select
or press the switch on the steering
wheel to end the current call and return to the
conversation with the party on hold.
Bluetooth PHONE MESSAGE
FUNCTION
Received messages can be forwarded from the connected
Bluetooth phone, enabling checking and replying using the
system.
Depending on the type of Bluetooth phone connected,
received messages may not be transferred to the message
inbox.
If the phone does not support the message function, this
function cannot be used.
X Without navigation function
1.Select.
2.Select.

” The phone top screen can be displayed by pressing
the
switch on the steering wheel.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
128
3.Check that the message inbox screen is displayed.
X With navigation function
1.Select.
2.SelectPHONE (PHONE).
3.Select.

” The phone top screen can be displayed by pressing
the
switch on the steering wheel.
4.Check that the message inbox screen is displayed.

” : Select to change to phone mode.
Function Page
Receiving a message 129
Checking messages 129
Replying to a message (quick reply) 130
Calling the message sender 131
Message settings 142

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
129
PHONE
4

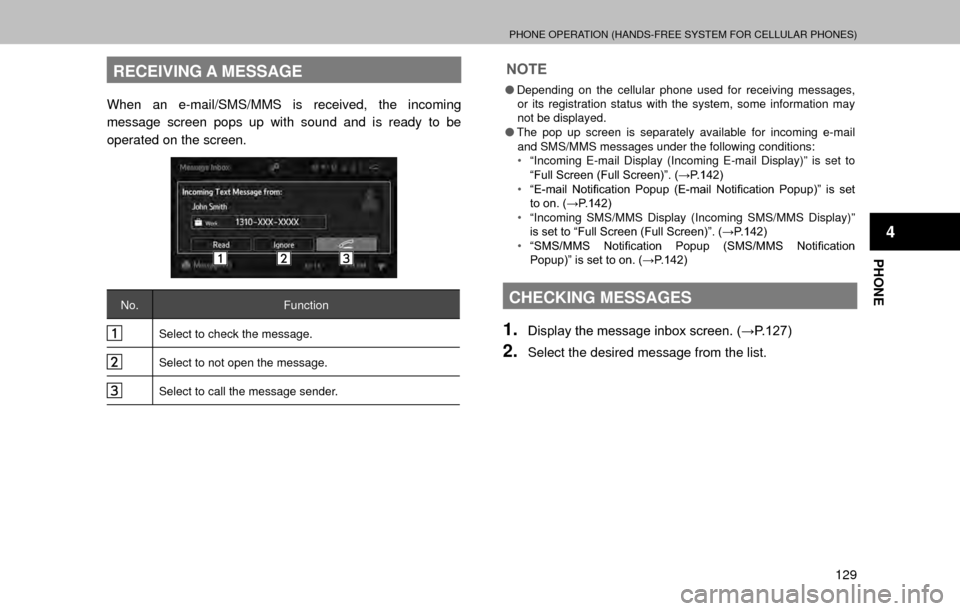

RECEIVING A MESSAGE
When an e-mail/SMS/MMS is received, the incoming
message screen pops up with sound and is ready to be
operated on the screen.
No.Function
Select to check the message.
Select to not open the message.
Select to call the message sender.
NOTE
ODepending on the cellular phone used for receiving messages,
or its registration status with the system, some information may
not be displayed.
O The pop up screen is separately available for incoming e-mail
and SMS/MMS messages under the following conditions:
‡ “Incoming E-mail Display (Incoming E-mail Display)” is set to

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
130
3.Check that the message is displayed.
No.Function
*Select
Mark Unread (Mark Unread) or Mark Read
(Mark Read) to mark mail unread or read on the
message inbox screen.
This function is available when “Update Message Read
Status on Phone (Update Message Read Status on
3KRQH

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
131
PHONE
4
4.Select the desired message.
5.SelectSend (Send).

” While the message is being sent, a sending message
screen is displayed.
EDITING QUICK REPLY MESSAGES
This operation cannot be performed while driving.
1.SelectQuick Message (Quick Message).
2.Select corresponding to the desired message to
edit.
3.SelectOK (OK) when editing is completed.
NOTE
O
To reset the editquick reply messages, select Default(Default).
O “Quick Message 1” (
I'm driving right now. I will call you back later.
(I'm driving right now. I will call you back later.)*1 or
I am driving and will arrive in approximately [ETA] minutes. (I am
driving and will arrive in approximately [ETA] minutes.)*2)
cannot be edited. [ETA] will automatically be replaced with the
HVWLPDWHGWLPHRIDUULYDORQWKHFRQ¿UPPHVVDJHVFUHHQ
If there are waypoints set, [ETA] to the next waypoint will be
shown.
If there is no route currently set in the navigation system, “Quick
Message 1” cannot be selected.
*1: Without navigation function
*2: With navigation function
CALLING THE MESSAGE SENDER
Calls can be made to an e-mail/SMS/MMS message
sender’s phone number.
This operation can be performed while driving.

PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
132
CALLING FROM E-MAIL/SMS/MMS MESSAGE
DISPLAY
1.'LVSOD\WKHPHVVDJHLQER[VFUHHQ
:3
2.Select the desired message.
3.Select.

”If there are 2 or more phone numbers, select the
desired number.
4.Check that the “Call (Call)” screen is displayed.
CALLING FROM A NUMBER WITHIN A MESSAGE
&DOOV FDQ EH PDGH WR D QXPEHU LGHQWL

SETUP
133
PHONE
4
SETUP
PHONE/MESSAGE SETTINGS
1.Select.
2.SelectSETTINGS (SETTINGS).
3.SelectPhone (Phone).
4.Select the item to be set.
PHONE/MESSAGE SETTINGS SCREEN
No.
Information Page
Connect phone 179
Sound settings134
Contact/call history settings135
Messaging settings 142
Phone display settings143

SETUP
134
DISPLAYING THE PHONE/MESSAGE SETTINGS
SCREEN IN A DIFFERENT WAY
1.'LVSOD\WKHSKRQHWRSVFUHHQ
:3
2.Select.
“Sound Settings (Sound Settings)” SCREEN
The call and ringtone volume can be adjusted. A ringtone
can be selected.
1.Display the “Phone/Message Settings (Phone/Message
6HWWLQJV
