2017 SUBARU FORESTER Driving Assist Manual

About EyeSight
14

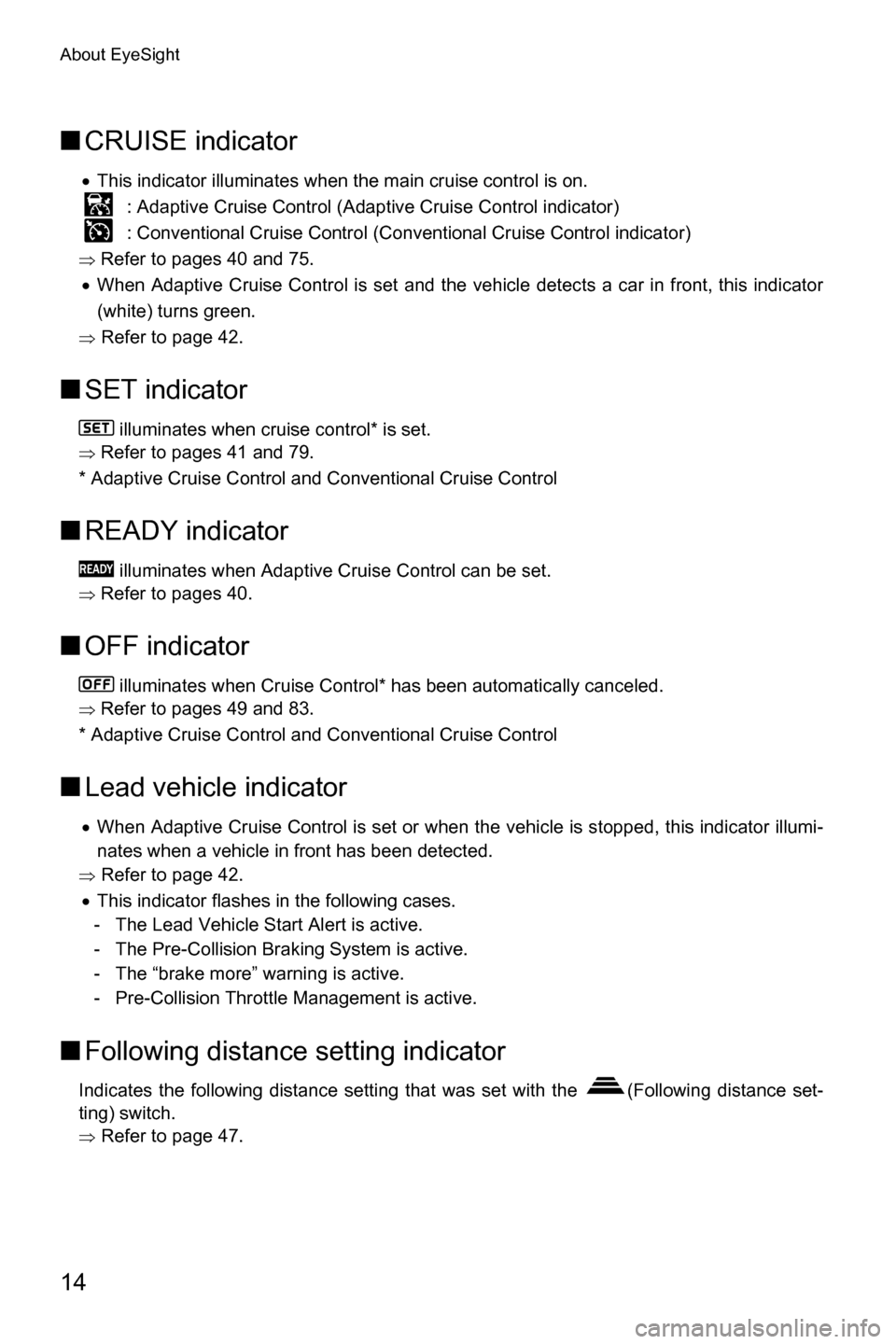

■CRUISE indicator
xThis indicator illuminates when the main cruise control is on.
: Adaptive Cruise Control (Adaptive Cruise Control indicator)
: Conventional Cruise Control (Conventional Cruise Control indicator)
Ÿ Refer to pages 40 and 75.
x When Adaptive Cruise Control is set and the vehicle detects a car in front, this indicator
(white) turns green.
Ÿ Refer to page 42.
■ SET indicator
illuminates when cruise control* is set.
Ÿ Refer to pages 41 and 79.
* Adaptive Cruise Control and Conventional Cruise Control
■ READY indicator
illuminates when Adaptive Cruise Control can be set.
Ÿ Refer to pages 40.
■OFF indicator
illuminates when Cruise Control* has been automatically canceled.
Ÿ Refer to pages 49 and 83.
* Adaptive Cruise Control and Conventional Cruise Control
■ Lead vehicle indicator
xWhen Adaptive Cruise Control is set or when the vehicle is stopped, this indicator illumi-
nates when a vehicle in front has been detected.
Ÿ Refer to page 42.
x This indicator flashes in the following cases.
- The Lead Vehicle Start Alert is active.
- The Pre-Collision Braking System is active.
- The “brake more” warning is active.
- Pre-Collision Throttle Management is active.
■ Following distance setting indicator
Indicates the following distance setting that was set with the (Following distance set-
ting) switch.
Ÿ Refer to page 47.

About EyeSight
15

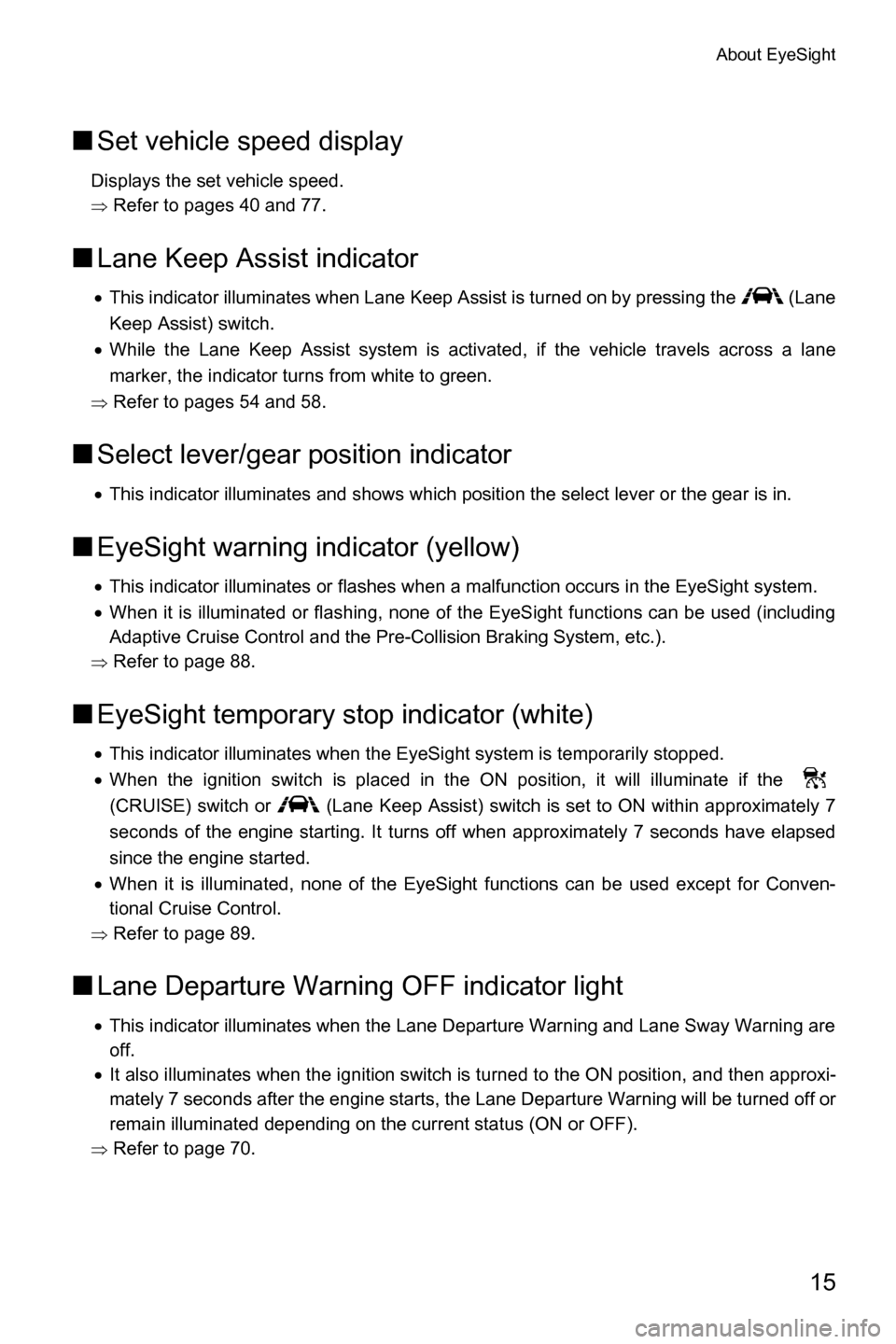

■Set vehicle speed display
Displays the set vehicle speed.
Ÿ Refer to pages 40 and 77.
■Lane Keep Assist indicator
xThis indicator illuminates when Lane Keep Assist is turned on by pressing the (Lane
Keep Assist) switch.
x While the Lane Keep Assist system is activated, if the vehicle travels across a lane
marker, the indicator turns from white to green.
Ÿ Refer to pages 54 and 58.
■ Select lever/gear position indicator
xThis indicator illuminates and shows which position the select lever or the gear is in.
■ EyeSight warning indicator (yellow)
xThis indicator illuminates or flashes when a malfunction occurs in the EyeSight system.
x When it is illuminated or flashing, none of the EyeSight functions can be used (including
Adaptive Cruise Control and the Pre-Collision Braking System, etc.).
Ÿ Refer to page 88.
■ EyeSight temporary stop indicator (white)
xThis indicator illuminates when the EyeSight system is temporarily stopped.
x When the ignition switch is placed in t he ON position, it will illuminate if the
(CRUISE) switch or (Lane Keep Assist) switch is set to ON within approximately 7
seconds of the engine starting. It turns off when approximately 7 seconds have elapsed
since the engine started.
x When it is illuminated, none of the EyeSight functions can be used except for Conven-
tional Cruise Control.
Ÿ Refer to page 89.
■ Lane Departure Warning OFF indicator light
xThis indicator illuminates when the Lane Departure Warning and Lane Sway Warning are
off.
x It also illuminates when the ignition switch is turned to the ON position, and then approxi-
mately 7 seconds after the engine starts, the Lane Departure Warning will be turned off or
remain illuminated depending on the current status (ON or OFF).
Ÿ Refer to page 70.

About EyeSight
16

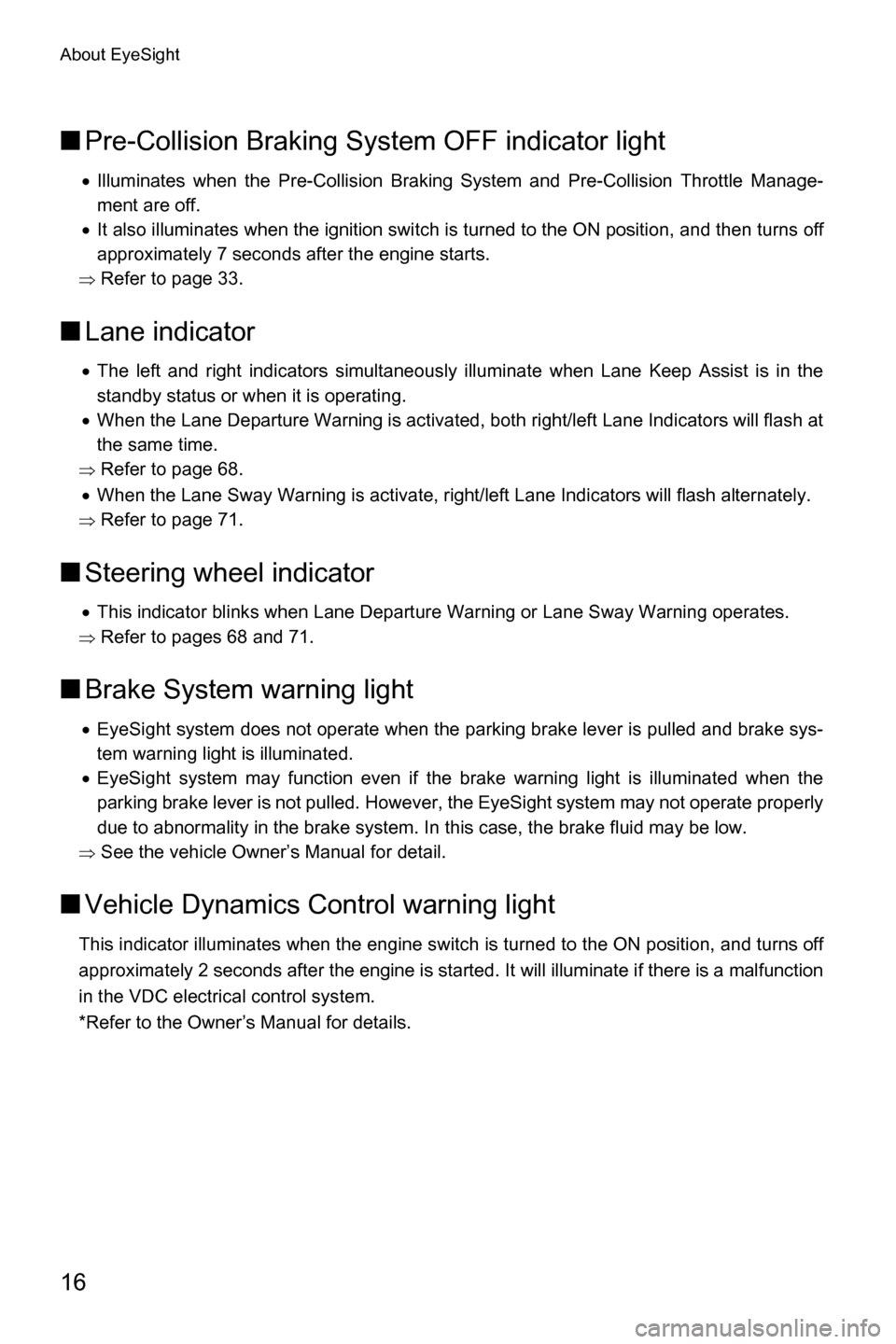

■Pre-Collision Braking System OFF indicator light
xIlluminates when the Pre-Collision Braking System and Pre-Collision Throttle Manage-
ment are off.
x It also illuminates when the ignition switch is turned to the ON position, and then turns off
approximately 7 seconds after the engine starts.
Ÿ Refer to page 33.
■ Lane indicator
xThe left and right indicators simultaneously illuminate when Lane Keep Assist is in the
standby status or when it is operating.
x When the Lane Departure Warning is activated, both right/left Lane Indicators will flash at
the same time.
Ÿ Refer to page 68.
x When the Lane Sway Warning is activate, right/left Lane Indicators will flash alternately.
Ÿ Refer to page 71.
■ Steering wheel indicator
xThis indicator blinks when Lane Departure Warning or Lane Sway Warning operates.
Ÿ Refer to pages 68 and 71.
■ Brake System warning light
xEyeSight system does not operate when the parking brake lever is pulled and brake sys-
tem warning light is illuminated.
x EyeSight system may function even if the brake warning light is illuminated when the
parking brake lever is not pulled. However, the EyeSight system may not operate properly
due to abnormality in the brake system. In this case, the brake fluid may be low.
Ÿ See the vehicle Owner’s Manual for detail.
■ Vehicle Dynamics Control warning light
This indicator illuminates when the engine switch is turned to the ON position, and turns off
approximately 2 seconds after the engine is started. It will illuminate if there is a malfunction
in the VDC electrical control system.
*Refer to the Owner’s Manual for details.

About EyeSight
17

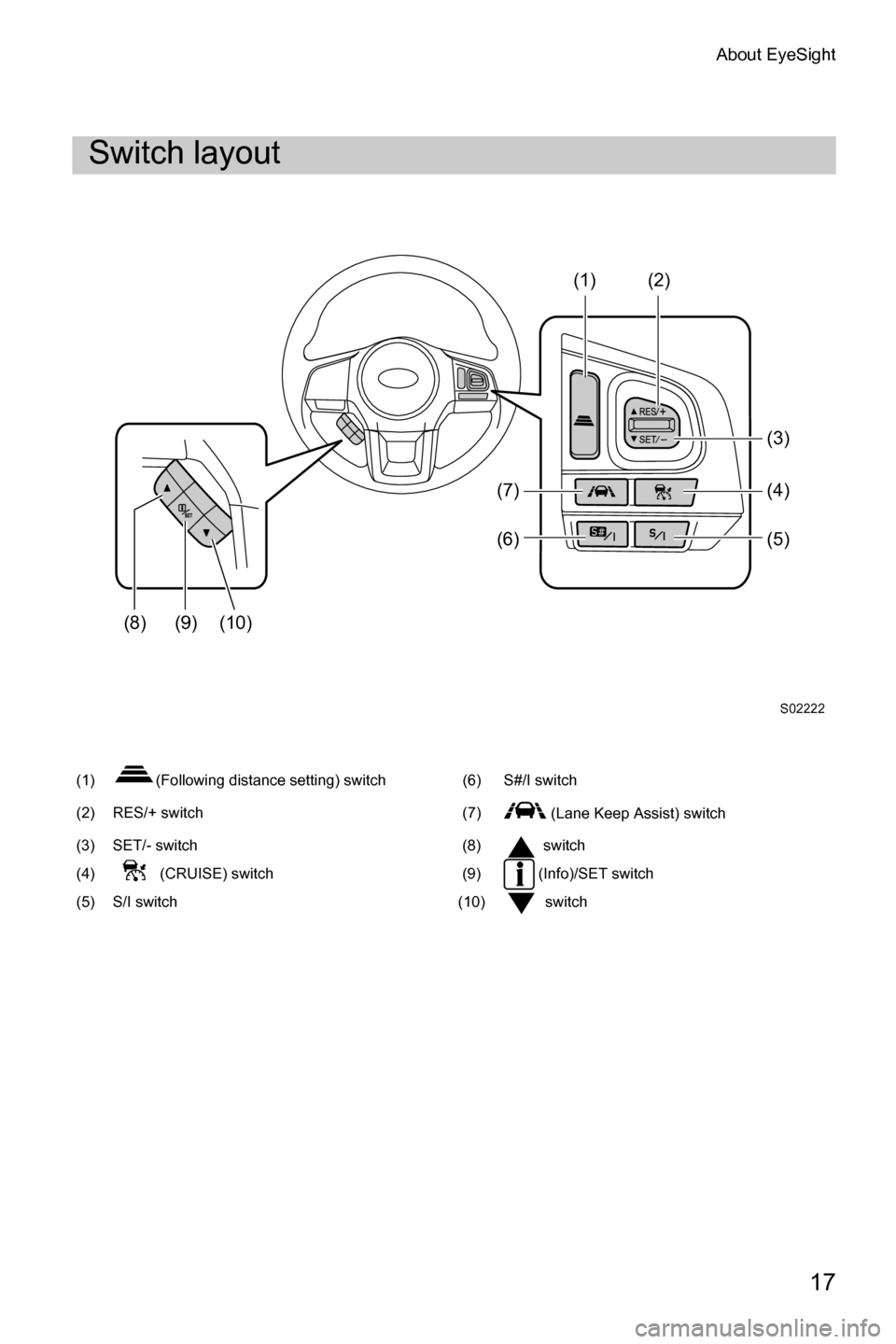

Switch layout
(1) (Following distance setting) switch(6) S#/I switch
(2) RES/+ switch (7)
(Lane Keep Assist) switch
(3) SET/- switch (8) switch
(4) (CRUISE) switch (9) (Info)/SET switch
(5) S/I switch (10) switch
S02222
(4)
(9) (6)(3)
(2)
(1)
(7)
(5)
(10)
(8)

About EyeSight
18
■ (CRUISE) switch
xSwitches cruise control* on/off.
x When this switch is pressed “ ” or “ ” appears on the EyeSight display area in the
multi information display. This indicates that the main cruise control is turned on.
Ÿ Refer to pages 40 and 77.
x Can be used to cancel the cruise control.
Ÿ Refer to pages 48 and 82.
* Adaptive Cruise Control and Conventional Cruise Control
■ RES/SET switch
●
SET/-
x Can be used to set cruise control*.
x Can be used to reduce the set vehicle speed (when cruise control* is currently set).
Ÿ Refer to pages 41 and 45 (for Adaptive Cruise Control).
Ÿ Refer to pages 79 and 81 (for Conventional Cruise Control).
●RES/+
xAfter cruise control* is canceled, this switch can be used to resume the cruise control
function at the vehicle speed that was previously set.
x Can be used to increase set vehicle speed (when cruise control
* is currently set).
Ÿ Refer to pages 44 and 51 (for Adaptive Cruise Control).
Ÿ Refer to page 85 (for Conventional Cruise Control).
* Adaptive Cruise Control and Conventional Cruise Control
■ (Following distance setting) switch
xCan be used to switch the set following distance in 3 stages: (only when Adaptive Cruise
Control is on).
Ÿ Refer to page 47.
x When the (CRUISE) switch is on, press and hold this switch for approximately 2
seconds or longer to select Adaptive Cruise Control or Conventional Cruise Control.
■ switch/ switch
These are used in the following situations.
x When switching the screen displayed on the multi information display.
x When changing the Warning Volume settings, etc.
Ÿ Refer to page 91.

About EyeSight
19

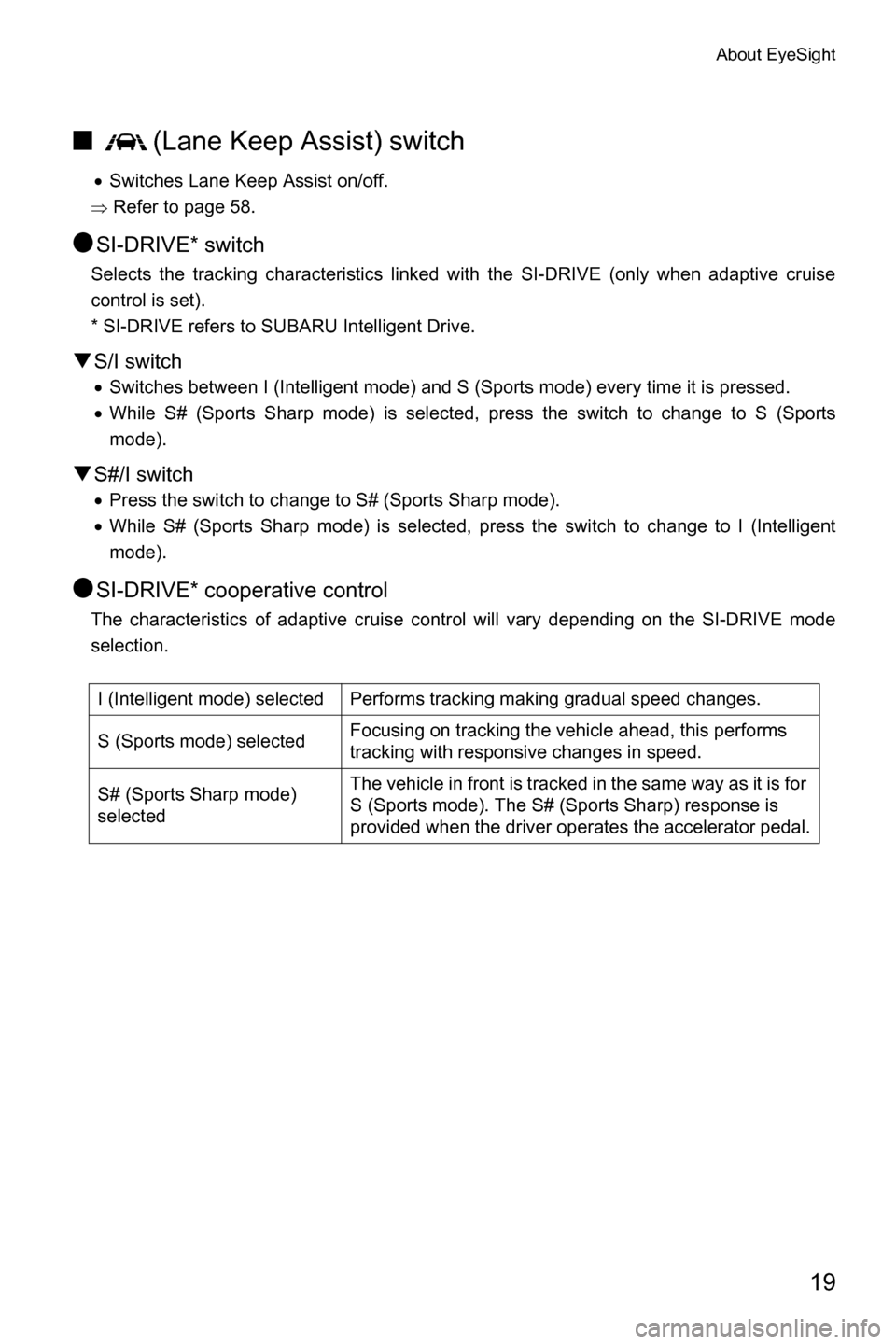

■(Lane Keep Assist) switch
xSwitches Lane Keep Assist on/off.
Ÿ Refer to page 58.
●SI-DRIVE* switch
Selects the tracking characteristics linked with the SI-DRIVE (only when adaptive cruise
control is set).
* SI-DRIVE refers to SUBARU Intelligent Drive.
T S/I switch
xSwitches between I (Intelligent mode) and S (Sports mode) every time it is pressed.
x While S# (Sports Sharp mode) is selected, press the switch to change to S (Sports
mode).
T S#/I switch
xPress the switch to change to S# (Sports Sharp mode).
x While S# (Sports Sharp mode) is selected, press the switch to change to I (Intelligent
mode).
●SI-DRIVE* cooperative control
The characteristics of adaptive cruise control will vary depending on the SI-DRIVE mode
selection.
I (Intelligent mode) selected Performs tracking making gradual speed changes.
S (Sports mode) selected Focusing on tracking the vehicle ahead, this performs
tracking with responsive changes in speed.
S# (Sports Sharp mode)
selected The vehicle in front is tracked in the same way as it is for
S (Sports mode). The S# (Sports Sharp) response is
provided when the driver operates the accelerator pedal.

About EyeSight
20

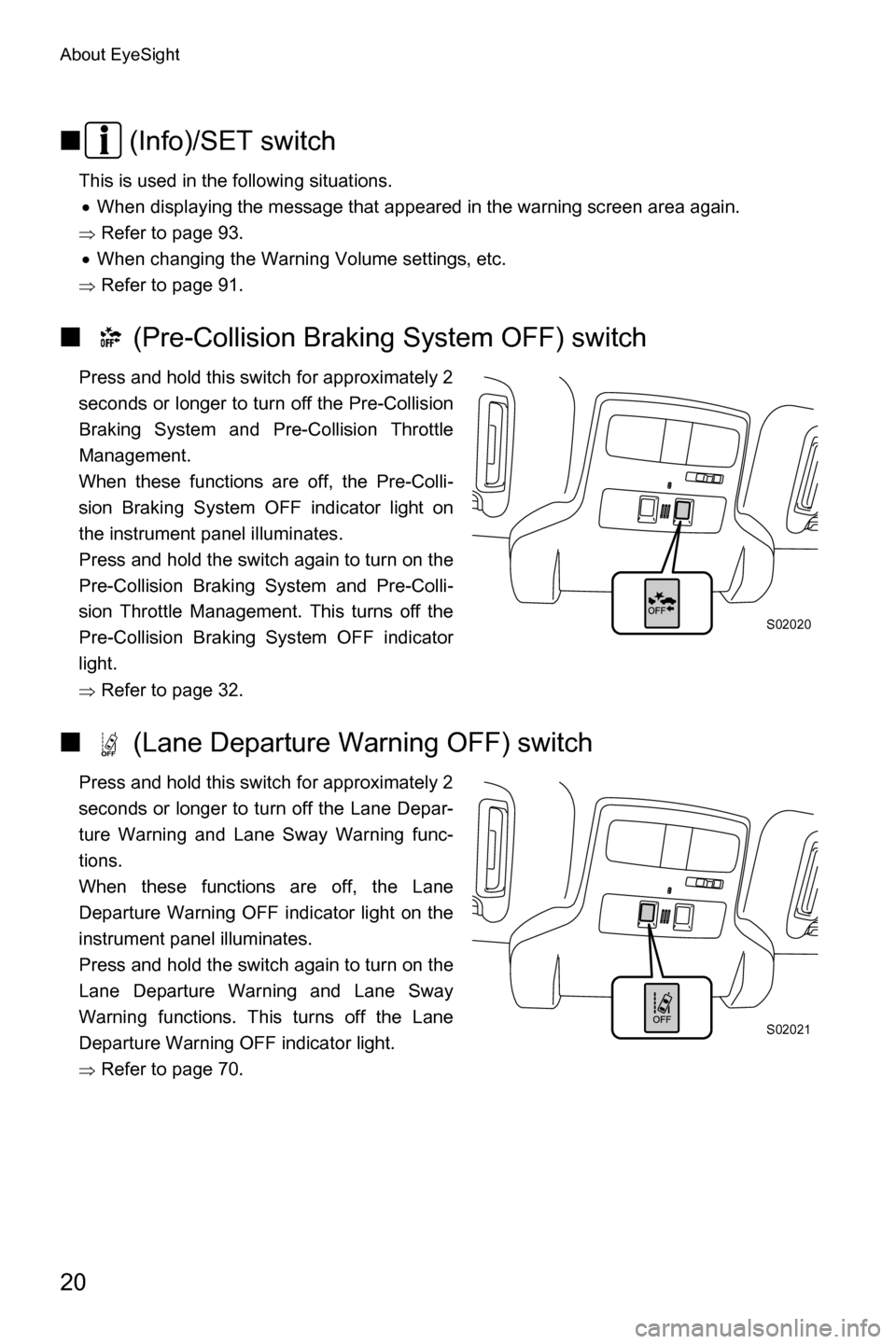

■ (Info)/SET switch
This is used in the following situations.
x When displaying the message that appeared in the warning screen area again.
Ÿ Refer to page 93.
x When changing the Warning Volume settings, etc.
Ÿ Refer to page 91.
■ (Pre-Collision Braking System OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Pre-Collision
Braking System and Pre-Collision Throttle
Management.
When these functions are off, the Pre-Colli-
sion Braking System OFF indicator light on
the instrument panel illuminates.
Press and hold the switch again to turn on the
Pre-Collision Braking System and Pre-Colli-
sion Throttle Management. This turns off the
Pre-Collision Braking System OFF indicator
light.
Ÿ Refer to page 32.
■(Lane Departure Warning OFF) switch
Press and hold this switch for approximately 2
seconds or longer to turn off the Lane Depar-
ture Warning and Lane Sway Warning func-
tions.
When these functions are off, the Lane
Departure Warning OFF indicator light on the
instrument panel illuminates.
Press and hold the switch again to turn on the
Lane Departure Warning and Lane Sway
Warning functions. This turns off the Lane
Departure Warning OFF indicator light.
Ÿ Refer to page 70.
S02020
S02021

About EyeSight
21

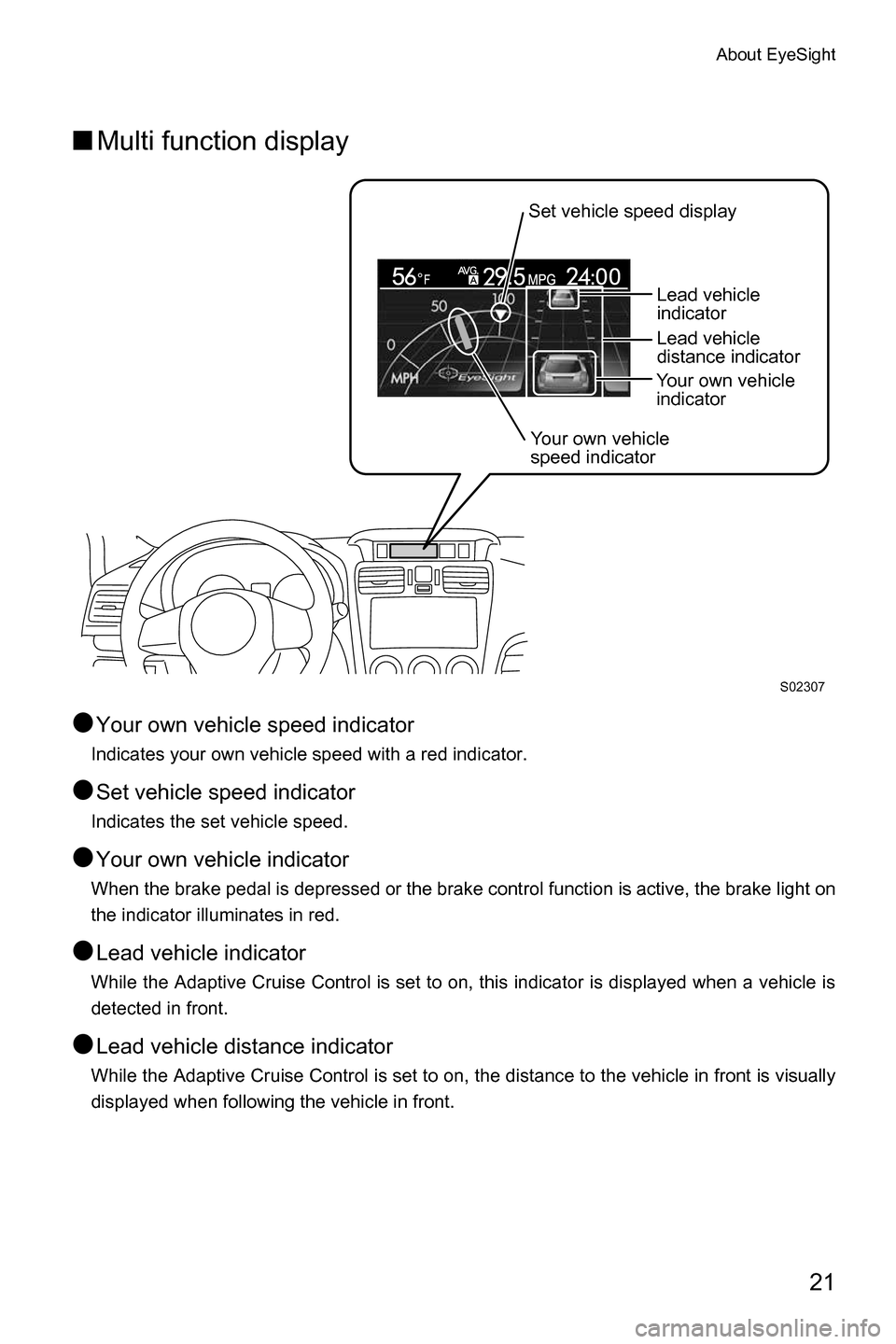

■Multi function display
●
Your own vehicle speed indicator
Indicates your own vehicle speed with a red indicator.
●Set vehicle speed indicator
Indicates the set vehicle speed.
●Your own vehicle indicator
When the brake pedal is depressed or the brake control function is active, the brake light on
the indicator illuminates in red.
●Lead vehicle indicator
While the Adaptive Cruise Control is set to on, this indicator is displayed when a vehicle is
detected in front.
●Lead vehicle distance indicator
While the Adaptive Cruise Control is set to on, the distance to the vehicle in front is visually
displayed when following the vehicle in front.
S02307
Set vehicle speed display Your own vehicle
indicator
Your own vehicle
speed indicator Lead vehicle
indicator
Lead vehicle
distance indicator
