Page 9 of 106
About EyeSight
6
NOTE

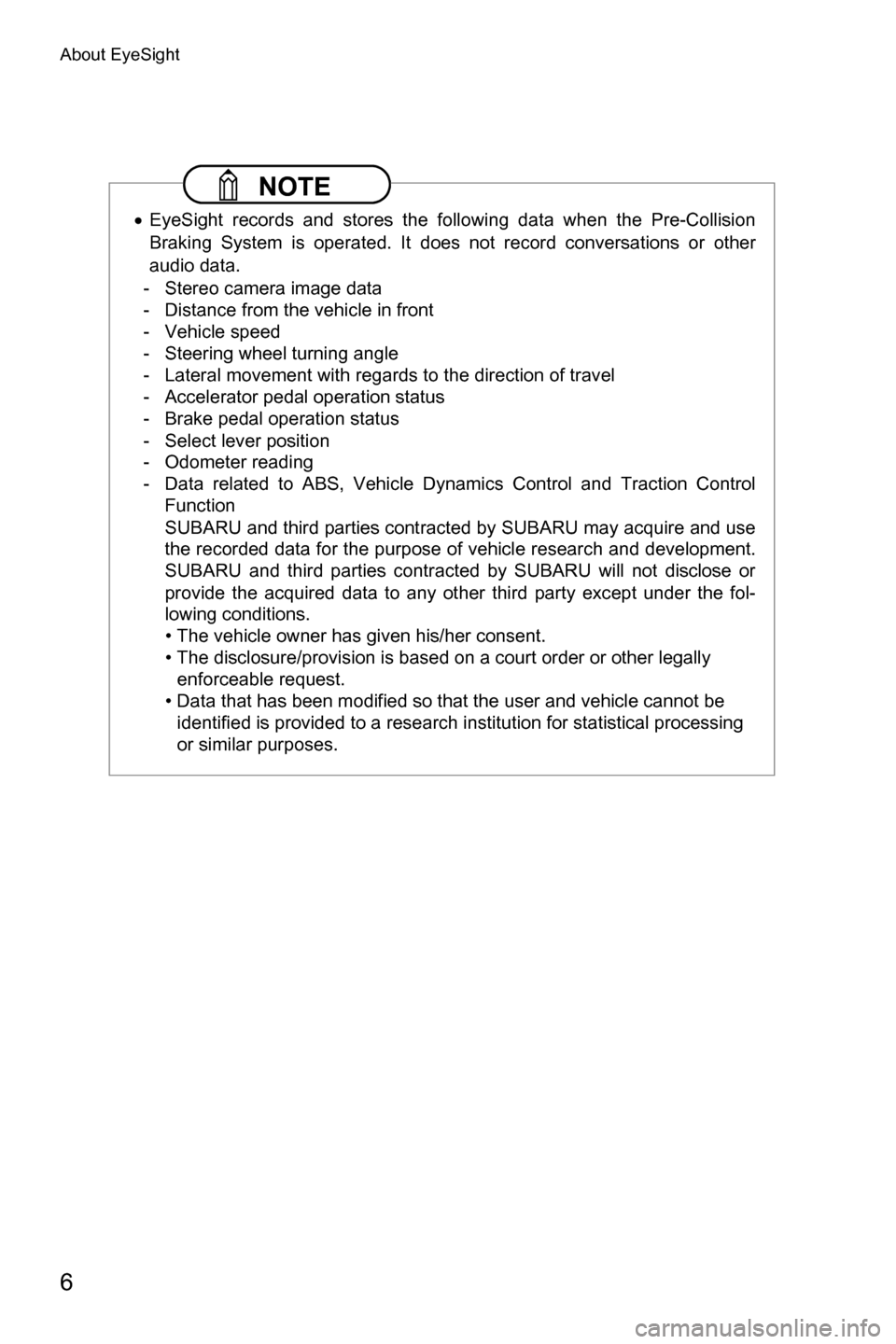

xEyeSight records and stores the following data when the Pre-Collision
Braking System is operated. It does not record conversations or other
audio data.
- Stereo camera image data
- Distance from the vehicle in front
- Vehicle speed
- Steering wheel turning angle
- Lateral movement with regards to the direction of travel
- Accelerator pedal operation status
- Brake pedal operation status
- Select lever position
- Odometer reading
- Data related to ABS, Vehicle Dynamics Control and Traction Control Function
SUBARU and third parties contracted by SUBARU may acquire and use
the recorded data for the purpose of vehicle research and development.
SUBARU and third parties contracted by SUBARU will not disclose or
provide the acquired data to any other third party except under the fol-
lowing conditions.• The vehicle owner has given his/her consent.
• The disclosure/provision is based on a court order or other legally enforceable request.
• Data that has been modified so that the user and vehicle cannot be identified is provided to a research institution for statistical processing
or similar purposes.
Page 10 of 106
About EyeSight
7

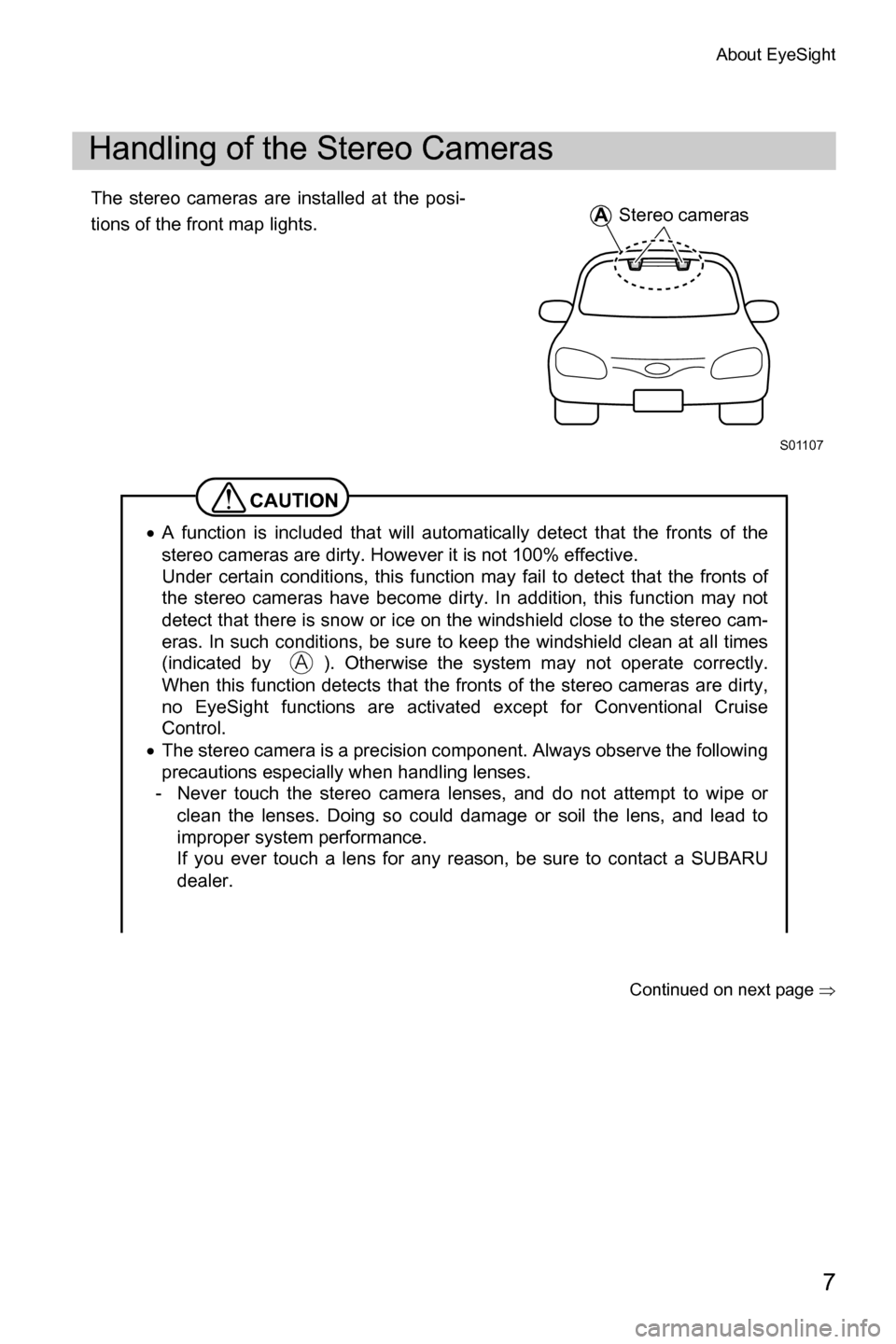

The stereo cameras are installed at the posi-
tions of the front map lights.
Continued on next page Ÿ
Handling of the Stereo Cameras
CAUTION
xA function is included that will automatic ally detect that the fronts of the
stereo cameras are dirty. However it is not 100% effective.
Under certain conditions, this function may fail to detect that the fronts of
the stereo cameras have become dirty. In addition, this function may not
detect that there is snow or ice on the windshield close to the stereo cam-
eras. In such conditions, be sure to keep the windshield clean at all times
(indicated by ). Otherwise the system may not operate correctly.
When this function detects that the fronts of the stereo cameras are dirty,
no EyeSight functions are activated except for Conventional Cruise
Control.
x The stereo camera is a precision component. Always observe the following
precautions especially when handling lenses.
- Never touch the stereo camera lenses, and do not attempt to wipe or
clean the lenses. Doing so could damage or soil the lens, and lead to
improper system performance.
If you ever touch a lens for any reason, be sure to contact a SUBARU
dealer.
A
S01107
Stereo cameras
Page 11 of 106
About EyeSight
8
Ÿ Continued from previous page

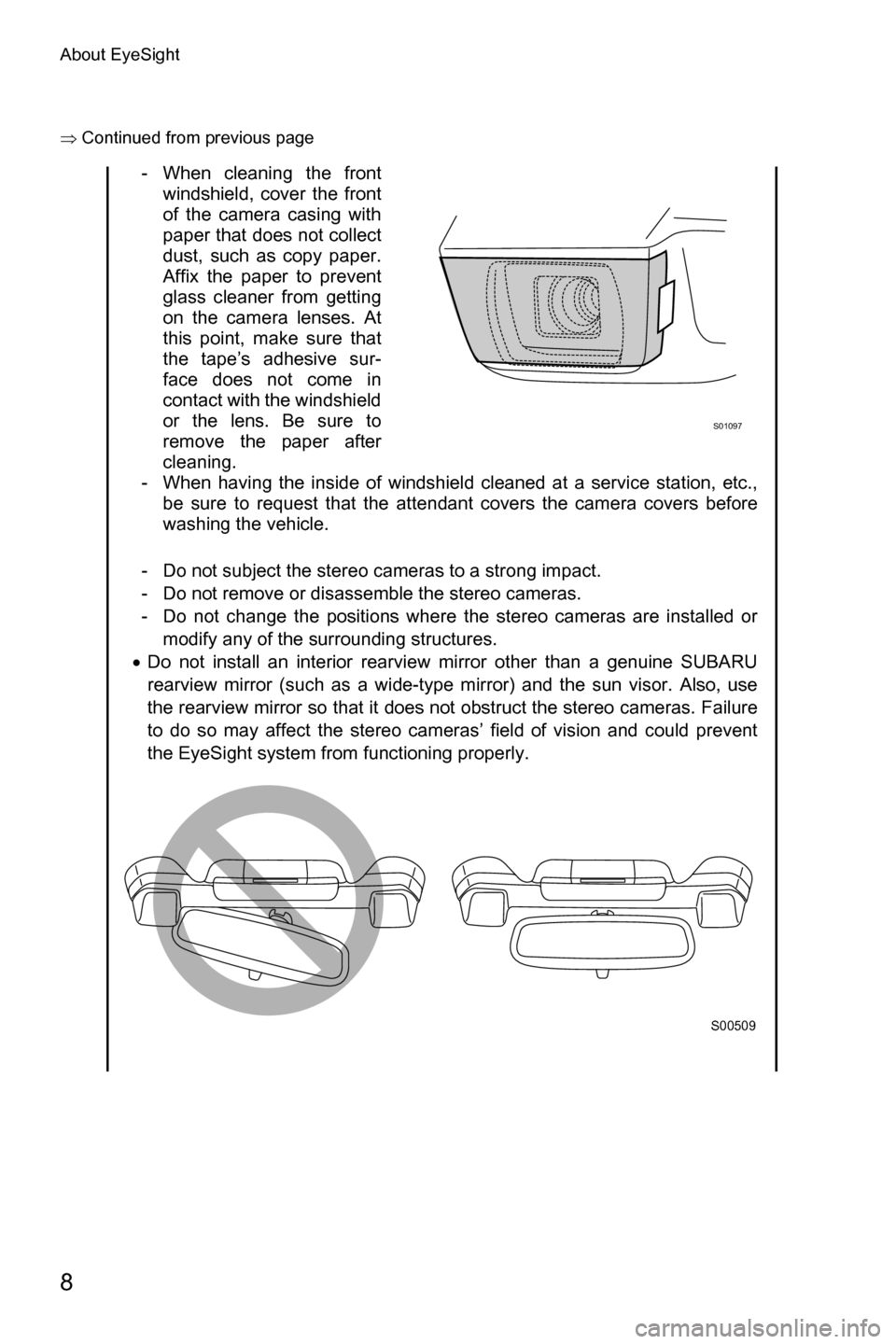

- When cleaning the front
windshield, cover the front
of the camera casing with
paper that does not collect
dust, such as copy paper.
Affix the paper to prevent
glass cleaner from getting
on the camera lenses. At
this point, make sure that
the tape’s adhesive sur-
face does not come in
contact with the windshield
or the lens. Be sure to
remove the paper after
cleaning.
- When having the inside of windshield cleaned at a service station, etc.,
be sure to request that the attendant covers the camera covers before
washing the vehicle.
- Do not subject the stereo cameras to a strong impact.
- Do not remove or disassemble the stereo cameras.
- Do not change the positions where the stereo cameras are installed or modify any of the surrounding structures.
x Do not install an interior rearview mirror other than a genuine SUBARU
rearview mirror (such as a wide-type mirror) and the sun visor. Also, use
the rearview mirror so that it does not obstruct the stereo cameras. Failure
to do so may affect the stereo cameras’ field of vision and could prevent
the EyeSight system from functioning properly.
S01097
S00509
Page 12 of 106
About EyeSight
9
Continued on next page Ÿ

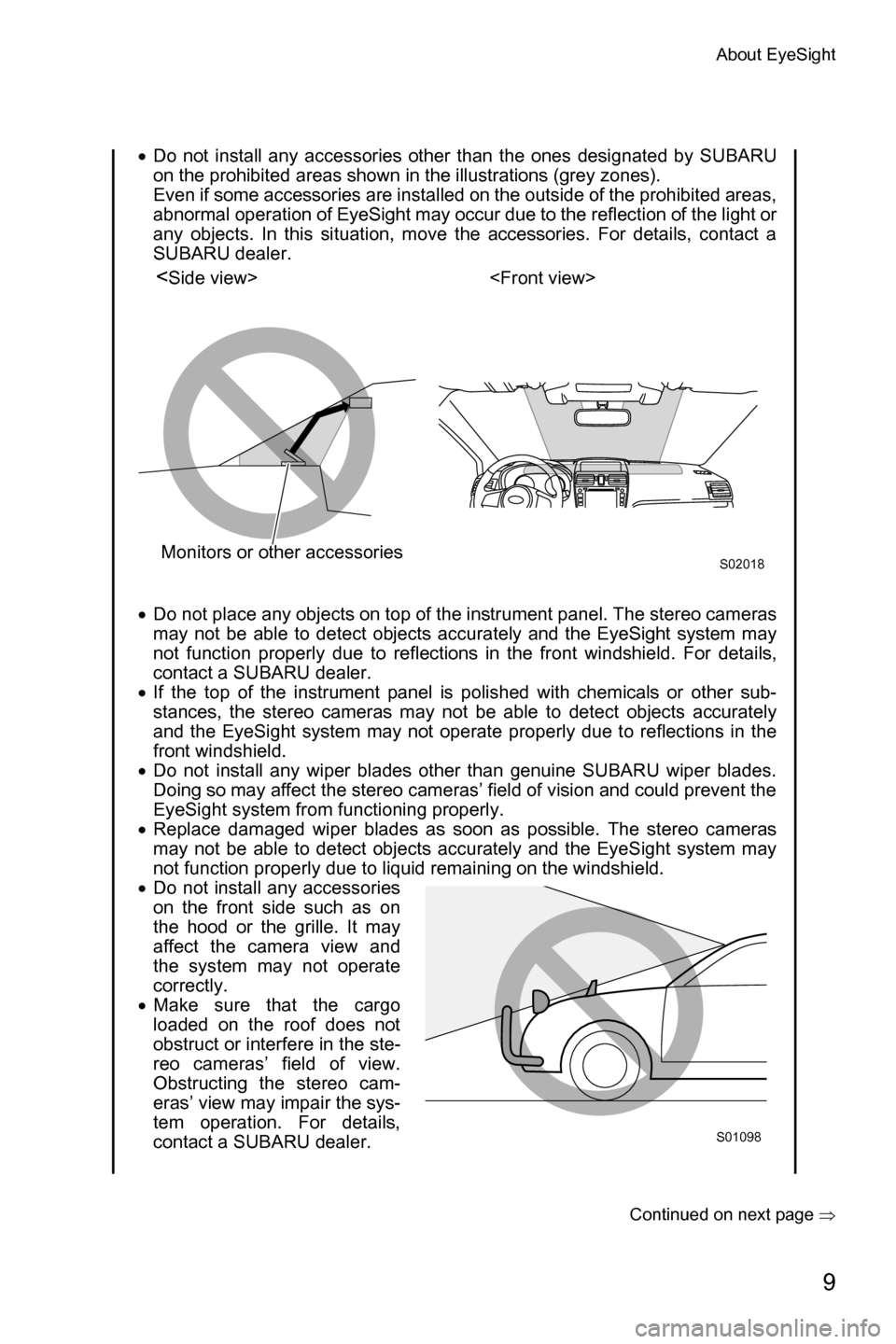

xDo not install any accessories other than the ones designated by SUBARU
on the prohibited areas shown in the illustrations (grey zones).
Even if some accessories are installed on the outside of the prohibited areas,
abnormal operation of EyeSight may occur due to the reflection of the light or
any objects. In this situation, move the accessories. For details, contact a
SUBARU dealer.
x Do not place any objects on top of the instrument panel. The stereo cameras
may not be able to detect objects accurately and the EyeSight system may
not function properly due to reflections in the front windshield. For details,
contact a SUBARU dealer.
x If the top of the instrument panel is polished with chemicals or other sub-
stances, the stereo cameras may not be able to detect objects accurately
and the EyeSight system may not operate properly due to reflections in the
front windshield.
x Do not install any wiper blades other than genuine SUBARU wiper blades.
Doing so may affect the stereo cameras’ field of vision and could prevent the
EyeSight system from functioning properly.
x Replace damaged wiper blades as soon as possible. The stereo cameras
may not be able to detect objects accurately and the EyeSight system may
not function properly due to liquid remaining on the windshield.
x Do not install any accessories
on the front side such as on
the hood or the grille. It may
affect the camera view and
the system may not operate
correctly.
x Make sure that the cargo
loaded on the roof does not
obstruct or interfere in the ste-
reo cameras’ field of view.
Obstructing the stereo cam-
eras’ view may impair the sys-
tem operation. For details,
contact a SUBARU dealer.
S02018Monitors or other accessories
S01098
Page 13 of 106
About EyeSight
10
Ÿ Continued from previous page

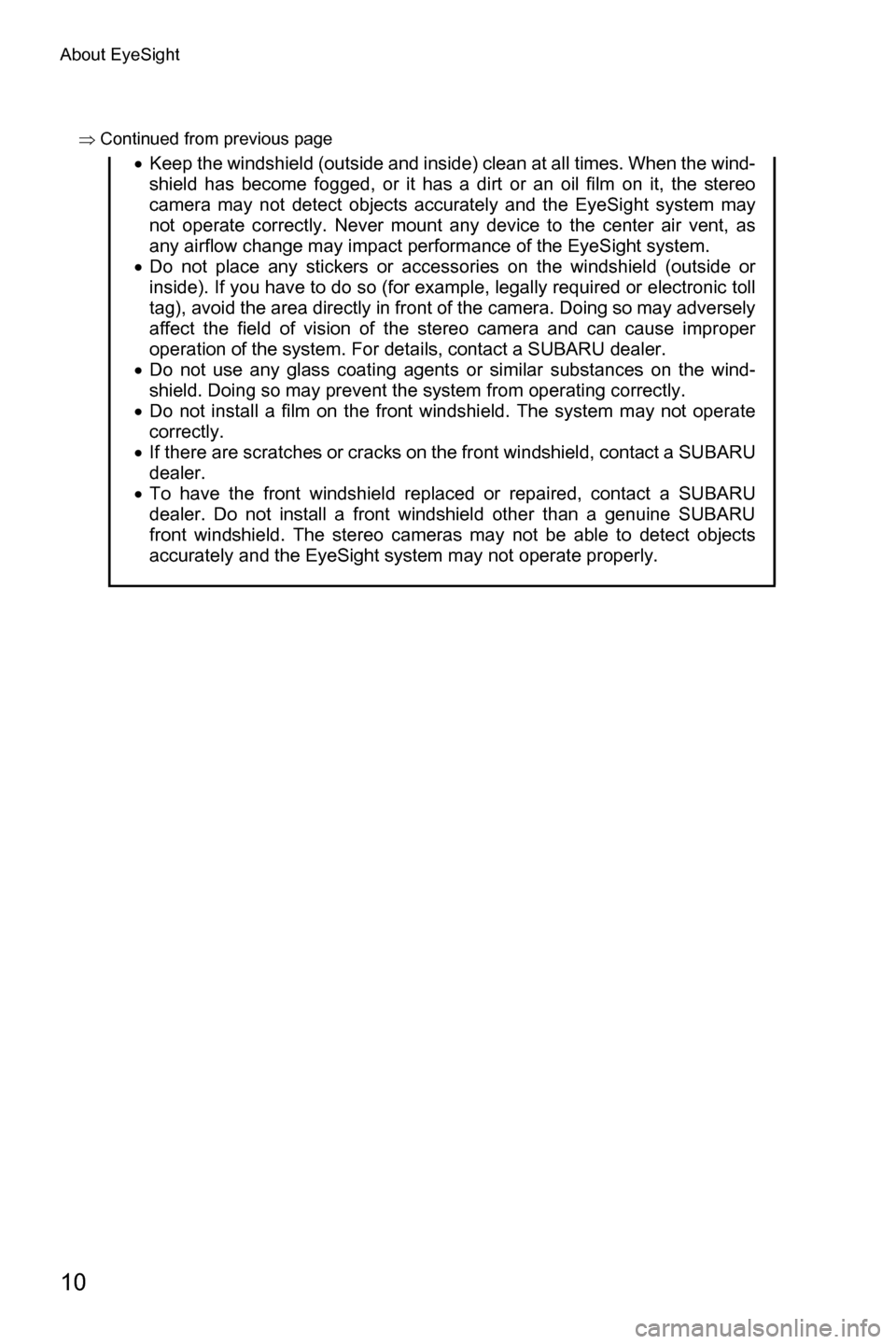

xKeep the windshield (outside and inside) clean at all times. When the wind-
shield has become fogged, or it has a dirt or an oil film on it, the stereo
camera may not detect objects accurately and the EyeSight system may
not operate correctly. Never mount any device to the center air vent, as
any airflow change may impact performance of the EyeSight system.
x Do not place any stickers or accessories on the windshield (outside or
inside). If you have to do so (for example, legally required or electronic toll
tag), avoid the area directly in front of the camera. Doing so may adversely
affect the field of vision of the stereo camera and can cause improper
operation of the system. For details, contact a SUBARU dealer.
x Do not use any glass coating agents or similar substances on the wind-
shield. Doing so may prevent the system from operating correctly.
x Do not install a film on the front windshield. The system may not operate
correctly.
x If there are scratches or cracks on the front windshield, contact a SUBARU
dealer.
x To have the front windshield replaced or repaired, contact a SUBARU
dealer. Do not install a front windshield other than a genuine SUBARU
front windshield. The stereo cameras may not be able to detect objects
accurately and the EyeSight system may not operate properly.
Page 14 of 106
About EyeSight
11

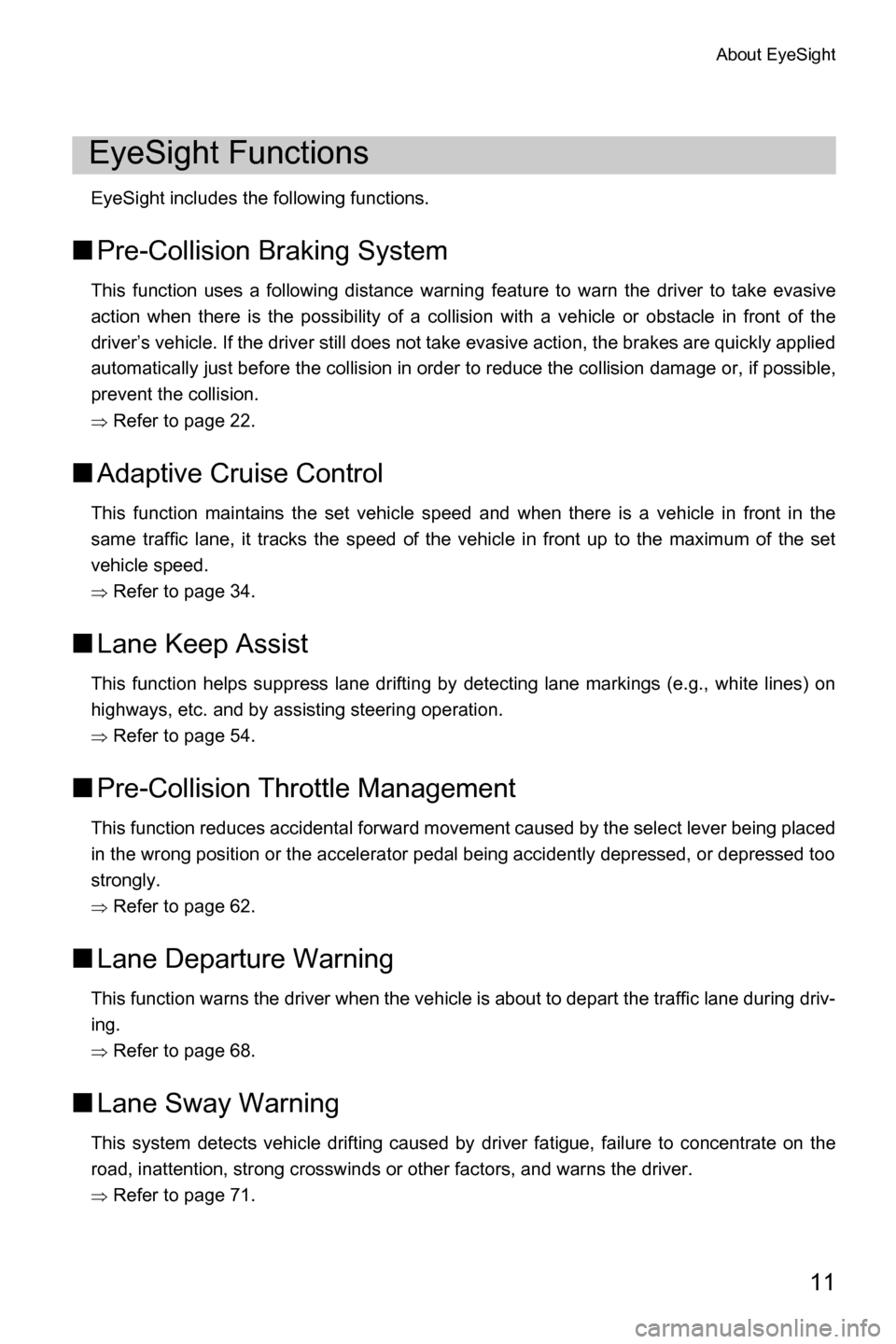

EyeSight includes the following functions.
■Pre-Collision Braking System
This function uses a following distance warning feature to warn the driver to take evasive
action when there is the possibility of a collision with a vehicle or obstacle in front of the
driver’s vehicle. If the driver still does not take evasive action, the brakes are quickly applied
automatically just before the collision in order to reduce the collision damage or, if possible,
prevent the collision.
Ÿ Refer to page 22.
■ Adaptive Cruise Control
This function maintains the set vehicle speed and when there is a vehicle in front in the
same traffic lane, it tracks the speed of the vehicle in front up to the maximum of the set
vehicle speed.
Ÿ Refer to page 34.
■Lane Keep Assist
This function helps suppress lane drifting by detecting lane markings (e.g., white lines) on
highways, etc. and by a ssisting steering operation.
Ÿ Refer to page 54.
■Pre-Collision Throttle Management
This function reduces accidental forward movement caused by the select lever being placed
in the wrong position or the accelerator pedal being accidently depressed, or depressed too
strongly.
Ÿ Refer to page 62.
■Lane Departure Warning
This function warns the driver when the vehicle is about to depart the traffic lane during driv-
ing.
Ÿ Refer to page 68.
■Lane Sway Warning
This system detects vehicle drifting caused by driver fatigue, failure to concentrate on the
road, inattention, strong crosswinds or other factors, and warns the driver.
Ÿ Refer to page 71.
EyeSight Functions
Page 15 of 106
About EyeSight
12

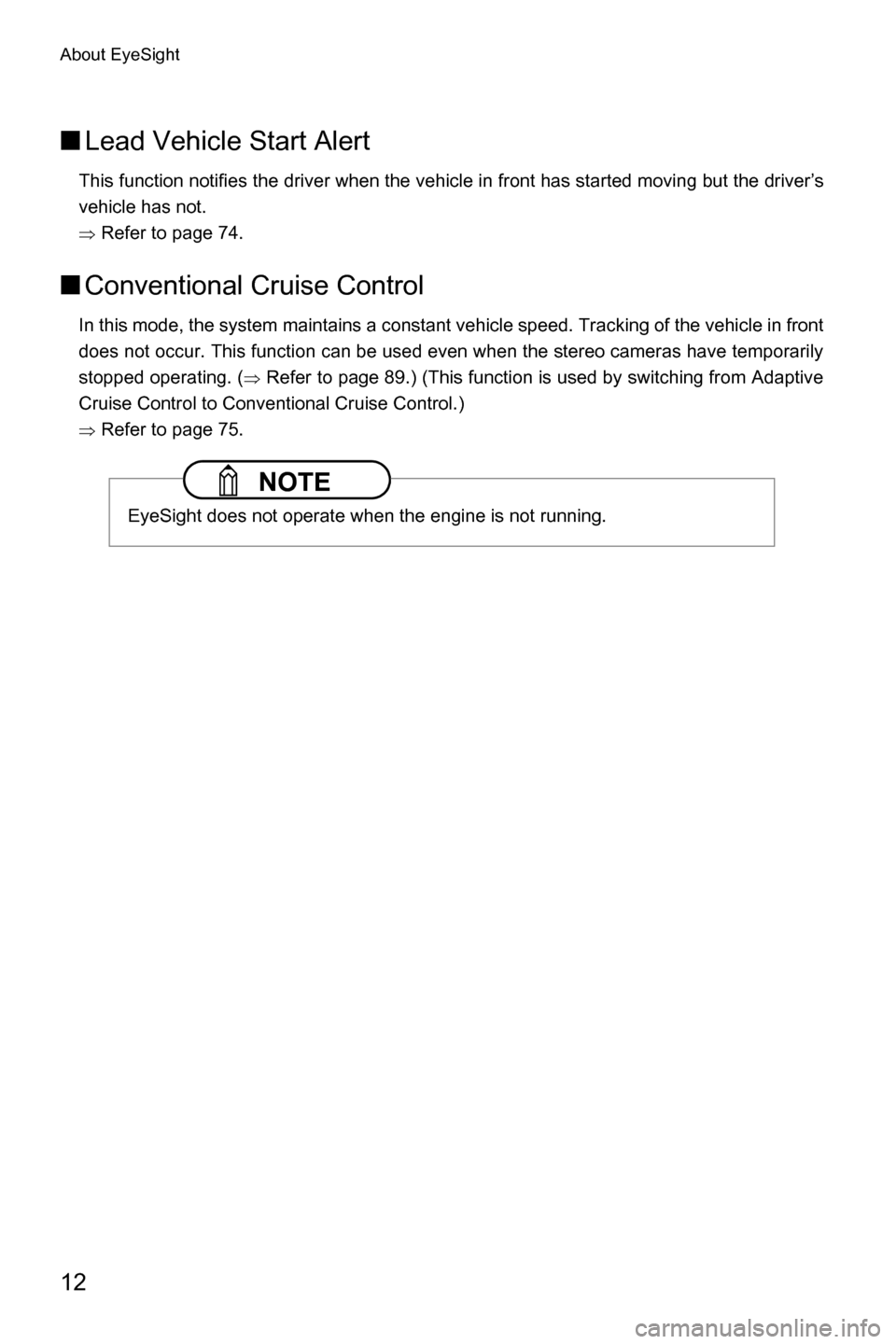

■Lead Vehicle Start Alert
This function notifies the driver when the vehicle in front has started moving but the driver’s
vehicle has not.
Ÿ Refer to page 74.
■Conventional Cruise Control
In this mode, the system maintains a constant vehicle speed. Tracking of the vehicle in front
does not occur. This function can be used even when the stereo cameras have temporarily
stopped operating. (
Ÿ Refer to page 89.) (This function is used by switching from Adaptive
Cruise Control to Conventional Cruise Control.)
Ÿ Refer to page 75.
NOTE
EyeSight does not operate when the engine is not running.
Page 16 of 106
About EyeSight
13
Instrument panel display layout
(1) EyeSight display area(12) EyeSight temporary stop indicator (White)
(2) Adaptive Cruise Control indicator (13) EyeSight warning indicator (Yellow)
(3) Conventional Cruise Control indicator (14) Lane Keep Assist indicator
(4) READY indicator (15) Lane Indicator
(5) OFF indicator (16) Warning screen area
(6) SET indicator (17) Lead vehicle indicator
(7) Following distance setting indicator (18) Lane Departure Warning OFF indicator light
(8) Select lever/gear position indicator (19) Pre-Collision Braking System OFF indicator light
(9) SI-DRIVE indicator lights (20) Brake system warning light
(10) Set vehicle speed display (21) Vehicle Dynamics Control warning light
(11) Steering wheel indicator
A
km/h
EF
(18)
(19) (20)(21)
S02221
(1)
(2)
(3)
(4)
(5)
(6) (16)
(14)
(17)
(8)
(7) (10)
(9)(15)
(12)
(11) (13)
* Display units can be changed in Screen Settings. For details, refer to the Owner’s Manual for your vehicle.
