Opening and closing
blocked for engine ignition ››
› page 175. In
order to enable engine ignition, the button
on the key  inside the vehicle needs to be
pressed.
Automatically disabling sensors
If the vehicle is not locked or unlocked for a
long period of time, the proximity sensors on
the passenger doors are automatically disa-
bled.
If one of the sensor surfaces on the door han-
dles is often activated in an unusual manner
with the vehicle locked (e.g. by the branches
of a bush rubbing against it), all proximity
sensors are disabled for a certain period of
time.
Sensors will again be enabled:
● After a time.
● OR: If the vehicle is unlocked with the
 butt
on on the key.
● OR: if the boot is opened.
● OR: if

the vehicle is unlocked manually with
the key
.
Keyless Access temporary disconnection
function*
You can deactivate the vehicle's Keyless Ac-
cess unlocking for a locking and unlocking
cycle. ●
Move the g
ear lever to position P (if the ve-
hicle has automatic gearbox), since other-
wise the vehicle cannot be locked.
● Close the door.
● Push the central locking button  on the
remote c
ontrol and touch the locking sensor
surface ››› Fig. 144 B on the driver door han-
dl e onc
e w

ithin the following 5 seconds. Do
not grip the door handle, otherwise the vehi-
cle will not lock. Deactivation is also possible
if the vehicle is locked through the driver’s
door lock.
● To check that the function has been deacti-
vated, w
ait at least 10 seconds, grip and pull
on the door handle. The door should not
open.
The next time the door can only be unlocked
via the remote control or the lock cylinder.
The next time the door is locked/unlocked,
Keyless Access will be active again.
Convenience functions
To close all the electric windows and the sun-
roof using the convenience function, keep a
finger for a few seconds on the locking sen-
sor surface B (arrow) of the door handle un-
ti l
the w

indows and roof have closed.
The doors opened by touching the sensor
surface of the door handle depend on the
settings that have been activated in the Easy
Connect system with the  button and theSETTINGS and
Openin
g and c
lo
sing function but-
t on
s. CAUTION
The sensor surfaces on the door handles
cou l

d engage if hit with a water jet or high
pressure steam if there is a valid vehicle key
in the proximity. If at least one of the electric
windows is open and the sensor surface B (arrow) on the handle is activated continu-
ous
ly

, all windows will close. Note
● If the v

ehicle battery has little or no charge,
or the vehicle key battery is almost or entire-
ly out of charge, you will probably not be able
to lock or unlock the vehicle with the Keyless
Access system. The vehicle can be unlocked
or locked manually.
● To control the proper locking of the vehicle,
the rele
ase function is disabled for approx. 2
seconds.
● If the message Keyless access system
faulty is di

splayed on the screen of the
dash panel, abnormalities may occur in the
operation of the Keyless Access system. Con-
tact a specialised workshop. SEAT recom-
mends visiting a SEAT dealership for this.
● Depending on the function set on the info-
tainment sy
stem for the mirrors, the exterior
mirrors will unfold and the surround lighting
will come on when unlocking the vehicle us-
ing the sensor surface on the driver door han-
dle. » 137
Technical data
Advice
Operation
Emergencies
Safety

Opening and closing
● The t urn s
ign
al light will flash once on clos-
ing and activating the alarm.
When does the system trigger an alarm?
The system triggers an alarm, if the following
unauthorised actions are carried out when
the vehicle is locked:
● Mechanical opening of the vehicle with the
vehicl
e key without switching on the ignition
in the next 15 seconds (in certain markets,
such as the Netherlands, the alarm is activa-
ted immediately).
● A door is opened.
● Opening the bonnet.
● The rear lid is opened.
● Ignition switched on with a non-validated
key.
● Mo

vements in the driving compartment
(vehicl
es with a volume sensor).
● Towing of the vehicle 1)
.
● Vehicle tilt angle 1)
.
● Undue manipulation of the alarm.
● Battery handling.
In this c
ase, the acoustic signals will go off
and the turn signal will flash for approximate-
ly 30 seconds. This cycle may be repeated up
to 10 times depending on the country. Opening all the doors in manual mode
In vehic

les without an alarm, when opening
the driver door manually, all doors are
opened.
How to switch the alarm off
To deactivate the anti-theft alarm, turn the
key in the opening direction, open the door
and switch the ignition on, or press the un-
lock button  on the remote control.
In vehicles equipped with an anti-theft alarm
system, you have 15 seconds to insert the
key in the ignition lock and activate the igni-
tion if the vehicle is opened using the driver
door key.
Otherwise, the alarm will trigger for 30 sec.
and the ignition will be blocked. Note
● Aft er 28 d

ays, the indicator light will be
switched off to prevent the battery from
draining if the vehicle has been left parked
for a long period of time. The alarm system
remains activated.
● The alarm will trigger again if attempts are
made t
o open another protection zone.
● The alarm system can be activated or deac-
tivated u
sing the radio frequency remote con-
trol ››› page 130. ●
The anti-theft a

larm is not activated when
the vehicle is locked from within using the
central locking button .
● If the vehicle battery is run down or flat
then the anti-theft a
larm will not operate cor-
rectly.
● Vehicle monitoring remains active even if
the batter
y is disconnected or not working for
any reason.
● The alarm is triggered immediately if one of
the batter
y cables is disconnected while the
alarm system is active. Vehicle interior monitoring and anti-
t
o
w sy

stem* Monitoring or control function incorporated
in the anti-thef
t
al

arm* which detects unau-
thorised vehicle entry by means of ultra-
sound.
Activation
– It is automatically switched on when the
anti-theft al

arm is activated.
Deactivation – Open the vehicle with the key, either me-
chanic

ally or by pressing the  button on
the remote control. If the vehicle is opened »1)
With vehicles fitted with a tow-away protection
139
Technical data
Advice
Operation
Emergencies
Safety

Opening and closing
If the anti-theft security system (Safelock)*
› ›
›
page 133 is switched off, the vehicle interi-
or monitoring and the tow-away protection
are automatically switched off. WARNING
Observe the safety warnings ›››
in Descrip-
tion on pag e 132
. Rear lid
Opening and c lo

singRead the additional information carefully
› ›
›

 page 16 WARNING
● Alw a

ys close the rear lid properly. Risk of
accident or injury.
● The rear lid must not be opened when the
rever
se or rear fog lights are lit. This may
damage the tail lights.
● Do not close the rear lid by pushing it down
with y
our hand on the rear window. The glass
could smash. Risk of injury!
● Ensure the rear lid is locked after closing it.
If not, it m
ay open unexpectedly while driv-
ing.
● Never allow children to play in or around
the vehic
le. A locked vehicle can be subjected
to extremely high and low temperatures, de- pending on the time of year, thus causing se-
rious
injurie

s/illness. It could even have fatal
consequences. Close and lock both the rear
lid and all the other doors when you are not
using the vehicle.
● Closing the rear lid without observing and
ensurin
g it is clear could cause serious injury
to you and to third parties. Make sure that no
one is in the path of the rear lid.
● Never drive with the rear lid open or half-
closed, e
xhaust gases may enter into the in-
terior of the vehicle. Danger of poisoning!
● If you only open the rear lid, do not leave
the key in
side. The vehicle cannot be opened
if the key is left inside. Controls for the windows
Openin g and c
lo

sing of the electric
windows* Fig. 146
Detail of the driver door: controls for
the fr ont
and r

ear windows (vehicles with
front and rear electric windows). Read the additional information carefully
› ›
›

 page 18
The front and rear electric windows can be
operated by using the controls on the driver
door. The other doors each have a switch for
their own window.
Always close the windows fully if you park
the vehicle or leave it unattended ››› .
Y ou c
an u

se the electric windows for approx.
10 minutes after switching off the ignition if »
141
Technical data
Advice
Operation
Emergencies
Safety

Opening and closing
Convenience opening and closing Use the convenience opening/closing func-
tion to e
a
sily open/close all the windows and
the sliding/tilting sunroof* from the outside.
Convenience open function
– Press and hold the  button on the r
emote
control key until all the windows and the
sliding/tilting sunroof* have reached the
desired position, or
– First unlock the vehicle using the  button
on the r
emote control key and then keep
the key in the driver door lock until all the
windows and the sliding/tilting sunroof*
have reached the required position.
Convenience close function
– Press and hold button  on the remote
c
ontrol key until all the windows and the
sliding/tilting sunroof* are closed ››› , or
– Keep the key in the driver door in the "lock"
po s
ition u

ntil all the windows and the slid-
ing/tilting sunroof* are closed.
Programming convenience opening in the
Easy Connect*
– Select:  button > SETTINGS
fu
nction
b

utton > Opening and closing > Elec-
tric windows > Convenience open-
ing , to choose between all the windows (All
), only the driver’s window ( Driver)
or none (Deactivated ). WARNING
● Tak e c

are when closing the sliding/tilting
sunroof* and windows. There is a risk of suf-
fering injury.
● For safety reasons, you should only use the
remote c
ontrol open and close functions with-
in about 2 metres of the vehicle. To avoid in-
juries, always keep an eye on the windows
and the sliding/tilting sunroof* when press-
ing the button to close them. The windows
stop moving as soon as the button is re-
leased. One-touch opening and closing*
One-touch opening and closing means you
do not
h
av

e to hold down the button.
Buttons ›››
Fig. 146 1 ,
2 ,
3 and
4 have
tw o po
s

itions for opening windows and two
for closing them. This makes it easier to open
and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the
second pos

ition. The window closes fully. One-touch opening
– Push down the window button briefly up to
the second pos

ition. The window opens
fully.
Resetting one-touch opening and closing
– The automatic open and close function will
not work

if the battery has been temporari-
ly disconnected. The function can be re-
stored as follows:
– Close the window as far as it will go by lift-
ing and hol

ding the electric window switch.
– Release the switch and then lift it again for
1 second. Thi

s will re-enable the automatic
function.
If you push (or pull) a button to the first
stage, the window will open (or close) until
you release the button. If you push or lift the
button briefly to the second stage, the win-
dow will open (one-touch opening) or close
(one-touch closing) automatically. If you op-
erate the button while the window is opening
or closing, it stops at this position.
143
Technical data
Advice
Operation
Emergencies
Safety

Opening and closing
Opening the sunroof
● Press button C backwards to the first lev-
el .
● Aut om
atic operation to comfort position:
briefly pre
ss button C backwards to the sec-
ond l ev
el
.
Closing the sunroof
● Press button D forwards to the first level.
● Automatic operation: briefly press button
D forwards to the second level.
St op
pin

g the automatic operation during the
opening or closing
● Press button C or
D again.
S u
n b

lind
The sun blind is opened and closed manually
(independently of the sliding sunroof).
Convenience function to open or close the
sunroof*
The sunroof can be opened and closed with
the convenience function, just like the win-
dows:
Using the door lock *
● Hold the key in the door lock of the driver
door in either the unloc
king or locking posi-
tion to open or close the roof in the tilted po-
sition. ●
Rele
ase the key to interrupt this function.
Using the remote control ● Keep the locking/unlocking button pressed
to open/clo
se the roof; if you stop pressing
the button, the opening/closing function is
stopped.
Once all the windows and the sunroof have
closed, all the turn signals flash. During con-
venience closing, the windows and the sun-
roof close at the same time.
Anti-trap function of the panoramic
sliding s
unroof The anti-trap function can reduce the risk of
injur
y
when c

losing the sunroof ››› . If the
s u
nr
oof encounters resistance or an obstacle
when closing, it reopens immediately.
● Check why the sunroof did not close.
● Try to close the sunroof again.
● If the sunroof cannot be closed due to an
obs
tacle or some resistance, it stops at the
corresponding position and then reopens.
For automatic closing, a new closing attempt
might take place.
● If the sunroof is still unable to close, close
it without
the anti-trap function. Closing the sunroof without the anti-trap
function
●
B

efore approx. 5 seconds of having activa-
ted the ro
ll-back function, press the  but-
ton ››› Fig. 147 to the second level in the di-
rection of arrow ››› Fig. 147 D until the sun-
r oof
c

loses completely.
● The sunroof closes without the anti-trap
function int
ervening!
● If the sunroof will still not close, visit a spe-
ciali
sed workshop. WARNING
Closing the sunroof without the anti-trap
fu nction c

an cause serious injuries.
● Always be careful when closing the sun-
roof.
● No per

son should ever remain in the way of
the sunr
oof, especially when closing without
the anti-trap function.
● The anti-trap function does not prevent fin-
gers
or other parts of the body from becom-
ing trapped against the roof frame and inju-
ries occurring. 145
Technical data
Advice
Operation
Emergencies
Safety

Lights and visibility
Daytime running lights The daytime running lights consist of individ-
ual lights, int
e
grated in the front headlights.
By connecting the daytime running lights,
these lights are switched on 1)
››› .
The da ytime ru

nning lights switch on every
time the ignition is switched on, if the switch
is in positions  or , according to the level
of exterior lighting.
When the light switch is in position , a
light sensor automatically switches dipped
beam on and off (including the control and
instrument lighting) or the daytime running
lights depending on the level of exterior
lighting. WARNING
● Never driv e w

ith daytime lights if the road
is not well lit due to weather or lighting con-
ditions. Daytime lights do not provide
enough light to illuminate the road properly
or be seen by other road users.
● On vehicles with rear lights with bulbs,
when activating the d
aytime running light
the rear lights are not switched on. A vehicle
which does not have the rear lights on may
not be visible to other drivers in the dark-
ness, in the case of heavy rain or in condi-
tions of poor visibility. Fog lights
Fig. 148
Dash panel: light control. Switching on the front fog lights*
● Pull the light switch to the first point
› ›
›

Fig. 148 1 , from positions
,  or .
The symbo l
 in the light switch lights up.
Switching on the rear fog light (vehicles with
front fog lights)
● Completely pull the light switch 2 from
po s
ition

,  or . The  lamp on the in-
strument panel lights up.
Switching on the rear fog light (vehicles with
no front fog lights)
● Completely pull the light switch 2 from
po s
ition

,  or . This type of switch only has one position. The
 lamp on the in-
strument
panel lights up.
Turn signal and main beam lever Read the additional information carefully
›› ›

 page 32
Parking lights
● Switch the ignition off and remove the key
from the lock.
● Mo

ve the turn signal lever up or down to
turn the right or l

eft-hand parking lights on,
respectively.
Convenience turn signals
For the one-touch signalling, when the igni-
tion is switched on, move the lever as far as
possible upwards or downwards and release
the lever. The turn signal will flash three
times.
One-touch signalling is activated and deacti-
vated in the Easy Connect system via the  button and the function button SETTINGS >
Lights > One-touch signalling
› ›
›

 page 34. »1)
On vehicles equipped with rear LED lights, the rear
side light i

s switched on as well. 147
Technical data
Advice
Operation
Emergencies
Safety

Lights and visibility

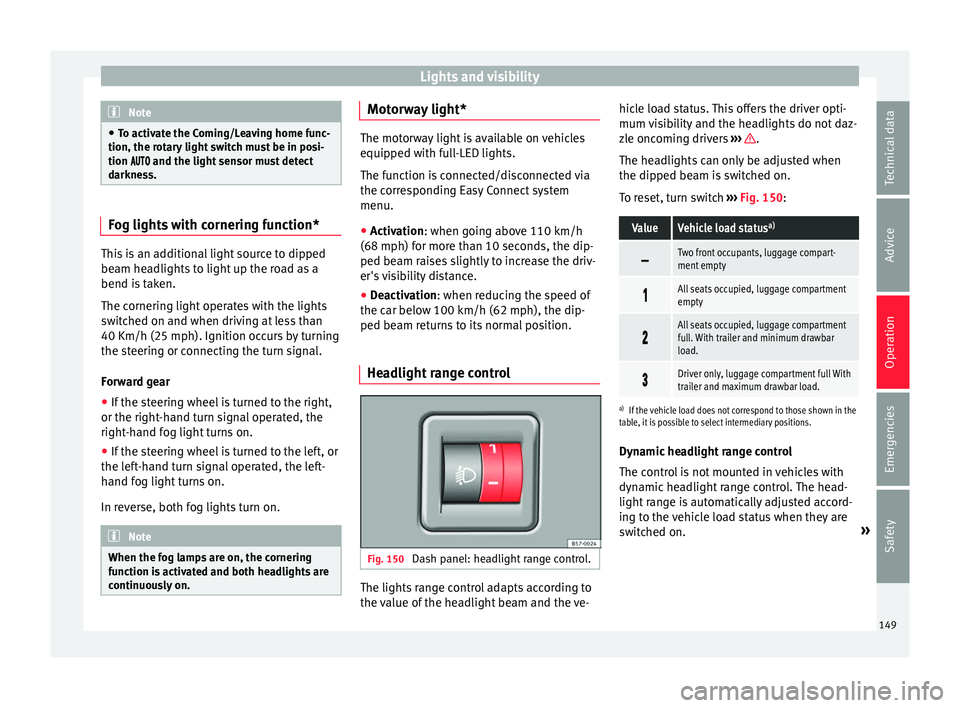

Note
● To activ at
e the Coming/Leaving home func-
tion, the rotary light switch must be in posi-
tion  and the light sensor must detect
darkness. Fog lights with cornering function*
This is an additional light source to dipped
beam he
a

dlights to light up the road as a
bend is taken.
The cornering light operates with the lights
switched on and when driving at less than
40 Km/h (25 mph). Ignition occurs by turning
the steering or connecting the turn signal.
Forward gear
● If the steering wheel is turned to the right,
or the right-h and t

urn signal operated, the
right-hand fog light turns on.
● If the steering wheel is turned to the left, or
the left
-hand turn signal operated, the left-
hand fog light turns on.
In reverse, both fog lights turn on. Note
When the fog lamps are on, the cornering
fu nction i

s activated and both headlights are
continuously on. Motorway light*
The motorway light is available on vehicles
equipped w
ith f

ull-LED lights.
The function is connected/disconnected via
the corresponding Easy Connect system
menu.
● Activation: when going abo
ve 110 km/h
(68 mph) for more than 10 seconds, the dip-
ped beam raises slightly to increase the driv-
er's visibility distance.
● Deactivation: when reduc in
g the speed of
the car below 100 km/h (62 mph), the dip-
ped beam returns to its normal position.
Headlight range control Fig. 150
Dash panel: headlight range control. The lights range control adapts according to
the
v
alue of

the headlight beam and the ve- hicle load status. This offers the driver opti-
mum vi

sibility and the headlights do not daz-
zle oncoming drivers ››› .
The he a
dlights

can only be adjusted when
the dipped beam is switched on.
To reset, turn switch ››› Fig. 150:
ValueVehicle load status a) 
Two front occupants, luggage compart-
ment empty

All seats occupied, luggage compartment
empty

All seats occupied, luggage compartment
full. With trailer and minimum drawbar
load.

Driver only, luggage compartment full With
trailer and maximum drawbar load.
a)
If the vehicle load does not correspond to those shown in the
table, it is possible to select intermediary positions.
Dynamic headlight range control
The control is not mounted in vehicles with
dynamic headlight range control. The head-
light range is automatically adjusted accord-
ing to the vehicle load status when they are
switched on. »
149
Technical data
Advice
Operation
Emergencies
Safety

Lights and visibility
headlights in good time when light condi-
tion s
bec
ome poor.
Interior and reading lights Read the additional information carefully
›› ›

 page 33
Luggage compartment lighting
The light is activated when the rear lid is
open, even when the ignition and lights are
turned off. For this reason, ensure that the
rear lid is always closed.
Ambient light*
The ambient light lights up the area of the
centre console and the footwell area and, de-
pending on the version, the front door panels
as well.
It will be switched on at full brightness when
the doors are opened and the lights will be
dimmed during driving, when the light selec-
tor is in the ,  or  position.
The brightness of the ambient light* can be
adjusted through the Easy Connect menu, as
can colour, in versions with lighting on the
front door panel (the  button and the func-
tion b utt
on

SETTINGS > background
lighting ›››
 page 34). Note
If not all the vehicle doors are closed, the in-
terior light s

will be switched off after approx.
10 minutes, providing the ignition key has
been removed and the courtesy light position
selected. This prevents the battery from dis-
charging. Visibility
Heat ed r

ear window  Fig. 152
With the air conditioning controls:
he at
ed r

ear window switch. The heated rear window only works when the
en
gine i
s

running. When it is switched on, a
lamp lights up on the switch.
After approximately 8 minutes, the heating
device of the rear window switches off auto-
matically. For the sake of the environment
The heated rear window should be switched
off a s

soon as the glass is demisted. By sav-
ing electrical power you can also save fuel. Note
To avoid possible damage to the battery, an
autom atic

temporary disconnection of this
function is possible, coming back on when
normal operating conditions are re-establish-
ed. Sun visors
Fig. 153
Sun visor on the driver side. Options for adjusting driver and front pas-
sen
g
er s

un visors:
● Lower the sun visor towards the wind-
sc r

een. »
151
Technical data
Advice
Operation
Emergencies
Safety
