ASHTRAY, ACCESSORIES SOCKET (1/2)
Ashtray
It can be housed in either position 1
or 2.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
1
1
2

3.30

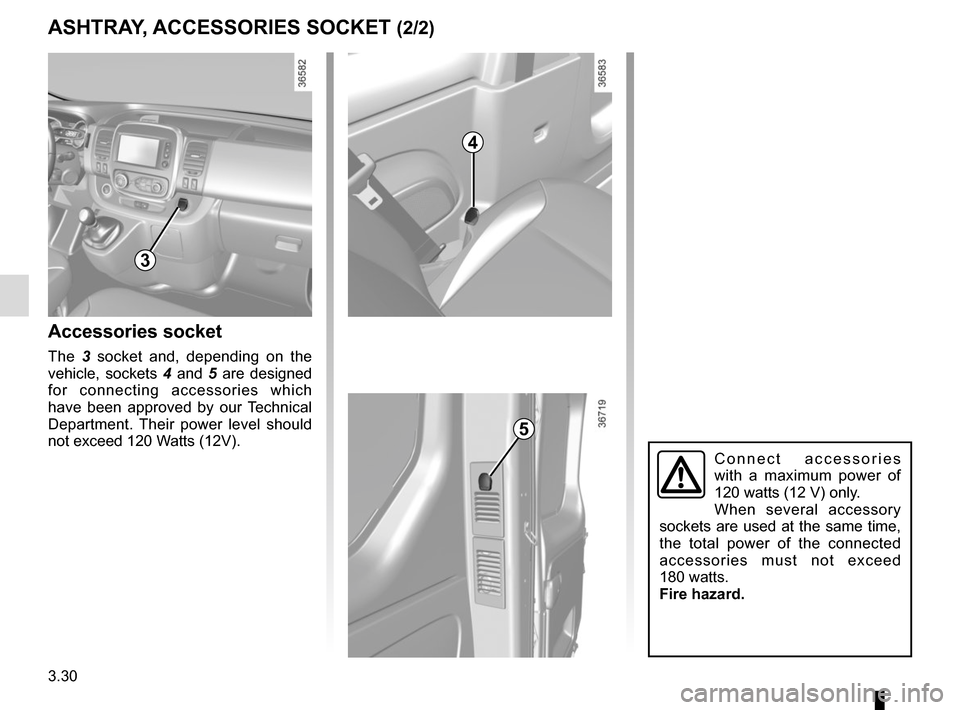

ASHTRAY, ACCESSORIES SOCKET (2/2)
Accessories socket
The 3 socket and, depending on the
vehicle, sockets 4 and 5 are designed
for connecting accessories which
have been approved by our Technical
Department. Their power level should
not exceed 120 Watts (12V).
Connect accessories
with a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
3
4
5

3.31
To refit the headrest
Insert the headrest rods into the holes
(tilt the seatback if necessary). Lower
the headrest as far as it will go, then
lift until it locks into place. Check that
each rod 2 on the seatback is securely
locked.
The headrest is a safety
component, check that it is
fitted and in the correct po-
sition.
To raise the headrest
Press button 1 and lift the headrest to
release it (tilt the seatback if neces-
sary).
REAR HEAD RESTS
1
2

3.32
REAR BENCH SEATS: functions (1/4)
Depending on the vehicle, there may
be two rear bench seats: bench seat 2
(2nd row of seats) and bench seat 1
(3rd row of seats).Bench seat 2
Insert the buckles 3 into the housings 4
before moving the seatback(s).
To assist with access to the last row
(bench seat 1 ), move control 5 down-
wards (movement A) to tilt the bench
seat back 2.
Remember to lock the seat belt in place
once more when a passenger is oc-
cupying the seat.
Ensure that the bench seats
are locked in place correctly
when refitting them.
Check that the side seat
belts are locked in their unit cor-
rectly.
2
1
4
5
A
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
3

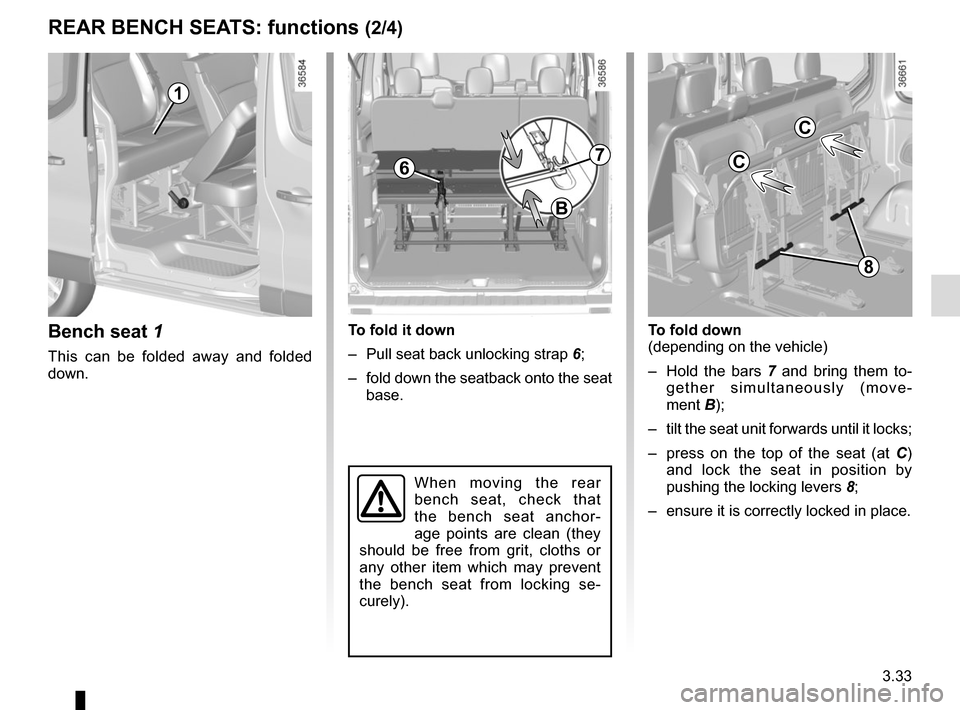

3.33
Bench seat 1
This can be folded away and folded
down.
To fold it down
– Pull seat back unlocking strap 6;
– fold down the seatback onto the seat base.
1
7
B
To fold down
(depending on the vehicle)
– Hold the bars 7 and bring them to-
gether simultaneously (move-
ment B);
– tilt the seat unit forwards until it locks;
– press on the top of the seat (at C)
and lock the seat in position by
pushing the locking levers 8;
– ensure it is correctly locked in place.
When moving the rear
bench seat, check that
the bench seat anchor-
age points are clean (they
should be free from grit, cloths or
any other item which may prevent
the bench seat from locking se-
curely).
REAR BENCH SEATS: functions (2/4)
6
8
C
C

3.34
– move the bench seat towards the rear of the vehicle to release the an-
chorage points (movement F);
– lift the bench seat (movement G);
– move the bench seat towards the rear again (movement H) to release
the front anchorage points;
– remove the bench seat from the front of the vehicle.
REAR BENCH SEATS: functions (3/4)
Removal/refitting of bench
seat 1 and 2
(depending on the vehicle)
These are removed and refitted in the
same way. Removal
First, release the side seat belts by un-
locking them from their unit.
– Underneath the bench seat, press
on the latch 9, then pull it forwards
(movements C and D);
– lift (movement E);
It is not permitted to swap
bench seats 1 and 2
1
2
C
D
E
F
G
H
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Remove bench seat 2 before re-
moving bench seat 1.
9
9

3.35

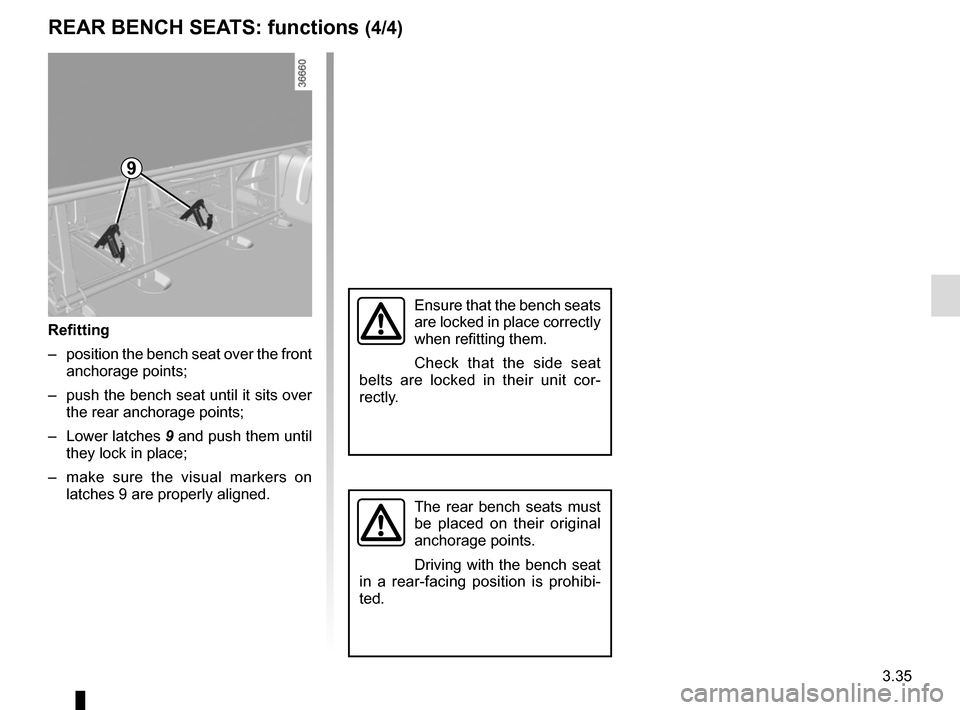

REAR BENCH SEATS: functions (4/4)
Refitting
– position the bench seat over the front anchorage points;
– push the bench seat until it sits over the rear anchorage points;
– Lower latches 9 and push them until
they lock in place;
– make sure the visual markers on latches 9 are properly aligned.
Ensure that the bench seats
are locked in place correctly
when refitting them.
Check that the side seat
belts are locked in their unit cor-
rectly.
The rear bench seats must
be placed on their original
anchorage points.
Driving with the bench seat
in a rear-facing position is prohibi-
ted.
9

3.36
LUGGAGE COVER
Do not place any objects,
especially heavy or solid
objects on the luggage
cover. These may pose a
risk to the vehicle occupants if the
driver has to brake suddenly or if the
vehicle is involved in an accident.
AA
B
The luggage cover is made up of one or
two rigid sections.
There are two possible positions:
– top position A;
– the lower position B.
Depending on the vehicle, you can lift
the section 1 to a vertical position to
make loading easier.
1
