2017 RENAULT KADJAR headrest

3.25
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
Centre seat headrest storage
position
Press the button A and lower the cen-
tral headrest 1 completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
To remove a headrest
Raise the headrest as far as it will go,
then press button A and remove the
headrest.
The headrests 2 on the rear side seats
cannot be adjusted.
Position for using the central
headrest
Raise the central headrest 1
as far
as possible to use it in the high posi-
tion. Check that the bonnet is correctly
locked.

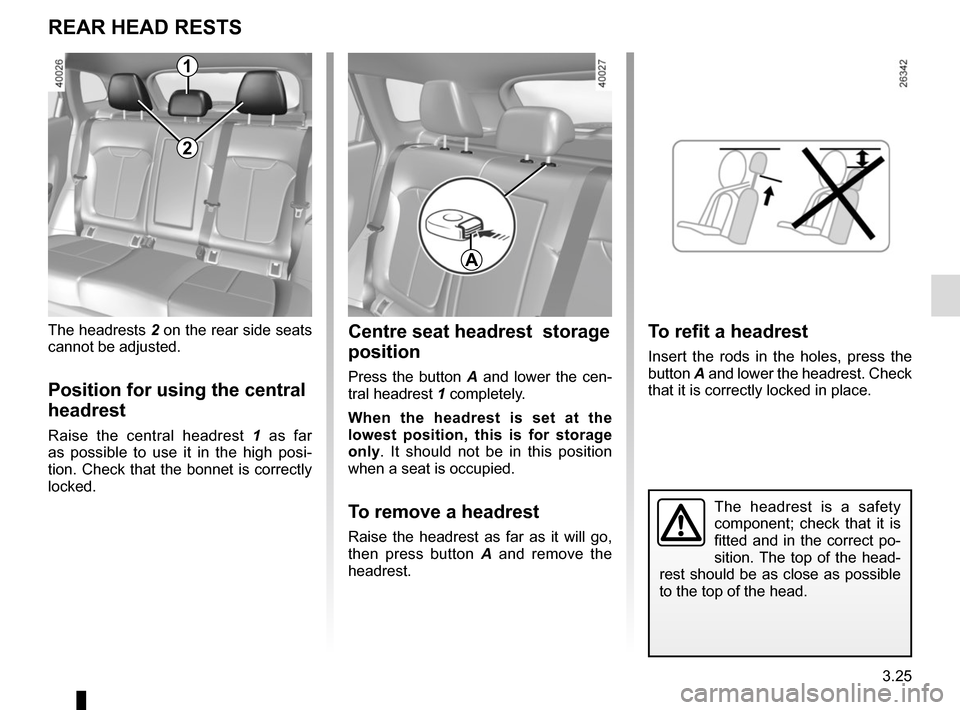

REAR HEAD RESTS
A
To refit a headrest
Insert the rods in the holes, press the
button A and lower the headrest. Check
that it is correctly locked in place.
1
2

3.26
To replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.

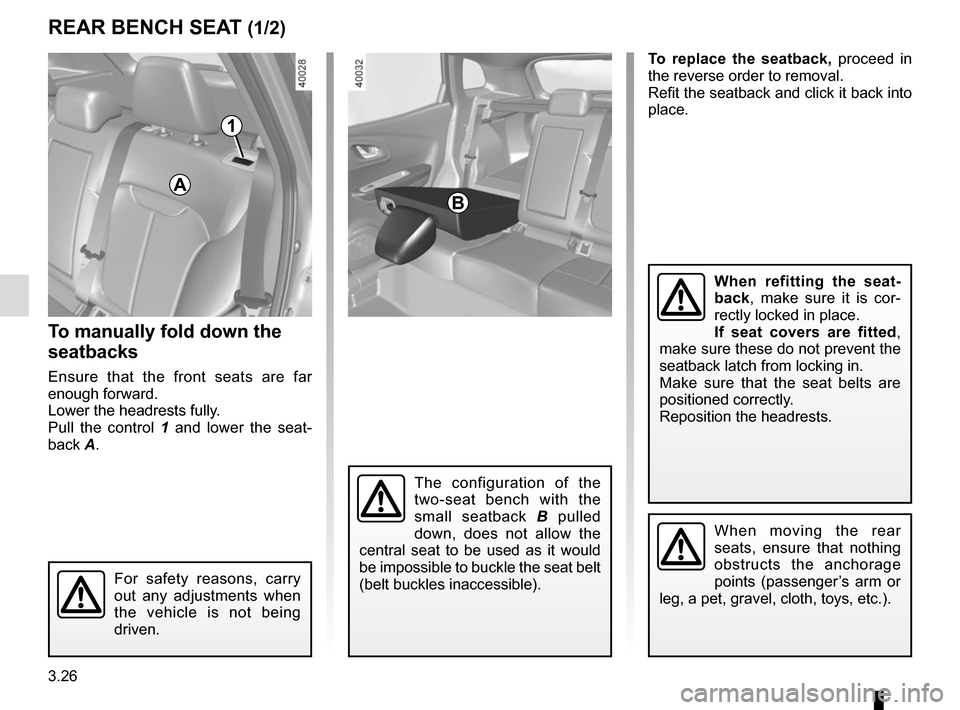

REAR BENCH SEAT (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
A
1
The configuration of the
two-seat bench with the
small seatback B pulled
down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
To manually fold down the
seatbacks
Ensure that the front seats are far
enough forward.
Lower the headrests fully.
Pull the control 1 and lower the seat-
back A.
B

3.32
Always position the heavi-
est items directly on the
floor. Use the lashing
points 1 on the boot floor, if
these are fitted to the vehicle. The
luggage should be loaded in such a
way that no items will be thrown for-
ward and strike the occupants if the
driver has to brake suddenly. Fasten
the rear seat belts, even if the seats
are not occupied.

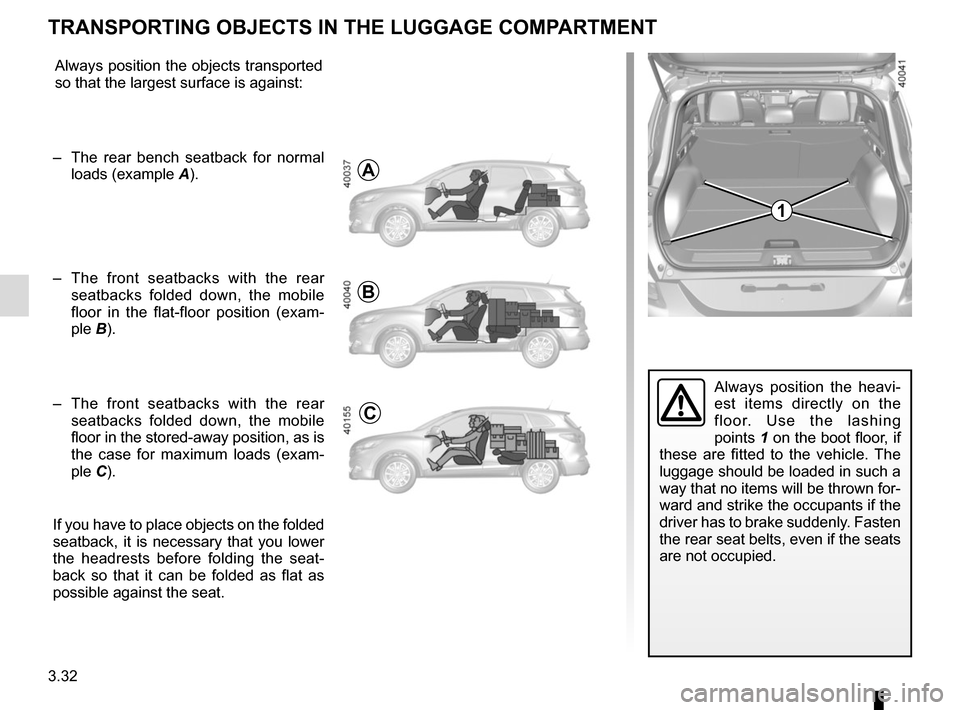

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT
Always position the objects transported
so that the largest surface is against:
– The rear bench seatback for normal loads (example A).
– The front seatbacks with the rear
seatbacks folded down, the mobile
floor in the flat-floor position (exam-
ple B).
– The front seatbacks with the rear seatbacks folded down, the mobile
floor in the stored-away position, as is
the case for maximum loads (exam-
ple C).
If you have to place objects on the folded
seatback, it is necessary that you lower
the headrests before folding the seat-
back so that it can be folded as flat as
possible against the seat.
B
A
1
C

7.3
ALPHABETICAL INDEX (3/5)
hazard warning lights signal .............................................. 1.85
headlight beam adjustment .................................... 1.86 – 1.87
headrest.................................................................... 1.19, 3.25
heated seats ...................................................................... 1.20
heated windscreen ..................................................3.7 → 3.12
heating and air conditioning system ........................3.4 → 3.13
heating system ........................................................3.4 → 3.13
Hill Start Assist.......................................................2.29 → 2.38
horn ...................................................................\
................ 1.85
horn: flash ..................................................................\
........... 1.85
hubcap tool ................................................................. 5.7 – 5.8
I
ignition switch ...................................................................... 2.3
indicators ......................................................1.85, 5.14 → 5.19
indicators: direction indicators ....................................................... 1.85
instrument panel ..............................................1.54 → 1.63
instrument panel ....................................................1.54 → 1.71
instrument panel messages...................................1.62 → 1.71
interior trim maintenance ..................................................... 4.17 – 4.18
Isofix ....................................................................... 1.37 – 1.38
J
jack ...................................................................\
................... 5.7
K
keys ...................................................................\
........1.2 → 1.5
L
lane departure warning ..........................................2.43 → 2.45
levels .................................................................\
......4.8 → 4.10
levels: brake fluid ...................................................................... 4.9 coolant ................................................................\
........... 4.8
windscreen washer reservoir ....................................... 4.10
lifting the vehicle changing a wheel ................................................ 5.9 – 5.10
lighting: exterior .............................................................1.79 → 1.87
instrument panel .......................................................... 1.79
interior ........................................... 3.17 – 3.18, 5.20 – 5.21
lights adjustment ........................................................ 1.86 – 1.87
changing bulbs .................................................5.14 → 5.16
front ..................................................................\
5.14 → 5.16
lights: adjusting ........................................................... 1.86 – 1.87
brake lights ......................................................5.17 → 5.19
dipped beam headlights .................1.54, 1.79, 5.14 → 5.16
direction indicators .........................1.54, 1.85, 5.14 → 5.17
fog lights .................................................... 1.54, 1.82, 5.19
hazard warning ............................................................ 1.85
main beam headlights ................................ 1.54, 1.79, 5.14
reversing lights ............................................................. 5.19
side lights ................................................1.79, 5.14 → 5.17
load permitted on the roof.................................................... 6.6
locking the doors ..............................................1.4, 1.6 → 1.18
luggage compartment cover .............................................. 3.29
luggage retaining net .............................................. 3.34 – 3.35
M
maintenance ............................................................\
.......... 2.24
maintenance: bodywork .......................................................... 4.15 – 4.16
interior trim ........................................................ 4.17 – 4.18
mechanical ..............................4.4, 4.13 – 4.14, 6.8 → 6.13
map reading lights .................................................. 3.17 – 3.18
menu for customising the vehicle settings .............. 1.72 – 1.73
methods of restraint in addition to the seat belts ...1.27 → 1.33
