REAR AND SIDE LIGHTS: changing bulbs (3/4)
Five door and estate versions
Fog lights 10 and reversing lights 11
Open the boot lid.
Unclip cover 12 and remove it.
Turn bulb holder 13 fully anticlockwise
and change the bulb.
Note: depending on the vehicle, the re-
versing and fog lights are inverted. To reassemble, proceed in the reverse
order to removal.
When the bulb has been changed,
make sure you refit cover 12 correctly.
Reversing light
Type of bulb: H21W.
Rear fog light
Type of bulb: H21W.
13
12
10
11

5.22
14
High level brake light 14
Consult an approved dealer.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

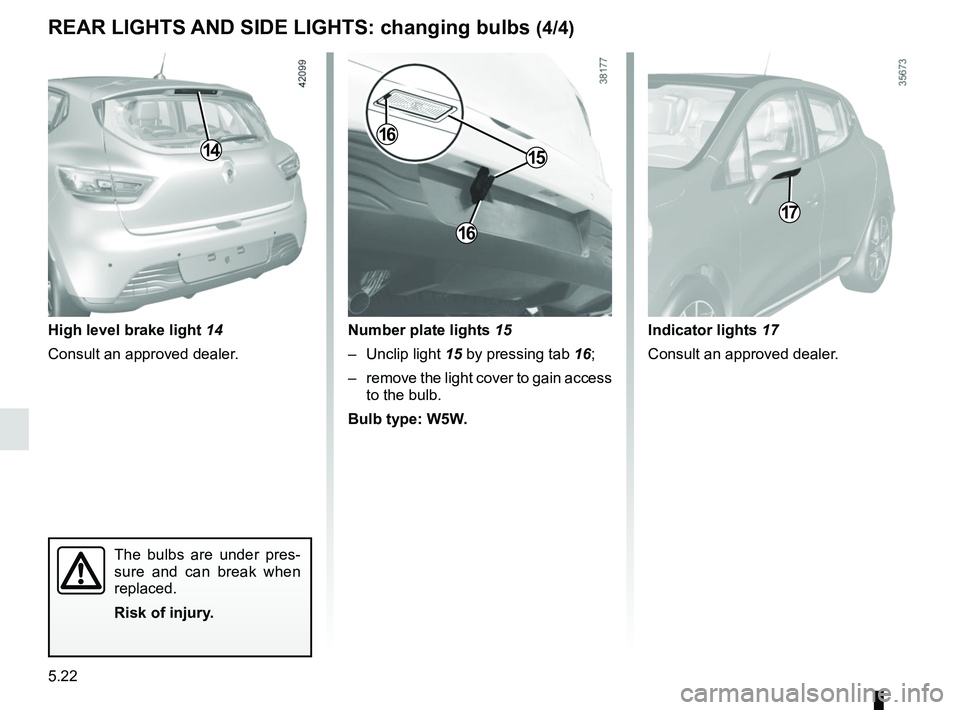

REAR LIGHTS AND SIDE LIGHTS: changing bulbs (4/4)
17
Number plate lights 15
– Unclip light 15 by pressing tab 16;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.Indicator lights 17
Consult an approved dealer.
16
15
16

5.23
Courtesy light(depending on vehicle)
Courtesy light fitted with diffusers 1
Unclip the lens (using a flat-blade
screwdriver or similar).
Remove the bulb concerned.
Bulb type: W5W.
INTERIOR LIGHTING: changing bulbs (1/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
3
Luggage compartment light
Unclip the light 3 by pressing the tab on
its left side (using a flat-bladed screw-
driver or similar).
Remove the bulb concerned.
Bulb type: W5W.
Courtesy light fitted with diffusers 2
Consult an approved dealer.
2

5.24
Courtesy mirrors
Unclip the light 5 by pressing the tab on
its left side (using a flat-bladed screw-
driver or similar).
Remove the bulb concerned.
Bulb type: W5W.
INTERIOR LIGHTING: changing bulbs (2/2)
5
Glovebox light
Unclip the light 4 by pressing the tab on
its left side (using a flat-bladed screw-
driver or similar).
Remove the bulb concerned.
Bulb type: W5W.
Ambient lighting
Please consult an authorised dealer.
4

5.25
Clip 1
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.Fuses in passenger compartment A
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
FUSES (1/5)
Fuses in engine compartment B
Some functions are protected by fuses
located in the engine compartment
(unit B).
However, because of their reduced
accessibility, we advise you to have
your fuses replaced by an approved
Dealer .
1
A
B
To comply with current legislation, or
as a precaution, you can obtain an
emergency kit from your approved
dealer containing a set of spare
bulbs and fuses.
Check the fuse in question and replace it, if necessary, by a fuse of the
same rating.
If a fuse is fitted with too high a rating, it may cause the electrical \
circuit
to overheat (risk of fire) in the event of an item of equipment using \
an ex-
cessive amount of current.

5.26
FUSES (2/5)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
1
81524
2
91625
3
101726
411
18
27
512
19
28
29
613
20
22
30
714
21
2332
31
33
34
35
36373839

5.27
Number Allocation
1 Front windscreen wiper,
controls under steering
wheel
2 Front left-hand daytime
running lights,
right-hand side lights,
left-hand main beam
headlight,
right-hand dipped beam
headlight,
front fog lights
3 Interior lighting,
registration plate lighting,
fog lights
4 Right-hand side lights,
rear side lights
5 Left-hand side lights,
front side lights
6 Dipped beams,
front right-hand daytime
running light,
left-hand side lights,
right-hand main beam
headlight
FUSES (3/5)
Number Allocation
7 Left-hand dipped beam
headlight
8 Right-hand main beam
headlight
9 Left-hand main beam
headlight,
steering column controls
10 Steering column controls,
speed limiter/cruise control,
interior rear-view mirror,
belt warning module,
Parking sensor,
additional heating,
electric headlight beam
adjustment,
rear screen de-icer
11 Central door locking,
rain and light sensor,
steering wheel angle
sensor,
vehicle start button,
electric rear windowsNumber Allocation
12 Courtesy light,
luggage compartment light,
air conditioning,
electric windows
13 ABS-ESC,
brake switch
14 Steering column controls,
brake switch
15 Horn
16 Rear fog lights
17 Cigarette lighter
18 Radio and multimedia,
diagnostic socket
19 Power-assisted steering
20 GPL

5.28
FUSES (4/5)
Allocation of fuses
(the presence of certain fuse depends on the vehicle equipment level)
1
81524
2
91625
3
101726
411
18
27
512
19
28
29
613
20
22
30
714
21
2332
31
33
34
35
36373839
