3.13
One-touch mode
Depending on the vehicle, this mode
works in addition to the operation of the
electric windows described previously.
It is only fitted to the driver’s window.
Briefly press or pull switch 1 fully: the
window is fully lowered or raised.
Pressing the switch again stops the
window moving.
Note: If the driver’s window detects re-
sistance when closing (e.g. tree branch,
etc.), it stops and then lowers again by
a few centimetres.
ELECTRIC WINDOWS (2/2)
Manual window winder
controls
Turn handle 7.
7
Operating faults
In case of a fault when closing a window,
the system reverts to normal mode:
pull the switch concerned up as often
as necessary to fully close the window
(the window will close gradually), hold
the switch (still on the closure side) for
one second then lower and raise the
window fully to reinitialise the system.
If necessary, contact your authorised
dealer.
When closing the windows,
ensure that no part of the
body (arm, hand, etc.) is
protruding from the vehicle.
Risk of serious injury.

3.14

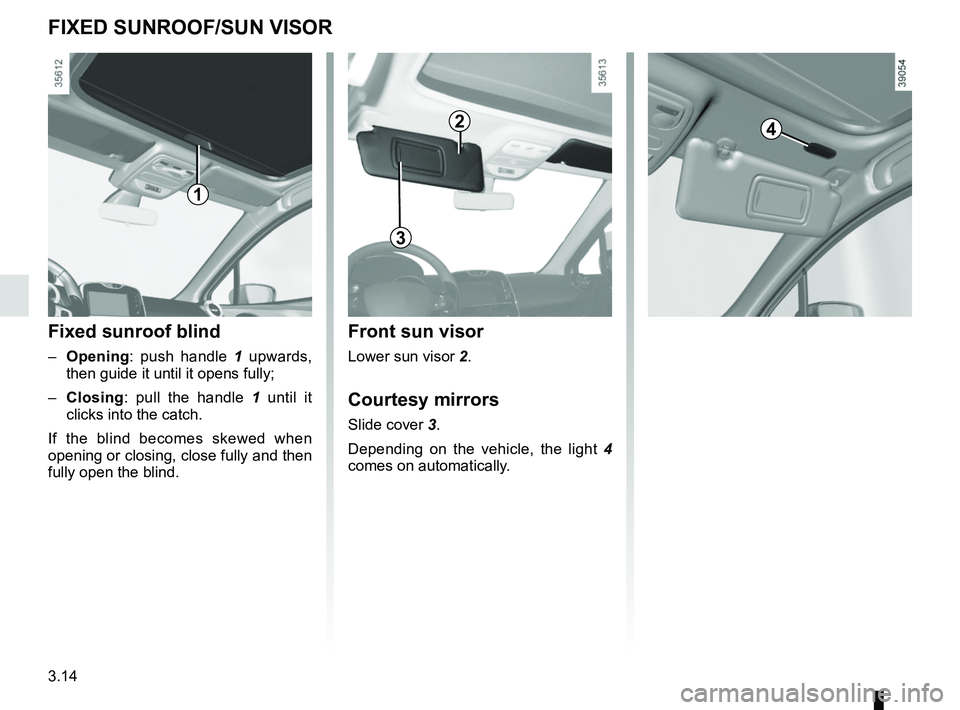

FIXED SUNROOF/SUN VISOR
Front sun visor
Lower sun visor 2.
Courtesy mirrors
Slide cover 3.
Depending on the vehicle, the light 4
comes on automatically.
2
3
Fixed sunroof blind
– Opening : push handle 1 upwards,
then guide it until it opens fully;
– Closing: pull the handle 1 until it
clicks into the catch.
If the blind becomes skewed when
opening or closing, close fully and then
fully open the blind.
1
4

3.15
Unlocking and opening the doors
or tailgate switches on the timed
courtesy lights and lights.
Boot light 5
Light 5 comes on when the boot is
opened.
Courtesy light
Press switch 2 for:
– permanent lighting;
– intermittent lighting, which comes on when a door is opened. It only
switches off after a time delay and
when the doors concerned have
been closed correctly;
– lighting switches off immediately.
Map reading lights
Press switch 1 for the driver, 3 for the
front passenger.
INTERIOR LIGHTING
1235
Glovebox light 4
Light 4 comes on when the cover is
opened.
4

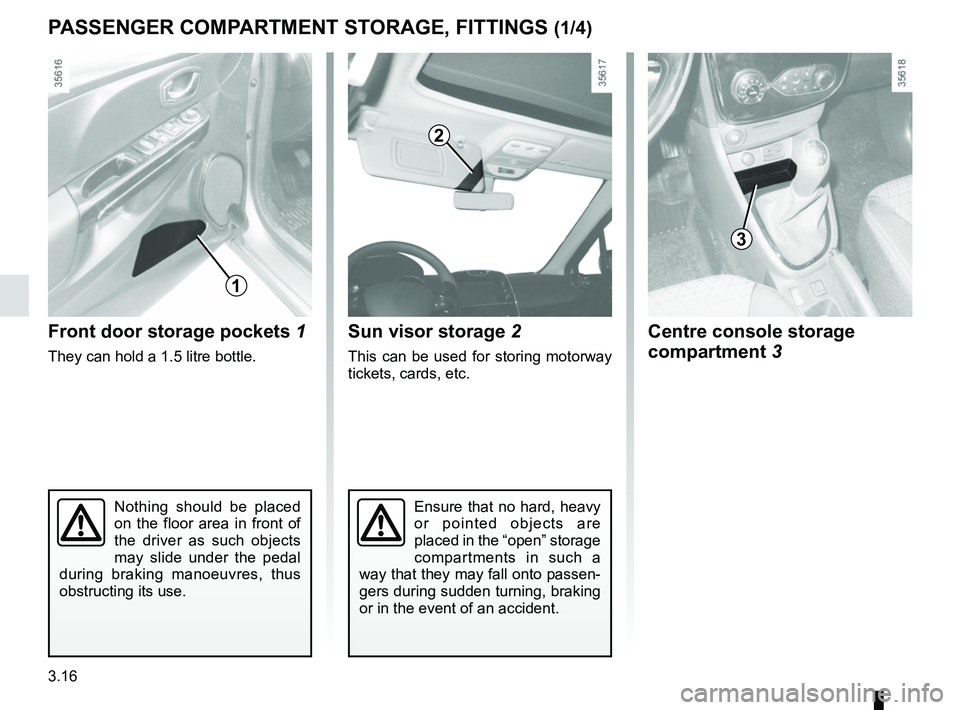

3.16
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Front door storage pockets 1
They can hold a 1.5 litre bottle.
PASSENGER COMPARTMENT STORAGE, FITTINGS (1/4)
1
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
2
Sun visor storage 2
This can be used for storing motorway
tickets, cards, etc.
Centre console storage
compartment 3
3

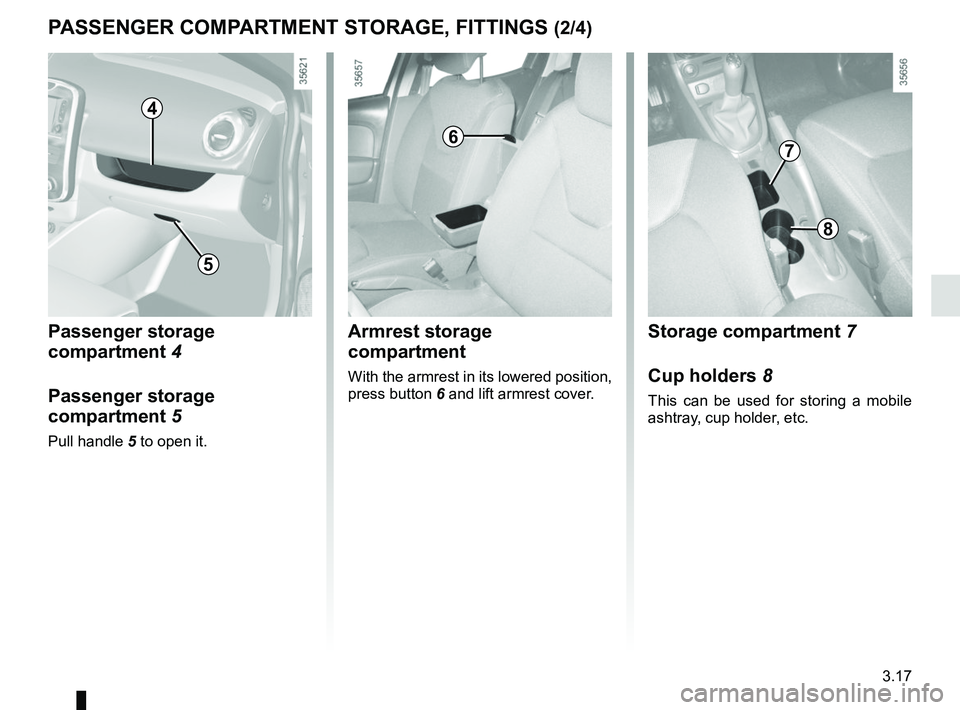

3.17
Passenger storage
compartment 4
Passenger storage
compartment 5
Pull handle 5 to open it.
5
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/4)
Armrest storage
compartment
With the armrest in its lowered position,
press button 6 and lift armrest cover.
6
4
Storage compartment 7
Cup holders 8
This can be used for storing a mobile
ashtray, cup holder, etc.
7
8

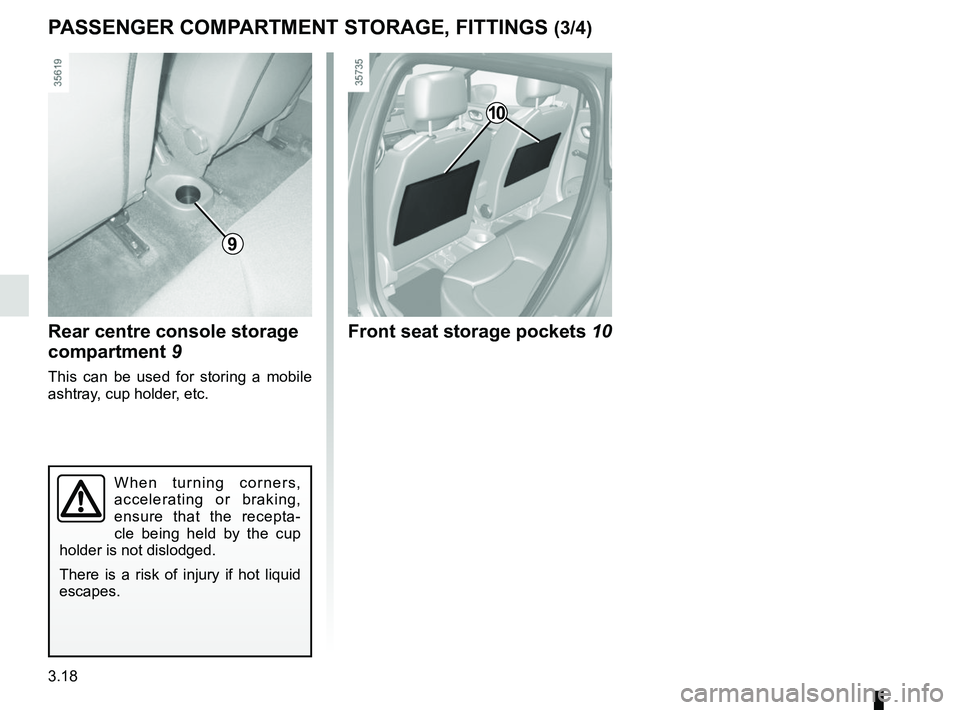

3.18
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/4)
9
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of injury if hot liquid
escapes.
Rear centre console storage
compartment 9
This can be used for storing a mobile
ashtray, cup holder, etc.
Front seat storage pockets 10
10

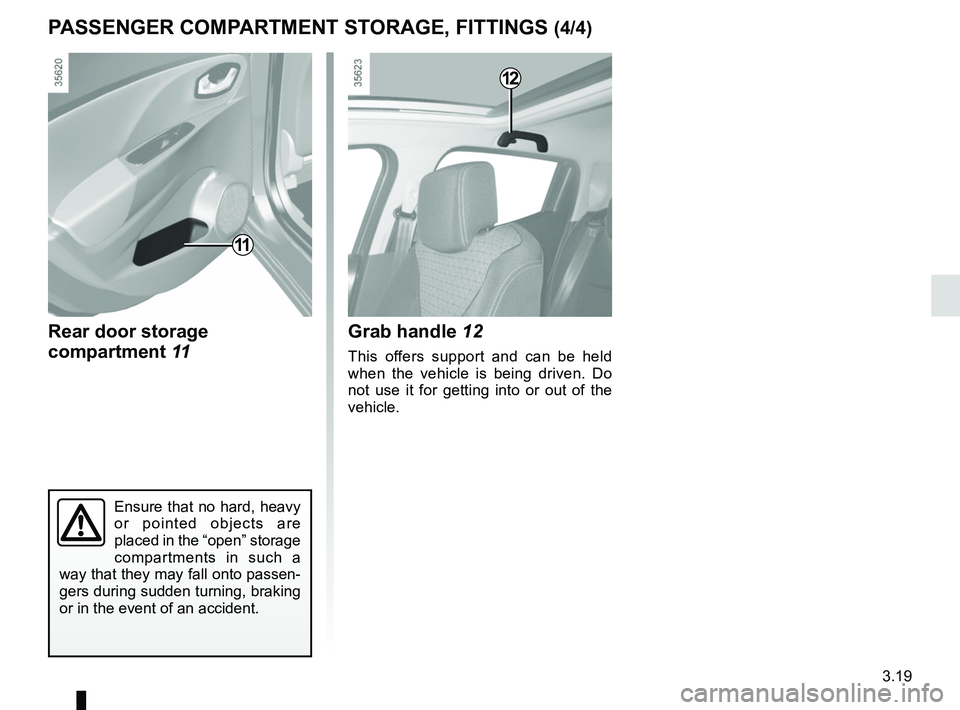

3.19
11
Rear door storage
compartment 11
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
12
Grab handle 12
This offers support and can be held
when the vehicle is being driven. Do
not use it for getting into or out of the
vehicle.
PASSENGER COMPARTMENT STORAGE, FITTINGS (4/4)

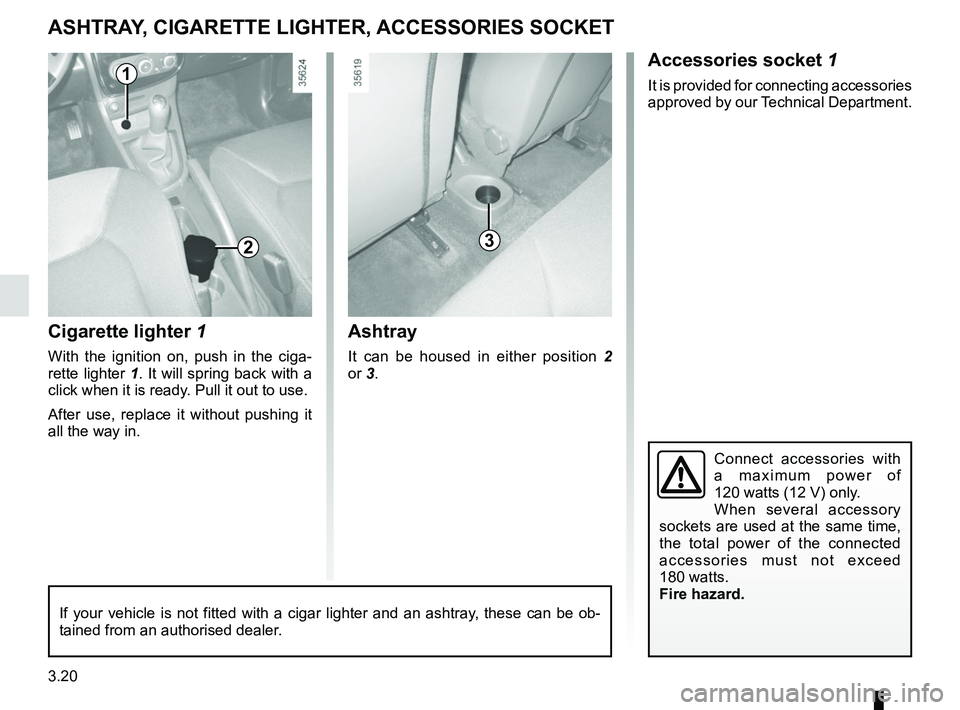

3.20
Accessories socket 1
It is provided for connecting accessories
approved by our Technical Department.
Cigarette lighter 1
With the ignition on, push in the ciga-
rette lighter 1. It will spring back with a
click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.
Ashtray
It can be housed in either position 2
or 3.
ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET
3
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
If your vehicle is not fitted with a cigar lighter and an ashtray, these can be ob-
tained from an authorised dealer.
1
2
