NOTE:If you are installing a Toolbox, Ladder Rack or
Headache Rack at the front of the Pickup Box, you must
use Mopar Box Reinforcement Brackets that are available
from your authorized dealer.
You can carry wide building materials (sheets of plywood,
etc.) by building a raised load floor. Place lumber across the
box in the indentations provided above the wheel housings
and in the bulkhead dividers to form the floor.
WARNING!
• The pickup box is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.
• Care should always be exercised when operating a
vehicle with unrestrained cargo. Vehicle speeds may
need to be reduced. Severe turns or rough roads may
cause shifting or bouncing of the cargo that may
result in vehicle damage. If wide building materials
are to be frequently carried, the installation of a
support is recommended. This will restrain the cargo
and transfer the load to the pickup box floor.
(Continued)
WARNING! (Continued)
•If you wish to carry more than 600 lbs (272 kg) of
material suspended above the wheelhouse, supports
must be installed to transfer the weight of the load to
the pickup box floor or vehicle damage may result.
The use of proper supports will permit loading up to
the rated payload.
• Unrestrained cargo may be thrown forward in an
accident causing serious or fatal injury.
There are stampings in the sheet metal on the inner side
bulkheads of the box in front of and behind both wheel
housings. Place wooden boards across the box from side to
side to create separate load compartments in the pickup
box.
There are four tie-down cleats bolted to the lower sides of
the pickup box that can sustain loads up to 1000 lbs
(450 kg) total.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

Cargo Camera — If Equipped
Your vehicle may be equipped with the Cargo Camera that
allows you to see an image of the inside of the pickup box.
The image will be displayed in the Uconnect screen.
The Cargo Camera is located in the bottom center area of
the center high-mounted stoplamp (CHMSL).
A touchscreen button
to indicate the current active
camera image being displayed is made available when-
ever the Cargo Camera image is displayed.
Also, a touchscreen buttonto switch the display to
rear view camera image is made available whenever the
Cargo Camera image is displayed.
A touchscreen button Xto disable display of the camera
image is made available when the vehicle is not in RE-
VERSE gear.
A display timer is initiated when the Cargo Camera image
is displayed. The image will continue to be displayed until
the display timer exceeds 10 seconds and the vehicle speed
is above 8 mph (13 km/h) or the touchscreen button Xto
disable display of the Cargo Camera image is pressed. NOTE:
•
If the vehicle speed remains below 8 mph (13 km/h), the
Cargo Camera image will be displayed continuously
until the touchscreen button Xto disable display of the
Cargo Camera image is pressed.
• If snow, ice, mud, or any foreign substance builds up on
the camera lens, clean the lens, rinse with water, and dry
with a soft cloth. Do not cover the lens.
Turning Cargo Camera On Or Off — With Uconnect
8.4/8.4 NAV
1. Press the “Controls” button located on the bottom of the Uconnect display.
2. Press the “Cargo Camera” button
to turn the Cargo
Camera system on.
NOTE: Once initiated by the Cargo Camerabutton, the
Cargo Camera image may be deactivated by pressing the
X soft button. On deactivation, the previous selected
screen will appear.
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

RAMBOX — IF EQUIPPED
The RamBox system is an integrated pickup box storage
and cargo management system consisting of three features:
•Integrated box side storage bins
• Cargo extender/divider
• Bed rail tie-down system
RamBox Integrated Box Side Storage Bins
Cargo storage bins are located on both sides of the pickup
box. The cargo storage bins provide watertight, lockable,
illuminated storage for up to 150 lbs (68 kg) for 1500 series
vehicles or 300 lbs (136 kg) for 2500 and 3500 series vehicles
of evenly distributed cargo.
CAUTION!
Failure to follow the following items could cause
damage to the vehicle:
•Assure that all cargo inside the storage bins is
properly secured.
• Do not exceed cargo weight rating of 150 lb (68 kg)
1500 series vehicles or 300 lbs (136 kg) for 2500 and
3500 series vehicles per bin.
RamBox Cargo Storage Bins
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

To open a storage bin with the RamBox unlocked, push and
release the button located on the lid. The RamBox lid will
open upward to allow hand access. Lift the lid to fully
open.
NOTE:RamBox will not open when the pushbutton is
pushed if the RamBox is locked. The interior of the RamBox will automatically illuminate
when the lid is opened. In addition to the automatic
illumination switch, there is a manual on/off switch lo-
cated at the rear of each storage bin. Pushing the switch
once will turn off the bin lights, pushing the switch again
will turn the lights back on.
RamBox Pushbutton And Lock
RamBox Light Switch
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Leaving the lid open for extended periods of time
could cause the vehicle battery to discharge. If the lid
is required to stay open for extended periods of time, it
is recommended that the bin lights be turned off
manually using the on/off switch.
Cargo bins feature two removable drain plugs (to allow
water to drain from bins). To remove plug, pull up on the
edge. To install push plug downward into drain hole.
NOTE: Provisions are provided in the bins for cargo
dividers and shelf supports. These accessories (in addition
to other RamBox accessories) are available from MOPAR.
Locking And Unlocking RamBox
Push and release the lock or unlock button on the key fob
to lock and unlock all doors, the tailgate and the RamBox
(if equipped). Refer to “Remote Keyless Entry” for further
details. The RamBox storage bins can be locked using the vehicle key. To lock and unlock the storage bin, insert the
key into the keyhole on the push button and turn clockwise
to lock or counterclockwise to unlock. Always return the
key to the upright (vertical) position before removing the
key from the push button.
CAUTION!
•
Ensure cargo bin lids are closed and latched before
moving or driving vehicle.
• Loads applied to the top of the bin lid should be
minimized to prevent damage to the lid and latching/
hinging mechanisms.
• Damage to the RamBox bin may occur due to heavy/
sharp objects placed in bin that shift due to vehicle
motion. In order to minimize potential for damage,
secure all cargo to prevent movement and protect
inside surfaces of bin from heavy/sharp objects with
appropriate padding.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

RamBox Safety Warning
Carefully follow these warnings to help prevent personal
injury or damage to your vehicle:
WARNING!
•Always close the storage bin covers when your
vehicle is unattended.
• Do not allow children to have access to the storage
bins. Once in the storage bin, young children may
not be able to escape. If trapped in the storage bin,
children can die from suffocation or heat stroke.
• In an accident, serious injury could result if the
storage bin covers are not properly latched.
• Do not drive the vehicle with the storage bin covers
open.
• Keep the storage bin covers closed and latched while
the vehicle is in motion.
• Do not use a storage bin latch as a tie down.
RamBox Storage Bin Cover Emergency Release Lever
— If Equipped
As a security measure, a Storage Bin Cover Emergency
Release is built into the storage bin cover latching mecha-
nism.
NOTE: In the event of an individual being locked inside
the storage bin, the storage bin cover can be opened from
inside of the bin by pulling on the glow-in-the-dark lever
attached to the storage bin cover latching mechanism.
Storage Bin Cover Emergency Release Lever
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

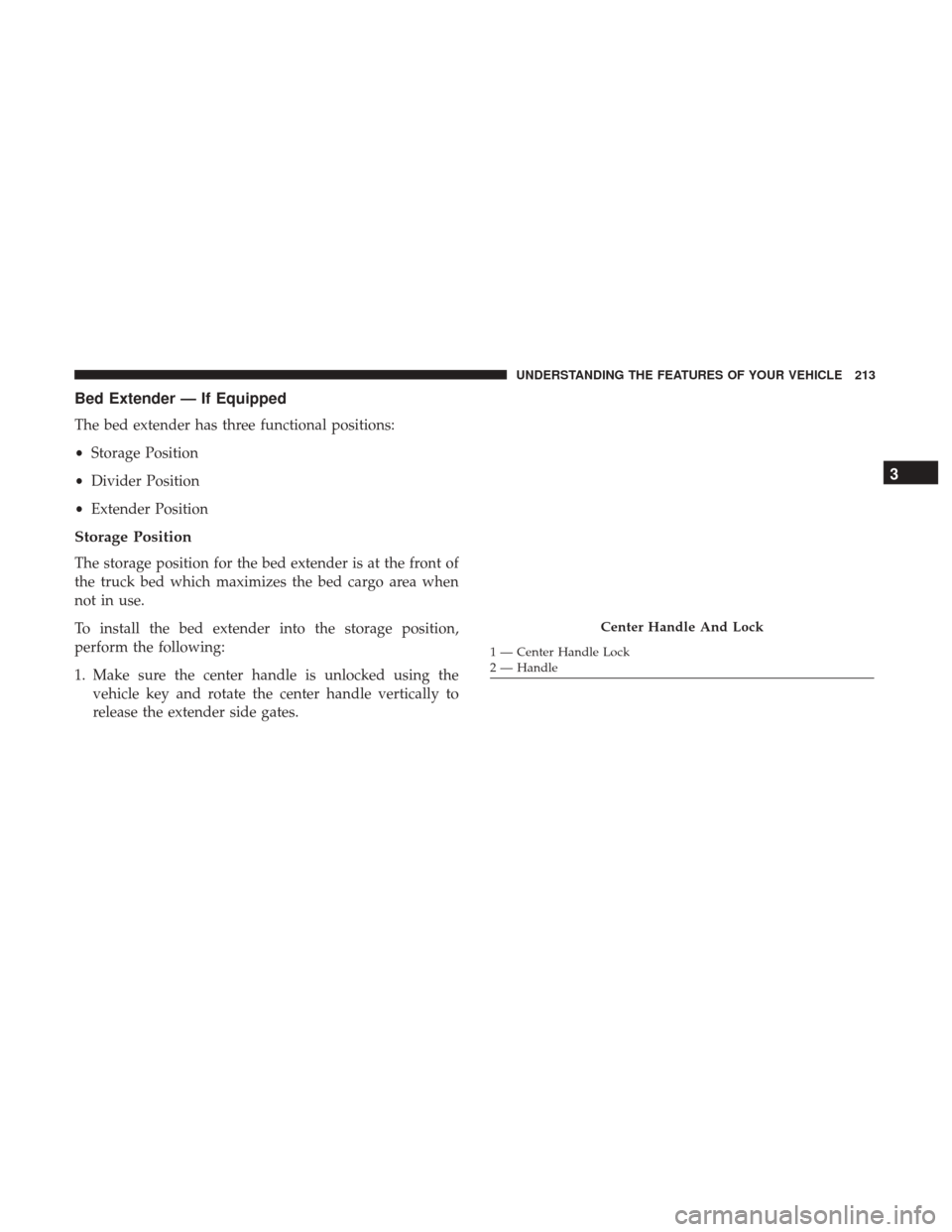

Bed Extender — If Equipped
The bed extender has three functional positions:
•Storage Position
• Divider Position
• Extender Position
Storage Position
The storage position for the bed extender is at the front of
the truck bed which maximizes the bed cargo area when
not in use.
To install the bed extender into the storage position,
perform the following:
1. Make sure the center handle is unlocked using the
vehicle key and rotate the center handle vertically to
release the extender side gates.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 213

2. With the side gates open, position the extender fullyforward in the bed against the front panel. 3. Rotate the side gates closed allowing the outboard ends
to be positioned in front of the cargo tie down loops.
Storage PositionCargo Tie Down Loop
