2017 PEUGEOT 3008 Owners Manual

119
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

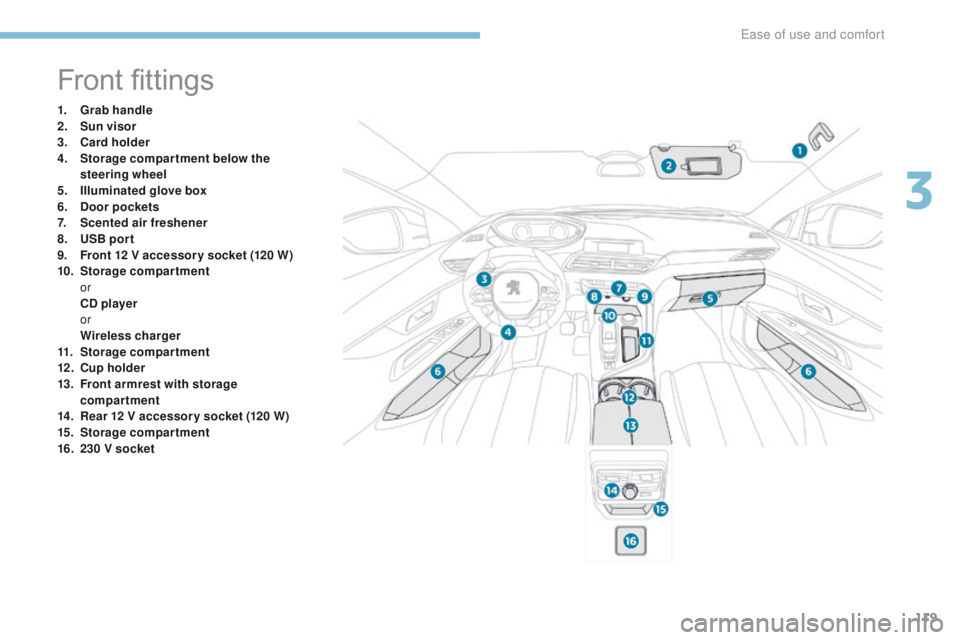

Front fittings
1. Grab handle
2. Sun visor
3.
C

ard holder
4.
S

torage compar tment below the
steering wheel
5.
I

lluminated glove box
6.
Doo

r pockets
7.
S

cented air freshener
8.
U

SB por t
9.
F

ront 12 V accessor y socket (120 W)
10.
S

torage compartment


or
C

D player


or


W
ireless charger
11.
S

torage compartment
12 .
C

up holder
13.
F

ront armrest with storage
compartment
14 .
R

ear 12 V accessor y socket (120 W)
15.
S

torage compartment
16.
2

30 V socket
3
Ease of use and comfort

120
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

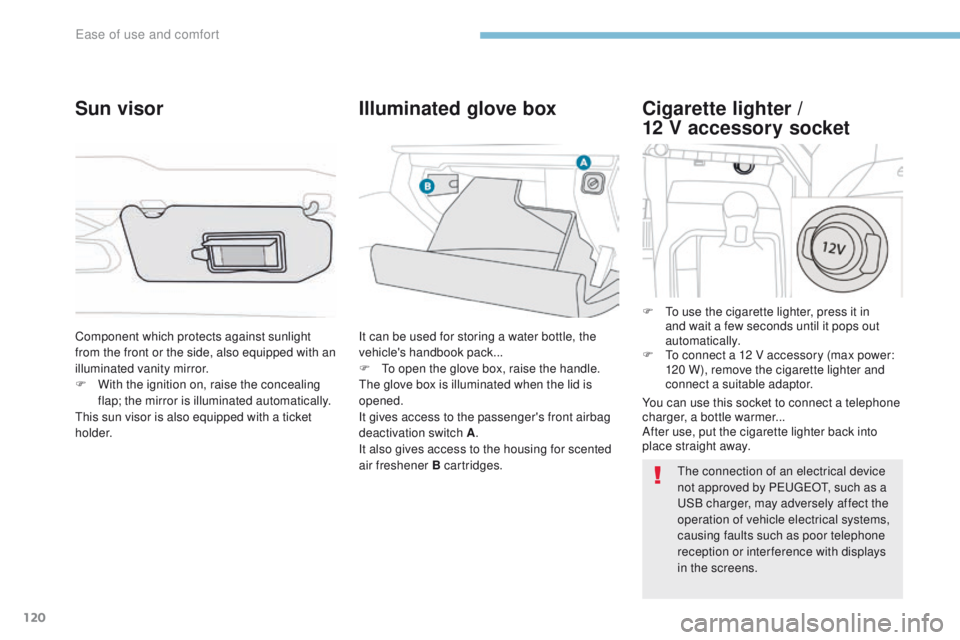

Cigarette lighter /
12 V accessory socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F

T
o connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
Component which protects against sunlight
from the front or the side, also equipped with an
illuminated vanity mirror.
F

W

ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
This sun visor is also equipped with a ticket
h o l d e r.
Sun visor Illuminated glove box
It can be used for storing a water bottle, the
vehicle's handbook pack...
F

T
o open the glove box, raise the handle.
The glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A .
It also gives access to the housing for scented
air freshener B cartridges. The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter
back into
place straight away.
Ease of use and comfort

121
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
For more information on Audio and telematics
and the USB port in particular, refer to the
corresponding section. The USB port also allows a smartphone to be
connected by MirrorLink™ or CarPlay
®, so that
certain applications on the smartphone can be
used in the touch screen.

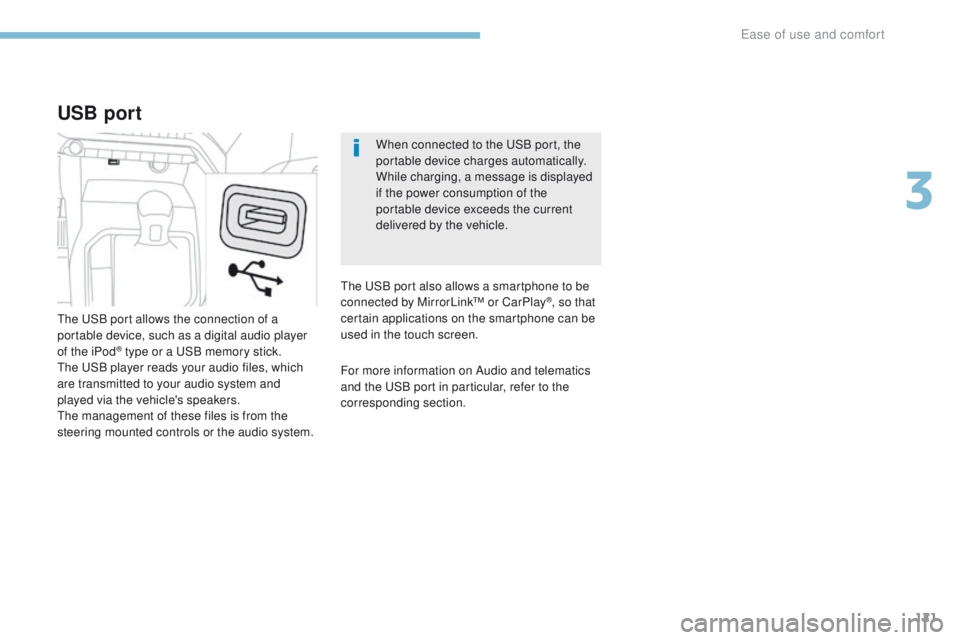

USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system.
3
Ease of use and comfort

122
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

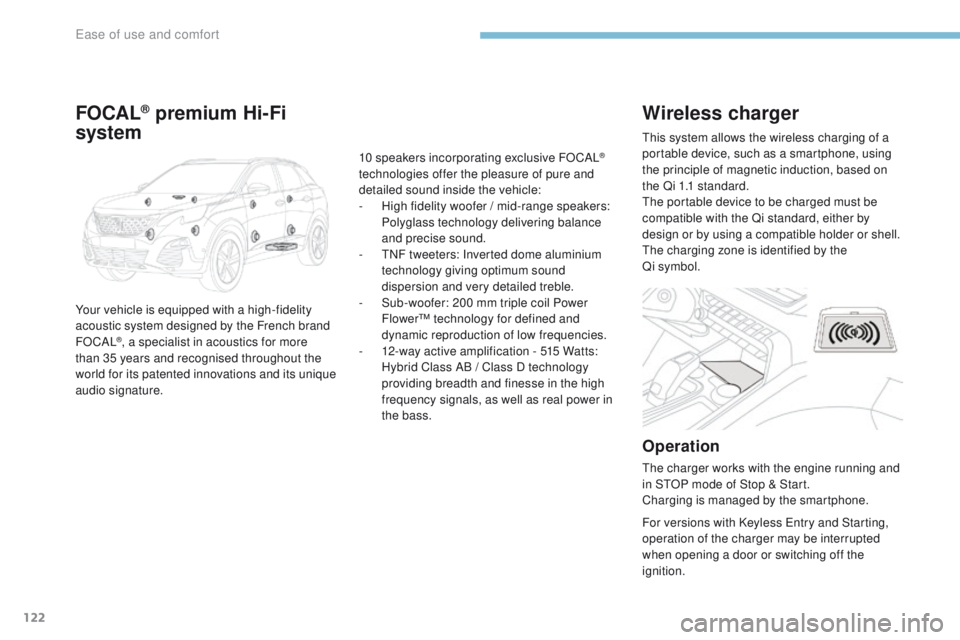

Wireless charger
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone. This system allows the wireless charging of a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a compatible holder or shell.
The charging zone is identified by the
Qi symbol.
For versions with Keyless Entry and Starting,
operation of the charger may be interrupted
when opening a door or switching off the
ignition.
FOCAL® premium Hi-Fi
system
Your vehicle is equipped with a high-fidelity
acoustic system designed by the French brand
FOCAL
®, a specialist in acoustics for more
than 35 years and recognised throughout the
world for its patented innovations and its unique
audio signature. 10 speakers incorporating exclusive FOCAL
®
technologies offer the pleasure of pure and
detailed sound inside the vehicle:
-

H

igh fidelity woofer / mid-range speakers:
Polyglass technology delivering balance
and precise sound.
-

T

NF tweeters: Inverted dome aluminium
technology giving optimum sound
dispersion and very detailed treble.
-

S

ub-woofer: 200 mm triple coil Power
Flower™ technology for defined and
dynamic reproduction of low frequencies.
-

1

2-way active amplification - 515 Watts:
Hybrid Class AB / Class D technology
providing breadth and finesse in the high
frequency signals, as well as real power in
the bass.
Ease of use and comfort

123
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

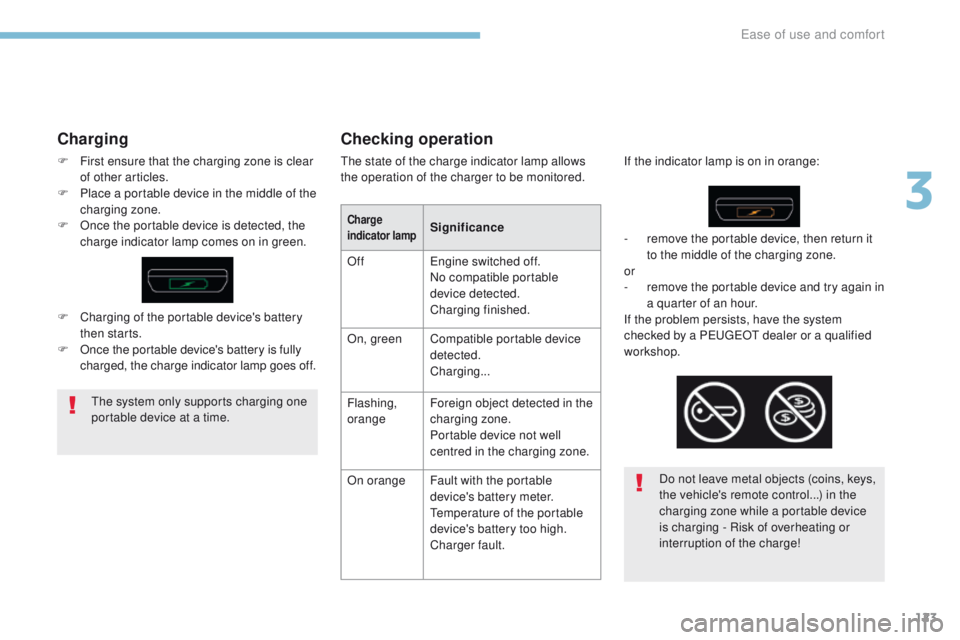

Charging
F First ensure that the charging zone is clear of other articles.
F

P
lace a portable device in the middle of the
charging zone.
F

O
nce the portable device is detected, the
charge indicator lamp comes on in green. If the indicator lamp is on in orange:
Do not leave metal objects (coins, keys,
the vehicle's remote control...) in the
charging zone while a portable device
is charging - Risk of overheating or
interruption of the charge!
-

r
emove the portable device, then return it
to the middle of the charging zone.
or
-

r
emove the portable device and try again in
a quarter of an hour.
If the problem persists, have the system
checked by a PEUGEOT dealer or a qualified
workshop.
F

C
harging of the portable device's battery
then starts.
F

O
nce the portable device's battery is fully
charged, the charge indicator lamp goes off.
Checking operation
The state of the charge indicator lamp allows
the operation of the charger to be monitored.
The system only supports charging one
portable device at a time.
Charge
indicator lampSignificance
Off Engine switched off.
No compatible portable
device detected.
Charging finished.
On, green Compatible portable device
detected.
Charging...
Flashing,
orange Foreign object detected in the
charging zone.
Portable device not well
centred in the charging zone.
On orange Fault with the portable
device's battery meter.
Temperature of the portable
device's battery too high.
Charger fault.
3
Ease of use and comfort

124
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

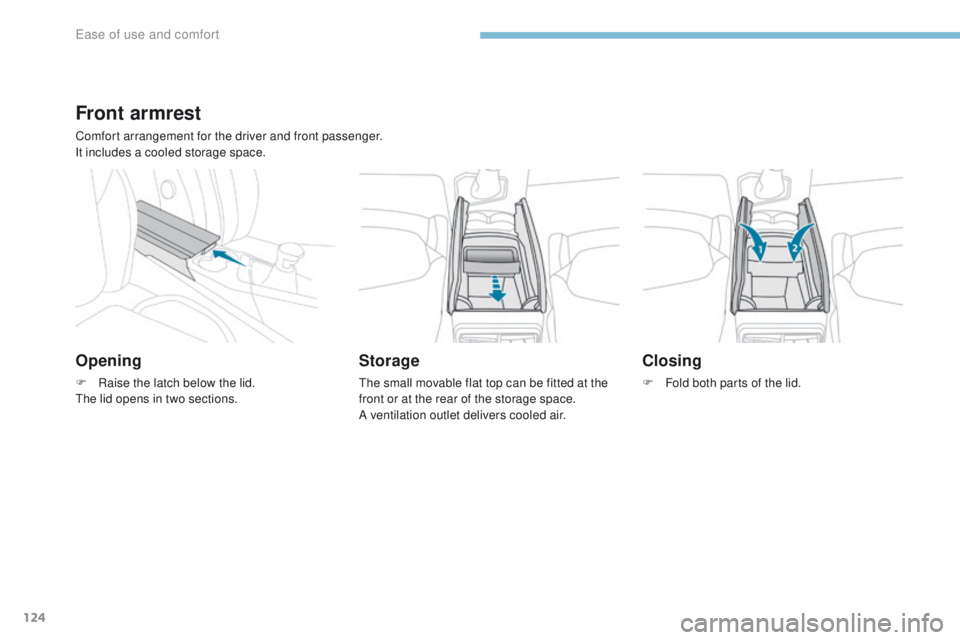

Front armrest
Comfort arrangement for the driver and front passenger.
It includes a cooled storage space.
Opening
F Raise the latch below the lid.
The lid opens in two sections.
Storage
The small movable flat top can be fitted at the
front or at the rear of the storage space.
A ventilation outlet delivers cooled air.
Closing
F Fold both parts of the lid.
Ease of use and comfort

125
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
A complete air freshener system for the passenger compartment. It is supplied by a three-fragrance
cartridge.
This system operates only with the engine running.

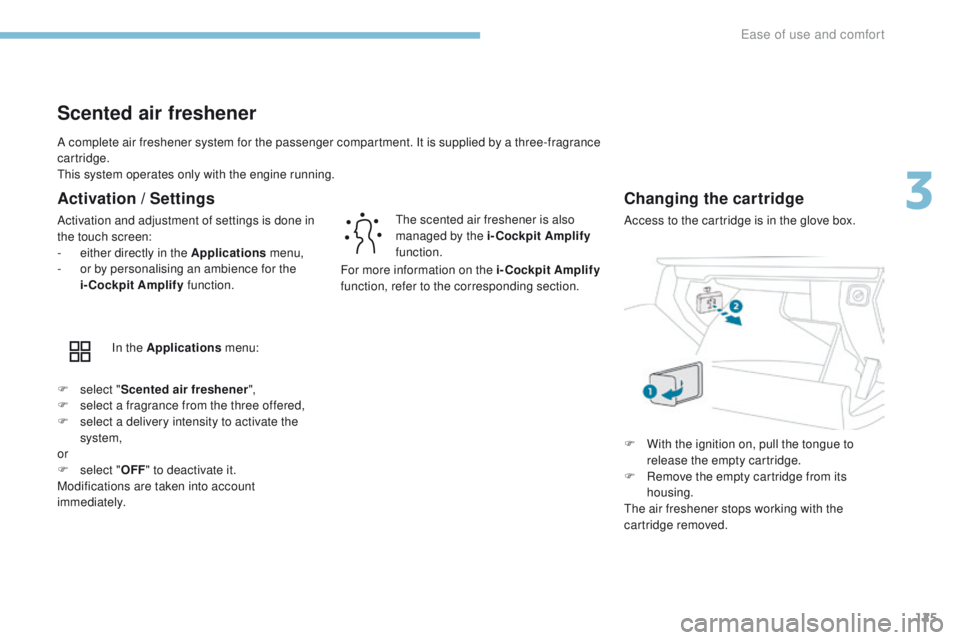

Scented air freshener
Activation / Settings
Activation and adjustment of settings is done in
the touch screen:
-
e
ither directly in the Applications menu,
-

o
r by personalising an ambience for the
i-Cockpit Amplify function.
In the Applications menu: The scented air freshener is also
managed by the i-Cockpit Amplify

function.
Changing the cartridge
Access to the cartridge is in the glove box.
F

s

elect " Scented air freshener ",
F

s

elect a fragrance from the three offered,
F

s

elect a delivery intensity to activate the
system,
or
F

s

elect " OFF" to deactivate it.
Modifications are taken into account
immediately. For more information on the i-Cockpit Amplify

function, refer to the corresponding section.
F

W
ith the ignition on, pull the tongue to
release the empty cartridge.
F

R
emove the empty cartridge from its
housing.
The air freshener stops working with the
cartridge removed.
3
Ease of use and comfort

126
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Recommendations
Do not discard the original cartridge, which
serves as a blanking plug if the air freshener is
not used.
Retain the cartridge sealing caps which serve
as packaging if the cartridge is not used.
Replacement cartridges are available from
PEUGEOT dealers or from the brand's internet
website.As a safety measure:
-

u
se only the cartridges designed for
the system,
-

d
o not try to fit or remove a
cartridge when driving,
-

d
o not try to refill or dismantle the
cartridges.
Keep cartridges out of the reach of
children or pets.
Avoid contact between the fluid in the
cartridge and the skin or eyes.
In the event of ingestion of the fluid in
the cartridge, consult a doctor, showing
them the product packaging or label.
F

R

emove the two seals from the new
cartridge.
F

I

nsert the new cartridge into its housing
observing the direction of fitment.
The air freshener is ready to operate again.
Ease of use and comfort
