2017 NISSAN SENTRA Owners Manual

The RCTA system uses radar sensors1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
1can detect an approaching
vehicle from up to approximately 66 ft (20 m)
away.
LSD2216LSD2692
5-38Starting and driving

Type A (if so equipped)
LSD2622
Starting and driving5-39

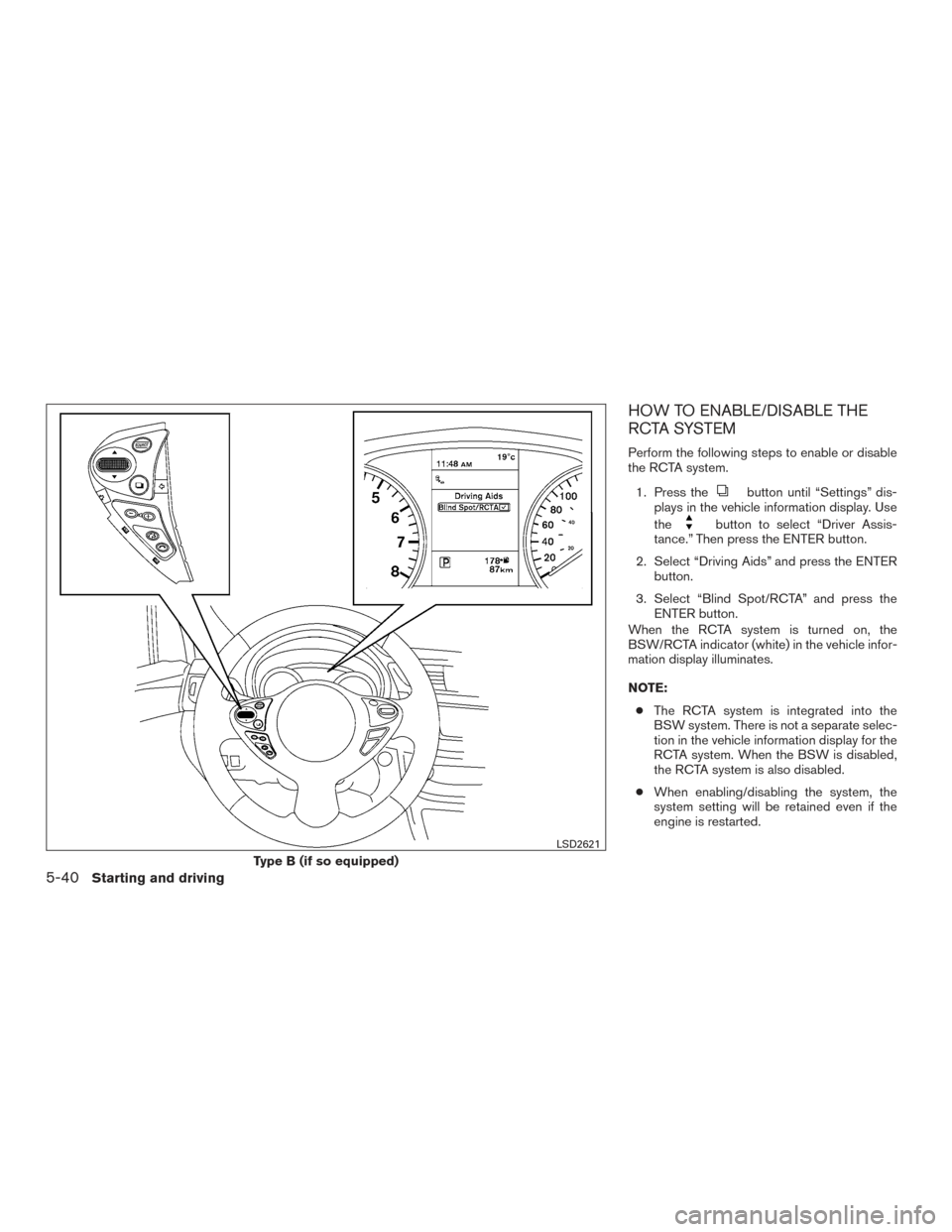

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM
Perform the following steps to enable or disable
the RCTA system.1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance.” Then press the ENTER button.
2. Select “Driving Aids” and press the ENTER button.
3. Select “Blind Spot/RCTA” and press the ENTER button.
When the RCTA system is turned on, the
BSW/RCTA indicator (white) in the vehicle infor-
mation display illuminates.
NOTE:
● The RCTA system is integrated into the
BSW system. There is not a separate selec-
tion in the vehicle information display for the
RCTA system. When the BSW is disabled,
the RCTA system is also disabled.
● When enabling/disabling the system, the
system setting will be retained even if the
engine is restarted.
Type B (if so equipped)
LSD2621
5-40Starting and driving

RCTA SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the RCTA system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
●
Always check surroundings and turn to
check what is behind you before backing
up. The radar sensors detect approaching
(moving) vehicles. The radar sensors can-
not detect every object such as:
–Pedestrians, bicycles, motorcycles,
animals or child-operated toy vehicles
– A vehicle that is passing at speeds greater than approximately 19 mph
(30 km/h)
– A vehicle that is passing at speeds lower than approximately 5 mph
(8 km/h)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is parked in an angled parking space.
LSD2173
Starting and driving5-41

– Illustration c: When the vehicle isparked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/snow build-up on the vehicle
– Dirt build- up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard. NOTE:
In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not
be sounded by the RCTA system after the
first vehicle passes the sensors.
Illustration 1
LSD2043
Illustration 2
LSD2044
5-42Starting and driving

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the BSW/RCTA indicator (white) will blink
Ain
the vehicle information display.
The systems are not available until the conditions
no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system will also stop working.
Action to take
When the above conditions no longer exist, the
system will resume automatically.
LSD2623
Starting and driving5-43

Malfunction
When the RCTA system malfunctions, it will turn
off automatically. The system malfunction warn-
ing message with the BSW/RCTA indicator (or-
ange) will appear in the vehicle information dis-
play.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the message contin-
ues to appear, have the system checked. It is
recommended that you visit a NISSAN dealer for
this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors. Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you visit a
NISSAN dealer if the area around the radar sen-
sors is damaged due to a collision.
Radio frequency statement
For USA
FCC : OAYSRR2B
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
(1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interfer-
ence that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment
For Canada
Applicable law: Canada 310
LSD2692
5-44Starting and driving

This device complies with Industry Canada
licence-exempt RSS standard (s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency bands: 24.05GHz – 24.25GHz
Output power: less than 20 milliwatts
PRECAUTIONS ON CRUISE
CONTROL
1. CANCEL switch
2. ACCEL/RES switch
3. COAST/SET switch
4. ON/OFF switch●
If the cruise control system malfunctions, it
cancels automatically. The CRUISE
orindicator light in the instrument
panel then blinks to warn the driver. For
additional information, refer to “Warning
lights, indicator lights and audible remind-
ers” or “Vehicle information display” in the
“Instruments and controls” section of this
manual.
● If the CRUISE indicator light blinks, push the
cruise control ON/OFF switch off and have
the system checked. It is recommended that
you visit a NISSAN dealer for this service.
Type A (if so equipped)
LSD2430
Type B (if so equipped)
LSD2572
CRUISE CONTROL (if so equipped)
Starting and driving5-45
