2017 NISSAN ROGUE Owners Manual

The vehicle information display is located to the
left of the speedometer. It displays such items as:● Vehicle settings
● Trip computer information
● Drive system warnings and settings
● Cruise control system information
● NISSAN Intelligent Key® operation informa-
tion
● Chassis Control
● Indicators and warnings
● Tire Pressure informationHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the
,, and
OK buttons located on the steering wheel.
1- Use these but-
tons to navigate the vehicle information dis-
play.
2OK - Change or select an item in the vehicle
information display.
3— Returns to the previous menu. The OK,
andbuttons also
control audio and control panel functions in some
conditions. Most screens and menus offer in-
struction prompts of the steering switch buttons
to indicate how to control the vehicle information
display. Vertical arrows appear on the right side
when there is more than one page of menu items.
The OK button changes the audio source and
the
buttons also control voice rec-
ognition manual mode. For additional information,
refer to the separate Navigation System Owner’s
Manual.
STARTUP DISPLAY
When the vehicle is placed in the ON position,
the vehicle information display may display the
following screens:
● Home
● Cruise Control
● Average speed
● Trip
● Fuel Economy
● Compass
● Audio
● Safety Shield
● Tire PressureLIC2630LIC3566
VEHICLE INFORMATION DISPLAY
2-20Instruments and controls

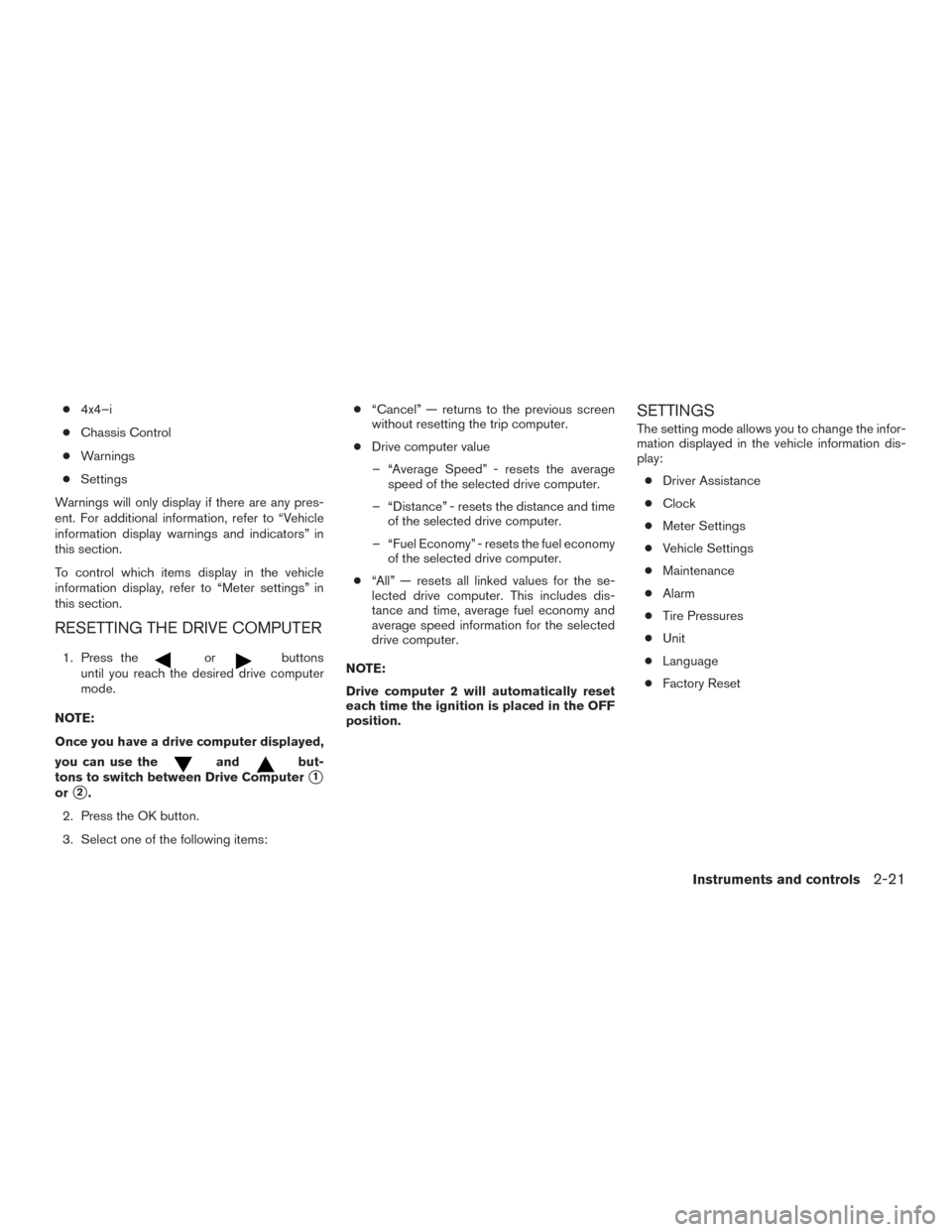

●4x4–i
● Chassis Control
● Warnings
● Settings
Warnings will only display if there are any pres-
ent. For additional information, refer to “Vehicle
information display warnings and indicators” in
this section.
To control which items display in the vehicle
information display, refer to “Meter settings” in
this section.
RESETTING THE DRIVE COMPUTER
1. Press theorbuttons
until you reach the desired drive computer
mode.
NOTE:
Once you have a drive computer displayed,
you can use the
andbut-
tons to switch between Drive Computer
1
or2.
2. Press the OK button.
3. Select one of the following items: ●
“Cancel” — returns to the previous screen
without resetting the trip computer.
● Drive computer value
– “Average Speed” - resets the average speed of the selected drive computer.
– “Distance” - resets the distance and time of the selected drive computer.
– “Fuel Economy” - resets the fuel economy of the selected drive computer.
● “All” — resets all linked values for the se-
lected drive computer. This includes dis-
tance and time, average fuel economy and
average speed information for the selected
drive computer.
NOTE:
Drive computer 2 will automatically reset
each time the ignition is placed in the OFF
position.
SETTINGS
The setting mode allows you to change the infor-
mation displayed in the vehicle information dis-
play: ● Driver Assistance
● Clock
● Meter Settings
● Vehicle Settings
● Maintenance
● Alarm
● Tire Pressures
● Unit
● Language
● Factory Reset
Instruments and controls2-21

Driver Assistance
The driver assistance menu allows the user to change the settings for driving, parking, and braking aids.
Menu itemResult
Driving Aids (if so equipped) Displays available driving aids
Lane Displays available lane options
Warning Allows user to turn the Lane Departure Warning (LDW) warning on or off. For additional information, refer to “Lane Departure
Warning (LDW)” in the “Starting and driving” section of this manual.
Assist Allows user to turn the Lane Departure Prevention (LDP) feature on or off. For additional information, refer to “Lane Departure
Prevention (LDP)” in the “Starting and driving” section of this manual.
Blind Spot Displays available blind spot options
Warning Allows user to turn Blind Spot Warning (BSW) on or off. For additional information, refer to “Blind Spot Warning (BSW)” in the
“Starting and driving” section of this manual.
Emergency Brake Allows user to turn the emergency brake feature on or off. For additional information, refer to “Forward Emergency Braking
(FEB)” in the “Starting and driving” section of this manual.
Parking Aids (if so equipped) Displays available parking aids
Moving Object Allows user to turn the Moving Object Detection (MOD) feature on or off. For additional information, refer to “Around View®
Monitor” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual.
Cross Traffic Allows user to turn the Rear Cross Traffic Alert (RCTA) feature on or off
Front Sensor Allows user to turn the front sensor on or off
Rear Sensor Allows user to turn the rear sensor on or off
Display Allows user to turn the display on or off
Volume Allows user to select sensor volume (High, Mid. or Low)
Range Allows user to select the sensor range (Far, Mid. or Near)
Chassis Control Displays available chassis controls options
Trace Control Allows user to turn the trace control feature on or off. For additional information, refer to “Active trace control” in the “Starting and
driving” section of this manual.
Engine Brake Allows user to turn the engine brake feature on or off. For additional information, refer to “Active engine brake” in the “Starting
and driving” section of this manual.
2-22Instruments and controls

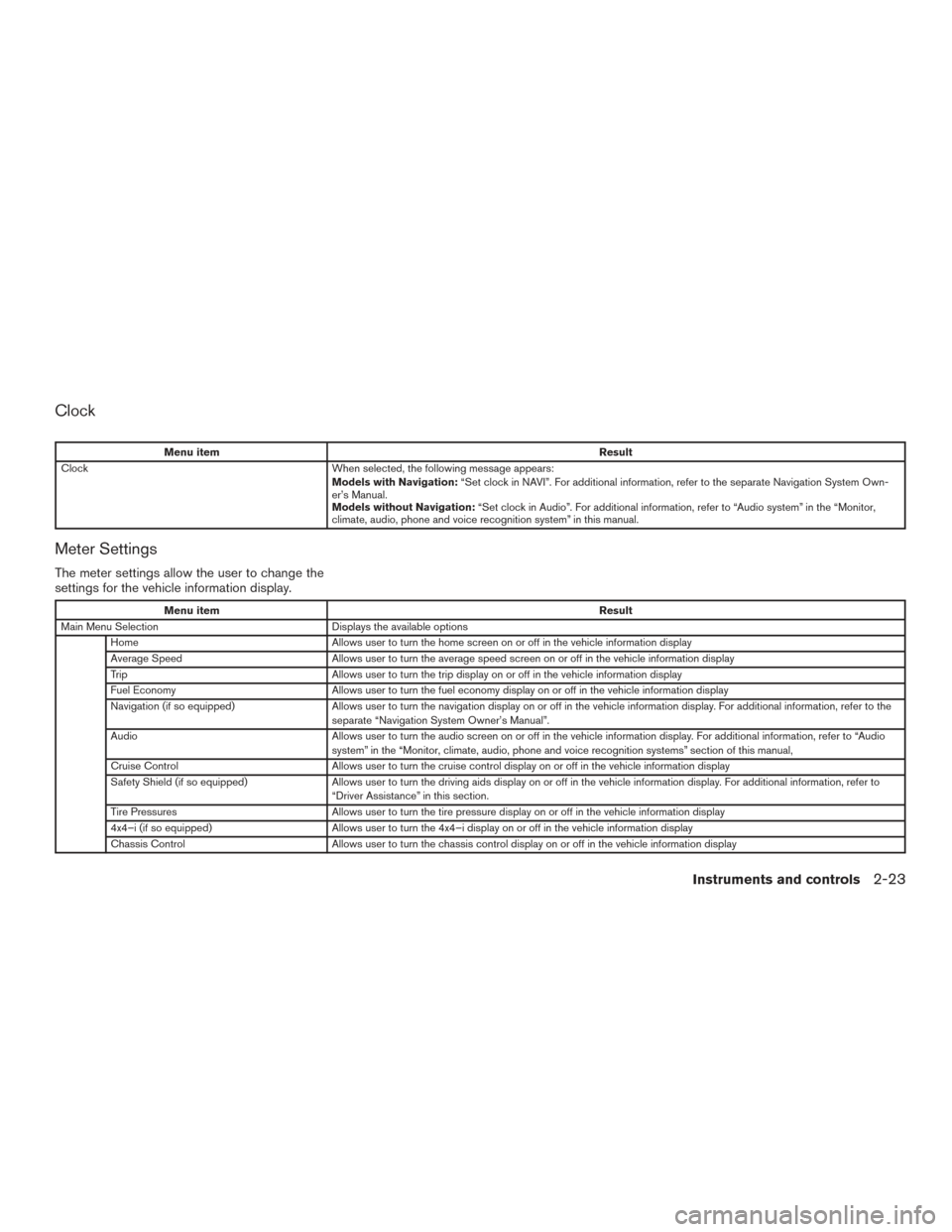

Clock
Menu itemResult
Clock When selected, the following message appears:
Models with Navigation: “Set clock in NAVI”. For additional information, refer to the separate Navigation System Own-
er’s Manual.
Models without Navigation: “Set clock in Audio”. For additional information, refer to “Audio system” in the “Monitor,
climate, audio, phone and voice recognition system” in this manual.
Meter Settings
The meter settings allow the user to change the
settings for the vehicle information display.
Menu item Result
Main Menu Selection Displays the available options
Home Allows user to turn the home screen on or off in the vehicle information display
Average Speed Allows user to turn the average speed screen on or off in the vehicle information display
Trip Allows user to turn the trip display on or off in the vehicle information display
Fuel Economy Allows user to turn the fuel economy display on or off in the vehicle information display
Navigation (if so equipped) Allows user to turn the navigation display on or off in the vehicle information display. For additional information, refe rtothe
separate “Navigation System Owner’s Manual”.
Audio Allows user to turn the audio screen on or off in the vehicle information display. For additional information, refer to “Audio
system” in the “Monitor, climate, audio, phone and voice recognition systems” section of this manual,
Cruise Control Allows user to turn the cruise control display on or off in the vehicle information display
Safety Shield (if so equipped) Allows user to turn the driving aids display on or off in the vehicle information display. For additional information, refer to
“Driver Assistance” in this section.
Tire Pressures Allows user to turn the tire pressure display on or off in the vehicle information display
4x4–i (if so equipped) Allows user to turn the 4x4–i display on or off in the vehicle information display
Chassis Control Allows user to turn the chassis control display on or off in the vehicle information display
Instruments and controls2-23

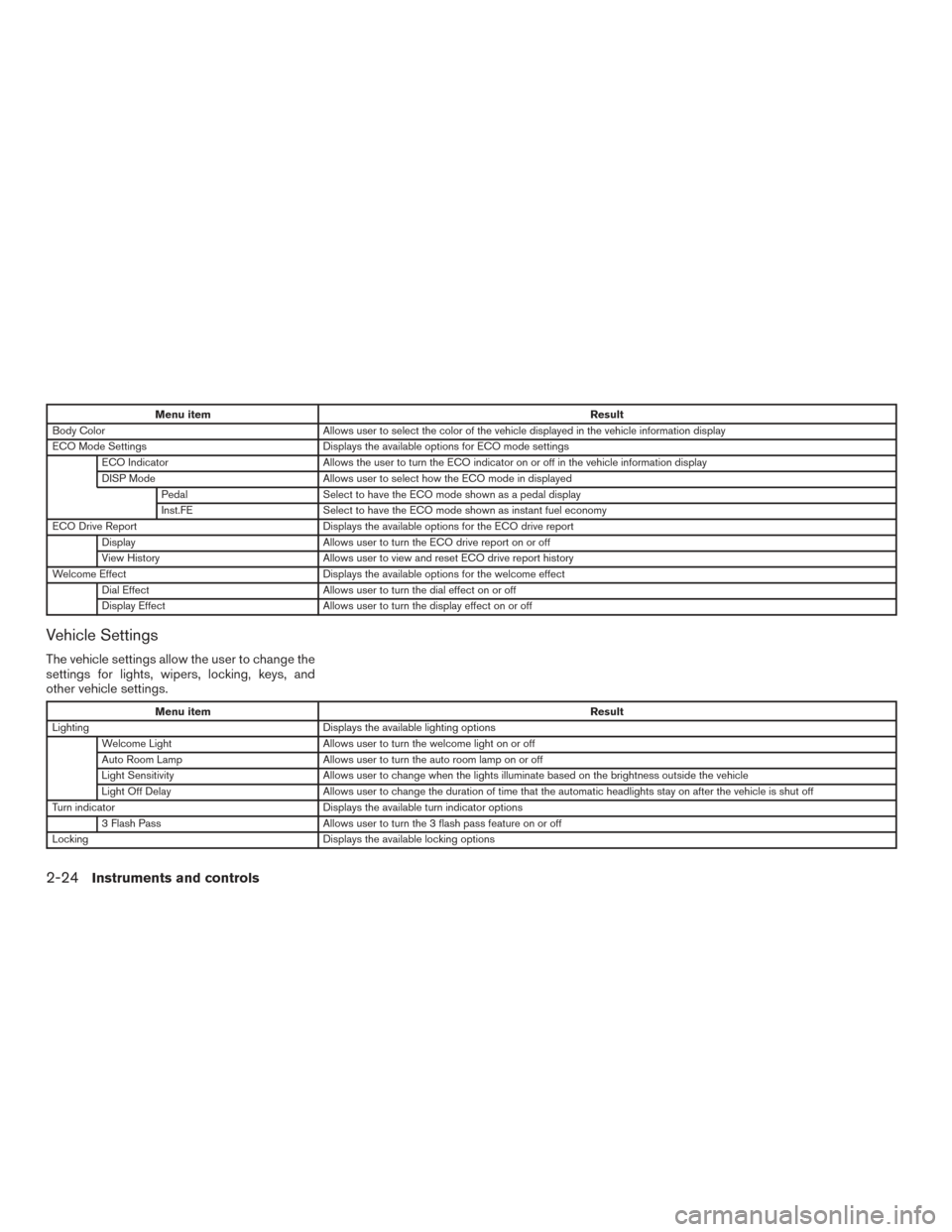

Menu itemResult
Body Color Allows user to select the color of the vehicle displayed in the vehicle information display
ECO Mode Settings Displays the available options for ECO mode settings
ECO Indicator Allows the user to turn the ECO indicator on or off in the vehicle information display
DISP Mode Allows user to select how the ECO mode in displayed
Pedal Select to have the ECO mode shown as a pedal display
Inst.FE Select to have the ECO mode shown as instant fuel economy
ECO Drive Report Displays the available options for the ECO drive report
Display Allows user to turn the ECO drive report on or off
View History Allows user to view and reset ECO drive report history
Welcome Effect Displays the available options for the welcome effect
Dial Effect Allows user to turn the dial effect on or off
Display Effect Allows user to turn the display effect on or off
Vehicle Settings
The vehicle settings allow the user to change the
settings for lights, wipers, locking, keys, and
other vehicle settings.
Menu item Result
Lighting Displays the available lighting options
Welcome Light Allows user to turn the welcome light on or off
Auto Room Lamp Allows user to turn the auto room lamp on or off
Light Sensitivity Allows user to change when the lights illuminate based on the brightness outside the vehicle
Light Off Delay Allows user to change the duration of time that the automatic headlights stay on after the vehicle is shut off
Turn indicator Displays the available turn indicator options
3 Flash Pass Allows user to turn the 3 flash pass feature on or off
Locking Displays the available locking options
2-24Instruments and controls

Menu itemResult
I-Key Door Lock Allows user to turn I-Key door lock on or off. When turned on, the request switch on the door is activated
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the door unlock
operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to be unlocked,
only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock operation is performed again
within 5 seconds. When this item is turned off, all the doors will be unlocked after the door unlock operation is performed
once.
Auto Door Unlock Allows the user to customize the auto door unlock options
Answer Bk. Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once
when locking the vehicle with the Intelligent Key.
Wipers Displays the available wiper options
Speed Dependent Allows user to turn wiper with speed on or off
Reverse Link (if so equipped) Allows user to turn the reverse link feature on or off
Drip Wipe Allows user to turn the drip wipe feature on or off
Remote Start (if so equipped) Allows user to turn the remote engine start on or off. When turned on, the engine can be restarted remotely. For additional
information, refer to “Remote engine start” in the “Pre-driving checks and adjustments” section of this manual.
Battery Saver Allows user to turn the battery saver on or off. When turned on, the battery saver automatically turns off the ignition after a
period of time when the ignition switch is left in the ON position.
Driving Position (if so equipped) Displays the available driving position options
Exit Seat Slide Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat backward for an
easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle and placing the igni-
tion switch in the ON position, the driver’s seat will move to the previous set position. For additional information, refer to
“Automatic drive positioner” in the “Pre-driving checks and adjustments” section of this manual.
Exit Steering Up (if so equipped) Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steering wheel up-
ward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle and plac-
ing the ignition switch in the ON position, the steering wheel moves to the previous position. For additional information, re-
fer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” section of this manual.
Instruments and controls2-25

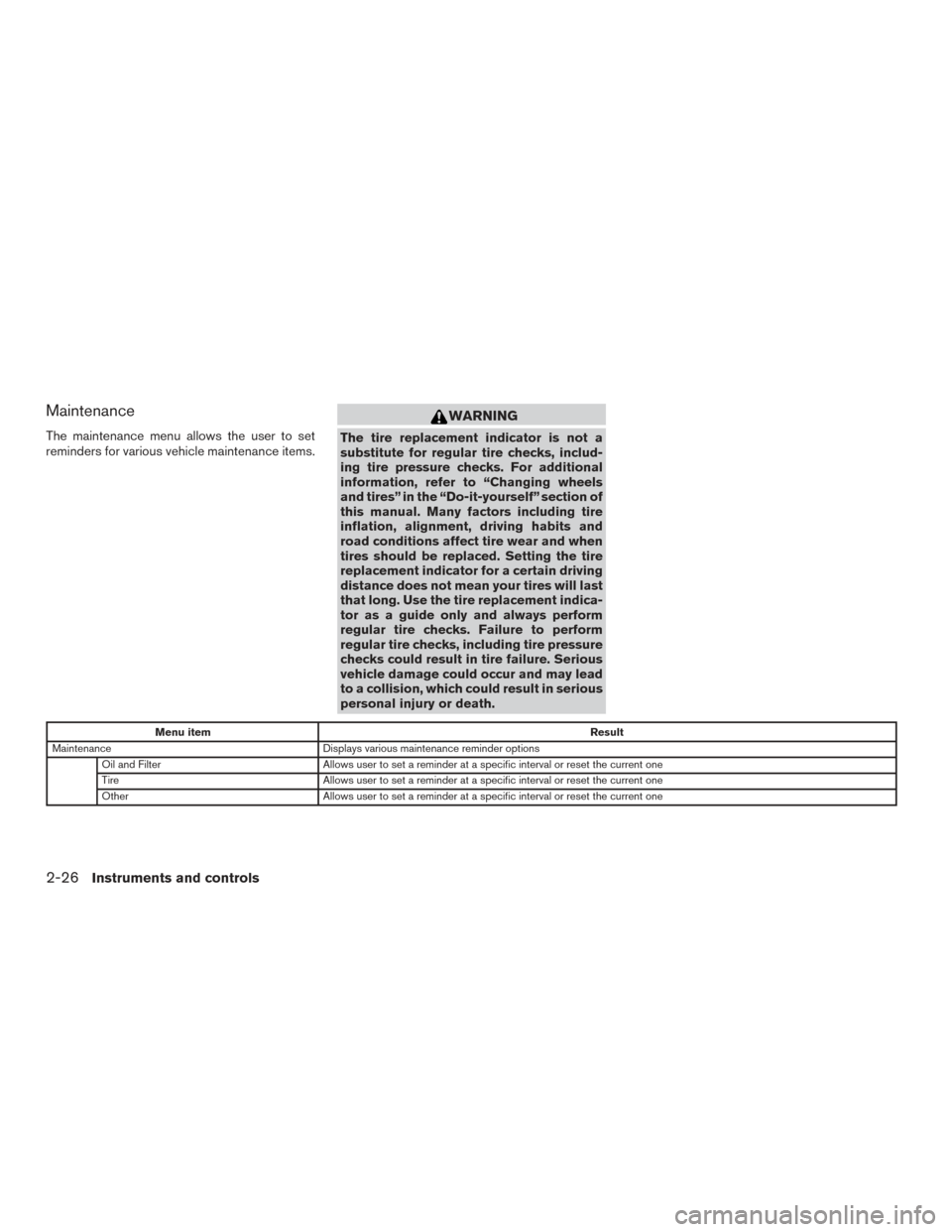

Maintenance
The maintenance menu allows the user to set
reminders for various vehicle maintenance items.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing wheels
and tires” in the “Do-it-yourself” section of
this manual. Many factors including tire
inflation, alignment, driving habits and
road conditions affect tire wear and when
tires should be replaced. Setting the tire
replacement indicator for a certain driving
distance does not mean your tires will last
that long. Use the tire replacement indica-
tor as a guide only and always perform
regular tire checks. Failure to perform
regular tire checks, including tire pressure
checks could result in tire failure. Serious
vehicle damage could occur and may lead
to a collision, which could result in serious
personal injury or death.
Menu itemResult
Maintenance Displays various maintenance reminder options
Oil and Filter Allows user to set a reminder at a specific interval or reset the current one
Tire Allows user to set a reminder at a specific interval or reset the current one
Other Allows user to set a reminder at a specific interval or reset the current one
2-26Instruments and controls

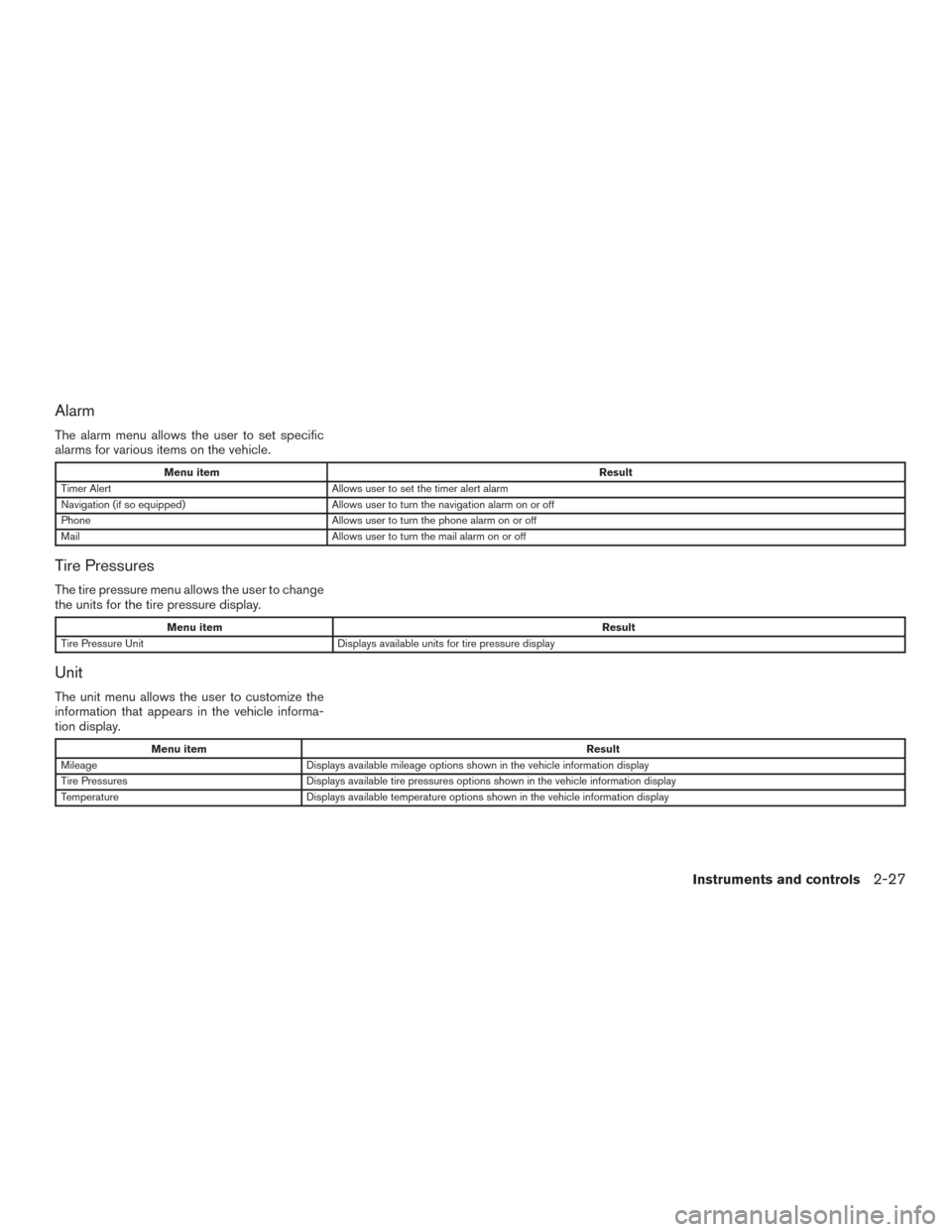

Alarm
The alarm menu allows the user to set specific
alarms for various items on the vehicle.
Menu itemResult
Timer Alert Allows user to set the timer alert alarm
Navigation (if so equipped) Allows user to turn the navigation alarm on or off
Phone Allows user to turn the phone alarm on or off
Mail Allows user to turn the mail alarm on or off
Tire Pressures
The tire pressure menu allows the user to change
the units for the tire pressure display.
Menu item Result
Tire Pressure Unit Displays available units for tire pressure display
Unit
The unit menu allows the user to customize the
information that appears in the vehicle informa-
tion display.
Menu item Result
Mileage Displays available mileage options shown in the vehicle information display
Tire Pressures Displays available tire pressures options shown in the vehicle information display
Temperature Displays available temperature options shown in the vehicle information display
Instruments and controls2-27
