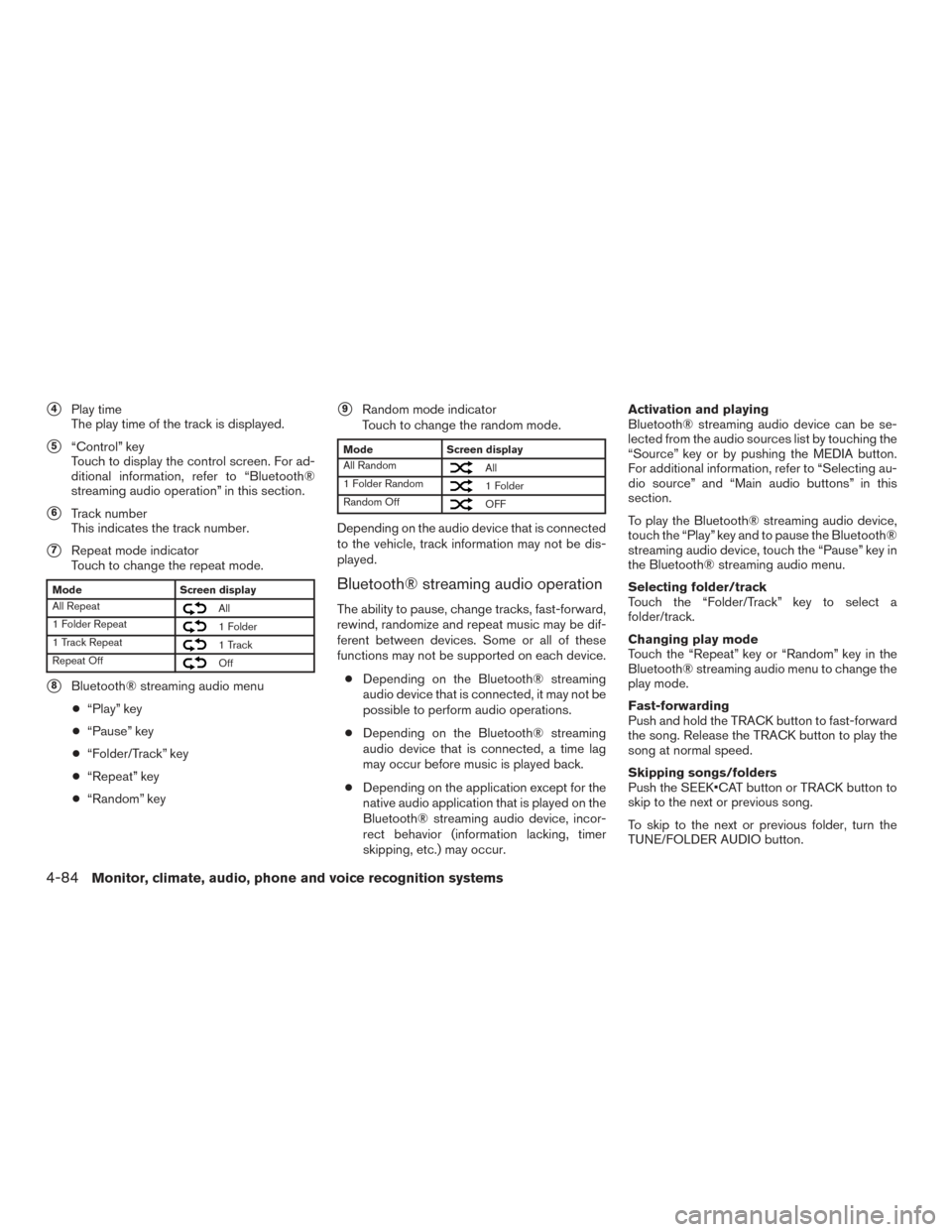

4Play time
The play time of the track is displayed.
5“Control” key
Touch to display the control screen. For ad-
ditional information, refer to “Bluetooth®
streaming audio operation” in this section.
6Track number
This indicates the track number.
7Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Repeat Off
Off
8Bluetooth® streaming audio menu
● “Play” key
● “Pause” key
● “Folder/Track” key
● “Repeat” key
● “Random” key
9Random mode indicator
Touch to change the random mode.
Mode Screen display
All Random
All
1 Folder Random
1 Folder
Random Off
OFF
Depending on the audio device that is connected
to the vehicle, track information may not be dis-
played.
Bluetooth® streaming audio operation
The ability to pause, change tracks, fast-forward,
rewind, randomize and repeat music may be dif-
ferent between devices. Some or all of these
functions may not be supported on each device.
● Depending on the Bluetooth® streaming
audio device that is connected, it may not be
possible to perform audio operations.
● Depending on the Bluetooth® streaming
audio device that is connected, a time lag
may occur before music is played back.
● Depending on the application except for the
native audio application that is played on the
Bluetooth® streaming audio device, incor-
rect behavior (information lacking, timer
skipping, etc.) may occur. Activation and playing
Bluetooth® streaming audio device can be se-
lected from the audio sources list by touching the
“Source” key or by pushing the MEDIA button.
For additional information, refer to “Selecting au-
dio source” and “Main audio buttons” in this
section.
To play the Bluetooth® streaming audio device,
touch the “Play” key and to pause the Bluetooth®
streaming audio device, touch the “Pause” key in
the Bluetooth® streaming audio menu.
Selecting folder/track
Touch the “Folder/Track” key to select a
folder/track.
Changing play mode
Touch the “Repeat” key or “Random” key in the
Bluetooth® streaming audio menu to change the
play mode.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the song. Release the TRACK button to play the
song at normal speed.
Skipping songs/folders
Push the SEEK•CAT button or TRACK button to
skip to the next or previous song.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
4-84Monitor, climate, audio, phone and voice recognition systems

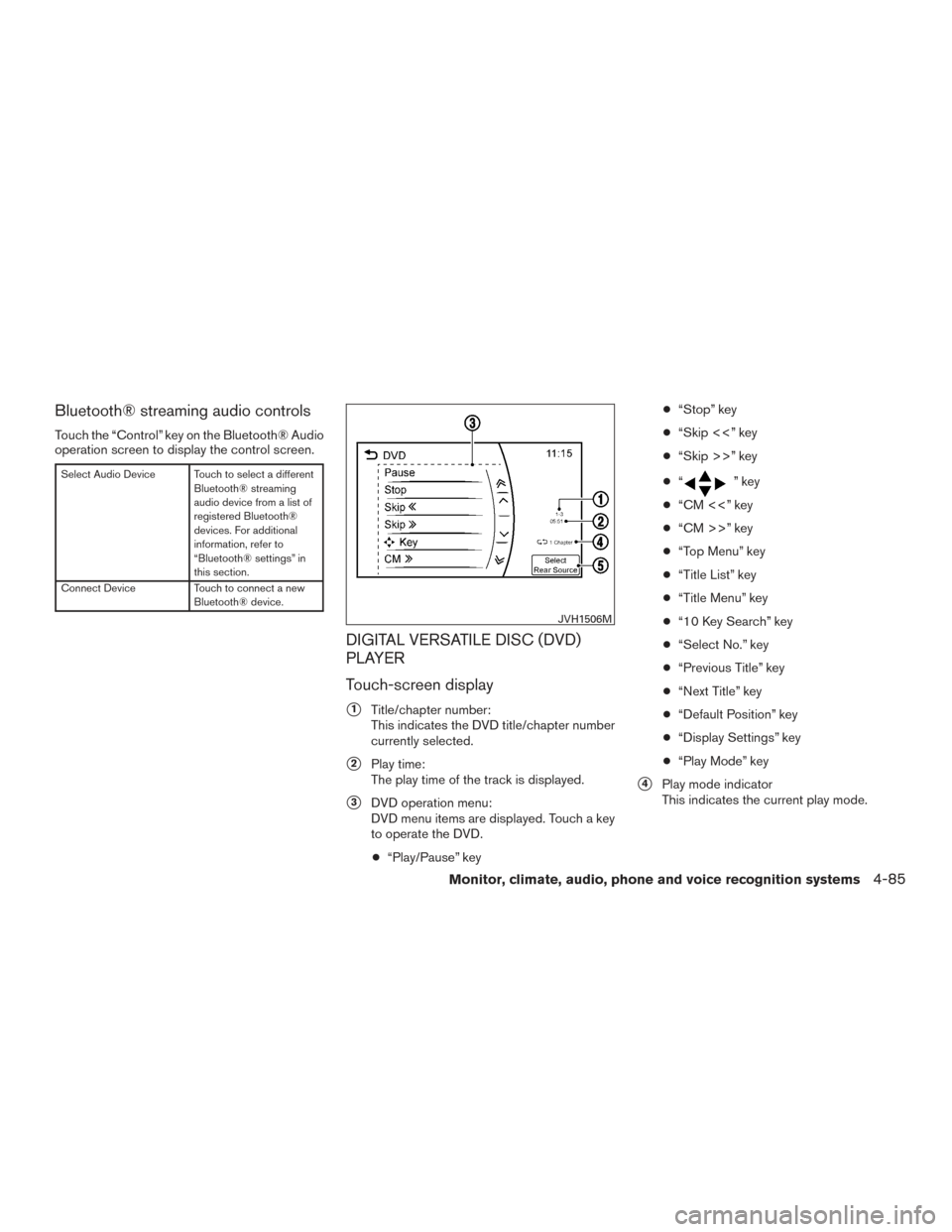

Bluetooth® streaming audio controls
Touch the “Control” key on the Bluetooth® Audio
operation screen to display the control screen.
Select Audio Device Touch to select a differentBluetooth® streaming
audio device from a list of
registered Bluetooth®
devices. For additional
information, refer to
“Bluetooth® settings” in
this section.
Connect Device Touch to connect a new Bluetooth® device.
DIGITAL VERSATILE DISC (DVD)
PLAYER
Touch-screen display
1Title/chapter number:
This indicates the DVD title/chapter number
currently selected.
2Play time:
The play time of the track is displayed.
3DVD operation menu:
DVD menu items are displayed. Touch a key
to operate the DVD.
● “Play/Pause” key ●
“Stop” key
● “Skip <<” key
● “Skip >>” key
● “
” key
● “CM <<” key
● “CM >>” key
● “Top Menu” key
● “Title List” key
● “Title Menu” key
● “10 Key Search” key
● “Select No.” key
● “Previous Title” key
● “Next Title” key
● “Default Position” key
● “Display Settings” key
● “Play Mode” key
4Play mode indicator
This indicates the current play mode.
JVH1506M
Monitor, climate, audio, phone and voice recognition systems4-85

5“Select Rear Source” key (if so equipped)
The select rear source screen is displayed.
For additional information, refer to “Control-
ling the rear system on the front display” in
this section.
Mode Screen display
1 Disc Repeat
Disc
1 Chapter Repeat
1 Chapter
● The DVD menu list will appear when the
screen is touched while a movie is play-
ing.
● The availability of the DVD menu items
depend on the type of DVD.
DVD player operation
Precautions
● Use DVDs with the region code “ALL” or the
code applicable to the DVD player. (The
region code is displayed as a small symbol
printed on the top of the DVD) . This vehicle-
installed DVD player can only play DVDs
with the applicable region code.
● Images cannot be displayed when the igni-
tion switch is in the ON position.
● Some VIDEO-CD functions may not be sup-
ported with this system. ●
Displaying items may vary depending on the
type of disc.
Loading
Insert the DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot and start playback.
When a DVD is loaded, the DVD operation
screen is displayed on the display.
Activation and playing
Inserting the DVD into the slot will activate the
DVD mode. The DVD mode can also be selected
from the source list by pushing the DISC button
with a DVD loaded. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
Touch the “Play” key in the DVD menu to start
playing. Touch the “Pause” key to pause and
touch the “Stop” key to stop playing the DVD.
Skipping
Touch the “Skip <<” key or “Skip >>” key in the
DVD menu to skip to the next or previous
track/chapter.
Displaying keys
Touch the “Key” key in the DVD menu to display
operation keys such as the “Enter” key or “Re-
turn” key, etc.on the display. Skipping commercial messages
Touch the “CM <<” key or “CM >>” key in the
DVD menu to skip commercials.
Displaying top menu
Touch the “Top Menu” key in the DVD menu to
display the top menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Displaying title list
Touch the “Title List” key in the DVD menu to
display the title list.
Displaying title menu
Touch the “Title Menu” key in the DVD menu to
display the title menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Selecting track/chapter
Touch the “10 Key Search” key in the DVD menu
to display the keyboard screen. Enter the
track/chapter you wish to play.
Selecting track/chapter/menu number
Touch the “10 Key Search” key or “Select No.”
key in the DVD menu to display the keyboard
screen. Enter the track/chapter or menu number
you wish to play.
Viewing from default list
Touch the “Default Position” key in the DVD menu
to view from the default list.
4-86Monitor, climate, audio, phone and voice recognition systems

If your vehicle is equipped with the Mobile Enter-
tainment System, you can enjoy playing audio
and movie files on the rear displays with images
and sound.
A DVD and an AUX device inserted/connected to
the audio system for the front seat audio unit as
well as the devices connected to the rear media
interface (USB and HDMI ports for the rear dis-
plays) can be played on the rear displays.
The front and left/right rear displays can show
different sources individually.
CD/DVD slot is on the instrument panel. For
additional information, refer to “Names and func-
tions of audio control buttons” in this section.
AUX jacks are located inside the center console
box.
The rear media interface (USB and HDMI con-
nection ports) is located behind the center con-
sole box. For additional information, refer to
“Connecting rear media interface” in this section.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System while driv-
ing so full attention may be given to ve-
hicle operation.
CAUTION
●Do not attempt to use the system in
extremely high or low temperature con-
ditions [below -4°F (-20°C) or above
158°F (70°C)].
● To avoid draining the vehicle battery
(12V battery) , do not operate the system
for more that 15 minutes without start-
ing the engine.
The front display is designed not to show
images during driving, as the driver’s at-
tention must be given to vehicle operation
for safety. Sounds are still audible. To
show images on the front display, stop the
vehicle in a safe location, move the shift
lever to the “P” (Park) position and apply
the parking brake.
PRECAUTIONS
Start the engine when using the Mobile Enter-
tainment System.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System or wear the
headphones while the vehicle is in motion
so that full attention may be given to ve-
hicle operation. Park the vehicle in a safe location and
apply the parking break to view the im-
ages on the front center display screen
using the DVD player.
CAUTION
●
Only operate the Mobile Entertainment
System while the engine is running. Op-
erating the Mobile Entertainment Sys-
tem for extended periods of time with
the engine turned off can discharge the
vehicle battery (12V battery) .
● Do not allow the system to get wet.
Excessive moisture such as spilled liq-
uids may cause the system to
malfunction.
● While playing VIDEO-CD media, this
DVD player does not guarantee com-
plete functionality of all VIDEO-CD
formats.
MOBILE ENTERTAINMENT SYSTEM
(MES) (if so equipped)
4-88Monitor, climate, audio, phone and voice recognition systems

REMOTE CONTROLLER AND
HEADPHONES
Remote controller
A remote controller is provided with the Mobile
Entertainment System.The remote controller is for the rear display op-
eration and cannot be used to control portable
devices.
The following buttons/switches are on the re-
mote controller.
1button
The rear displays can be activated or deac-
tivated individually.
2HOME button
Push to display the HOME screen. Select
the media from the DVD, AUX, USB and
HDMI interface device.
3buttons (select
buttons)
Push the select buttons to select the items
displayed on the rear screens.
4BACK button
Push to go back to the previous screen
5Keypad
Push the keys below for operations.
button Push play or pause the movie
button Push to stop playing the
movie
button Push to select the next chap-
ter. Push and hold to fast-forward the chap-
ter.
button Push once to return to the
beginning of the current chapter. Push again
to select the previous chapter. Push and
hold to rewind the current chapter.
JVH1388X
Monitor, climate, audio, phone and voice recognition systems4-97

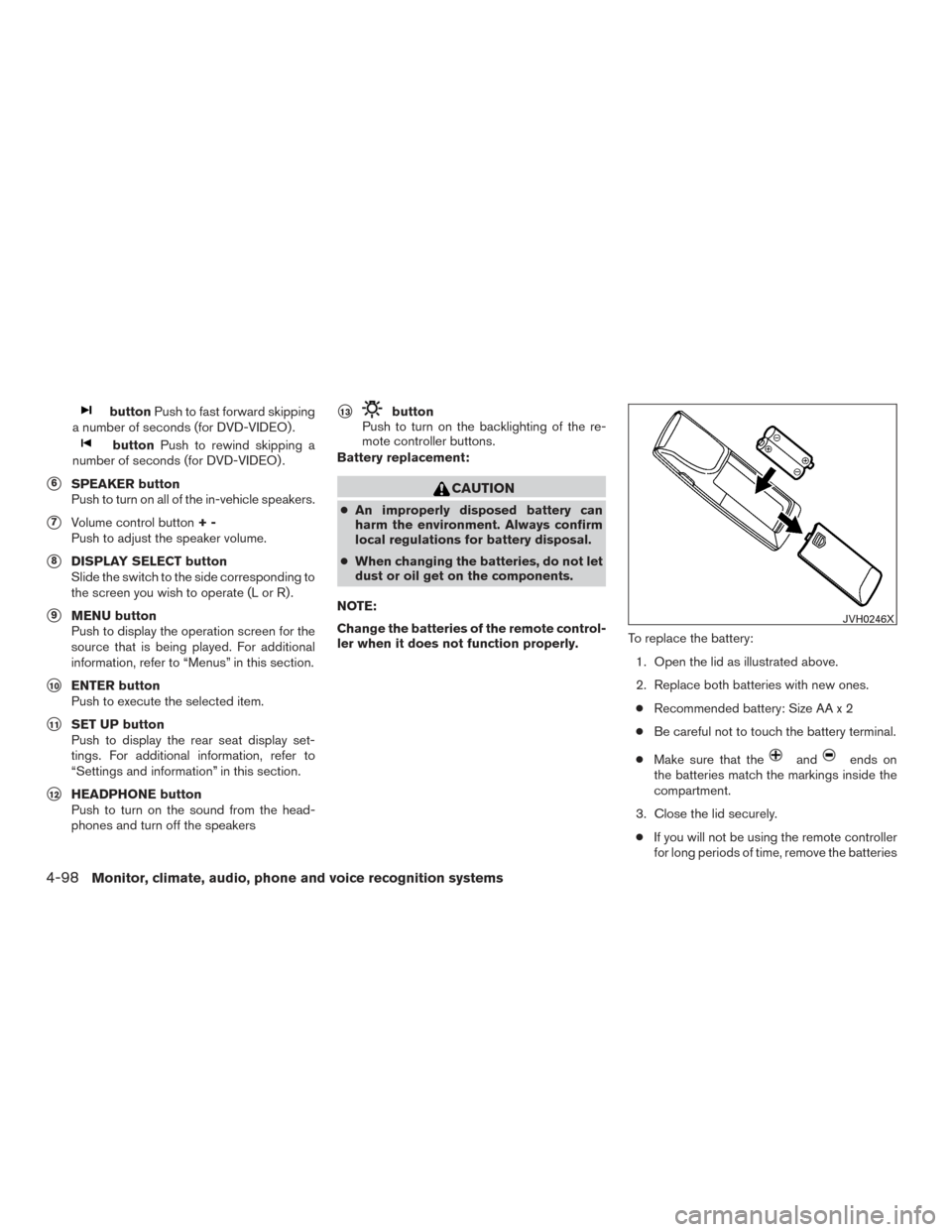

buttonPush to fast forward skipping
a number of seconds (for DVD-VIDEO) .
button Push to rewind skipping a
number of seconds (for DVD-VIDEO) .
6SPEAKER button
Push to turn on all of the in-vehicle speakers.
7Volume control button +-
Push to adjust the speaker volume.
8DISPLAY SELECT button
Slide the switch to the side corresponding to
the screen you wish to operate (L or R) .
9MENU button
Push to display the operation screen for the
source that is being played. For additional
information, refer to “Menus” in this section.
10ENTER button
Push to execute the selected item.
11SET UP button
Push to display the rear seat display set-
tings. For additional information, refer to
“Settings and information” in this section.
12HEADPHONE button
Push to turn on the sound from the head-
phones and turn off the speakers
13button
Push to turn on the backlighting of the re-
mote controller buttons.
Battery replacement:
CAUTION
● An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
● When changing the batteries, do not let
dust or oil get on the components.
NOTE:
Change the batteries of the remote control-
ler when it does not function properly. To replace the battery:
1. Open the lid as illustrated above.
2. Replace both batteries with new ones.● Recommended battery: Size AA x 2
● Be careful not to touch the battery terminal.
● Make sure that the
andends on
the batteries match the markings inside the
compartment.
3. Close the lid securely. ● If you will not be using the remote controller
for long periods of time, remove the batteries
JVH0246X
4-98Monitor, climate, audio, phone and voice recognition systems

●Replacement of the batteries is needed
when the remote controller only functions at
extremely close distances to the Mobile En-
tertainment System or when is does not
function at all.
Headphones
Two wireless headphones are provided with the
Mobile Entertainment System. The headphones
can only be used in the rear seats. 1.
MODE button
Push to select a surround audio mode opti-
mal for the media. Three types of virtual
surround modes supported by natune sur-
round sound technology are available.
When the surround audio modes are turned
off, a regular 2.0 ch stereo mode is applied.
JVH0598X
Monitor, climate, audio, phone and voice recognition systems4-99

The rear displays are located on the back of the
front head restraints.
Use the remote controller to operate the rear
display screens. For additional information, refer
to “Remote controller” in this section.
Select the left or right rear display using the
DISPLAY SELECT button on the remote control-
ler and push the
button to activate the
corresponding rear display. When the display is
turned on, a green indicator on the lower left
corner of the display will illuminate.
The lower part of the rear displays
1functions
as a signal receiver/transmitter for the remote
controller and wireless headphones, and should
not be blocked or covered.
Turning the rear displays on and off can also be
controlled on the front display. For additional
information, refer to “Controlling the rear system
on the front display” in this section.
NOTE:
● The rear displays may turn off auto-
matically when the temperature is high
to protect the display screens from be-
ing damaged. ●
The movement of the images displayed
on the rear displays could slow down
when the temperature is below 32°F
(0°C) but this is not a malfunction. The
movement will return to normal when
the temperature rises between 32°F
(0°C) and 122°F (50°C) .
● The following conditions may occur but
these are characteristics of the crystal
display and are not malfunctions.
– Black spots, bright spots and after-
images appear on this display.
– The screen appears faint or dimmed
depending on the angle viewed.
OPERATIONS ON REAR DISPLAYS
Use the remote controller and take the following
steps to operate the rear displays in the rear
seats:
1. Turn on the rear displays using the
button on the remote controller.
2. Push the HOME button and select a source from the DVD, AUX, USB or HDMI interface
devices.
When USB is selected for the first time after
the USB device is connected, select a file
you with to play from the File Browser
screen.
JVH1389X
4-102Monitor, climate, audio, phone and voice recognition systems
