2017 NISSAN PATHFINDER ECO mode

For CDs without compressed audio files
ModeScreen display
Disc Repeat
Disc
1 Track Repeat
1 Track
Disc Random
Disc
For CDs with compressed audio files
Mode Screen display
Disc Repeat
Disc
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Disc Random
Disc
1 Folder Random
1 Folder
CD player operation
Loading
Insert the CD into the slot with the label side
facing up. The CD will be guided automatically
into the slot and starts playing.
After loading the CD, the CD screen will appear
on the display.
Activation and playing
The CD mode can be selected from the source
list or by pushing the DISC button with a CD
loaded to play the CD. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section. If the system has been turned off while the CD
was playing, pushing the VOL/ON•OFF button
will start the Audio system set to the CD screen.
Selecting track/folder
Touch the “Track” key or “Folder” key in the CD
menu and select a preferred track or folder from
the list.
Push the SEEK•CAT button or TRACK button to
move to the next or previous track.
For CDs with compressed audio files, turn the
TUNE/FOLDER AUDIO button to move to the
next or previous folder. For additional information,
refer to “Main audio buttons” in this section.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the track. Release the TRACK button to play the
track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the CD. While
scanning, the CD will play the first 10 seconds of
each track and move on to the next track. Pushing
the “Scan” key again within the 10 seconds will
stop scanning.
Changing play mode
Touch the “Play Mode” key or the play mode
icon
orto select the play mode.Pushing the RPT RDM button can also change
the play mode.
Ejecting CD
Push the
button to eject the CD. If the
CD is ejected and left unremoved, it will be re-
loaded into the slot to protect the CD.
USB (Universal Serial Bus)
CONNECTION PORT
Connecting USB memory device
WARNING
Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
● Do not force the USB device into the
USB port. Inserting the USB device
tilted or upside down into the port may
damage the port. Make sure that the
USB device is connected correctly to the
USB port.
Monitor, climate, audio, phone and voice recognition systems4-77

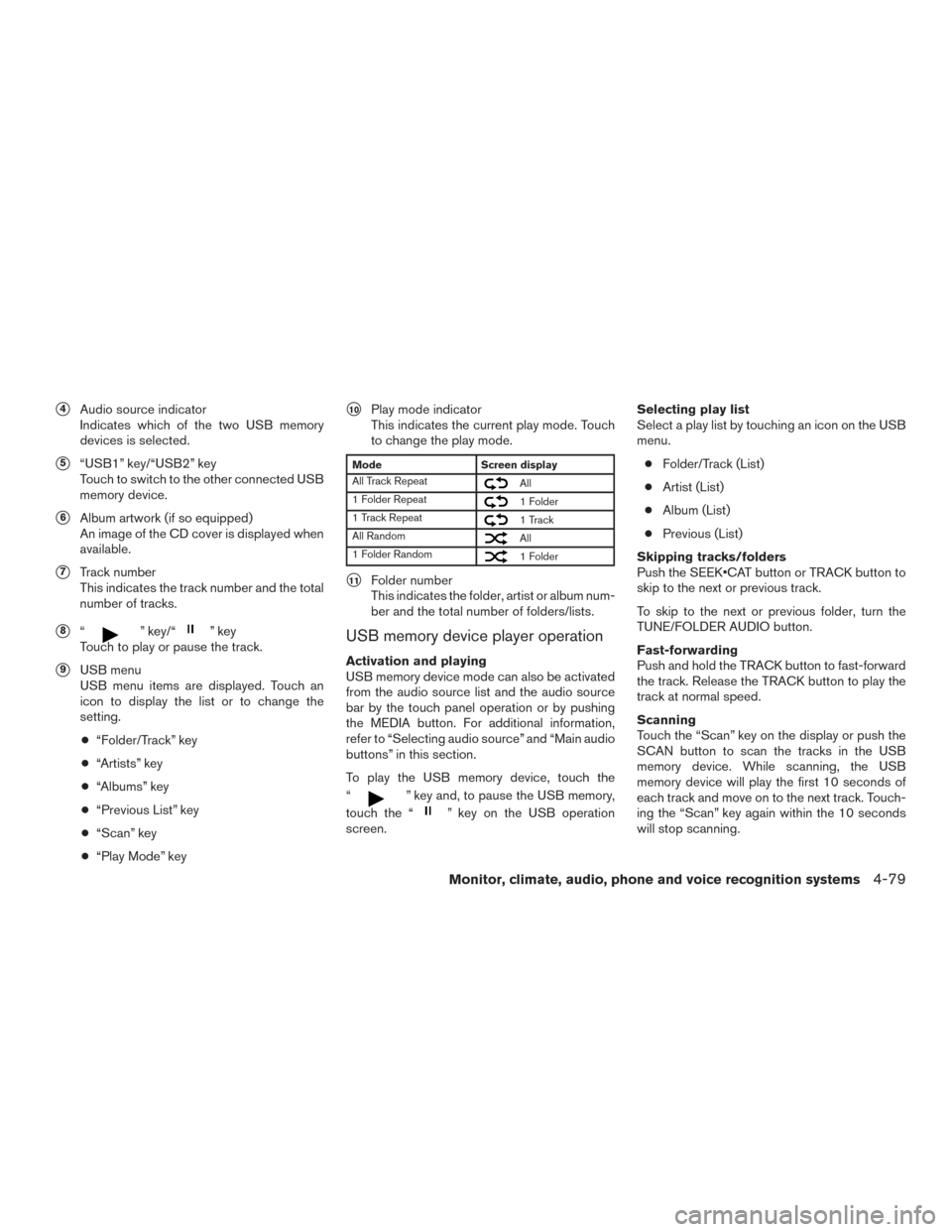

4Audio source indicator
Indicates which of the two USB memory
devices is selected.
5“USB1” key/“USB2” key
Touch to switch to the other connected USB
memory device.
6Album artwork (if so equipped)
An image of the CD cover is displayed when
available.
7Track number
This indicates the track number and the total
number of tracks.
8“” key/“” key
Touch to play or pause the track.
9USB menu
USB menu items are displayed. Touch an
icon to display the list or to change the
setting.
● “Folder/Track” key
● “Artists” key
● “Albums” key
● “Previous List” key
● “Scan” key
● “Play Mode” key
10Play mode indicator
This indicates the current play mode. Touch
to change the play mode.
Mode Screen display
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
All Random
All
1 Folder Random
1 Folder
11Folder number
This indicates the folder, artist or album num-
ber and the total number of folders/lists.
USB memory device player operation
Activation and playing
USB memory device mode can also be activated
from the audio source list and the audio source
bar by the touch panel operation or by pushing
the MEDIA button. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
To play the USB memory device, touch the
“
” key and, to pause the USB memory,
touch the “
” key on the USB operation
screen. Selecting play list
Select a play list by touching an icon on the USB
menu.
● Folder/Track (List)
● Artist (List)
● Album (List)
● Previous (List)
Skipping tracks/folders
Push the SEEK•CAT button or TRACK button to
skip to the next or previous track.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the track. Release the TRACK button to play the
track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the USB
memory device. While scanning, the USB
memory device will play the first 10 seconds of
each track and move on to the next track. Touch-
ing the “Scan” key again within the 10 seconds
will stop scanning.
Monitor, climate, audio, phone and voice recognition systems4-79

Changing play mode
Touch the “Play Mode” key on the display to
select the play mode.
Only one of the two connected USB memory
devices can be operated by the voice recognition
system.
iPod® PLAYER
Connecting iPod®
WARNING
Do not connect, disconnect or operate the
iPod® while driving. Doing so can be a
distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●Do not force the iPod® device into the
USB port. Inserting the iPod® cable
tilted or upside down into the port may
damage the port. Make sure that the
iPod® cable is connected correctly to
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the iPod®
cable out of the port. This could damage
the port and the cover. ●
Do not leave the iPod® cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB (iPod®) connection ports are located
on the center console box. For additional infor-
mation, refer to “USB/iPod® connection port” in
this section.
The battery of the iPod® will be charged while
the device is connected to the vehicle if the
iPod® supports USB connection charging.
Depending on the model and firmware version of
the iPod®, the display on the iPod® shows a
NISSAN or Accessory Attached screen when the
connection is completed. When the iPod® is
connected to the vehicle, the iPod® music library
can only be operated using the vehicle audio
controls.
Compatibility:
Made for ● iPod touch® (5th generation)
● iPod touch® (4th generation)
● iPod touch® (3rd generation)
● iPod touch® (2nd generation) ●
iPod touch® (1st generation)
● iPod touch®
● iPod® with video
● iPod classic®
● iPod nano® (7th generation)
● iPod nano® (6th generation)
● iPod nano® (5th generation)
● iPod nano® (4th generation)
● iPod nano® (3rd generation)
● iPod nano® (2nd generation)
● iPod nano® (1st generation)
● iPhone® 5S
● iPhone® 5
● iPhone® 4S
● iPhone® 4
● iPhone® 3GS
● iPhone® 3G
● iPhone®
The iPod touch® may not respond quickly with
the system in some cases.
Make sure that the iPod® firmware is updated.
4-80Monitor, climate, audio, phone and voice recognition systems

4Track information
Track information such as the song title, art-
ist name and album name is displayed.
5Audio source indicator
This indicates that the iPod® is currently
selected.
6Album artwork (if so equipped)
An image of the album artwork is displayed
when available.
7Track number
This indicates the current track number and
the total number of tracks.
8Shuffle mode indicator
Touch to change the shuffle mode.
Mode Screen display
Shuffle albums
Albums
All songs
Songs
Shuffle Off
Off
9“” key/ “” key
Touch to play or pause the track.
10iPod® menu
● “Previous List” key
● “Playlists” key
● “Artists” key ●
“Songs” key
● “Albums” key
● “Genres” key
● “Composers” key
● “Podcasts” key
● “Audiobooks” key
● “Shuffle” key
● “Repeat” key
11Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
Off
iPod® player operation
Activation and playing
Inserting the iPod® cable into the connection
port will activate the iPod® mode.
iPod® can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing the MEDIA button. For
additional information, refer to “Selecting audio
source” and “Main audio buttons” in this section. To play and pause the iPod®touch the
“Key/Pause” key in the, iPod® menu.
Selecting search method
A list of search methods is displayed in the
iPod®menu. Touch and select an item to play the
iPod® in your preferred settings.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the song. Release the TRACK button to play the
song at normal speed.
Changing play mode
Touch “Shuffle” key or “Repeat” key from the
iPod® menu to select the play mode.
Skipping songs:
Push the SEEK•CAT button or TRACK button to
skip to the next or previous song.
Even when iPod®s or iPhone®s are inserted into
both of the two USB connection ports, the sys-
tem recognizes only one of the connected
iPod®s or iPhone®s at a time.BLUETOOTH® STREAMING AUDIO
Your vehicle is equipped with Bluetooth®
streaming audio.
4-82Monitor, climate, audio, phone and voice recognition systems

4Play time
The play time of the track is displayed.
5“Control” key
Touch to display the control screen. For ad-
ditional information, refer to “Bluetooth®
streaming audio operation” in this section.
6Track number
This indicates the track number.
7Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
Repeat Off
Off
8Bluetooth® streaming audio menu
● “Play” key
● “Pause” key
● “Folder/Track” key
● “Repeat” key
● “Random” key
9Random mode indicator
Touch to change the random mode.
Mode Screen display
All Random
All
1 Folder Random
1 Folder
Random Off
OFF
Depending on the audio device that is connected
to the vehicle, track information may not be dis-
played.
Bluetooth® streaming audio operation
The ability to pause, change tracks, fast-forward,
rewind, randomize and repeat music may be dif-
ferent between devices. Some or all of these
functions may not be supported on each device.
● Depending on the Bluetooth® streaming
audio device that is connected, it may not be
possible to perform audio operations.
● Depending on the Bluetooth® streaming
audio device that is connected, a time lag
may occur before music is played back.
● Depending on the application except for the
native audio application that is played on the
Bluetooth® streaming audio device, incor-
rect behavior (information lacking, timer
skipping, etc.) may occur. Activation and playing
Bluetooth® streaming audio device can be se-
lected from the audio sources list by touching the
“Source” key or by pushing the MEDIA button.
For additional information, refer to “Selecting au-
dio source” and “Main audio buttons” in this
section.
To play the Bluetooth® streaming audio device,
touch the “Play” key and to pause the Bluetooth®
streaming audio device, touch the “Pause” key in
the Bluetooth® streaming audio menu.
Selecting folder/track
Touch the “Folder/Track” key to select a
folder/track.
Changing play mode
Touch the “Repeat” key or “Random” key in the
Bluetooth® streaming audio menu to change the
play mode.
Fast-forwarding
Push and hold the TRACK button to fast-forward
the song. Release the TRACK button to play the
song at normal speed.
Skipping songs/folders
Push the SEEK•CAT button or TRACK button to
skip to the next or previous song.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
4-84Monitor, climate, audio, phone and voice recognition systems

Bluetooth® streaming audio controls
Touch the “Control” key on the Bluetooth® Audio
operation screen to display the control screen.
Select Audio Device Touch to select a differentBluetooth® streaming
audio device from a list of
registered Bluetooth®
devices. For additional
information, refer to
“Bluetooth® settings” in
this section.
Connect Device Touch to connect a new Bluetooth® device.
DIGITAL VERSATILE DISC (DVD)
PLAYER
Touch-screen display
1Title/chapter number:
This indicates the DVD title/chapter number
currently selected.
2Play time:
The play time of the track is displayed.
3DVD operation menu:
DVD menu items are displayed. Touch a key
to operate the DVD.
● “Play/Pause” key ●
“Stop” key
● “Skip <<” key
● “Skip >>” key
● “
” key
● “CM <<” key
● “CM >>” key
● “Top Menu” key
● “Title List” key
● “Title Menu” key
● “10 Key Search” key
● “Select No.” key
● “Previous Title” key
● “Next Title” key
● “Default Position” key
● “Display Settings” key
● “Play Mode” key
4Play mode indicator
This indicates the current play mode.
JVH1506M
Monitor, climate, audio, phone and voice recognition systems4-85

5“Select Rear Source” key (if so equipped)
The select rear source screen is displayed.
For additional information, refer to “Control-
ling the rear system on the front display” in
this section.
Mode Screen display
1 Disc Repeat
Disc
1 Chapter Repeat
1 Chapter
● The DVD menu list will appear when the
screen is touched while a movie is play-
ing.
● The availability of the DVD menu items
depend on the type of DVD.
DVD player operation
Precautions
● Use DVDs with the region code “ALL” or the
code applicable to the DVD player. (The
region code is displayed as a small symbol
printed on the top of the DVD) . This vehicle-
installed DVD player can only play DVDs
with the applicable region code.
● Images cannot be displayed when the igni-
tion switch is in the ON position.
● Some VIDEO-CD functions may not be sup-
ported with this system. ●
Displaying items may vary depending on the
type of disc.
Loading
Insert the DVD into the slot with the label side
facing up. The DVD will be guided automatically
into the slot and start playback.
When a DVD is loaded, the DVD operation
screen is displayed on the display.
Activation and playing
Inserting the DVD into the slot will activate the
DVD mode. The DVD mode can also be selected
from the source list by pushing the DISC button
with a DVD loaded. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
Touch the “Play” key in the DVD menu to start
playing. Touch the “Pause” key to pause and
touch the “Stop” key to stop playing the DVD.
Skipping
Touch the “Skip <<” key or “Skip >>” key in the
DVD menu to skip to the next or previous
track/chapter.
Displaying keys
Touch the “Key” key in the DVD menu to display
operation keys such as the “Enter” key or “Re-
turn” key, etc.on the display. Skipping commercial messages
Touch the “CM <<” key or “CM >>” key in the
DVD menu to skip commercials.
Displaying top menu
Touch the “Top Menu” key in the DVD menu to
display the top menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Displaying title list
Touch the “Title List” key in the DVD menu to
display the title list.
Displaying title menu
Touch the “Title Menu” key in the DVD menu to
display the title menu specific to each disc. For
additional information, refer to the disc instruc-
tions.
Selecting track/chapter
Touch the “10 Key Search” key in the DVD menu
to display the keyboard screen. Enter the
track/chapter you wish to play.
Selecting track/chapter/menu number
Touch the “10 Key Search” key or “Select No.”
key in the DVD menu to display the keyboard
screen. Enter the track/chapter or menu number
you wish to play.
Viewing from default list
Touch the “Default Position” key in the DVD menu
to view from the default list.
4-86Monitor, climate, audio, phone and voice recognition systems

Adjusting the display
Touch the “Display Settings” key in the DVD
menu to adjust the display settings of the display.
BrightnessAdjusts the display brightness
Contrast Adjusts the display contrast
Black Level Adjusts the display black level
Tint Adjusts the tint level
Color Adjusts the color
Reset Settings Resets all the display settings to default
AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
How to view AUX screen
Touch the “Display Settings” key to adjust the
display settings on the upper display.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key or by push-
ing the “MEDIA” button.
INFO:
Movies are displayed on the upper display while
the audio information is displayed on the lower
display.
JVH1415X
Monitor, climate, audio, phone and voice recognition systems4-87
