2017 NISSAN PATHFINDER ESP

buttonPush to fast forward skipping
a number of seconds (for DVD-VIDEO) .
button Push to rewind skipping a
number of seconds (for DVD-VIDEO) .
6SPEAKER button
Push to turn on all of the in-vehicle speakers.
7Volume control button +-
Push to adjust the speaker volume.
8DISPLAY SELECT button
Slide the switch to the side corresponding to
the screen you wish to operate (L or R) .
9MENU button
Push to display the operation screen for the
source that is being played. For additional
information, refer to “Menus” in this section.
10ENTER button
Push to execute the selected item.
11SET UP button
Push to display the rear seat display set-
tings. For additional information, refer to
“Settings and information” in this section.
12HEADPHONE button
Push to turn on the sound from the head-
phones and turn off the speakers
13button
Push to turn on the backlighting of the re-
mote controller buttons.
Battery replacement:
CAUTION
● An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
● When changing the batteries, do not let
dust or oil get on the components.
NOTE:
Change the batteries of the remote control-
ler when it does not function properly. To replace the battery:
1. Open the lid as illustrated above.
2. Replace both batteries with new ones.● Recommended battery: Size AA x 2
● Be careful not to touch the battery terminal.
● Make sure that the
andends on
the batteries match the markings inside the
compartment.
3. Close the lid securely. ● If you will not be using the remote controller
for long periods of time, remove the batteries
JVH0246X
4-98Monitor, climate, audio, phone and voice recognition systems

The rear displays are located on the back of the
front head restraints.
Use the remote controller to operate the rear
display screens. For additional information, refer
to “Remote controller” in this section.
Select the left or right rear display using the
DISPLAY SELECT button on the remote control-
ler and push the
button to activate the
corresponding rear display. When the display is
turned on, a green indicator on the lower left
corner of the display will illuminate.
The lower part of the rear displays
1functions
as a signal receiver/transmitter for the remote
controller and wireless headphones, and should
not be blocked or covered.
Turning the rear displays on and off can also be
controlled on the front display. For additional
information, refer to “Controlling the rear system
on the front display” in this section.
NOTE:
● The rear displays may turn off auto-
matically when the temperature is high
to protect the display screens from be-
ing damaged. ●
The movement of the images displayed
on the rear displays could slow down
when the temperature is below 32°F
(0°C) but this is not a malfunction. The
movement will return to normal when
the temperature rises between 32°F
(0°C) and 122°F (50°C) .
● The following conditions may occur but
these are characteristics of the crystal
display and are not malfunctions.
– Black spots, bright spots and after-
images appear on this display.
– The screen appears faint or dimmed
depending on the angle viewed.
OPERATIONS ON REAR DISPLAYS
Use the remote controller and take the following
steps to operate the rear displays in the rear
seats:
1. Turn on the rear displays using the
button on the remote controller.
2. Push the HOME button and select a source from the DVD, AUX, USB or HDMI interface
devices.
When USB is selected for the first time after
the USB device is connected, select a file
you with to play from the File Browser
screen.
JVH1389X
4-102Monitor, climate, audio, phone and voice recognition systems

Menus
Push the MENU button on the remote controller
to display the operation screen for the source that
is playing. Select and adjust the preferred items
using the Select buttons and the ENTER button
on the remote controller. The available menu
items differ depending on the selected source.
Available menu items:● “Speaker Output” key
When this item is turned on, the audio of the
source playing on the corresponding rear
display will be output to the vehicle speak-
ers.
● “Top Menu” key (DVD only)
Select to display the top menu screen.
● “Title Menu” key (DVD only)
Menus specific to each disc will be shown.
For details, see the instructions attached to
the disc.
● “Title Search” key (DVD only)
A scene that belongs to a specified title will
be displayed each time the “+” key side or
the “—” key side is selected. ●
“Use Keypad” key (DVD only)
Select the “Keypad” key and push the EN-
TER button to open the number entry
screen. Enter the number you want to search
for and select the “OK” key with the remote
controller. The selected Title/Chapter will be
played.
● “Audio” key (DVD, USB (DivX) only)
Select a preferred language for the audio
output.
● “Subtitle” key (DVD, USB (DivX) only)
Choose the preferred subtitle language set-
ting.
● “Angle” key (DVD only)
If the DVD contains data of different angles,
the angle of the image can be changed.
● “File Browser” key (USB only)
The data contained in the USB can be
browsed. The tracks are automatically cat-
egorized by playlists, songs, artists, com-
posers, genres, etc.
● “Play Mode” key (USB only)
Select a preferred play mode from the “Nor-
mal” key/”Repeat” key/”Shuffle” key.
● “Aspect Ratio” key
Aspect can be selected from Normal, Wide,
Cinema and Full. ●
“Select No.” key (DVD (Video-CD) only)
Select a section number you wish to play.SETTINGS AND INFORMATION
Various settings for the MES such as aspect
ratio, language, etc. can be changed on the rear
displays.
Push the SET UP button on the remote controller
and select the preferred item using the Select
button and ENTER button to change the rear
display settings and to view the system informa-
tion.
Available items:
● “System Settings” key
● “Display Settings” key
● “Information” key
System settings
To change the settings of the Mobile Entertain-
ment System, push the SET UP button on the
remote controller and select the “System Set-
tings” key.
Select the preferred item and adjust the setting
using the remote controller.
Monitor, climate, audio, phone and voice recognition systems4-103

CONTROLLING THE REAR SYSTEM
ON THE FRONT DISPLAY
To control the rear displays and the rear speakers
on the front display, push the AUDIO button on
the control panel and touch the “Rear Display”
key. For additional information, refer to “Selecting
audio source” in this section.
The Mobile Entertainment System screen will
appear on the front display, allowing the system
to be controlled from the front seats.
1Status display icons
Status of the speakers and the remote con-
troller is shown in icons. Touch the icons to
change the setting.
2Source selection indicator
Touch the left/right rear display icon to dis-
play the operation screen. The currently se-
lected source on the corresponding rear dis-
play can be operated from the screen.
3Speaker status indicator
Indicates which of the audio sources is se-
lected to be heard from the speaker. Touch
to show the Rear Sound Control screen and
change the speaker setting.
4Setting menu
Various settings can be changed. Touch a
preferred menu to change the setting.
Available setting items
– “L Display Power key/R Display
Power” key
Touch to turn on or off the rear display on
the left/right side.
– “Mute” key
Touch to mute or unmute all the speakers
and the headphones.
– “Select Rear Source” key
Touch to display the Select Rear Source
screen. Select the “Left Screen” key or
the “Right Screen” key and then select a
source to be played on the screen. –
“Rear Sound Control” key
Touch to display the Rear Sound Control
screen. Select a sound setting from the
following items:
● “No rear sound — front only” key
● “Play sound for left display” key
● “Play sound for right display” key
– ”Source Control” key
Touch to display the operation screen for
the currently selected source. Touch the
“Left Screen” key or the “Right Screen”
key to select which of the rear displays
you wish to operate.
– ”Remote Controller Lock” key
Touch to lock or unlock the remote con-
troller operation.
When the ignition switch is placed in the
OFF or LOCK position, the remote con-
troller will be unlocked.
– “Rr Speaker Mute” key
Touch to mute or unmute the rear speakers
–“Auto Display Power ON” key
Touch to turn on or off the setting for
automatic power on setting. When this
item is turned on, both the left and right
rear displays will turn on automatically
when the DVD is inserted into the front
unit and the movie will start to play.
JVH1390X
Monitor, climate, audio, phone and voice recognition systems4-105

REGULATORY INFORMATION
FCC Regulatory Information
FCC ID: HYQDNNS086
NOTE:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
FCC WARNING: Changes or modifications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with FCC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at lease 20cm and
more between the radiator and person’s body.Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.IC Regulatory Information
The antenna cannot be removed (and changed)
by the user.
NOTE:
This device complies with Industry Canada
license–exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) This device may or may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired operation
of the device.
CAUTION: Radio Frequency Radiation Exposure
This equipment complies with IC radiation expo-
sure limits set forth for uncontrolled environment
and meets RSS-102 of the IC radio frequency
(RF) exposure rules. This equipment has very low
levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at least 20cm and more
between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.
This Class B digital apparatus meets all require-
ments of the Canadian Interference Causing
Equipment Regulations.
L’antenne ne peut être enlevé (et modifié par
l’utilisateur) .
NOTE:
Le préent appareil est conforme aux CNR
d’Industrie Canada applicables aux appar-
eils radio exempts de licence.
L’exploitation est autorisé aux deux condi-
tions suivantes: (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage ra-
dioéectrique subi, mêe si le brouillage est
susceptible d’en compromettre le fonction-
nement.
Monitor, climate, audio, phone and voice recognition systems4-115

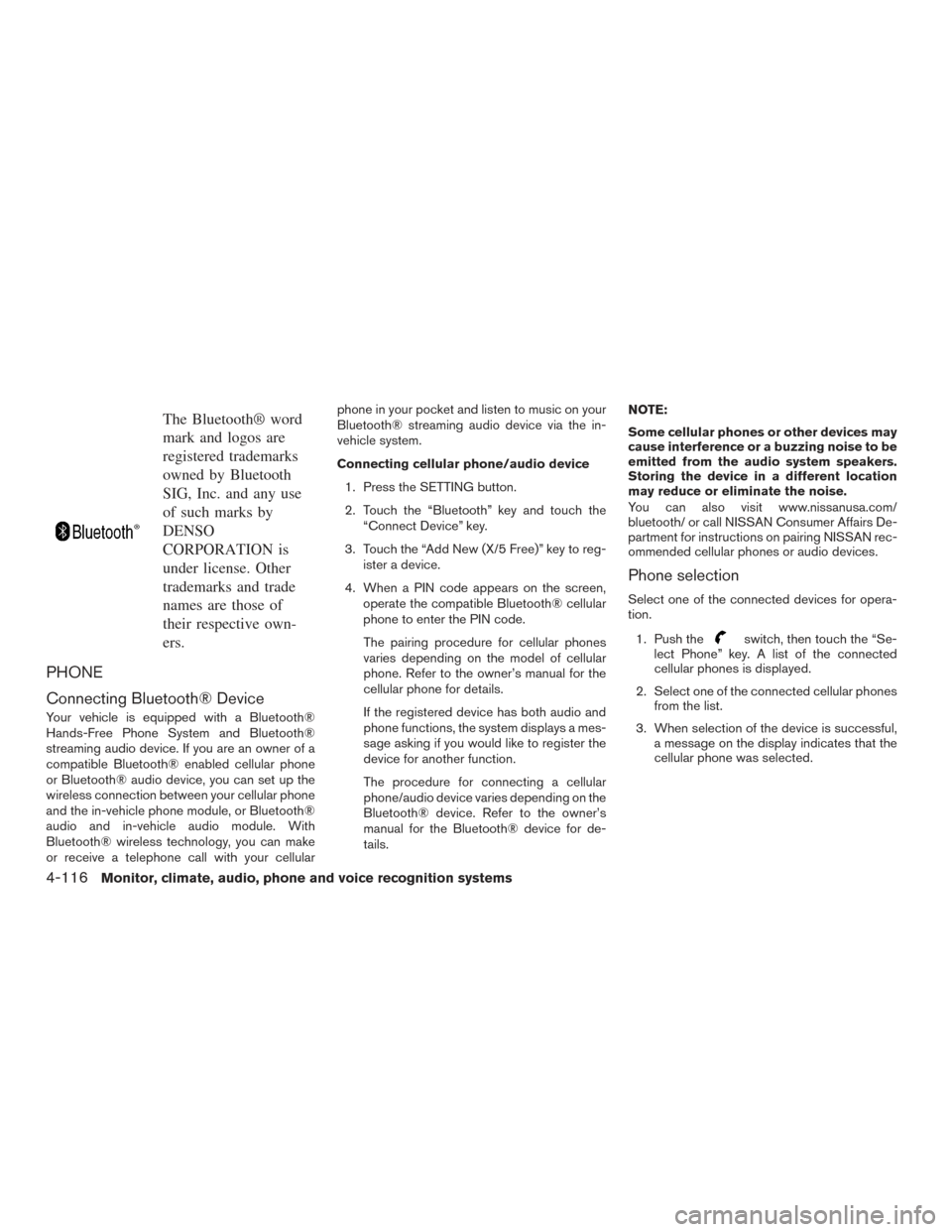

The Bluetooth® word
mark and logos are
registered trademarks
owned by Bluetooth
SIG, Inc. and any use
of such marks by
DENSO
CORPORATION is
under license. Other
trademarks and trade
names are those of
their respective own-
ers.
PHONE
Connecting Bluetooth® Device
Your vehicle is equipped with a Bluetooth®
Hands-Free Phone System and Bluetooth®
streaming audio device. If you are an owner of a
compatible Bluetooth® enabled cellular phone
or Bluetooth® audio device, you can set up the
wireless connection between your cellular phone
and the in-vehicle phone module, or Bluetooth®
audio and in-vehicle audio module. With
Bluetooth® wireless technology, you can make
or receive a telephone call with your cellularphone in your pocket and listen to music on your
Bluetooth® streaming audio device via the in-
vehicle system.
Connecting cellular phone/audio device
1. Press the SETTING button.
2. Touch the “Bluetooth” key and touch the “Connect Device” key.
3. Touch the “Add New (X/5 Free)” key to reg- ister a device.
4. When a PIN code appears on the screen, operate the compatible Bluetooth® cellular
phone to enter the PIN code.
The pairing procedure for cellular phones
varies depending on the model of cellular
phone. Refer to the owner’s manual for the
cellular phone for details.
If the registered device has both audio and
phone functions, the system displays a mes-
sage asking if you would like to register the
device for another function.
The procedure for connecting a cellular
phone/audio device varies depending on the
Bluetooth® device. Refer to the owner’s
manual for the Bluetooth® device for de-
tails. NOTE:
Some cellular phones or other devices may
cause interference or a buzzing noise to be
emitted from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
You can also visit www.nissanusa.com/
bluetooth/ or call NISSAN Consumer Affairs De-
partment for instructions on pairing NISSAN rec-
ommended cellular phones or audio devices.
Phone selection
Select one of the connected devices for opera-
tion.
1. Push the
switch, then touch the “Se-
lect Phone” key. A list of the connected
cellular phones is displayed.
2. Select one of the connected cellular phones from the list.
3. When selection of the device is successful, a message on the display indicates that the
cellular phone was selected.
4-116Monitor, climate, audio, phone and voice recognition systems

Information command
1st command2nd command Action
Information Voice Menu Connects to the Nissan ConnectSMApps Services Response Specialists. For additional
information, refer to the Navigation System Owner’s Manual for details.
Fuel Prices Displays the fuel prices.
Weather Forecast Displays the weather forecast.
Current Weather Displays the nearby weather (current weather) .
Sports Scores Displays the sports scores.
Traffic Information* Turns the traffic information system on or off.
Route Information* Displays the route information.
*: Models with navigation system only.
NOTE:
The Fuel Prices, Weather Forecast, Current Weather, Sports Scores and Traffic Information will not operate without a subscription to
SiriusXM Radio
Monitor, climate, audio, phone and voice recognition systems4-145

iPod® player
SymptomPossible cause Possible solution
The system does not recognize an iPod®. The connector cable is not correctly connected or the
iPod® does not correctly operate. Connect the connector cable again. If the system does not
recognize the iPod® after performing the procedure above,
reset the iPod®.
The iPod® that is connected is not compatible with the
system. Check the iPod® model and firmware versions available for
the system.
The USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected from the
USB connector. Slowly connect or disconnect the USB cable.
An iPod® cannot be operated. The iPod® is connected to the in-vehicle audio system
while headsets, etc. are connected to the iPod®. Remove all equipment from the iPod® after disconnecting
the iPod® from the system, and then connect it to the sys-
tem again.
The iPod® is not operating normally. Disconnect and re-connect the iPod® to the in-vehicle
audio system.
The system plays back an album/track that includes par-
ticular album art. Disconnect the iPod® from the in-vehicle audio system
and then reset the iPod®. Disable the album art and then
re-connect the iPod® to the system.
An iPod® does not respond. There are too many tracks in a category. Decrease the number of tracks in a category (less than
3,000 tracks) .
The shuffle function is turned on. Turn off the shuffle function if many tracks are stored on
the iPod.
Music cannot be played back. The connector is not connected to the iPod®. Firmly connect the connector until it clicks.
Music stops playing. The sound cuts off due to vibration resulting from the
iPod® being in an unstable location. Place the iPod® in a stable location where it does not roll
over.
The sound is distorted. The EQ (equalizer) function of the iPod® is turned on. Turn off the EQ (equalizer) function.
The iPod® battery requires more time than usual to
charge. Charging the iPod® battery may take longer while the
iPod® is playing. If the iPod® requires charging, it is recommended to stop
playback.
Monitor, climate, audio, phone and voice recognition systems4-151
