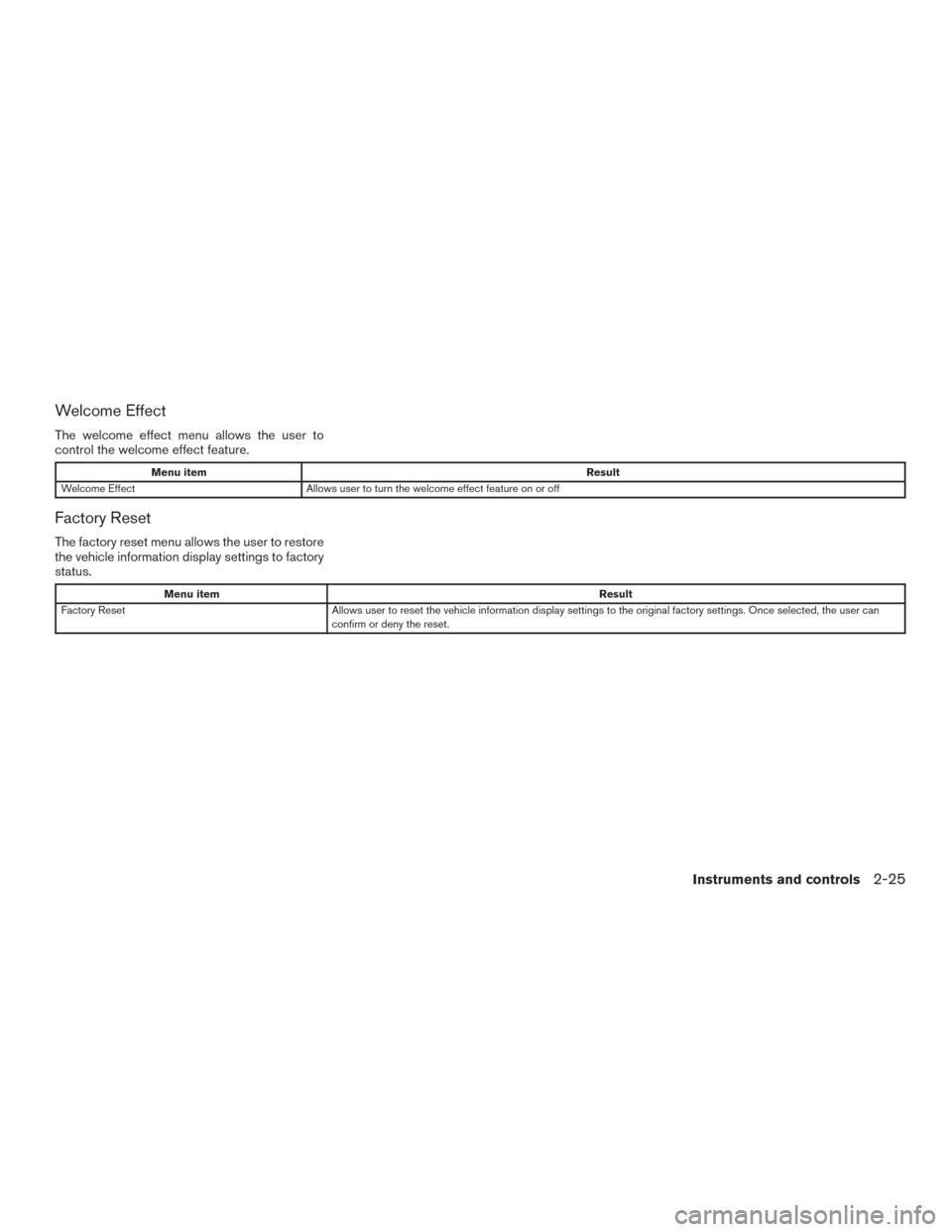

Welcome Effect
The welcome effect menu allows the user to
control the welcome effect feature.
Menu itemResult
Welcome Effect Allows user to turn the welcome effect feature on or off
Factory Reset
The factory reset menu allows the user to restore
the vehicle information display settings to factory
status.
Menu item Result
Factory Reset Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the user can
confirm or deny the reset.
Instruments and controls2-25

Autolight system (if so equipped)
The autolight system allows the headlights to turn
on and off automatically. The autolight system
can:● Turn on the headlights, front parking, tail,
license plate and instrument panel lights au-
tomatically when it is dark.
● Turn off all the lights when it is light.
● Keep all the lights on for a period of time after
you place the ignition switch in the OFF
position and all doors are closed. ●
Turn on the headlights if the windshield wip-
ers make four continuous passes within one
minute of the first pass (if so equipped) . The
headlights remain on until the wipers are
turned off for longer that 3 seconds.
NOTE:
Autolight activation sensitivity and the time
delay for autolight shutoff can be adjusted.
For additional information, refer to “Ve-
hicle information display” in this section.
To turn on the autolight system: ● Place the headlight switch in the AUTO po-
sition
1.
● Place the ignition switch in the ON position.
● The autolight system automatically turns the
headlights on and off.
Initially, if the ignition switch is turned OFF and a
door is opened and left open, the headlights
remain ON for a period of time. If another door is
opened while the headlights are on, then the
timer is reset.
To turn the autolight system off, place the switch
in the OFF,
,orposition. Be sure you do not put anything on top of
the autolight sensor located in the top side
of the instrument panel
1. The autolight
sensor controls the autolight; if it is cov-
ered, the autolight sensor reacts as if it is
dark out and the headlights will illuminate.
If this occurs while parked with the engine
off and the ignition switch placed in the ON
position, your vehicle’s battery could be-
come discharged.
LIC3188LIC2237
Instruments and controls2-37

POWER MOONROOF
The moonroof will only operate when the ignition
switch is in the ON position. The power moonroof
is operational for a period of time, even if the
ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
1or close2position and
release it; it need not be held. The roof will automatically open or close all the way. To stop
the roof, push the switch once more while it is
opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push the
switch to the tilt up position
1and release it; it
need not be held. To tilt down the moonroof, push
the switch to the tilt down position
2.
Resetting the moonroof switch
If the moonroof does not operate properly, per-
form the following procedure to initialize the
moonroof operation system.
1. Place the ignition switch in the ON position.
2. Press and hold the moonroof tilt switch for- ward until the moonroof stops.
3. Release the moonroof switch.
4. Press and hold the tilt up switch within 6 seconds.
5. The roof glass will tilt-down, slide-close, slide-open, slide-close, tilt-up, tilt-down.
6. Release the switch; initialization is complete if the moonroof operates normally.
If the moonroof does not operate properly after
performing the procedure above, have your ve- hicle checked. It is recommended that you visit a
NISSAN dealer for this service.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or
driving conditions, the auto-reverse func-
tion may be activated if an impact or load
similar to something being caught in the
moonroof occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward.
LIC2313
DUAL PANEL MOONROOF (if so
equipped)
Instruments and controls2-61

CAUTION
For vehicles with automatic drive posi-
tioner: Failure to reset the tilt and tele-
scoping functions of the steering wheel,
after the vehicle’s battery has been dis-
charged, may prevent the steering wheel
position from being adjusted.
For vehicles with automatic drive positioner: Both
the tilt and telescopic steering operation must be
reset after the vehicle’s battery has been dis-
charged in order to prevent the tilt and telescopic
operation from locking in one position. When the
battery has been recharged or replaced, perform
the following: ● For tilt operation, adjust the switch
1so the
steering wheel moves to the highest position
2that can be reached.
● For telescopic operation, adjust the switch
1so the steering wheel moves to the most
forward and backward position
3that can
be reached.
Performing these operations resets the range of
the steering wheel’s tilt and telescopic function.
Entry/Exit function (if so equipped)
The automatic drive positioner system will make
the steering wheel move up automatically when
the driver’s door is opened and the ignition
switch is in the LOCK position. This lets the driver
get into and out of the seat more easily. The
steering wheel moves back into position when
the driver’s door is closed and the ignition switch
is pushed.
For additional information, refer to “Automatic
drive positioner” in this section.
WPD0297
SUN VISORS
3-32Pre-driving checks and adjustments

INFORMATION SCREEN
The information screen sets or displays various
information that is helpful for using the vehicle.
Available items include the vehicle information,traffic information, current location information
and navigation software version.
Push the INFO button to display the information
menu.
The displayed items vary depending on the ve-
hicle model.
Menu item
Result
Fuel Economy Displays the Fuel Economy screen.
The current and average fuel economy and the distance to empty (Range key) can
be confirmed.
History The Fuel Economy history screen can be scrolled.
Displays the Fuel Economy history screen. Touch thekeys to display an older
history or the newest history.
Reset Resets the average Fuel Economy.
The average for the Reset-to-Reset period is stored as a fuel economy history.
When reset average Fuel Economy is on the screen, the average fuel consumption
on the trip computer is also reset at the same time.
Eco Drive Report Displays the Eco Drive Report for Start/Cruise/Deceleration.
History The Eco Drive Report History screen can be scrolled.
Displays the Eco Drive Report History screen. Touch the keys to display an
older history or the newest history.
Reset Resets the Eco Drive Report screen.
The average for the Reset-to-Reset period is stored as an Eco Drive Report history.
Traffic Information Allows traffic information setup.
For additional information, refer to the Navigation System Owner’s Manual.
Map Information Displays the map version, software version and Navi ID.
NissanConnect Services Displays the NissanConnect
SMServices menu.
For additional information, refer to the Navigation System Owner’s Manual.
SXM Info Displays the SiriusXM Travel Link Information menu.
For additional information, refer to the Navigation System Owner’s Manual.
INFORMATION AND SETTINGS
4-14Monitor, climate, audio, phone and voice recognition systems

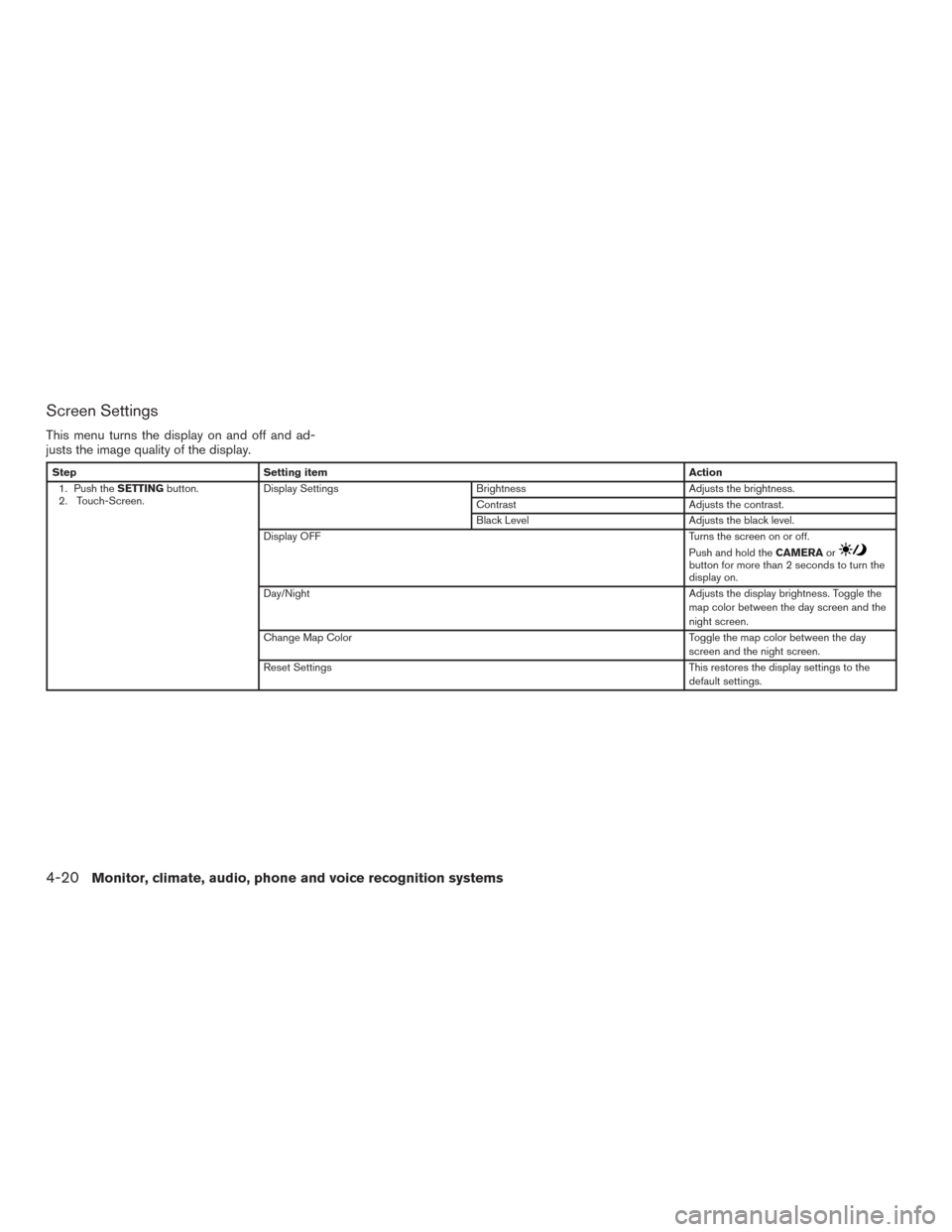

Screen Settings
This menu turns the display on and off and ad-
justs the image quality of the display.
StepSetting item Action
1. Push the SETTINGbutton.
2. Touch-Screen. Display Settings
BrightnessAdjusts the brightness.
Contrast Adjusts the contrast.
Black Level Adjusts the black level.
Display OFF Turns the screen on or off.
Push and hold theCAMERAor
button for more than 2 seconds to turn the
display on.
Day/Night Adjusts the display brightness. Toggle the
map color between the day screen and the
night screen.
Change Map Color Toggle the map color between the day
screen and the night screen.
Reset Settings This restores the display settings to the
default settings.
4-20Monitor, climate, audio, phone and voice recognition systems

“Made for iPod®” and “Made for iPhone®” mean
that an electronic accessory has been designed
to connect specifically to iPod® or iPhone®,
respectively, and has been certified by the devel-
oper to meet Apple performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regula-
tory standards. Please note that the use of this
accessory with iPod® or iPhone® may affect
wireless performance.
Apple, the Apple logo, iPhone®, iPod®, iPod
classic®, iPod nano®, and iPod® touch are
trademarks of Apple Inc., registered in the U.S.
and other countries. Lightning is a trademark of
Apple Inc. App Store is a service mark of Apple
Inc.
This vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.
This system cannot be used to format a USB
devices. To format a USB device, use a personal
computer.
In some jurisdictions, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.This system supports various USB memory de-
vices, USB hard drives and iPod® players. Some
USB devices may not be supported by this sys-
tem.
● Partitioned USB devices may not play cor-
rectly.
● Some characters used in other languages
(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.
General notes for USB use:
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Notes for iPod® use:
iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries. ● Improperly plugging in the iPod® may cause
a check-mark to be displayed on and off
(flickering) . Always make sure that the
iPod® is connected properly.
● An iPod nano® (1st generation) may remain
in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®. ●
An iPod nano® (2nd generation) will con-
tinue to fast forward or rewind if it is discon-
nected during a seek operation.
● An incorrect song title may appear when the
Play Mode is changed while using an iPod
nano® (2nd generation) .
● Audiobooks may not play in the same order
as they appear on an iPod®.
● Large video files cause slow responses in an
iPod®. The vehicle display may momentarily
black out, but will soon recover.
● If an iPod® automatically selects large video
files while in the shuffle mode, the vehicle
display may momentarily black out, but will
soon recover.
4-62Monitor, climate, audio, phone and voice recognition systems

NAMES AND FUNCTIONS OF
AUDIO CONTROL BUTTONSMain audio buttons
1button
Push to eject a disc.
2Disc slot: Insert a disc with the label side facing up.
3Radio memory buttons
Up to six preferred stations can be regis-
tered in the preset list for each band.
4VOL/ON•OFF button
Push to turn the audio system on/off.
Turn to adjust the volume.
5RADIO button
Push to switch to the radio mode. The radio
band will switch between AM, FM and SXM
(SiriusXM) each time the button is pushed.
6SCAN button
Scans at each broadcasting station/channel
for 5 seconds. Pushing the button again will
stop SCAN tuning and the radio will remain
tuned to that station/channel.
7RPT RDM button
Changes the play mode.
8DISC button
Plays the CD or DVD.
9SEEK•CAT button
Functions to seek radio stations or to skip
and fast-forward /rewind through tracks.
LHA4356
4-68Monitor, climate, audio, phone and voice recognition systems
