2017 NISSAN PATHFINDER reset

10TRACKbutton
Functions to seek radio stations or to skip
and fast-forward through tracks.
11MEDIA button
Each time the button is pushed, a different
audio source (iPod®, USB, Bluetooth®
streaming audio, AUX or Rear Display) will
be selected.
12TUNE/FOLDER AUDIO button
Bass, treble, balance and fade can also be
adjusted by pushing this button and turning
the knob to select the item to adjust.
Steering Wheel Switch for Audio
Control
The audio system can be operated using the
controls on the steering wheel.
1.
Tuning switch/ENTER button
2.
(back) switch
3. SOURCE switch
4. Volume control switch
SOURCE switch
With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on. Push the SOURCE switch to change the mode.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch/ENTER
button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Tuning switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than tilting up/down for less
than 1.5 seconds.
AM and FM
● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
XM ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
LHA3170
Monitor, climate, audio, phone and voice recognition systems4-69

RADIO
How to view radio operation screen
*For models with radio status indicator and
reception information display.The radio screen can be viewed and operated on
the display.1Radio mode indicator: The current radio
mode is displayed.
2“Source” key: Touch to switch to the source
select screen. For additional information, re-
fer to “Selecting audio source” in this sec-
tion.
3“Control” key: Touch to display the control
screen. For additional information, refer to
“Radio controls” in this section.
4HD Radio reception status indicator (for AM
and FM):
The icon is displayed when the HD Radio
digital signal is received. The icon flashes
when the radio is acquiring the digital signal
but the sound output is not yet in the HD
mode.
5Radio band indicator: The currently selected
radio band (AM, FM or SXM) is displayed.
6Reception information display: Reception in-
formation available at the time such as fre-
quency, station/channel name, etc. are dis-
played.
On the SXM screen, touch the area to dis-
play the category list.
736 stations/channels can be registered in
the preset list.
For additional information, refer to “Preset-
ting” in this section.
NAA1716
4-72Monitor, climate, audio, phone and voice recognition systems

NOTE:
HD Radio reception needs to be activated to
receive HD Radio broadcasts. This enables you
to receive radio broadcasts digitally (where avail-
able) , providing a better quality sound with clear
reception. When this feature is not activated or
HD Radio broadcasts are not available, you will
receive analog radio (AM/FM broadcasts) .
Radio source control
There are 2 elements used in the preset list area
that are associated with radio source:
1Highlight for multi-function controller opera-
tion.
2(With triangle) Indicator of current selected
preset station.
Radio operation
Radio activation and band selection
Push the RADIO button or select the preferred
radio band (AM, FM or SXM) from the audio
source list to turn on the radio. Each time the RADIO button is pushed, the radio band will
change. For additional information, refer to “Se-
lecting audio source” in this section.
NOTE:
When the stereo broadcast signal is weak,
the radio will automatically change from
stereo to monaural reception.
Seeking stations/channels
AM and FM radio
Push the SEEK•CAT button or TRACK button to
tune from low to high or high to low frequencies
and to stop at the next broadcasting station.
SiriusXM Satellite Radio
Push the SEEK•CAT button or TRACK button to
tune to the first channel of the next or previous
category.
Scan tuning
To tune the stations/channels, touch the “Con-
trol” key on the display and touch the “Scan” key.
The stations will be turned from low to high
frequencies and stop at each broadcasting sta-
tion for 5 seconds. Touching the “Scan” key again
during this 5 second period will stop scan tuning
and the radio will remain tuned to that station.
Pushing the SCAN button can also scan tune.
NAA1717
Monitor, climate, audio, phone and voice recognition systems4-73

Presetting
Up to 36 stations/channels can be registered for
AM, FM or SXM in the preset list.1. Select a radio band (AM, FM or SXM)
2. Tune to the station/channel you wish to store in the preset list.
3. Touch and hold one of the preset numbers in the preset list.
NOTE:
Only 1 to 6 can store using radio memory
buttons. Push and hold the desired station/channel
preset button (1 – 6) .
4. The information such as frequency (AM/FM) , channel number (SXM) , etc. will
be displayed on the preset list.
To change the preset station/channel, touch and
hold one of the preset numbers. You can select
whether to change the station/channel or to de-
lete the preset setting.
Alert notification (SXM only)
Favorite artists and songs can be registered to
receive an alert notice when a song of the regis-
tered conditions is on the radio. To tune to the respective channel, touch the “Listen to be con-
sistent” key. The alert can be ignored by touching
the “Cancel” key.
Satellite Radio:
● The satellite mode requires an active
SiriusXM Satellite Radio subscription. The
satellite service is available only to those at
least 18 and older in the 48 contiguous
United States.
● It may take some time to receive the activa-
tion signal after the initiation of the SiriusXM
Satellite Radio subscription. After receiving
the activation signal, an available channel list
will automatically be updated in the radio.
Switch the Ignition switch from LOCK to
ACC to update the SiriusXM channel list.
Radio controls
Touch the “Control” key on the AM, FM or SXM
screen to display the control screen.
The following items are available:
FM/AM
● “Station list” key
Touch to display the available station list.
While listening to FM radio, Auto Update is
not preformed. ●
“Scan” key
Touch to scan tune the stations. For addi-
tional information, refer to “Radio operation”
in this section.
● “HD radio mode” key
When this item is turned on, the analog and
the digital reception switches automatically.
When this item is turned off, the reception is
fixed in the analog mode.
● “HD radio Info” key
Touch to display the HD Radio Information
such as name of song, artist and album.
This item is available when “RDS-Info” key is
not active.
● “Tag” key (HD Radio Broadcasts only)
Touch to register the tag information for
ITunes® Tagging. If an iPod® is plugged in
after the registration, the tag information can
be stored in an iPod® and be used to pur-
chase the song via ITunes.
● “RDS-Info” key (FM only)
Touch to display the RDS information.
This item is available only when the “HD
Radio Info” key is not active.
4-74Monitor, climate, audio, phone and voice recognition systems

Adjusting the display
Touch the “Display Settings” key in the DVD
menu to adjust the display settings of the display.
BrightnessAdjusts the display brightness
Contrast Adjusts the display contrast
Black Level Adjusts the display black level
Tint Adjusts the tint level
Color Adjusts the color
Reset Settings Resets all the display settings to default
AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
How to view AUX screen
Touch the “Display Settings” key to adjust the
display settings on the upper display.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key or by push-
ing the “MEDIA” button.
INFO:
Movies are displayed on the upper display while
the audio information is displayed on the lower
display.
JVH1415X
Monitor, climate, audio, phone and voice recognition systems4-87

Available items:● “Aspect Ratio” key
Select the image size from Normal, Wide,
Cinema and Full.
● “Language” key
The language displayed on the screen can
be changed. Select the “Manual” key and
then select a preferred language from the
list. To apply the same language that is ap-
plied to the front display, select the “Auto”
key.
The language of the rear menu screens can
be set independently from the front display.
The rear display language settings will be
applied to both the rear left and rear right
displays.
● “Operation Guide” key
When this item is turned on, an explanation
for the menu highlighted on the screen will
appear at the bottom of the screen.
● “DivX® VOD” key
DivX® VOD license information can be
viewed.Display settings
To change the rear display settings, push the SET
UP button on the remote controller and select the
“Display Settings” key.
Select the preferred item and adjust the setting
using the remote controller.
Available items
● “Display Adjustment” key
– “Picture Mode” key Select image quality from Normal, Dy-
namic, Cinema and Game.
– “Auto Bright” key Select from Normal, Bright, OFF and
Dark. The brightness of the screen is ad-
justed automatically according to the
brightness inside the vehicle compart-
ment. The sensor is located on the right
side corner of the rear displays.
– “Brightness”, “Tint”, “Contrast”, “Color” and “Black Level” keys
Adjust the levels using the
orbuttons on the remote control-
ler.
– “Default” key Select this item to reset the screen set-
tings to the default value. ●
“Automatic Detail Enhancement” key
The enhancement of the contrast for details
can be adjusted automatically with this func-
tion. Select the level of the function from
High, Medium and Low.
● “Super Resolution” key
Blurred images with a low resolution can be
converted and adjusted into more crisp,
clearer images. Select the level of the func-
tion from High, Medium or Low.
● “Automatic Contrast Adjustment” key
Objects in dark images that are difficult to
view can be adjusted and enhanced auto-
matically for clearer viewing. Select the level
of the function from High, Medium or Low.
● “Noise Reduction” key
With the noise reduction function, block
noise that accompanies images can be re-
duced. Select the level of the function from
High, Medium or Low.
Software information
To display the software information of the Mobile
Entertainment System, push the SET UP button
on the remote controller and select the “Informa-
tion” key.
4-104Monitor, climate, audio, phone and voice recognition systems

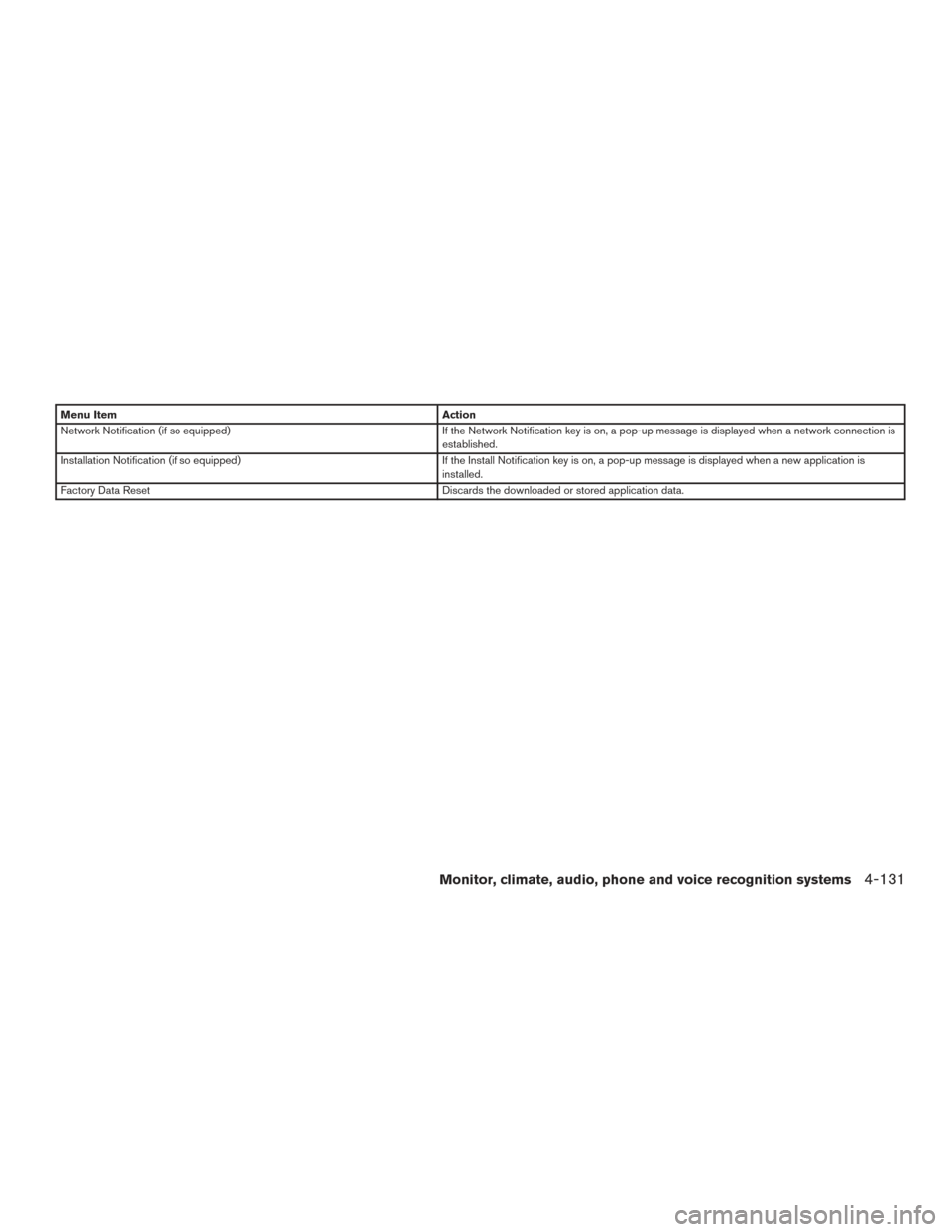

Menu ItemAction
Network Notification (if so equipped) If the Network Notification key is on, a pop-up message is displayed when a network connection is
established.
Installation Notification (if so equipped) If the Install Notification key is on, a pop-up message is displayed when a new application is
installed.
Factory Data Reset Discards the downloaded or stored application data.
Monitor, climate, audio, phone and voice recognition systems4-131

iPod® player
SymptomPossible cause Possible solution
The system does not recognize an iPod®. The connector cable is not correctly connected or the
iPod® does not correctly operate. Connect the connector cable again. If the system does not
recognize the iPod® after performing the procedure above,
reset the iPod®.
The iPod® that is connected is not compatible with the
system. Check the iPod® model and firmware versions available for
the system.
The USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected from the
USB connector. Slowly connect or disconnect the USB cable.
An iPod® cannot be operated. The iPod® is connected to the in-vehicle audio system
while headsets, etc. are connected to the iPod®. Remove all equipment from the iPod® after disconnecting
the iPod® from the system, and then connect it to the sys-
tem again.
The iPod® is not operating normally. Disconnect and re-connect the iPod® to the in-vehicle
audio system.
The system plays back an album/track that includes par-
ticular album art. Disconnect the iPod® from the in-vehicle audio system
and then reset the iPod®. Disable the album art and then
re-connect the iPod® to the system.
An iPod® does not respond. There are too many tracks in a category. Decrease the number of tracks in a category (less than
3,000 tracks) .
The shuffle function is turned on. Turn off the shuffle function if many tracks are stored on
the iPod.
Music cannot be played back. The connector is not connected to the iPod®. Firmly connect the connector until it clicks.
Music stops playing. The sound cuts off due to vibration resulting from the
iPod® being in an unstable location. Place the iPod® in a stable location where it does not roll
over.
The sound is distorted. The EQ (equalizer) function of the iPod® is turned on. Turn off the EQ (equalizer) function.
The iPod® battery requires more time than usual to
charge. Charging the iPod® battery may take longer while the
iPod® is playing. If the iPod® requires charging, it is recommended to stop
playback.
Monitor, climate, audio, phone and voice recognition systems4-151
