2017 NISSAN PATHFINDER AUX

MOD system limitations........................ 4-44
System maintenance ........................... 4-45
Vents ........................................... 4-46
Heater and air conditioner (automatic)(if so
equipped) ....................................... 4-47
Automatic operation ........................... 4-49
Manual operation .............................. 4-50
Operating tips ................................. 4-51
Rear automatic air conditioning system. . .........4-51
Servicing air conditioner ........................... 4-55
Audio system .................................... 4-55
Audio operation precautions ....................4-55
Names and functions of audio control
buttons ....................................... 4-68
Antenna ...................................... 4-70
Audio main operation .......................... 4-70
Radio ........................................ 4-72
Compact Disc (CD) player .....................4-76
USB (Universal Serial Bus) connection port ......4-77
iPod® player .................................. 4-80
Bluetooth® streaming audio ....................4-82
Digital Versatile Disc (DVD) player ...............4-85
Auxiliary (AUX) devices ......................... 4-87Mobile entertainment system (MES) (if so
equipped)
....................................... 4-88
Precautions ................................... 4-88
Technical information .......................... 4-89
Connecting rear media interface .................4-96

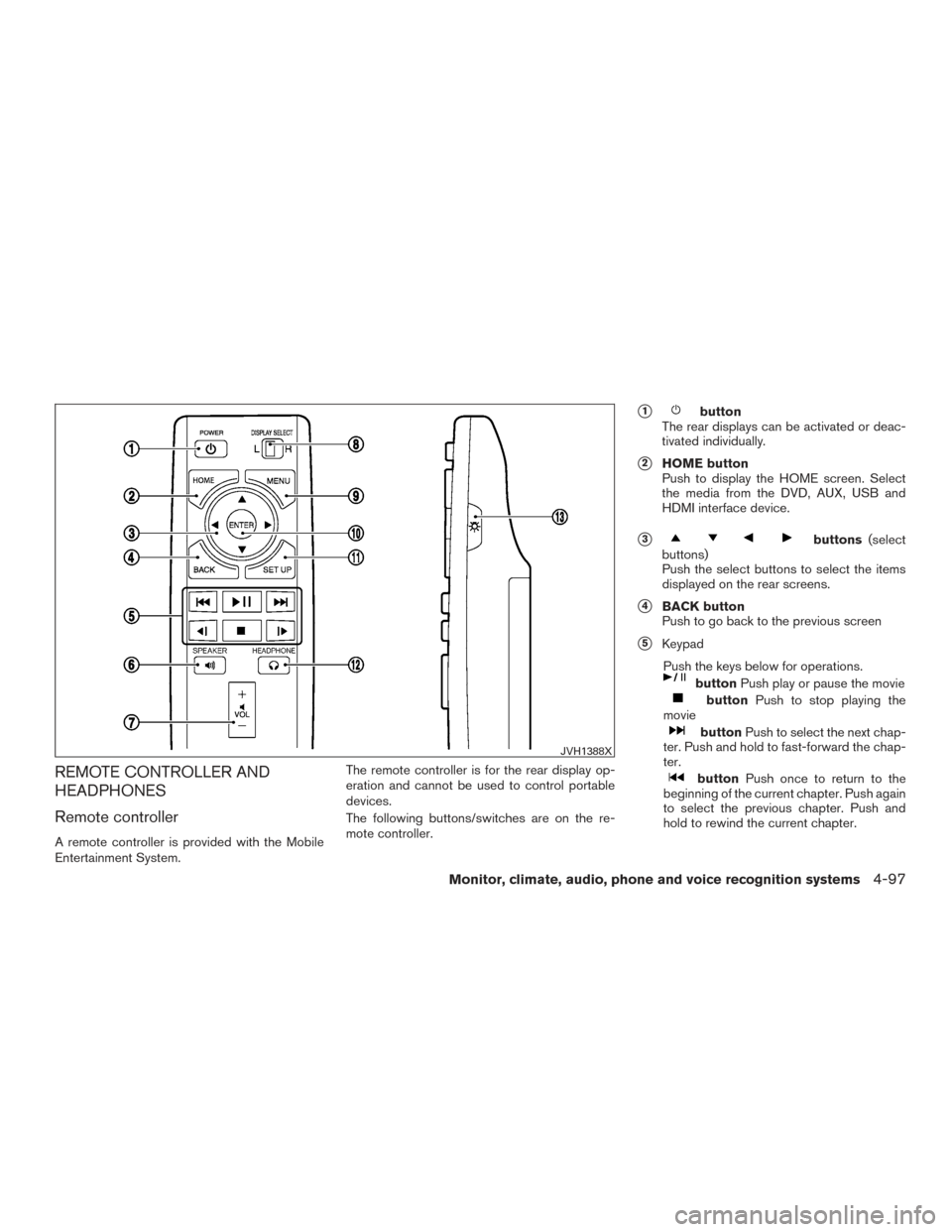

Remote controller and headphones ..............4-97

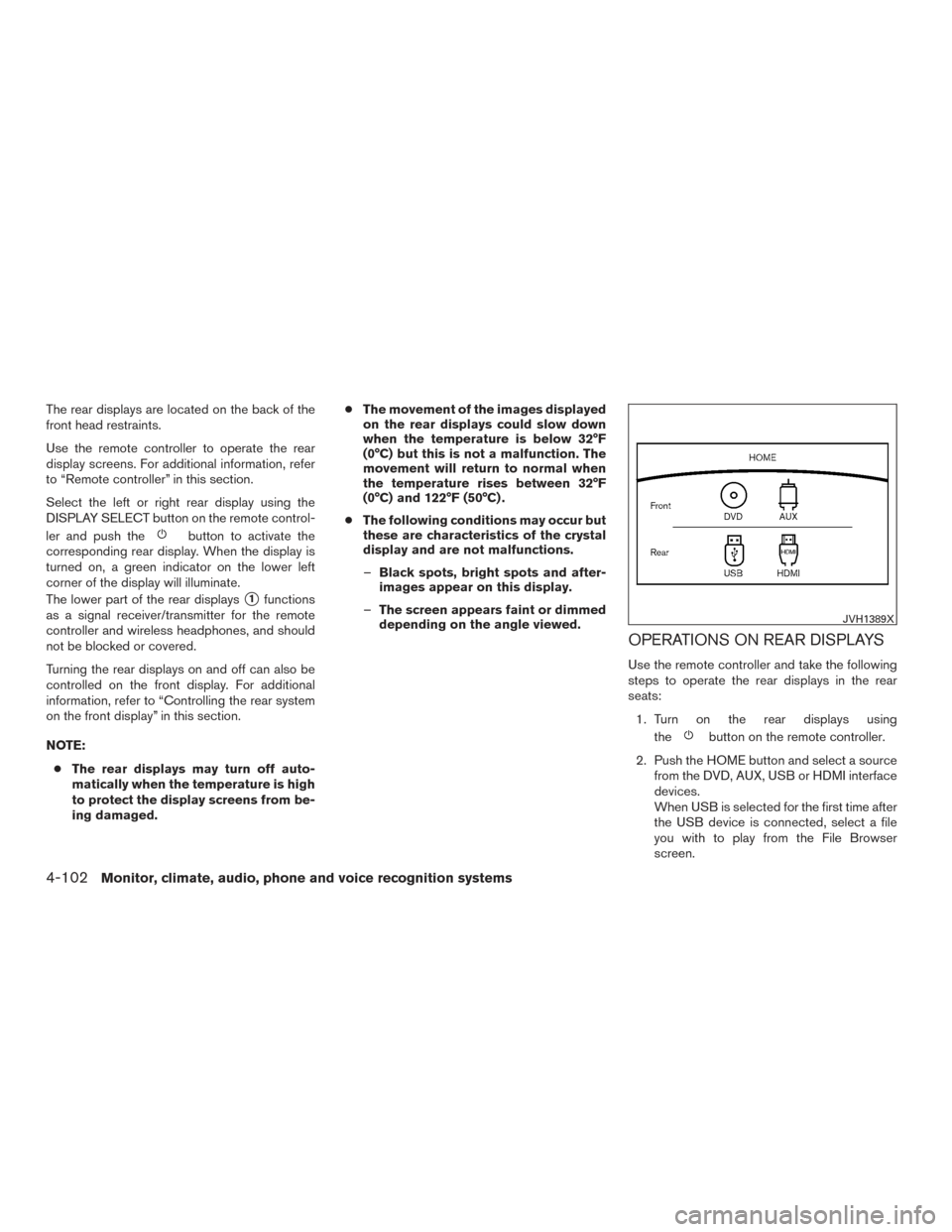

Activating rear displays ........................ 4-101
Operations on rear displays ....................4-102
Settings and information ....................... 4-103
Controlling the rear system on the front
display ...................................... 4-105
Operating tips ................................ 4-106
Care and maintenance ........................ 4-107
Audio settings ................................ 4-107
Disc/USB memory

device care and cleaning .....4-111
Gracenote® end user license agreement ........4-111
Car phone or CB radio ........................... 4-112
Bluetooth® Hands-Free Phone System ............4-113
Regulatory information ........................ 4-115
Phone ....................................... 4-116
Hands-free text messaging assistant ............4-119
Phone and text message settings ...............4-123
Bluetooth® information ....................... 4-128

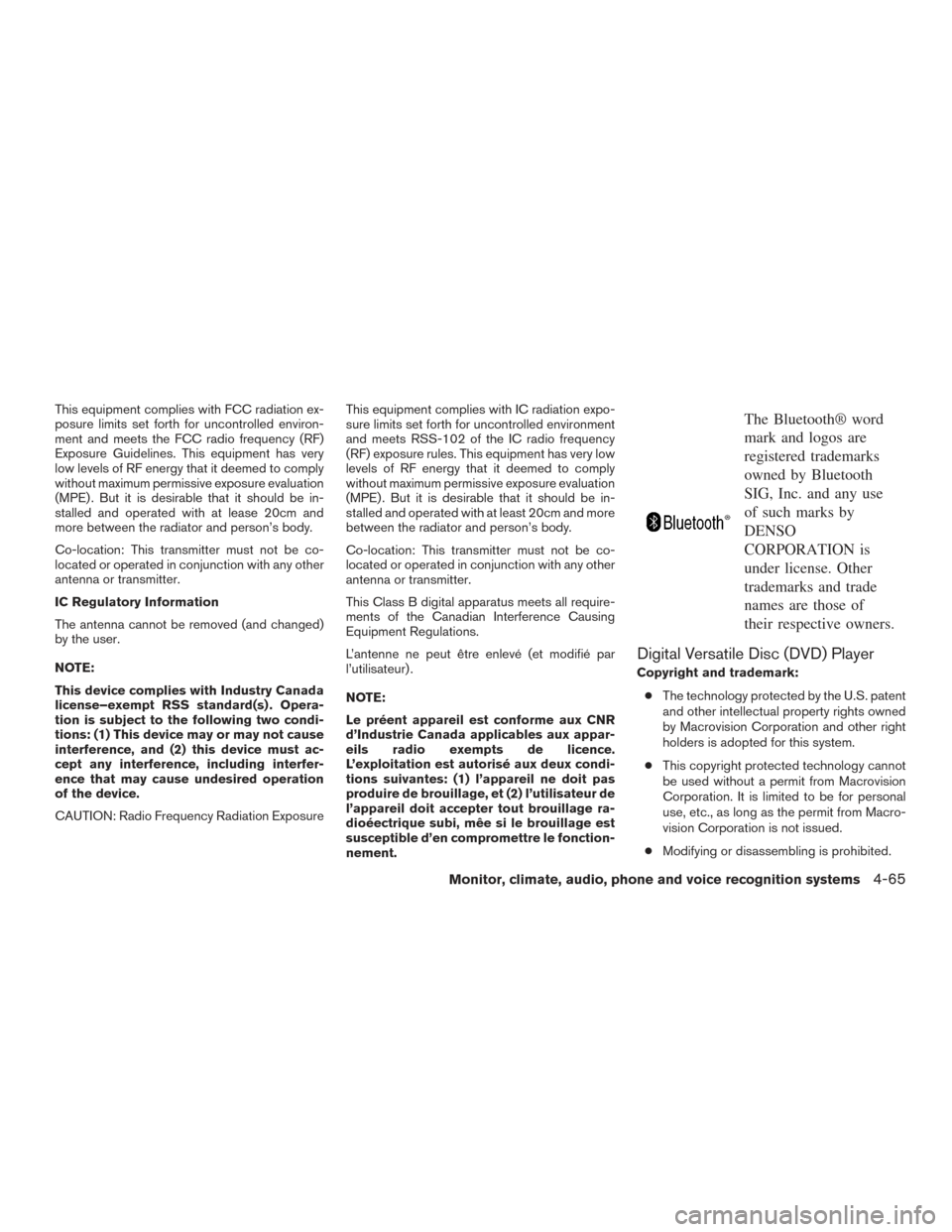

This equipment complies with FCC radiation ex-
posure limits set forth for uncontrolled environ-
ment and meets the FCC radio frequency (RF)
Exposure Guidelines. This equipment has very
low levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at lease 20cm and
more between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.
IC Regulatory Information
The antenna cannot be removed (and changed)
by the user.
NOTE:
This device complies with Industry Canada
license–exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) This device may or may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired operation
of the device.
CAUTION: Radio Frequency Radiation ExposureThis equipment complies with IC radiation expo-
sure limits set forth for uncontrolled environment
and meets RSS-102 of the IC radio frequency
(RF) exposure rules. This equipment has very low
levels of RF energy that it deemed to comply
without maximum permissive exposure evaluation
(MPE) . But it is desirable that it should be in-
stalled and operated with at least 20cm and more
between the radiator and person’s body.
Co-location: This transmitter must not be co-
located or operated in conjunction with any other
antenna or transmitter.
This Class B digital apparatus meets all require-
ments of the Canadian Interference Causing
Equipment Regulations.
L’antenne ne peut être enlevé (et modifié par
l’utilisateur) .
NOTE:
Le préent appareil est conforme aux CNR
d’Industrie Canada applicables aux appar-
eils radio exempts de licence.
L’exploitation est autorisé aux deux condi-
tions suivantes: (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage ra-
dioéectrique subi, mêe si le brouillage est
susceptible d’en compromettre le fonction-
nement.The Bluetooth® word
mark and logos are
registered trademarks
owned by Bluetooth
SIG, Inc. and any use
of such marks by
DENSO
CORPORATION is
under license. Other
trademarks and trade
names are those of
their respective owners.
Digital Versatile Disc (DVD) Player
Copyright and trademark:
● The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.
● This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be for personal
use, etc., as long as the permit from Macro-
vision Corporation is not issued.
● Modifying or disassembling is prohibited.
Monitor, climate, audio, phone and voice recognition systems4-65

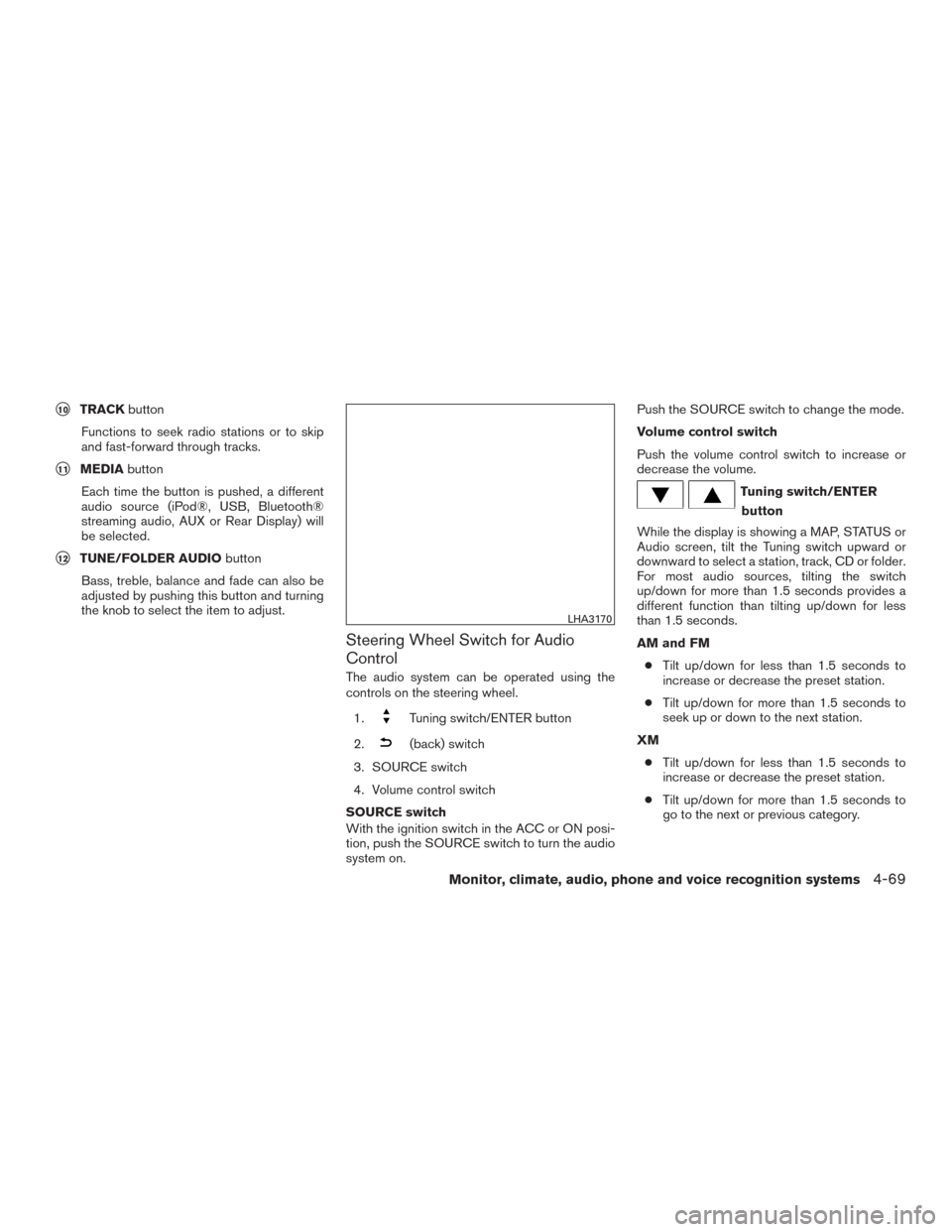

10TRACKbutton
Functions to seek radio stations or to skip
and fast-forward through tracks.
11MEDIA button
Each time the button is pushed, a different
audio source (iPod®, USB, Bluetooth®
streaming audio, AUX or Rear Display) will
be selected.
12TUNE/FOLDER AUDIO button
Bass, treble, balance and fade can also be
adjusted by pushing this button and turning
the knob to select the item to adjust.
Steering Wheel Switch for Audio
Control
The audio system can be operated using the
controls on the steering wheel.
1.
Tuning switch/ENTER button
2.
(back) switch
3. SOURCE switch
4. Volume control switch
SOURCE switch
With the ignition switch in the ACC or ON posi-
tion, push the SOURCE switch to turn the audio
system on. Push the SOURCE switch to change the mode.
Volume control switch
Push the volume control switch to increase or
decrease the volume.
Tuning switch/ENTER
button
While the display is showing a MAP, STATUS or
Audio screen, tilt the Tuning switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than tilting up/down for less
than 1.5 seconds.
AM and FM
● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
seek up or down to the next station.
XM ● Tilt up/down for less than 1.5 seconds to
increase or decrease the preset station.
● Tilt up/down for more than 1.5 seconds to
go to the next or previous category.
LHA3170
Monitor, climate, audio, phone and voice recognition systems4-69

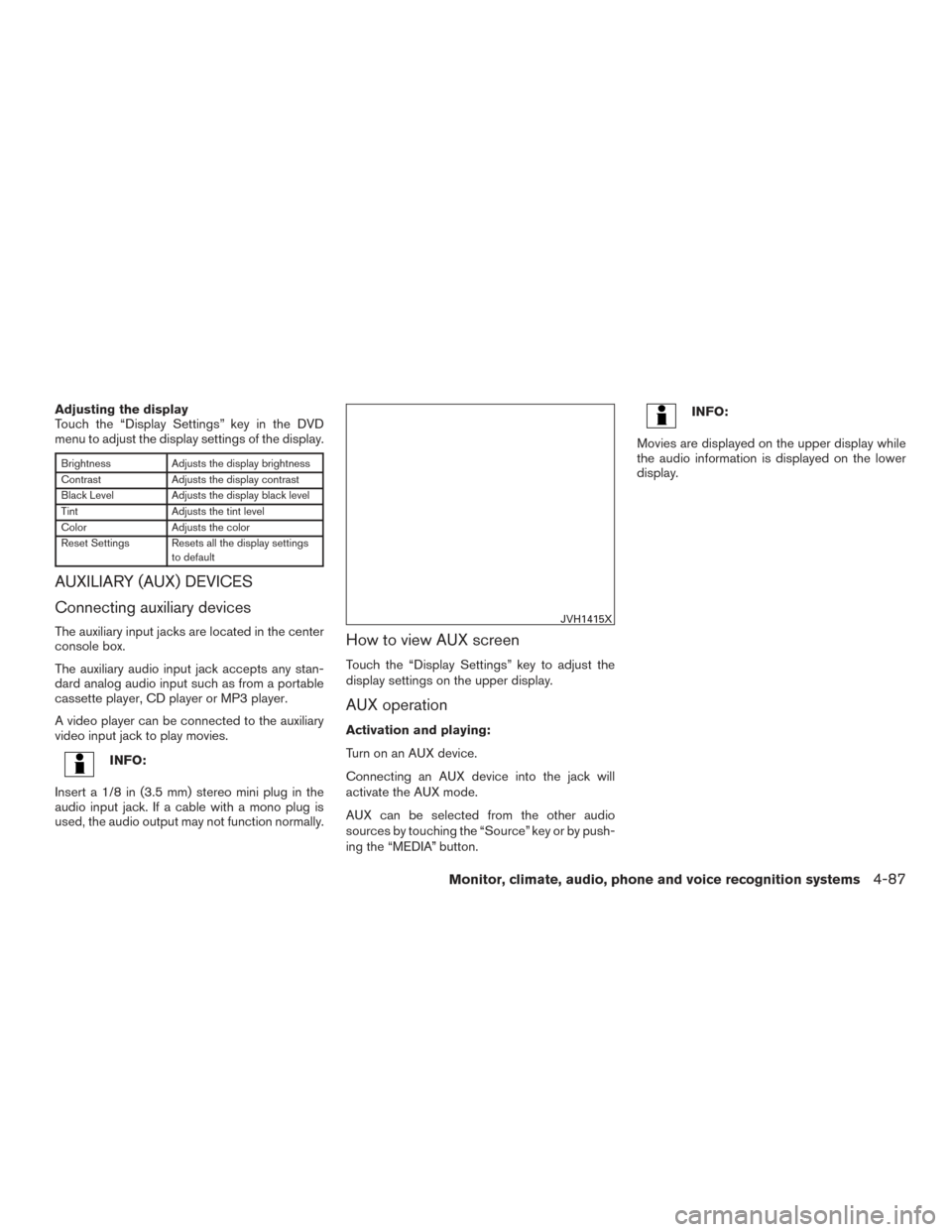

Adjusting the display
Touch the “Display Settings” key in the DVD
menu to adjust the display settings of the display.
BrightnessAdjusts the display brightness
Contrast Adjusts the display contrast
Black Level Adjusts the display black level
Tint Adjusts the tint level
Color Adjusts the color
Reset Settings Resets all the display settings to default
AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
How to view AUX screen
Touch the “Display Settings” key to adjust the
display settings on the upper display.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key or by push-
ing the “MEDIA” button.
INFO:
Movies are displayed on the upper display while
the audio information is displayed on the lower
display.
JVH1415X
Monitor, climate, audio, phone and voice recognition systems4-87

If your vehicle is equipped with the Mobile Enter-
tainment System, you can enjoy playing audio
and movie files on the rear displays with images
and sound.
A DVD and an AUX device inserted/connected to
the audio system for the front seat audio unit as
well as the devices connected to the rear media
interface (USB and HDMI ports for the rear dis-
plays) can be played on the rear displays.
The front and left/right rear displays can show
different sources individually.
CD/DVD slot is on the instrument panel. For
additional information, refer to “Names and func-
tions of audio control buttons” in this section.
AUX jacks are located inside the center console
box.
The rear media interface (USB and HDMI con-
nection ports) is located behind the center con-
sole box. For additional information, refer to
“Connecting rear media interface” in this section.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System while driv-
ing so full attention may be given to ve-
hicle operation.
CAUTION
●Do not attempt to use the system in
extremely high or low temperature con-
ditions [below -4°F (-20°C) or above
158°F (70°C)].
● To avoid draining the vehicle battery
(12V battery) , do not operate the system
for more that 15 minutes without start-
ing the engine.
The front display is designed not to show
images during driving, as the driver’s at-
tention must be given to vehicle operation
for safety. Sounds are still audible. To
show images on the front display, stop the
vehicle in a safe location, move the shift
lever to the “P” (Park) position and apply
the parking brake.
PRECAUTIONS
Start the engine when using the Mobile Enter-
tainment System.
WARNING
The driver must not attempt to operate the
Mobile Entertainment System or wear the
headphones while the vehicle is in motion
so that full attention may be given to ve-
hicle operation. Park the vehicle in a safe location and
apply the parking break to view the im-
ages on the front center display screen
using the DVD player.
CAUTION
●
Only operate the Mobile Entertainment
System while the engine is running. Op-
erating the Mobile Entertainment Sys-
tem for extended periods of time with
the engine turned off can discharge the
vehicle battery (12V battery) .
● Do not allow the system to get wet.
Excessive moisture such as spilled liq-
uids may cause the system to
malfunction.
● While playing VIDEO-CD media, this
DVD player does not guarantee com-
plete functionality of all VIDEO-CD
formats.
MOBILE ENTERTAINMENT SYSTEM
(MES) (if so equipped)
4-88Monitor, climate, audio, phone and voice recognition systems

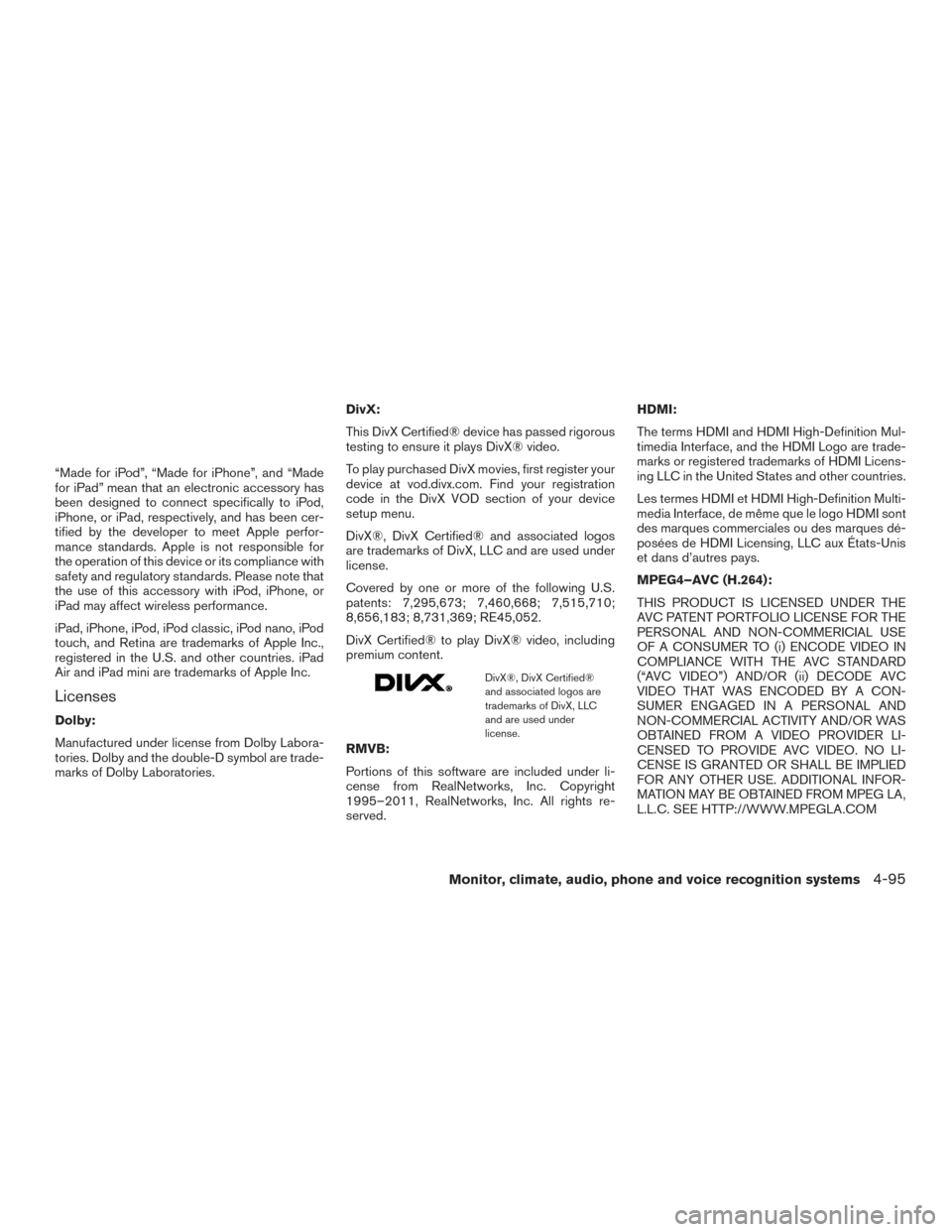

“Made for iPod”, “Made for iPhone”, and “Made
for iPad” mean that an electronic accessory has
been designed to connect specifically to iPod,
iPhone, or iPad, respectively, and has been cer-
tified by the developer to meet Apple perfor-
mance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod
touch, and Retina are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
Air and iPad mini are trademarks of Apple Inc.
Licenses
Dolby:
Manufactured under license from Dolby Labora-
tories. Dolby and the double-D symbol are trade-
marks of Dolby Laboratories.DivX:
This DivX Certified® device has passed rigorous
testing to ensure it plays DivX® video.
To play purchased DivX movies, first register your
device at vod.divx.com. Find your registration
code in the DivX VOD section of your device
setup menu.
DivX®, DivX Certified® and associated logos
are trademarks of DivX, LLC and are used under
license.
Covered by one or more of the following U.S.
patents: 7,295,673; 7,460,668; 7,515,710;
8,656,183; 8,731,369; RE45,052.
DivX Certified® to play DivX® video, including
premium content.
DivX®, DivX Certified®
and associated logos are
trademarks of DivX, LLC
and are used under
license.
RMVB:
Portions of this software are included under li-
cense from RealNetworks, Inc. Copyright
1995–2011, RealNetworks, Inc. All rights re-
served.HDMI:
The terms HDMI and HDMI High-Definition Mul-
timedia Interface, and the HDMI Logo are trade-
marks or registered trademarks of HDMI Licens-
ing LLC in the United States and other countries.
Les termes HDMI et HDMI High-Definition Multi-
media Interface, de même que le logo HDMI sont
des marques commerciales ou des marques dé-
posées de HDMI Licensing, LLC aux États-Unis
et dans d’autres pays.
MPEG4–AVC (H.264):
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERICIAL USE
OF A CONSUMER TO (i) ENCODE VIDEO IN
COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (ii) DECODE AVC
VIDEO THAT WAS ENCODED BY A CON-
SUMER ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LI-
CENSED TO PROVIDE AVC VIDEO. NO LI-
CENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFOR-
MATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTP://WWW.MPEGLA.COM
Monitor, climate, audio, phone and voice recognition systems4-95

REMOTE CONTROLLER AND
HEADPHONES
Remote controller
A remote controller is provided with the Mobile
Entertainment System.The remote controller is for the rear display op-
eration and cannot be used to control portable
devices.
The following buttons/switches are on the re-
mote controller.
1button
The rear displays can be activated or deac-
tivated individually.
2HOME button
Push to display the HOME screen. Select
the media from the DVD, AUX, USB and
HDMI interface device.
3buttons (select
buttons)
Push the select buttons to select the items
displayed on the rear screens.
4BACK button
Push to go back to the previous screen
5Keypad
Push the keys below for operations.
button Push play or pause the movie
button Push to stop playing the
movie
button Push to select the next chap-
ter. Push and hold to fast-forward the chap-
ter.
button Push once to return to the
beginning of the current chapter. Push again
to select the previous chapter. Push and
hold to rewind the current chapter.
JVH1388X
Monitor, climate, audio, phone and voice recognition systems4-97

The rear displays are located on the back of the
front head restraints.
Use the remote controller to operate the rear
display screens. For additional information, refer
to “Remote controller” in this section.
Select the left or right rear display using the
DISPLAY SELECT button on the remote control-
ler and push the
button to activate the
corresponding rear display. When the display is
turned on, a green indicator on the lower left
corner of the display will illuminate.
The lower part of the rear displays
1functions
as a signal receiver/transmitter for the remote
controller and wireless headphones, and should
not be blocked or covered.
Turning the rear displays on and off can also be
controlled on the front display. For additional
information, refer to “Controlling the rear system
on the front display” in this section.
NOTE:
● The rear displays may turn off auto-
matically when the temperature is high
to protect the display screens from be-
ing damaged. ●
The movement of the images displayed
on the rear displays could slow down
when the temperature is below 32°F
(0°C) but this is not a malfunction. The
movement will return to normal when
the temperature rises between 32°F
(0°C) and 122°F (50°C) .
● The following conditions may occur but
these are characteristics of the crystal
display and are not malfunctions.
– Black spots, bright spots and after-
images appear on this display.
– The screen appears faint or dimmed
depending on the angle viewed.
OPERATIONS ON REAR DISPLAYS
Use the remote controller and take the following
steps to operate the rear displays in the rear
seats:
1. Turn on the rear displays using the
button on the remote controller.
2. Push the HOME button and select a source from the DVD, AUX, USB or HDMI interface
devices.
When USB is selected for the first time after
the USB device is connected, select a file
you with to play from the File Browser
screen.
JVH1389X
4-102Monitor, climate, audio, phone and voice recognition systems
