• The colors of the high-voltage harnesses and connectors are all orange. Orange
High-
voltage labels
are applied to the high-voltage battery and other high-voltage devices. Do
not touch the high-voltage battery or other high-voltage devices without always wearing
appropriate PPE.
• Clearly identify the persons responsible for high-voltage work and ensure that other
persons
do not touch the vehicle. When not working, cover high-voltage parts with an
insulating cover sheet and sign or similar item to prevent other persons from contacting
them.
• Be sure to put the removed service plug in your pocket and carry it with you so
another
person does not accidentally reinstall it while work is in progress.
• The high-voltage battery retains high-voltage at all times. Personal Protective
Equipment
(PPE) must always be worn when touching or working on high-voltage
components to avoid risk of electrical shock and severe personal injury or death.
• Immediately insulate disconnected high-voltage connectors and terminals with
insulated
tape.
• The vehicle contains parts that contain powerful magnets. If a person who is wearing a
pacemaker
or other medical device is close to these parts, the medical device may be
affected by the magnets. Such persons must not perform work on the vehicle.
• Because this vehicle uses components that contain high-voltage and powerful
magnetism,
do not carry any metal products which may cause short circuits, or any
magnetic media (cash cards, credit cards, etc.) which may be damaged when working on
the vehicle.
• Keep removed high-voltage battery packs away from rain to avoid electric shock.
•

Do not heat removed battery packs higher than 158° F (70° C) . There is the possibility of a malfunction occurring if the vehicle is changed to READY
status while the service plug is removed.
DG–41

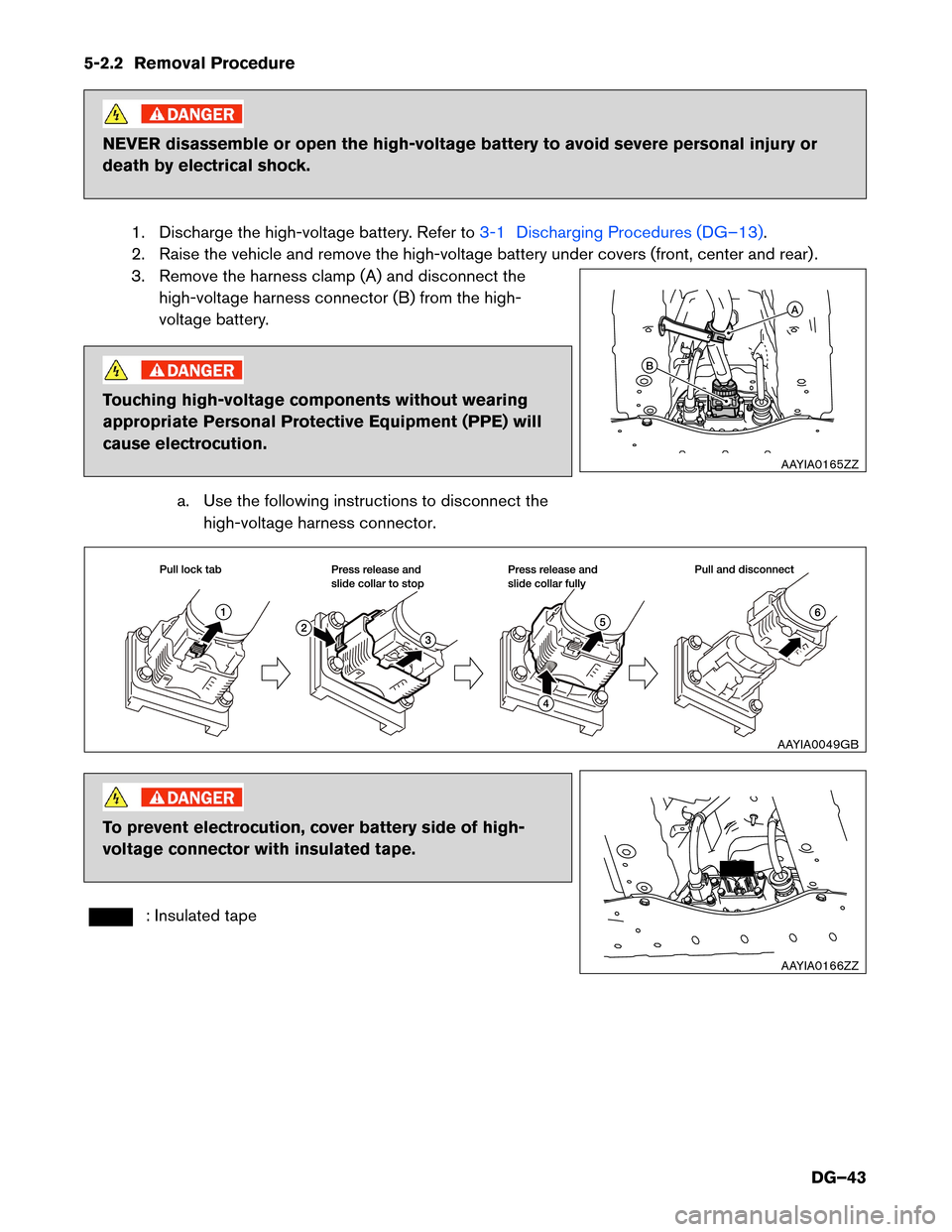

5-2.2 Removal Procedure
NEVER disassemble or open the high-voltage battery to avoid severe personal injury or
death
by electrical shock.
1. Discharge the high-voltage battery. Refer to 3-1 Discharging Procedures (DG–13).
2.

Raise the vehicle and remove the high-voltage battery under covers (front, center and rear) .
3. Remove the harness clamp (A) and disconnect the high-voltage harness connector (B) from the high-
voltage battery. Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
a. Use the following instructions to disconnect thehigh-voltage harness connector. To prevent electrocution, cover battery side of high-
voltage

connector with insulated tape. : Insulated tape A
B
AAYIA0165ZZ AAYIA0049GB
AAYIA0166ZZ
DG–43

4. Disconnect the cabin heater harness connector (A) from
the high-voltage battery. Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
a. Use the following instructions to disconnect thecabin heater harness connector. To prevent electrocution, cover battery side of high-
voltage

connector with insulated tape. : Insulated tape
5.
Disconnect the high-voltage battery vehicle
communications connector (A) while turning it
counterclockwise. Touching high-voltage components without wearing
appropriate

Personal Protective Equipment (PPE) will
cause electrocution.
A
AAYIA0171ZZ 1
3 4
2
Pull back lock tab
Press release and
pull connector

Disconnect connector
AAYIA0050GB AAYIA0172ZZ
A
AAYIA0167ZZ
