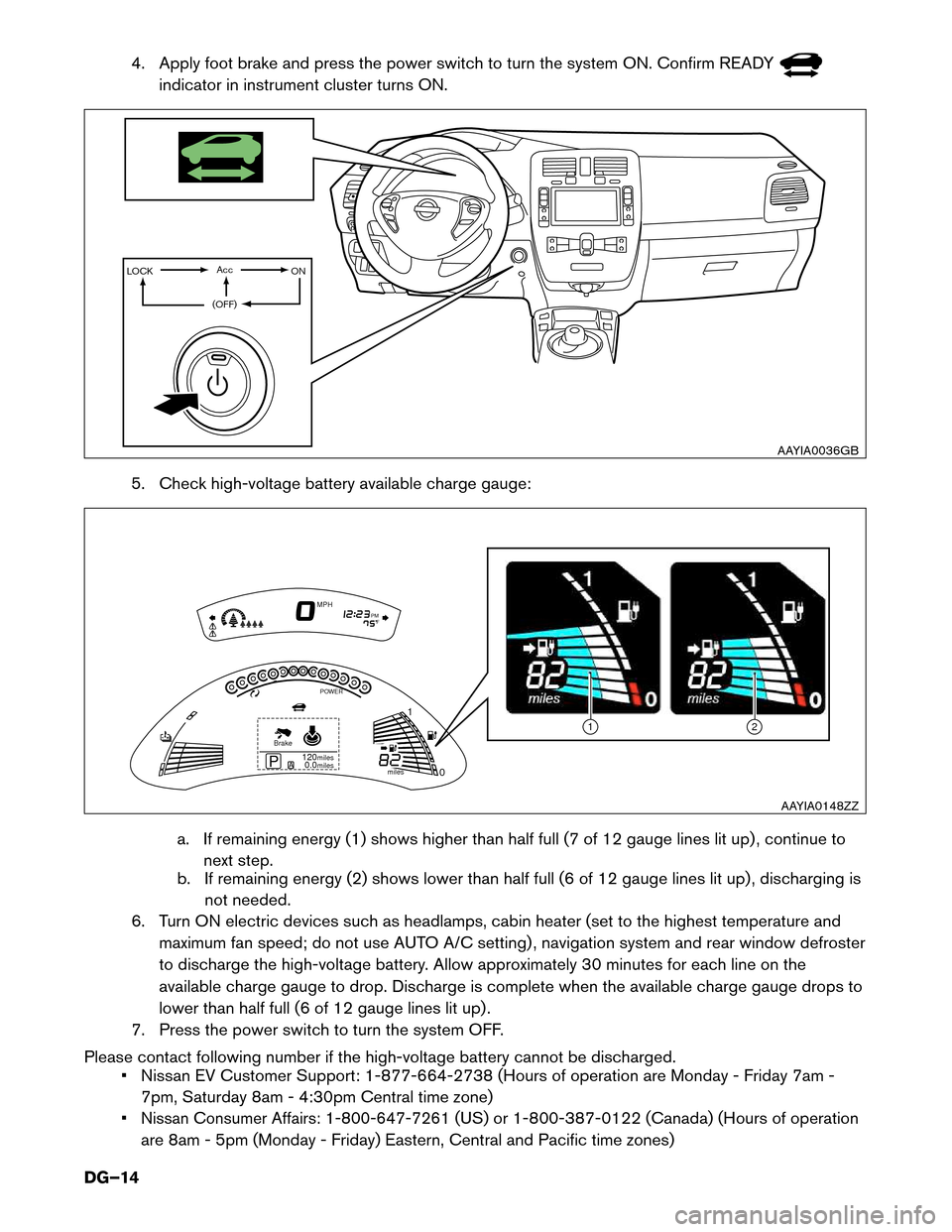

4. Apply foot brake and press the power switch to turn the system ON. Confirm READY
indicator in instrument cluster turns ON.
5. Check high-voltage battery available charge gauge: a. If remaining energy (1) shows higher than half full (7 of 12 gauge lines lit up) , continue to next step.
b. If remaining energy (2) shows lower than half full (6 of 12 gauge lines lit up) , discharging is
not needed.
6. Turn ON electric devices such as headlamps, cabin heater (set to the highest temperature and
maximum fan speed; do not use AUTO A/C setting) , navigation system and rear window defroster
to discharge the high-voltage battery. Allow approximately 30 minutes for each line on the
available charge gauge to drop. Discharge is complete when the available charge gauge drops to
lower than half full (6 of 12 gauge lines lit up) .
7. Press the power switch to turn the system OFF.
Please contact following number if the high-voltage battery cannot be discharged. • Nissan EV Customer Support: 1-877-664-2738 (Hours of operation are Monday - Friday 7am -
7pm, Saturday 8am - 4:30pm Central time zone)
•
Nissan Consumer Affairs: 1-800-647-7261(US) or 1-800-387-0122 (Canada) (Hours of operation
are 8am - 5pm (Monday - Friday) Eastern, Central and Pacific time zones) LOCK Acc
(OFF) ON AAYIA0036GB
0
1 POWER
Brake
P A 120miles
0.0miles MPH
PM
F miles 1 2
AAYIA0148ZZ
DG–14
