DRY CARBON FIBER PARTS (if so
equipped)
GUID-A5D66EC9-0E37-4FF9-8085-2F65570AF800Because of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu-
tion by mixing one capful of mild
detergent in a bucket of water, and use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.
MATTE PAINT (if so equipped)GUID-BF917B14-61A0-4A17-8901-FD06A89D8180If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
(
ªMatte paint careº page 7-2)
GUID-DECA80D5-2F0D-4E71-9C55-2DBC1BDC8DC9In addition to the regular maintenance recom-
mended by NISSAN, the GT-R requires the
following special inspections:
. Wheel alignment inspection and adjustment
(if necessary) (including tire pressure ad-
justment)
. Transmission settings
These inspections are required at the following
intervals:
. 1,000 miles
. 12 months
. 24 months
. 36 months
NOTE:
. These inspections will be performed
free of charge for labor at a GT-R
certified NISSAN dealer only. Inspec-
tions thereafter are recommended
every 12 months or 12,000 miles
(whichever comes first) at the custo-
mer's expense. See the 2017 NISSAN
GT-R Warranty Information Booklet for
details.
. Repairs and adjustments involving
parts replacement, etc. determined to
be necessary as a result of these
GT-R OverviewGTR-7
GT-R PERFORMANCE
OPTIMIZATION SERVICES


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
0-8Illustrated table of contents
GUID-50D5BA99-EF96-4950-99FC-63C78CF5F854
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.

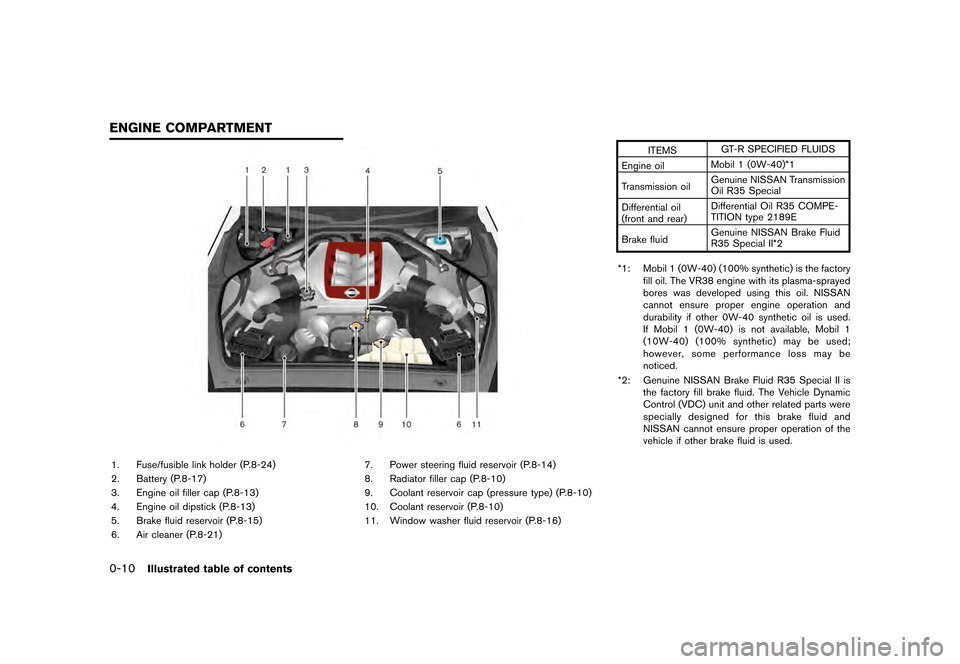

INSTRUMENT PANEL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
0-10Illustrated table of contents
GUID-44AA478F-51D0-499B-9A42-EC36A5D1576E
JVC0579X
1. Fuse/fusible link holder (P.8-24)
2. Battery (P.8-17)
3. Engine oil filler cap (P.8-13)
4. Engine oil dipstick (P.8-13)
5. Brake fluid reservoir (P.8-15)
6. Air cleaner (P.8-21)7. Power steering fluid reservoir (P.8-14)
8. Radiator filler cap (P.8-10)
9. Coolant reservoir cap (pressure type) (P.8-10)
10. Coolant reservoir (P.8-10)
11. Window washer fluid reservoir (P.8-16) ITEMS
GT-R SPECIFIED FLUIDS
Engine oil Mobil 1 (0W-40)*1
Transmission oil Genuine NISSAN Transmission
Oil R35 Special
Differential oil
(front and rear) Differential Oil R35 COMPE-
TITION type 2189E
Brake fluid Genuine NISSAN Brake Fluid
R35 Special II*2
*1: Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and
durability if other 0W-40 synthetic oil is used.
If Mobil 1 (0W-40) is not available, Mobil 1
(10W-40) (100% synthetic) may be used;
however, some performance loss may be
noticed.
*2: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid and
NISSAN cannot ensure proper operation of the
vehicle if other brake fluid is used.
ENGINE COMPARTMENT


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-4Instruments and controls
GUID-58BCEE9C-BB3E-469E-B94B-C18DC03CDF5C
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
.Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
JVI1461X
Next to the steering wheel
Pull out the cap to use the outlet.
Replace the cap after use.
JVI0157X
Inside the console box (except for NISMO models)
Open the cap to use the outlet.
Close the cap after use.
Instruments and controls2-57


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

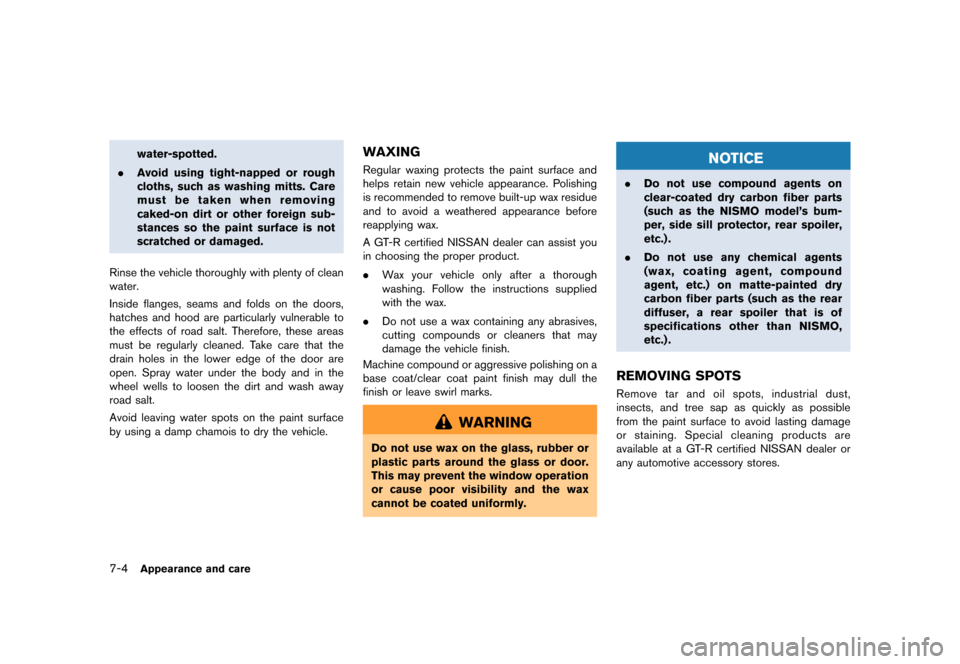

7-4Appearance and care
water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.WAXINGGUID-D1A4D4B3-64BC-4CFC-A2FD-EC7A6B5701A6Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A GT-R certified NISSAN dealer can assist you
in choosing the proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
WARNING
Do not use wax on the glass, rubber or
plastic parts around the glass or door.
This may prevent the window operation
or cause poor visibility and the wax
cannot be coated uniformly.
NOTICE
. Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
REMOVING SPOTSGUID-85707878-6687-495C-A575-6721F4D83DF3Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a GT-R certified NISSAN dealer or
any automotive accessory stores.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
7-6Appearance and care

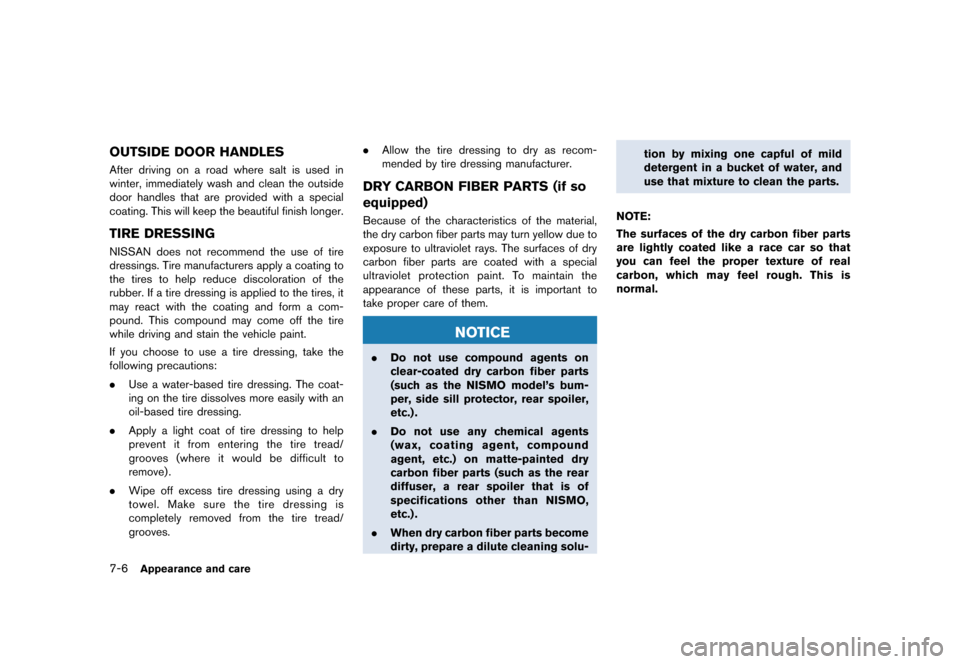

OUTSIDE DOOR HANDLESGUID-62830149-0255-422F-A11B-5F865AFE3C51After driving on a road where salt is used in
winter, immediately wash and clean the outside
door handles that are provided with a special
coating. This will keep the beautiful finish longer.
TIRE DRESSINGGUID-BA736799-CE6D-4B20-8D28-533F7C86B2DENISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves. .
Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
DRY CARBON FIBER PARTS (if so
equipped)
GUID-185523BE-05B7-425C-8075-2C3EB608D87CBecause of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu- tion by mixing one capful of mild
detergent in a bucket of water, and
use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
8 Maintenance and do-it-yourself
Maintenance requirements....
..................................................... 8-3
Scheduled maintenance ....................................................... 8-3
General maintenance ............................................................ 8-3
Where to go for service ....................................................... 8-3
General maintenance .................................................................. 8-4
Explanation of maintenance items ..................................... 8-4
Maintenance precautions ........................................................... 8-6
Engine compartment check locations ....
................................. 8-8
Removing the cowl top cover ............................................. 8-9
Engine cooling system ....
......................................................... 8-10
Checking engine coolant level ....
..................................... 8-11
Changing engine coolant .................................................. 8-12
Engine oil ............................................................................\
........ 8-13
Checking engine oil level .................................................. 8-13
Changing engine oil and filter ....
...................................... 8-14
Transmission oil ......................................................................... 8-14
Power steering fluid ....
.............................................................. 8-14
Brake fluid ............................................................................\
....... 8-15
Window washer fluid ............................................................... 8-16
Battery ....
........................................................................\
.............. 8-17
Precautions ........................................................................... 8-17
Fluid level check ....
.............................................................. 8-18
Jump starting ........................................................................ 8-19
Drive belts ............................................................................\
....... 8-19 Spark plugs
....
........................................................................\
.... 8-20
Replacing spark plugs ..................................................... 8-20
Air cleaner ............................................................................\
...... 8-21
Windshield wiper blades ....
.................................................... 8-22
Cleaning ............................................................................\
.. 8-22
Replacing the wiper blades ........................................... 8-22
Brakes ............................................................................\
............. 8-23
Self-adjusting brakes ....................................................... 8-23
Brake pad wear warning ................................................. 8-23
High performance brake system ................................... 8-23
Replacing the brake pads ....
........................................... 8-24
Fuses ............................................................................\
............... 8-24
Engine compartment ........................................................ 8-24
Passenger compartment ................................................. 8-25
Intelligent Key battery replacement ....
.................................. 8-27
Lights ....
........................................................................\
............... 8-29
Headlights ....
....................................................................... 8-30
Exterior and interior lights ............................................... 8-30
Wheels and tires ...................................................................... 8-32
Tire pressure ...................................................................... 8-32
Tire and loading information label ................................ 8-35
Checking the tire pressure ............................................. 8-36
Tire labeling ........................................................................ 8-37
Types of tires ....
.................................................................. 8-39
