25- Rear differential lock indication lamp*® p. 6-26
26- Door ajar warning lamp ® p. 5-12
27- Odometer/Tripmeter/Service reminder/ Tyre pressure monitoring system*
® p. 5-0228- Gearshift indicator* ® p. 6-17
29- “SONAR OFF” indication lamp* ® p. 6-56
30- Tyre pressure monitoring system warn- ing lamp* ® p. 6-4831- Sports mode indicator ® p. 6-19
32- Selector lever position indication lamps (“N” indication lamp is also used as A/T
warning lamp) ® p. 6-17

Indication lamps
E00501600012Turn-signal indication lamps/
Hazard warning indication lamps
E00501700068
These indication lamps blink
on and off when a turn-sig-
nal lamp is operating.
NOTEl If the blinking is too fast, the cause may be a
blown lamp bulb or a faulty turn-signal con-
nection.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash on and off continuously.
High-beam indication lamp
E00501800072
This indication lamp illumi-
nates when the high-beam is used.
Front fog lamp indication
lamp*
E00501901533
This indication lamp illumi-
nates while the front fog lamps are on.
Rear fog lamp indication lamp
E00502001254
This indication lamp illumi-
nates while the rear fog lamp is on.
Position lamp indication lamp
E00508900102
This lamp illuminates with
the lamp switch at “
” or
“
” position
Diesel preheat indication lamp
(diesel-powered vehicles)
E00502300146
This indication lamp illumi-
nates when the ignition
switch is placed in the “ON”
position. As the glow plug becomes hot, the lamp goes
out and the engine can be
started.
Indication lamps
5-09OVWX17E1Instruments and controls5

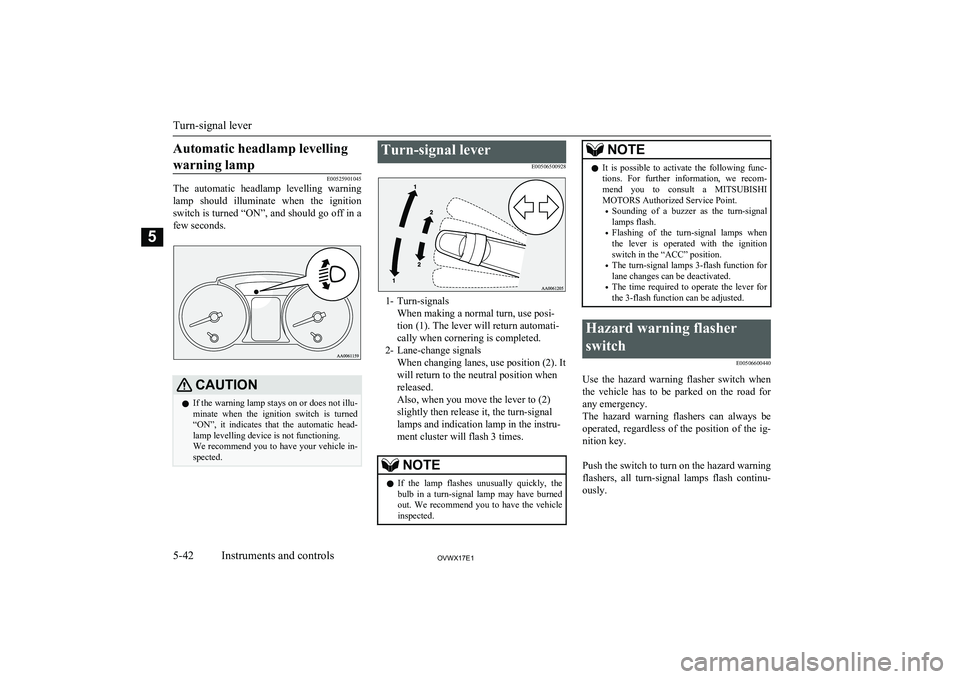

Automatic headlamp levellingwarning lamp
E00525901045
The automatic headlamp levelling warning
lamp should illuminate when the ignition switch is turned “ON”, and should go off in a
few seconds.
CAUTIONl If the warning lamp stays on or does not illu-
minate when the ignition switch is turned
“ON”, it indicates that the automatic head- lamp levelling device is not functioning.
We recommend you to have your vehicle in- spected.Turn-signal lever
E00506500928
1- Turn-signalsWhen making a normal turn, use posi-
tion (1). The lever will return automati-
cally when cornering is completed.
2- Lane-change signals When changing lanes, use position (2). It
will return to the neutral position when released.
Also, when you move the lever to (2)
slightly then release it, the turn-signal
lamps and indication lamp in the instru-
ment cluster will flash 3 times.
NOTEl If the lamp flashes unusually quickly, the
bulb in a turn-signal lamp may have burned out. We recommend you to have the vehicle
inspected.NOTEl It is possible to activate the following func-
tions. For further information, we recom- mend you to consult a MITSUBISHI
MOTORS Authorized Service Point.
• Sounding of a buzzer as the turn-signal
lamps flash.
• Flashing of the turn-signal lamps when
the lever is operated with the ignition switch in the “ACC” position.
• The turn-signal lamps 3-flash function for
lane changes can be deactivated.
• The time required to operate the lever for
the 3-flash function can be adjusted.Hazard warning flasher
switch E00506600440
Use the hazard warning flasher switch when
the vehicle has to be parked on the road for
any emergency.
The hazard warning flashers can always be operated, regardless of the position of the ig-
nition key.

Push the switch to turn on the hazard warning flashers, all turn-signal lamps flash continu-
ously.
Turn-signal lever
5-42OVWX17E1Instruments and controls5

1- Headlamps, high-beam: 65 W (H9)
2- Position and Daytime running lamps*
3- Front fog lamps*: 55 W (H11)
4- Headlamps, low beam with discharge
lamp: 35 W
Headlamps, low beam without discharge lamp: 55 W (H11)
5- Position lamps*: 5 W (W5W)
6- Front turn-signal lamps: 21 W
(WY21W)
7- Side turn-signal lamps (on fender)*: 5 W
8- Side turn-signal lamps (on outside rear-
view mirror)*
Codes in parentheses indicate bulb
types.CAUTIONl On vehicles with discharge headlamps, do
not attempt to disassemble or repair dis-
charge headlamps, and do not attempt to re- place their bulbs. A high voltage is presentin the power circuit and in the bulbs andbulb terminals. To avoid the risk of an elec-
tric shock, contact by a MITSUBISHI
MOTORS Authorized Service Point when-
ever repair or replacement is necessary.NOTEl The following lamps are not possible to re-
pair or replace only the bulb.NOTEIf you need to repair or replace these lampbulbs, contact a MITSUBISHI MOTORS
Authorized Service Point.
• Position and Daytime running lamps
• Side turn-signal lamps (on fender)
• Side turn-signal lamps (on outside rear-
view mirror)
1- High-mounted stop lamp (bulb type)*:
16 W (W16W)
2- Licence plate lamps: 5 W (W5W)
3- Rear fog lamp: 21 W (W21W)
4- Tail lamps*: 5 W (W5W)
5- Rear turn-signal lamps*: 21 W
(WY21W)
6- Rear turn-signal lamps*: 21 W
(WY21W)
7- Stop and tail lamps*: 21/5 W (W21/5W) Stop lamps*: 21/5 W (W21/5W)
8- Reversing lamps: 21 W (W21W) Codes in parentheses indicate bulbtypes.NOTEl On vehicles with LED type high-mounted
stop lamp, do not attempt to repair or replaceit.
For repair and replacement, contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
Replacement of lamp bulbs
10-24OVWX17E1Maintenance10 3-door models5-door models
Rear

2.Depress the tab (B) on the harness con-
nector and pull the harness connector
(C) to remove it.
3. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated. If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., andrefit it after drying it thoroughly.Position lamps (except for vehi-
cles with discharge headlamps)
E01003702332
1. Turn the bulb socket anticlockwise to re-
move it.
2. Remove the bulb from the socket by
pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps
E01003800733
1. Turn the bulb socket anticlockwise to re-
move it.
2. Remove the bulb from the socket by
pulling out.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-26OVWX17E1Maintenance10

Rear combination lamps
E01004200659
On corner side
1. Remove the screws that hold the lamp
unit.
2. Slide the lamp unit out sideways to re-
move it.
Left sideRight side3. Remove the socket and bulb assemblies
by turning them anticlockwise. Remove the bulb by pulling it out.3-door models5-door models
A- Rear turn-signal lamp* B- Stop and tail lamp* Stop lamp*
C- Reversing lamp
4. To install the bulb, perform the removal
steps in reverse.
On bumper*
1. Remove the lens mounting screws.
2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
D- Rear turn-signal lamp
E- Tail lamp
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
