Indicators 5-76 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn signal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551301049
This indicator light illuminates while theparking lights are on.
N00575600010
This indicator comes on in green while thecoolant temperature is low.
N00568800036
This indicator comes on while fuel-efficientdriving is achieved.
N00520300147 N00520400526
This light comes on when the ignition switch is turned to the “ON” position (engine off) or the operation mode is put in ON.When the engine is st
arted, the light should
go off a few seconds later. The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and the parking brake applied, a buzzer will sound to in
form the driver that
the parking brake is not properly release. Before driving, be sure that the parking brake is fully released and the brake warning light is off.
24- For details, refer
to “Warning activa-
tion” on page 5-14 (if so equipped)
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
(if so equipped)
Low coolant temperature indi- cator - green
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat- ing starts working.
ECO indicator
Warning lights Brake warning light and buzzer
BK0236100US.book 76 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Turn signal lever
Features and controls 5-81
5
the light switch to the “OFF” position to stop the tone.
N00549900142
To change the headlights from high beam tolow beam and vice vers
a, pull the turn signal
lever to (1). Switch the headlights to low beam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument
cluster i
ndicates when
the headlights are on high beam.
N00550000185
You can flash the high beams by pulling the lever gently toward you (2). The lights will
go back to normal when you let go. While the high beam is on, you will
see a blue light on
the instrument panel.
N00522600519
When changing lanes, or
to making a gradual
turn, hold the lever in the “lane change” posi- tion (1). It will return
to the neutral position
when you let go. Use the full position (2) when making a normal turn. The lever will return to the neutral position when the turn iscomplete. There may be times when the lever does not return to the neutral position. This usually happens when the steering wheel isturned only slightly. You
can easily return the
lever by hand. Also, when you move the lever to (1) slightlythen release it, the turn signal lights and the indicator light in the instrument cluster will flash three times.
Dimmer (high/low beam change) Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high-beam illumin
ation, the headlights
are automatically returned to their low-beam setting when the light
switch is next turned
to the “ ” position.
Turn signal lever
NOTE
 A light in the instrument panel flashes to show when the turn signal lights are workingproperly. If this light flashes fa
ster than usual, check
for a burned out turn signal light bulb or mal-functioning connection in the signal. If the panel light does not come on when the lever is moved, check for a blown fuse or aburned out bulb in the panel. Have the system inspected by your autho- rized Mitsubishi Motors dealer or a repairfacility of your choice.  It is possible to modi
fy functions as follows:
• Deactivate the turn signal light 3-flash function for lane changes. • Adjust the time required to operate the lever for the 3-flash function. • Changing of the tone of a sounding buzzer as the turn signal lights flash.
BK0236100US.book 81 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Replacement of light bulbs 9-26 Vehicle care and maintenance
9
5. Insert a new fuse
of the same capacity
securely into the appropriate slot.
N00942901362
Before replacing the bulb, be sure the light is off. Do not touch the glass part of the new bulb with your bare fingers; the oil from yourskin will stay on the
glass and dim or destroy
the bulb when it gets hot.
B- Fuse is OK C- Blown fuseCAUTION Never use a fuse with a capacity greater than the one listed or any s
ubstitute, such as wire,
foil etc. This would
cause the circuit wiring
to heat up and could cause a fire. If the replacement fuse blows again after a short time, have the electrical system checked by an authorized Mitsubishi Motors dealer or a repair faci
lity of your choice to
find and correct
the cause.
Replacement of light bulbs
CAUTIONBulbs are extremely hot immediately after being turned off. When replacing the bulb, wait for it to coolsufficiently before
touching it. You could
otherwise be burned. Handle halogen light bul
b with care. The gas
inside halogen light
bulb is highly pressur-
ized, so dropping, knocki
ng, or scratching a
halogen light bulb can
cause it to shatter.
Never hold the halogen
light bulb with a bare
hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights areused. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
CAUTION Do not install commercially available LED- type bulbs. Commercially availa
ble LED-type bulbs
could adversely affect the operation of thevehicle, such as by preventing the lights and other vehicle equi
pment from operating
properly.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be ca
rried out by an autho-
rized Mitsubishi Motors
dealer or a repair
facility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.
BK0236100US.book 26 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Replacement of light bulbs
Vehicle care and maintenance 9-27
9
N00943000132
The bulb should only be replaced with a new bulb with the same rating and type. The type and rating are listed on the base of the bulb.
N00950302043
 When it rains, or wh
en the vehicle has been
washed, the inside of the lens sometimesbecomes temporarily foggy. This is the samephenomenon as when window glass mists up on a humid day, and does not indicate a func- tional problem.When the light is switched on, the heat will remove the fog. However, if water gathers inside the light, please
have it checked by an
authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity Outside
NOTE
Front
Description
Wa t t- age
ANSI Tr a d e N o . or Bulb type
1
Front turn signal light/Parking light
32/3 cp #1157NA
2
Headlight/Day- time running light (if so equipped)
—
9007 HB5
3
Front fog light (if so equipped)
55 W H11
4
Front side-marker light
5 W W5W
5
Side turn signal light (on fender, if so equipped)
5 W —
Side turn signal light (on outside rearview mirror, if so equipped)
——
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light (on fender). Check with an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice
when the light needs to be repaired or replaced.
 The side turn signal li
ght (on outside rear-
view mirror) uses an LED rather than thebulb. For repair and re
placement, contact an
authorized Mitsubishi Motors dealer or a repair facility of your choice.
Item
Wattage
ANSI trade No. or bulb type
1
High-mounted stop light
——
2
License plate light
5 W W5W
3 Back-up light 21 W P21W4
Rear turn signal light
21 W PY21W
NOTE
Rear
BK0236100US.book 27 ページ ２０１６年２月１日　月曜日　午前１０時１５分

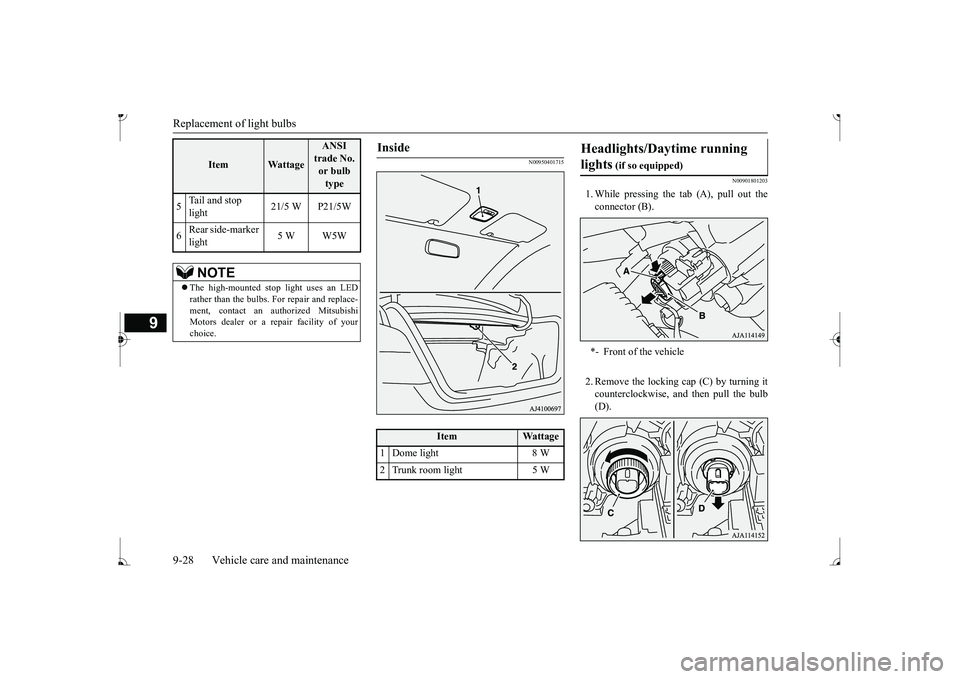

Replacement of light bulbs 9-28 Vehicle care and maintenance
9
N00950401715
N00901801203
1. While pressing the tab (A), pull out the connector (B). 2. Remove the locking cap (C) by turning it counterclockwise, and then pull the bulb (D).
5
Tail and stop light
21/5 W P21/5W
6
Rear side-marker light
5 W W5W
NOTE
 The high-mounted stop light uses an LED rather than the bulbs. For repair and replace-ment, contact an authorized Mitsubishi Motors dealer or a re
pair facility of your
choice.
Item
Wattage
ANSI trade No. or bulb type
Inside
Item
Wattage
1 Dome light 8 W 2 Trunk room light 5 W
Headlights/Daytime running lights
(if so equipped)
*- Front of the vehicle
BK0236100US.book 28 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Replacement of light bulbs
Vehicle care and maintenance 9-29
9
3. To install the bulb, perform the removal steps in reverse.
N00943200352
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice.
N00917301681
1. Turn the socket (A
) counterclockwise to
remove it.
2. Pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
N00943401478
1. Turn the socket (A) counterclockwise to remove it.
2. Remove the bulb from the socket by turn- ing it counterclockwis
e while pressing in.
3. To install the bulb, perform the removal steps in reverse.
N00943601904
1. Insert a straight blade (or minus) screw-driver with a cloth over its tip at the edge of the cover (A) and pry gently to remove the cover.
Headlight aim adjustment Front side-marker lights *- Front of the vehicle
Front turn signal lights/Parking lights *- Front of the vehicle
Front fog lights
(if so equipped)
BK0236100US.book 29 ページ ２０１６年２月１日　月曜日　午前１０時１５分
