How to change a tire 8-10 For emergencies
8
7. [Vehicle with steel wheels] • Normal wheels and compact spare wheel Install the wheel nuts (tapered nuts) withtheir tapered ends facing inward, then tighten by hand until the wheel is no lon- ger loose. [Vehicle with aluminum wheels] • Normal wheels
Temporarily tighten the wheel nuts (flange nuts) until their flange section comes in contact with the wheel and it is no longer loose. • Compact spare wheel Install the wheel nuts with their tapered ends facing inward, then tighten by hand until the wheel is no longer loose.
8. Lower the vehicle slowly by rotating the wheel nut wrench counterclockwise until the tire touches the ground. 9. Tighten the nuts in the order shown in the illustration until each nut has been tight-ened to the torque listed here. 65 to 80 ft-lb (88 to 108 N•m)CAUTION Never apply oil to either the wheel bolts or the nuts or they will tighten too much.NOTE
Flange nuts can be temporarily used on the compact spare or steel wheel, but return them to the original wheel and tire as soon aspossible. If all four wheels are changed to steel wheels, use tapered nuts.
BK0237700US.bo
ok 10 ページ 2016年4月15日 金曜日 午前11時28分
Page 351 of 385
Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00950401728
N00943101895
1. Turn the bulb (A) counterclockwise, and then remove the headlight bulb with holder. 2. While holding down the tab (B), pull out the bulb (C).
Description
Wattage
ANSI Trade No. or Bulb type
1-
High-mounted stop light
——
2-
License plate light
5 W W5W
3- Back-up light 21 W 7440 4- Tail light 5 W W5W 5-
Tail and stop light
21/5 W 7443
6-
Rear turn sig- nal light
21 W 7440
7-
Rear side- marker light
5 W W5W
Rear
NOTE
The high-mounted stop light uses LEDs rather than bulbs. For repair and replace- ment, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice.
Inside
Description
Wattage
1- Trunk area light 5 W2- Dome light (rear) (if so
equipped)
8 W
3-
Dome light (front)/ Reading light
8 W
Headlights (low beam, except for vehicles with high intensity discharge headlights) * - Front of the vehicle
BK0237700US.bo
ok 32 ページ 2016年4月15日 金曜日 午前11時28分
Page 352 of 385

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
3. To install the bulb, perform the removal steps in reverse.
N00943100885
1. When replacing the bulb on the front pas- senger’s side, remove the bolt (A) holdingdown the washer tank spout and move thespout toward the rear of the vehicle.
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the bulb (C) counterclockwise to remove it. 4. While holding down
the tab (D), pull out
the bulb (E).
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from yourhand could cause the bulb to break the next time the headlights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
Headlights (high beam, except for vehicles with high intensity discharge headlights) * - Front of the vehicle
*- Front of the vehicle * - Front of the vehicle
BK0237700US.bo
ok 33 ページ 2016年4月15日 金曜日 午前11時28分
Page 353 of 385

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
5. To install the bulb, perform the removal steps in reverse.
N00943100625
Do not attempt to disassemble or repair head- lights, and do not attempt to replace theirbulbs.
N00943200121
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301708
1. Turn the socket (A) counterclockwise toremove it. 2. Pull the bulb out of the socket.
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc.The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low/high beam, for vehicles with high intensity dis- charge lights)
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con-tact an authorized Mitsubishi dealer whenever repair or replacement is neces- sary.
Adjustment of headlight aim Front side-marker lights/park- ing lights (Type 2, except for vehicles with high intensity dis-charge head lights)
(if so equipped)
* - Front of the vehicle
BK0237700US.bo
ok 34 ページ 2016年4月15日 金曜日 午前11時28分
Page 354 of 385
Replacement of light bulbs
Vehicle care and maintenance 9-35
9
3. To install the bulb, perform the removal steps in reverse.
N00917301711
1. To create enough work space, turn thesteering wheel all the way in the direction opposite to the side you wish to replace. 2. Remove the clips (A), and screws (B) orbolts (B) to turn up the cover (C).
3. Turn the socket (D) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
N00943401436
1. Remove the clips (A) and clips (B), thenremove the duct (C) and the upper cover(D).
Front side-marker lights (for vehicles with high intensity dis- charge headlights)
Front turn signal lights
BK0237700US.bo
ok 35 ページ 2016年4月15日 金曜日 午前11時28分
Page 355 of 385
Replacement of light bulbs 9-36 Vehicle care and maintenance
9
2. Remove the entire socket and bulb assem- bly (E) by turning it counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00943601858
1. On vehicles with the parking lights onbumper/daytime running lights on bum-per, pull the light cover (A) out in thedirection of the arrow shown in the illus- tration to disconnect the hooks (B).
2. Insert a straight blade (or minus) screw- driver with a cloth over its tip into the light cover (A) and pry gently to remove it.
* - Front of the vehicle
Front fog lights
(if so equipped)
Type 1Type 2
BK0237700US.bo
ok 36 ページ 2016年4月15日 金曜日 午前11時28分
Page 356 of 385
Replacement of light bulbs
Vehicle care and maintenance 9-37
9
3. Remove the screws (C) and remove the light unit.
4. While holding down the tab (E), pull out the socket (F). 5. Turn the bulb (G) counterclockwise to remove it.
6. To install the bulb, perform the removal steps in reverse.
NOTE
When unfastening the screws, be careful not to move the beam position adjustment screw(D).
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the nexttime the fog lights are used. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
BK0237700US.bo
ok 37 ページ 2016年4月15日 金曜日 午前11時28分

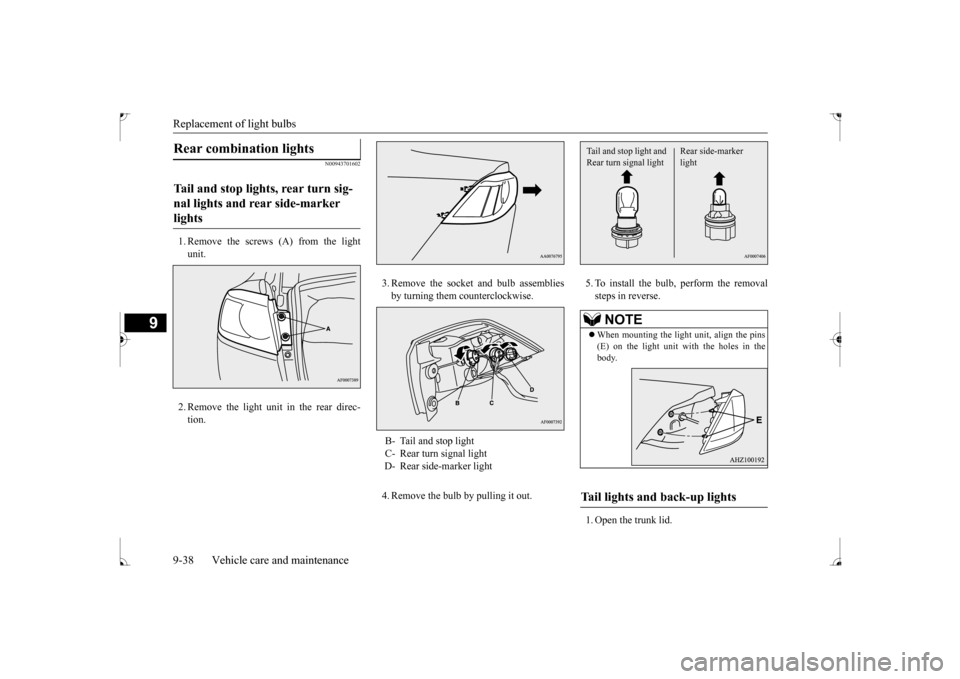

Page 357 of 385
Replacement of light bulbs 9-38 Vehicle care and maintenance
9
N00943701602
1. Remove the screws (A) from the light unit. 2. Remove the light unit in the rear direc- tion.
3. Remove the socket and bulb assemblies by turning them counterclockwise. 4. Remove the bulb by pulling it out.
5. To install the bulb, perform the removal steps in reverse. 1. Open the trunk lid.
Rear combination lights Tail and stop lights, rear turn sig- nal lights and rear side-marker lights
B- Tail and stop light C- Rear turn signal light D- Rear side-marker light
NOTE
When mounting the light unit, align the pins (E) on the light unit with the holes in the body.
Tail lights and back-up lights
Rear side-marker light
Tail and stop light and Rear turn signal light
