2017 MITSUBISHI L200 display

Instruments and ControlsE085001018241. Audio* p. 7-39Digital clock* p. 7-102
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Heater*/Air conditioning* p. 7-04
4. Front passenger’s airbag indicator p. 4-25, 4-27
5. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-25, 4-28
6. Side ventilators p. 7-02
7. Glove box p. 7-105
8. Cigarette lighter p. 7-101
9. USB input terminal* p. 7-96 HDMI terminal* p. 7-99
10. Key slot* p. 6-20
11. Centre console under tray p. 7-105, 7-106
12. Gearshift lever* p. 6-27 Selector lever* p. 6-28
13. Parking brake lever p. 6-05
14. Cup holder p. 7-107
15. Floor console box p. 7-105, 7-106 Accessory socket p. 7-102
16. Easy select 4WD* p. 6-35 Super Select 4WD II* p. 6-40
17. Auto Stop & Go (AS&G) OFF switch* p. 6-23
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Hazard warning flasher switch p. 5-21
21. Supplemental restraint system (SRS) - airbag (for driver’s seat) p. 4-24, 4-28
Horn switch p. 5-28
22. Bluetooth ®
2.0 interface* p. 7-76
23. Audio remote control switches* p. 7-28
24. Cruise control switch* p. 6-64
25. Rear window demister switch p. 5-27
Instruments and Controls
1-03OKTE17E1Overview/Quick guide1

27. Audio* p. 7-18 7-39Digital clock* p. 7-102
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
Instruments and Controls
1-05OKTE17E1Overview/Quick guide1

7-Fuel tank filler door release
lever*
Open the fuel tank filler door.
The fuel tank filler is located on the rear left side of your vehicle.
Refer to “Filling the fuel tank” on page 2-02.
Automatic transmission Sports
Mode 5A/T
E08501001325
Selector lever operation
The transmission selects an optimum gear ra- tio automatically, depending on the speed of the vehicle and the position of the acceleratorpedal.
While depressing the brake ped-
al, move the selector lever through the gate.Move the selector lever through
the gate.
Selector lever positions
“P” PARK
This position locks the transmission to pre-
vent the vehicle from moving. The engine
can be started in this position.
“R” REVERSE
This position is to back up.
“N” NEUTRAL
At this position the transmission is disengag- ed.
“D” DRIVE
This position is for normal driving.

Refer to “Automatic transmission Sports Mode 5A/T” on page 6-28.
Multi information display
E08501201226
Always stop the vehicle in a safe place before
operating.
Quick guide
1-19OKTE17E1Overview/Quick guide1Type 1 Type 2 LHD RHD

The following information is included on themulti information display: odometer, tripme-
ter, average fuel consumption etc.
1- Engine coolant temperature display
® p. 5-06
2- Selector lever position display*
® p. 6-31
3- Speed limiter display* ® p. 6-71
4- Gearshift indicator* ® p. 6-26
5- Fuel remaining display ® p. 5-07
6- Frozen road warning* ® p. 5-06
7- Information display ® p. 5-03
8- Service reminder ® p. 5-07

Refer to “Multi-information display” on page 5-02.
Quick guide
1-20OKTE17E1Overview/Quick guide1

Fuel selectionE00200104813Recommended fuel
Cetane number (EN
590) 51 or higherCAUTIONlYour vehicle is designed to use only diesel
fuel that meets the EN590 standard.
Use of any other type of diesel fuel would
adversely affect the engine’s performance and durability.
l If proper “winter” fuel is not used in winter,
the diesel preheat indication lamp may blink
and the engine speed may not rise above the idling speed because of fuel freezing. In thiscase, keep the engine idling for approxi-
mately 10 minutes, then turn off the ignition switch or put the operation mode in OFF and
immediately turn it on or put in ON again to confirm that the diesel preheat indication
lamp is off. (Refer to “Diesel preheat indica- tion lamp” on page 5-14)NOTEl For diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con- siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.
l Poor-quality diesel fuel can cause deposits to
form in the injector, resulting in black smoke and rough idling.
If these problems occur, you are advised to
add a cleaning additive to the diesel fuel when you refuel the vehicle.
The additive will break up and remove the
deposits, thereby returning the engine to a normal condition.
Be sure to use a MITSUBISHI MOTORS
GENUINE DIESEL FUEL SYSTEM
CLEANER. Using an unsuitable additive could make the engine malfunction. For de-
tails, please contact your MITSUBISHI
MOTORS Authorized Service Point.Filling the fuel tank
E00200204322WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and filling stations.
l Fuel is highly flammable and explosive.
You could be burned or seriously injured
when handling it. When refueling your
vehicle, always turn the engine off and keep away from flames, sparks and smok-
ing materials. Always handle fuel in well-
ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by touching a metal part of the vehicle or
fuel pump. Any static electricity on your
body could create a spark that ignites fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel
tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you moved
away and did something else (for exam- ple, sitting on a seat) part-way through
the refueling process, you could pick up a fresh charge of static electricity.
l Be careful not to inhale fuel vapour. Fuel
contains toxic substances.
Fuel selection
2-02OKTE17E1General information2

Instruments.......................................................................................... 5-02
Multi-information display................................................................... 5-02 Indication and warning lamps (multi information display)................ 5-12Indication lamps.................................................................................. 5-13
Warning lamps.................................................................................... 5-15
Combination headlamps and dipper switch........................................ 5-17
Headlamp levelling switch.................................................................. 5-19
Turn-signal lever................................................................................. 5-20
Hazard warning flasher switch............................................................5-21 Fog lamp switch*................................................................................ 5-22Wiper and washer switch.................................................................... 5-23
Rear window demister switch............................................................. 5-27
Horn switch......................................................................................... 5-28Instruments and controls
OKTE17E15

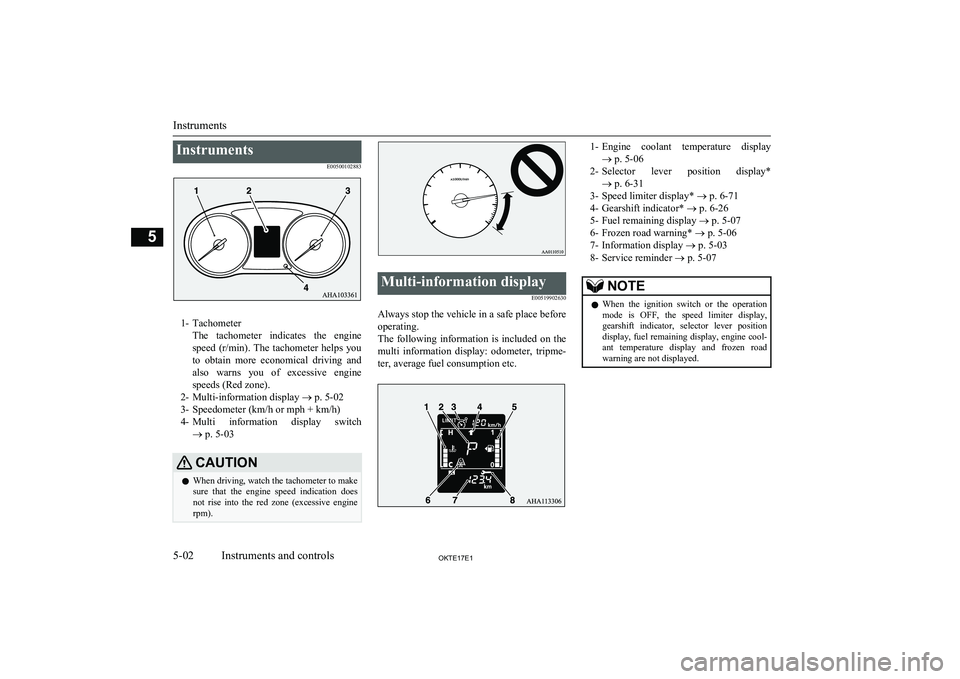

InstrumentsE00500102883
1- TachometerThe tachometer indicates the engine
speed (r/min). The tachometer helps you to obtain more economical driving and
also warns you of excessive engine
speeds (Red zone).
2- Multi-information display ® p. 5-02
3- Speedometer (km/h or mph + km/h)
4- Multi information display switch
® p. 5-03
CAUTIONl When driving, watch the tachometer to make
sure that the engine speed indication does not rise into the red zone (excessive enginerpm).Multi-information display
E00519902630
Always stop the vehicle in a safe place beforeoperating.
The following information is included on the multi information display: odometer, tripme-
ter, average fuel consumption etc.
1- Engine coolant temperature display
® p. 5-06
2- Selector lever position display*
® p. 6-31
3- Speed limiter display* ® p. 6-71
4- Gearshift indicator* ® p. 6-26
5- Fuel remaining display ® p. 5-07
6- Frozen road warning* ® p. 5-06
7- Information display ® p. 5-03
8- Service reminder ® p. 5-07NOTEl When the ignition switch or the operation
mode is OFF, the speed limiter display,
gearshift indicator, selector lever position display, fuel remaining display, engine cool-
ant temperature display and frozen road warning are not displayed.
Instruments
5-02OKTE17E1Instruments and controls5

Information display
E00528201313
Each time you lightly press the multi information display switch (A), the display switches in the following order.
1- Odometer ® p. 5-04
2- Tripmeter
® p. 5-04
3- Tripmeter
® p. 5-04
4- Meter illumination control ® p. 5-04
5- Driving range display ® p. 5-05
6- Average fuel consumption display ® p. 5-05
7- Auto Stop & Go monitor* ® p. 5-058- Outside temperature display*
® p. 5-06
9- Service reminder (distance) ® p. 5-07
10- Service reminder (month) ® p. 5-07
Multi-information display
5-03OKTE17E1Instruments and controls5
