2017 MITSUBISHI ASX reversing sensor system

1. Keyless entry system* p. 3-04, 3-21Keyless operation system* p. 3-07
Locking and unlocking the doors p. 3-24
2. Changing tyres p. 8-13 Tyre inflation pressures p. 10-13
Tyre rotation p. 10-15
Tyre chains p. 10-16
Size of tyres and wheels p. 11-12
Tyre pressure monitoring system (TPMS)* p. 6-59
3. Turn-signal lamps/Hazard warning lamps p. 5-54, 5-55, 10-27, 10-36
4. Stop lamps/Tail lamps p. 5-48, 10-27, 10-36
5. Corner sensors* p. 6-65
6. Reversing lamps p. 5-48, 10-27, 10-36
7. Back sensors* p. 6-65
8. Rear fog lamp* p. 5-56, 10-27, 10-35
9. Licence plate lamps p. 5-48, 10-27, 10-37
10. Rear-view camera* p. 6-69
11. Rear window wiper p. 5-61
12. Rear spoiler
13. High-mounted stop lamp p. 10-27
14. Antenna
15. Tailgate p. 3-30
Exterior
1-13OGAE17E2Overview1

Economical driving............................................................................. 6-02
Driving, alcohol and drugs.................................................................. 6-03
Safe driving techniques....................................................................... 6-03
Running-in recommendations............................................................. 6-04 Parking brake...................................................................................... 6-06
Parking................................................................................................ 6-07
Steering wheel height and reach adjustment....................................... 6-08
Inside rear-view mirror....................................................................... 6-08 Outside rear-view mirrors................................................................... 6-10
Ignition switch.....................................................................................6-12 Steering wheel lock............................................................................. 6-13
Starting................................................................................................ 6-14 Diesel particulate filter (DPF)*........................................................... 6-17Turbocharger operation*..................................................................... 6-18Auto Stop & Go (AS&G) system*..................................................... 6-19
Manual transmission*......................................................................... 6-23 Automatic transmission INVECS-II Sports Mode 6A/T (Intelligent & Innovative Vehicle Electronic Control
System II)*......................................................................................6-26
Automatic transmission INVECS-III Sports Mode 6CVT (Intelligent & Innovative Vehicle Electronic Control
System III)*.................................................................................... 6-32
Electronically controlled 4WD system*............................................. 6-39 4-wheel drive operation...................................................................... 6-41
Inspection and maintenance following rough road operation............. 6-43
Cautions on handling of 4-wheel drive vehicles................................. 6-43
Braking................................................................................................ 6-44
Hill start assist*................................................................................... 6-45
Brake assist system............................................................................. 6-47Emergency stop signal system*.......................................................... 6-48
Anti-lock brake system (ABS)............................................................ 6-48
Electric power steering system (EPS)................................................. 6-50 Active stability control (ASC)*.......................................................... 6-51Cruise control*.................................................................................... 6-54
Tyre pressure monitoring system (TPMS)*........................................ 6-59 Reversing sensor system*................................................................... 6-65
Rear-view camera*............................................................................. 6-69 Cargo loads......................................................................................... 6-71Trailer towing......................................................................................6-73Starting and driving
OGAE17E26

NOTElWhen changing the tyre ID set, the reset
function of low tyre pressure warning threshold is automatically started. (The
warning lamp start flashing slowly.) If the
tyre is warm at this time. the reset function should be executed again when the tyre iscold.Reversing sensor system*
E00615500345
This system operates when you are backingthe vehicle. It uses corner and back sensors to detect an obstacle and the information screen
in the multi-information display and the buz-
zer to inform you of the approximate distance to the obstacle.
CAUTIONl The reversing sensor system assists you in
determining the approximate distance be-
tween the vehicle and an obstacle located behind the vehicle. It has limitations in terms
of detectable areas and objects, and may not
properly detect some objects. Therefore, do not place excessive confidence in the revers-
ing sensor system and operate the vehicle as carefully as you would do with a vehicle not equipped with this system.CAUTIONl Make sure to check the surroundings with
your own eyes to ensure safety. Do not oper-
ate the vehicle by relying on the reversing sensor system alone.Obstacle detection areas
E00615601705
The detection areas of the corner and back
sensors are limited to those shown in the il-
lustration. Moreover, the sensors are unable to detect low or thin objects or objects nearthe rear bumper. Thus, make sure to check
the surroundings as you operate the vehicle in a safe manner.
Corner and back sensor loca-
tions
There are two corner sensors (A) at the cor-ners of the rear bumper, and two back sensors
(B) in the centre of the rear bumper.
Reversing sensor system detec-
tion areas
Depending on whether the vehicle is equip-
ped with a towing bar, you can change the re-
versing sensor system between the standard
mode and the towing bar mode. The towing bar mode changes the system to exclude the
area in which the towing bar is mounted from the detection areas.
Reversing sensor system*
6-65OGAE17E2Starting and driving6

Vehicles without a towing bar
The detection areas are within approximately60 cm (A) from the corner sensors, 150 cm
(B) from the back sensors, and 60 cm (C) or less from the ground surface, excluding the
area approximately 10 cm (D) from the
ground surface.
Vehicles with a towing bar
The detection areas are within approximately 60 cm (A) from the corner sensors, 150 cm
(B) from the back sensors, and 60 cm (C) or less from the ground surface, excluding the
area approximately 10 cm (D) from the
ground surface. The non-detection areas (E) are within approximately 20 cm (F) from thebumper.
NOTEl If the rear bumper has been exposed to an
impact, the corner or back sensors may failand prevent the system from functioning
properly. Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEl The sensors do not detect objects located in
the area directly below or near the bumper. If the height of an object is lower than the
mounted position of the corner or back sen-
sors, the sensors may not continue detecting it even if they detected it initially.
For information on how to change the detec-
tion areas, please refer to “Changing the de- tection areas” on page 6-68.
CAUTIONl The reversing sensor system may not operate
properly under the following conditions:
• The sensors or surroundings are covered
with ice, snow, or mud.
• The sensors are frozen.
• The system receives ultrasonic noise from
other sources (the horns of other vehicles, motorcycle engines, brakes, radios, pour-
ing rain, splashing water, tyre chains, etc.).
• The sensors are extremely hot or cold
(while the vehicle is parked for a long pe- riod of time under a blazing sun or in coldweather).
• The vehicle tilts significantly.
• The vehicle is driven on a rough road
(with a bumpy, gravel, hilly, or grassy surface).
• The vehicle is too close to an obstacle.
Reversing sensor system*
6-66OGAE17E2Starting and driving6

CAUTION•The sensors or surroundings have been
wiped by hand, or stickers or accessorieshave been attached.
l The reversing sensor system may not proper-
ly detect the following:
• Objects that are thin, such as wire nets or
ropes.
• Objects that absorb sound waves, such as
snow.
• Objects that are shaped with a sharp an-
gle.
• Objects with a smooth surface, such as
glass.
• Objects that are low, such as kerbstones.NOTEl The buzzer may sound lower than the nor-
mal warning sound when the reversing sen-sor system is receiving ultrasonic noise from
other sources, but this is not a malfunction.
The buzzer will stop sounding and the sys- tem will return to normal operation after thenoise is no longer received.To operate
E00615700738
To operate the system, move the gearshift
lever or selector lever to the “R” position while the ignition switch or the operationmode is in ON. When the reversing sensor
system is operated, the reversing sensor sys-
tem operation indication lamp (A) will turn on. To stop the operation, push the “SO-
NAR” switch; the reversing sensor system operation indication lamp (A) is turned off.
NOTEl Only when the gearshift lever or selector
lever is in the “R” position, the reversing
sensor system can be operated or be stopped by using the “SONAR” switch.Warning for obstacles
If there is an obstacle behind the vehicle, a
warning will be issued with the information screen in the multi-information display and a
warning buzzer.
Type 2Type 1
1- Corner sensor (left)
2- Back sensor
3- Corner sensor (right)
Corner sensor
Vehicle to obstacle distanceWarning display/sound cycleApprox. 60 to 40 cmIntermittentApprox. 40 to 20 cmFast intermittentWithin approx. 20 cmContinuous
Reversing sensor system*
6-67OGAE17E2Starting and driving6

Back sensor (vehicles without a towing
bar)Vehicle to obstacle distanceWarning display/sound cycleApprox. 150 to 80 cmIntermittentApprox. 80 to 40 cmFast intermittentWithin approx.40 cmContinuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle distanceWarning display/sound cycleApprox. 150 to 100 cmIntermittentApprox. 100 to 60 cmFast intermittentWithin approx.60 cmContinuousCAUTIONlThe distances given are to be used for refer-
ence only, as errors may be caused by vari- ous factors, such as temperature, humidity,
or the shape of the obstacles.NOTEl When the sensors detect different obstacles
at the same time, the information screen in the multi-information display indicates the directions of the obstacles each sensor is de-
tecting. However, closer obstacles are given priority over other detected obstacles and the
warning buzzer sounds to inform you of
closer obstacles.Changing the detection areas
E00615800159
The detection areas can be changed as fol-
lows:
Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and release it. The buzzer sounds twice to indi-
cate that the detection area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate that the detection area has been changed.
NOTEl The detection area will not change if you
keep the “SONAR” switch pushed for
10 seconds or more.
l After pushing the “SONAR” switch, revers-
ing sensor system operation differs accord- ing to the detection area setting.
• Setting when towing bar is not equipped
When the gearshift lever or selector lever
is moved to the “R” position, the revers-
ing sensor system will operate even if cor- ner sensor operation was stopped by push-
ing the “SONAR” switch.
• Setting when towing bar is equipped
When reversing sensor system operation was stopped by pushing the “SONAR”
switch, the reversing sensor system will not operate until the engine has been stop- ped even if the gearshift lever or selector
lever is moved to the “R” position.
To resume reversing sensor system opera- tion, push the “SONAR” switch or stop and restart the engine, and then move the
gearshift lever or selector lever to the “R” position.
Reversing sensor system*
6-68OGAE17E2Starting and driving6

Reversing sensor system warn-ing display
E00615900277
In case there is a malfunction in the reversing
sensor system, the display for the malfunc-
tioning sensor will blink and the warning buzzer will sound for approximately 5 sec-
onds. Even after the buzzer has stopped sounding, the display will continue blinking
until the system reverts to the normal state. Have the vehicle inspected at aMITSUBISHI MOTORS Authorized Service
Point.
Example: Corner sensor (left) mulfunctioningType 2Type 1
Rear-view camera*
E00618401687
The rear-view camera is a system that showsthe view behind the vehicle on the screen of
the MITSUBISHI Multi Communication
System (MMCS) or the DISPLAY AUDIO.
CAUTIONl The rear-view camera is an assistance sys-
tem that enables the driver to check for ob- stacles behind the vehicle. Its range of view
is limited, so you should not overly depend on it. Please drive just as carefully as you
would if the vehicle did not have the rear-
view camera.
l Be sure to visually confirm safety around the
vehicle with your own eyes. Do not depend entirely on the rear-view camera.
Range of view of rear-view
camera
The range of view of the rear-view camera is
limited to the area shown in the illustrations.
It cannot show both sides and the lower part of the rear bumper, etc.
When reversing, be sure to visually confirm
safety around the vehicle.
Location of rear-view camera
The rear-view camera (A) is integrated into
the part near the tailgate handle.
Range of view of rear-viewcamera
Rear-view camera*
6-69OGAE17E2Starting and driving6

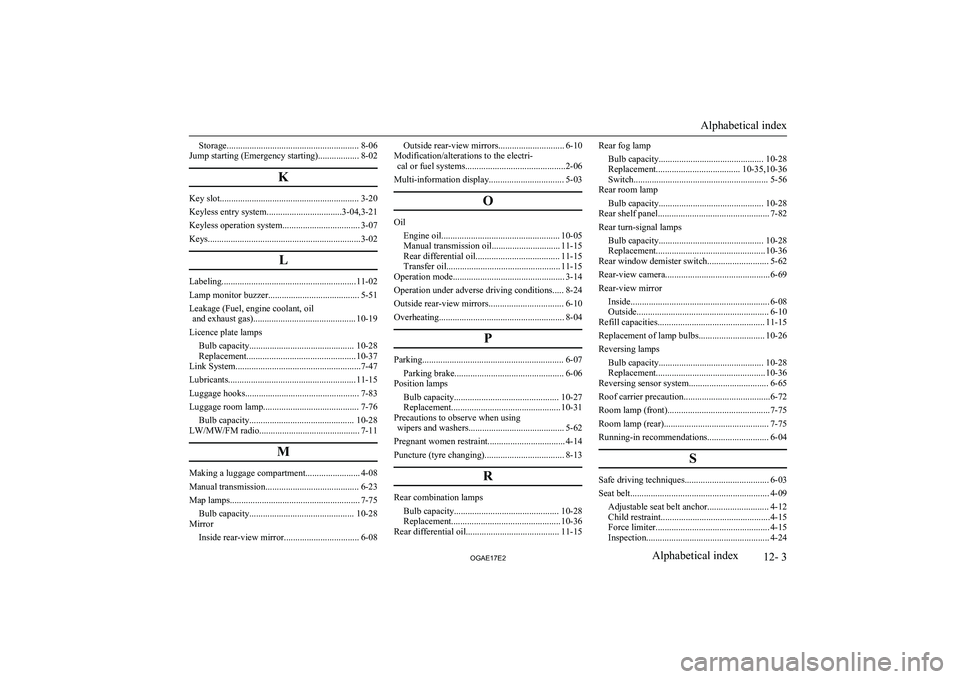

Storage.......................................................... 8-06
Jump starting (Emergency starting).................. 8-02
K
Key slot............................................................. 3-20
Keyless entry system.................................3-04,3-21
Keyless operation system.................................. 3-07
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-51
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-19
Licence plate lamps Bulb capacity.............................................. 10-28
Replacement................................................ 10-37
Link System.......................................................7-47
Lubricants........................................................ 11-15
Luggage hooks.................................................. 7-83
Luggage room lamp.......................................... 7-76 Bulb capacity.............................................. 10-28
LW/MW/FM radio............................................ 7-11
M
Making a luggage compartment........................ 4-08
Manual transmission......................................... 6-23
Map lamps......................................................... 7-75 Bulb capacity.............................................. 10-28
Mirror
Inside rear-view mirror................................. 6-08
Outside rear-view mirrors............................. 6-10
Modification/alterations to the electri- cal or fuel systems............................................2-06
Multi-information display................................. 5-03
O
OilEngine oil.................................................... 10-05Manual transmission oil.............................. 11-15Rear differential oil..................................... 11-15
Transfer oil.................................................. 11-15
Operation mode................................................. 3-14
Operation under adverse driving conditions..... 8-24
Outside rear-view mirrors................................. 6-10
Overheating....................................................... 8-04
P
Parking.............................................................. 6-07Parking brake................................................ 6-06
Position lamps
Bulb capacity.............................................. 10-27
Replacement................................................ 10-31
Precautions to observe when using wipers and washers.......................................... 5-62
Pregnant women restraint.................................. 4-14
Puncture (tyre changing)................................... 8-13
R
Rear combination lampsBulb capacity.............................................. 10-28
Replacement................................................ 10-36
Rear differential oil......................................... 11-15
Rear fog lamp
Bulb capacity.............................................. 10-28
Replacement..................................... 10-35,10-36
Switch........................................................... 5-56
Rear room lamp
Bulb capacity.............................................. 10-28
Rear shelf panel................................................. 7-82
Rear turn-signal lamps Bulb capacity.............................................. 10-28
Replacement................................................ 10-36
Rear window demister switch........................... 5-62
Rear-view camera..............................................6-69
Rear-view mirror Inside............................................................. 6-08
Outside.......................................................... 6-10
Refill capacities............................................... 11-15
Replacement of lamp bulbs............................. 10-26
Reversing lamps Bulb capacity.............................................. 10-28
Replacement................................................ 10-36
Reversing sensor system................................... 6-65
Roof carrier precaution......................................6-72
Room lamp (front).............................................7-75
Room lamp (rear).............................................. 7-75
Running-in recommendations........................... 6-04
S
Safe driving techniques..................................... 6-03
Seat belt............................................................. 4-09 Adjustable seat belt anchor........................... 4-12Child restraint................................................4-15
Force limiter.................................................. 4-15
Inspection...................................................... 4-24
Alphabetical index
12- 3
OGAE17E2Alphabetical index
