2017 MITSUBISHI ASX fuse box

1. Audio system* p. 7-11MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Key slot* p. 3-20
4. Side ventilators p. 7-02
5. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-78
6. Hazard warning flasher switch p. 5-55
7. Rear window demister switch p. 5-62
8. Accessory Socket* p. 7-74 Cigarette lighter* p. 7-73
9. Gearshift or selector lever p. 6-23, 6-26, 6-32
10. Parking brake lever p. 6-06
11. Cup holder p. 7-81
12. Drive mode selector* p. 6-39
13. Fuel tank filler door release lever p. 2-03
14. Ashtray* p. 7-72
15. Heated seat switch* p. 4-06
16. Bonnet release lever p. 10-03
17. Fuse box p. 10-20
18. Multi-information meter switch p. 5-05
19. Air conditioning* p. 7-03
Instruments and controls
1-04OGAE17E2Overview1LHD

1. Audio System* p. 7-11MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Refer to the separate owner’s manual
2. Multi-information meter switch p. 5-05
3. Bonnet release lever p. 10-03
4. Rear window demister switch p. 5-62
5. Air conditioning* p. 7-03
6. Accessory socket p. 7-74
7. Fuel tank filler door release lever p. 2-03
8. Parking brake lever p. 6-06
9. Cup holder p. 7-81
10. Drive mode selector* p. 6-39
11. Gearshift or selector lever, p. 6-23, 6-26
12. Heated seats* p. 4-06
13. Hazard warning flasher switch p. 5-55
14. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-78
Fuse box p. 10-20
15. Side ventilators p. 7-02
16. Key slot* p. 3-20
17. Centre ventilators p. 7-02
Instruments and controls
1-05OGAE17E2Overview1

1.Insert a straight blade (or minus) screw-
driver into the notch of the fuse lid and pry gently to remove it.
2. To put back the fuse lid, line up the fuse
lid hook (A) with the clamp (B) on the
instrument panel and push the lid back in.
Passenger compartment (RHD
vehicles)
The fuse boxes in the passenger compartment
are located behind the glove box at the posi-
tion shown in the illustration.
A- Main fuse block B- Sub fuse block
Main fuse block
1. Open the glove box.
2. Move the rod (A) on the left side of the
glove box to the left side of the box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
Fuses
10-21OGAE17E2Maintenance10

4.Remove the glove box fastener, and then
remove the glove box.
Sub fuse block
1. Remove the cover from the bottom of
the glove box.
Engine compartment
In the engine compartment, the fuse block is
located as shown in the illustration.
1- Push the knob.
2- Remove the cover.
Fuse load capacity
E01007701968
The fuse capacity and the names of electrical systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles), the inside of the glove box (RHD vehicles)
and inside of the fuse block cover (inside of the engine compartment).
Passenger compartment fuse lo-
cation tableNOTEl Spare fuses are provided on the lid of the
fuse block in the engine compartment. Al-ways use a fuse of the same capacity for re-
placement.Passenger compartment fuse location (LHD)Main fuse blockSub fuse block
Fuses
10-22OGAE17E2Maintenance10

No.Sym-bolElectrical sys- temCa-
paci- ties15Headlamp high- beam (right)10 A
16
Head-lamp low
beam (left)
Dis-
charge20 A17
Head- lamp low
beam
(right)
Dis-
charge20 A18
Head- lamp low
beam (left)
Halo- gen10 A19
Head-lamp low
beam
(right)
Halo- gen10 A
20ENG/POWER10 A21Ignition coil10 A*1 : Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties
22
ENG/POWER20 AFuel line heater25 A23Fuel pump15 A24Starter30 A *125———26Anti-lock brake
system40 A *127Anti-lock brake
system30 A *128
Air conditioning
condenser fan motor
30 A *129Radiator fan mo-
tor40 A*130IODIOD30 A31Audio system
amp30 A32Diesel30 A33—Spare fuse10 A34—Spare fuse15 A*1: Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties35—Spare fuse20 A*1 : Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A ,
25 A or 30 A fuses. If one of these fuses burns out, substitute with the following fuse.7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi- ble.
Identification of fuse
CapacityColour7.5 ABrown10 ARed15 ABlue20 AYellow25 ANatural (White)
Fuses
10-25OGAE17E2Maintenance10

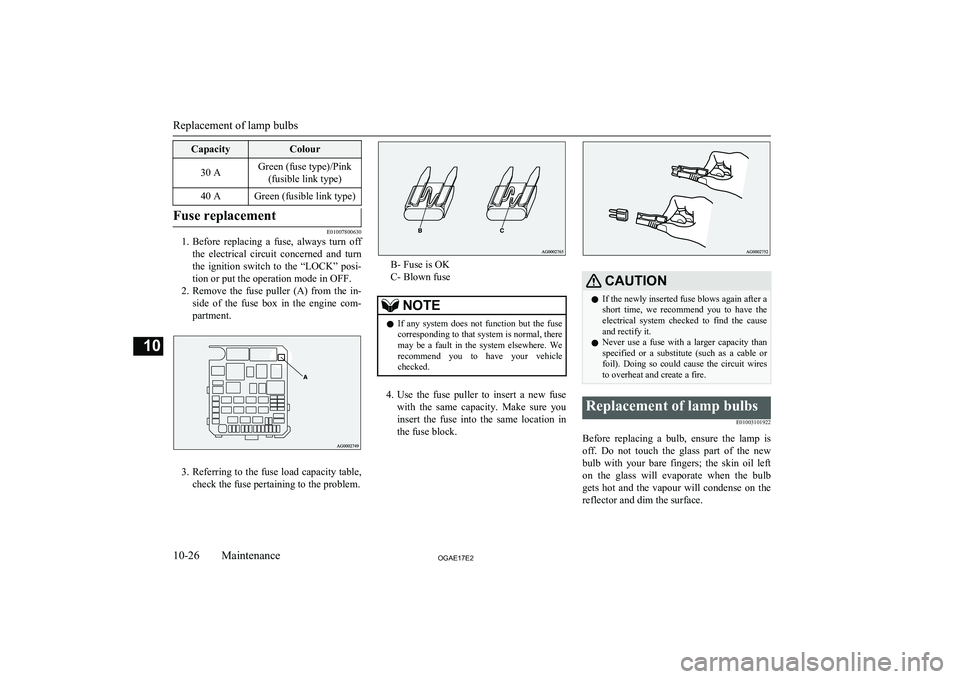

CapacityColour30 AGreen (fuse type)/Pink(fusible link type)40 AGreen (fusible link type)Fuse replacement
E01007800630
1. Before replacing a fuse, always turn off
the electrical circuit concerned and turn
the ignition switch to the “LOCK” posi-
tion or put the operation mode in OFF.
2. Remove the fuse puller (A) from the in-
side of the fuse box in the engine com-
partment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.
4. Use the fuse puller to insert a new fuse
with the same capacity. Make sure you
insert the fuse into the same location in
the fuse block.
CAUTIONl If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.Replacement of lamp bulbs
E01003101922
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.
Replacement of lamp bulbs
10-26OGAE17E2Maintenance10

E
Economical driving........................................... 6-02
Electric power steering system (EPS)............... 6-50
Electric window control.................................... 3-39
Electrical system............................................. 11-11
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Electronically controlled 4WD system............. 6-39
Emergency starting............................................8-02
Emergency stop signal system.......................... 6-48
Engine specifications.......................................11-10
Engine switch.................................................... 3-13
Engine Coolant..............................................10-07,11-15
Number....................................................... 11-03
Oil............................................................... 10-05
Oil and oil filter........................................... 11-15
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-06
Exterior and interior lamp operation............... 10-19
F
Fluid capacities and lubricants........................ 11-15
Fluid Automatic transmission fluid...................... 11-15
Brake fluid........................................ 10-09,11-15
Clutch fluid................................................. 10-09
Engine coolant.................................. 10-07,11-15
Washer fluid..................................... 10-08,11-15
For cold and snowy weather............................10-19
Front fog lamps Bulb capacity.............................................. 10-27
Replacement................................................ 10-33
Switch........................................................... 5-55
Front room lamp
Bulb capacity.............................................. 10-28
Front seat........................................................... 4-03
Front turn-signal lamps Bulb capacity.............................................. 10-27
Replacement................................................ 10-32
Fuel consumption............................................ 11-12
Fuel Filling the fuel tank....................................... 2-03
Fuel selection................................................ 2-02
Modification/alterations to the electrical or fuel systems............................. 2-06
Tank capacity................................................ 2-03
Fuses................................................................ 10-20
Fusible links.................................................... 10-20
G
General maintenance....................................... 10-19
General vehicle data........................................ 11-04
Genuine parts.....................................................2-06
Glove box lamp Bulb capacity.............................................. 10-28
H
Hazard warning flasher switch.......................... 5-55
Hazard warning indication lamps......................5-44
Head restraints................................................... 4-07
Headlamp levelling switch................................ 5-53
Headlamp washer switch...................................5-61
Headlamps Bulb capacity.............................................. 10-27
Headlamp flasher.......................................... 5-51 Replacement..................................... 10-28,10-30Switch........................................................... 5-48
Heated mirror.................................................... 6-12
Heated seats....................................................... 4-06
Heater................................................................ 7-03
High-mounted stop lamp Bulb capacity.............................................. 10-28
Replacement................................................ 10-38
Hill start assist................................................... 6-45
Hinges and latches lubrication........................ 10-19
Horn switch....................................................... 5-63
I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-12
Indication lamps................................................ 5-44
Information screen display................................ 5-46
Inside rear-view mirror......................................6-08
Inside tailgate release........................................ 3-31
Inspection and maintenance following rough road operation........................................ 6-43
Instruments........................................................ 5-02
Interior lamps.................................................... 7-74
J
Jack.................................................................... 8-07
