2017 MERCEDES-BENZ SPRINTER technical data

Coolant
Important safety notes
GWARNING
If antifreeze comes into contact with hot com- ponents in the engine compartment, it may
ignite. There is a risk of fire and injury.
Let the engine cool down before you add anti-
freeze. Make sure that antifreeze is not spilled
next to the filler neck. Thoroughly clean the
antifreeze from components before starting
the engine.
!Take care not to spill any coolant on painted
surfaces. You could otherwise damage the
paintwork.
When handling coolant, observe the important
safety notes for service products (
Ypage 273).
Coolant additive with antifreeze
requirements
!Use only approved antifreeze/corrosion
inhibitor that complies with MB Specification for Service Products, Sheet Number 325.
Using other, non-approved antifreeze/corro-
sion inhibitors may cause damage to the cool-
ant system and reduce the engine's service
life.
Coolant is a mixture of water and antifreeze/
corrosion inhibitor. It performs the following
tasks:
RAnti-corrosion protection
RAntifreeze protection
RRaises the boiling point
When the vehicle is first delivered, it is filled with
a coolant mixture that ensures adequate anti-
freeze/corrosion protection. Coolant must be
used in the system all year round to ensure anti-
corrosion protection and a raised boiling point –
even in countries with high outside tempera-
tures.
To prevent damage to the engine cooling sys-
tem, use only approved corrosion inhibitor/anti-
freeze that comply with the Mercedes-Benz
Specifications for Service Products.
We recommend corrosion inhibitor/antifreeze
that meets the requirements in MB Specifica-
tions for Service Products Sheet Number 325. Check the antifreeze/corrosion inhibitor con-
centration in the coolant every six months.
The percentage of corrosion inhibitor/anti-
freeze additive in the engine coo
ling system
should:
Rbe at least 50%. This way, the engine cooling
system is protected against freezing down to
approximately -35 ‡ (-37 †).
Rnot exceed 55% (antifreeze protection down
to -49 ‡ [-45 †]). Otherwise, heat will not be
dissipated as effectively.
If there has been coolant loss, do not refill only
with water. If the vehicle has lost coolant, add
equal parts water and corrosion inhibitor/anti-
freeze additive. The water used as part of the
coolant mixture must fulfill certain require-
ments; these are usually fulfilled by drinking
water. If the water quality is not sufficient, you
must treat the water.
Operating fluid: coolant
Product name/number
EURO Peak Coolant/Antifreeze,
OLD WORLD INDUSTRIES
MB Sheet No. 325.0
Zerex G05, The Valvoline Company
MB Sheet No. 325.0
Zerex G48, The Valvoline Company
MB Sheet No. 325.0
Glysantin G05, BASF AG
MB Sheet No. 325.0
Capacities
Engine cooling system
CoolantApprox. 10.75 qt (10.0 l)
280Service products and capacities
Technical data

Refrigerant
The air-conditioning system uses the refrigerant
R‑134a. This refrigerant does not damage the
ozone layer.
Product name/numberMaintenance interval
Refrigerant R ‑134a
MB Sheet No. 361.0—
Further information can be obtained at any
qualified specialist workshop.
Washer fluid
Important safety notes
GWARNING
Windshield washer concentrate could ignite if it comes into contact with hot engine compo-
nents or the exhaust system. There is a risk of
fire and injury.
Make sure that no windshield washer con-
centrate is spilled next to the filler neck.
!Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or MB WinterFit. Unsuitable washer fluid could dam-
age the plastic lenses of the headlamps.
When handling washer fluid, observe the impor-
tant safety notes on service products
(
Ypage 273).
Mixing ratio
Add windshield washer concentrate to the
washer fluid all year round. Adapt the mixing
ratio to the ambient temperature.
At temperatures above freezing:
XFill up the washer fluid reservoir with a mix-
ture of water and windshield washer concen-
trate, e.g. Summerwash to prevent smearing.
At temperatures below freezing:
XFill up the washer fluid reservoir with a mix-
ture of water and windshield washer concen- trate, e.g. Winterwash if there is a danger of
frost.
This prevents washer fluid from freezing on
the windshield.
Capacities
Windshield washer system with/without
headlamp cleaning system
Washer fluidApprox. 6.3 qt (6.0 l)
Vehicle data
General notes
The following section contains important tech-
nical data for your vehicle. Your vehicle regis-
tration documents contain vehicle-specific and
equipment-dependent technical data such as
vehicle dimensions and vehicle weights.
Cargo tie-down points and carrier sys-
tems
Cargo tie-down points
General notes
!Observe the information on the maximum
loading capacity of the individual cargo tie-
down points.
If you use several cargo tie-down points to
secure a load, you must always take the max-
imum loading capacity of the weakest cargo
tie-down point into account.
If you brake hard, for example, the forces act-
ing could be up to several times the weight
force of the load. Always use multiple cargo
tie-down points in order to distribute the force absorption. Load the anchorages evenly.
You will find further information about cargo tie
down points and cargo tie-down rings in the
"Transporting" section (
Ypage 210).
Vehicle data281
Technical data
Z

Cargo tie-down rings
The maximum tensile load of the cargo tie-down
rings is:
Cargo tie-down
ringsPermissible nomi-nal tensile load
Passenger Vans786.5 lbf
(3500 N)
Cargo Van1124.0 lbf (5000 N)
Load rails
The maximum tensile loads of the cargo tie-
down points in the cargo compartment are:
Cargo tie-down
pointPermissible nomi- nal tensile load
Load rails on cargo
compartment floor1124.0 lbf
(5000 N)
Lower load rail on
sidewall562.0 lbf(2500 N)
Upper load rail on
sidewall337.0 lbf(1500 N)
The values specified apply only to loads placed
on the cargo compartment floor if:
Rthe load is secured to 2 cargo tie-down points
on the rail and
Rthe distance to the nearest load-securing
point on the same rail is approximately 3 ft
(1 m).
Roof carrier
GWARNING
When you load the roof, the center of gravity
of the vehicle rises and the driving character-
istics change. If you exceed the maximum roof
load, the driving characteristics, as well as
steering and braking, will be greatly impaired.
There is a risk of an accident.
Never exceed the maximum roof load and
adjust your driving style.
GWARNING
If you distribute the load unevenly in the vehi- cle, the handling as well as the steering and
braking characteristics are severely affected.
There is a risk of an accident.
Distribute the load evenly in the vehicle.
Secure the load to prevent it from slipping.
!The weight of any load carried on the roof,
including the roof carrier, must not exceed
the maximum permissible roof load.
The roof carrier supports must be mounted at
equal distances.
We recommend that you have a stabilizer
installed on the front axle.
!For safety reasons, we recommend that you
only use roof carrier systems that have been
tested and approved for the Sprinter. This will
help to avoid damage.
The data is valid for a load distributed evenly
over the entire roof area. Maximum roof load
and minimum number of pairs of roof carrier
supports on vehicles with:
Maximum roof loadMinimum
number of
pairs of sup- ports
Standard
roof660 lbs
(300 kg)6
High roof330 lbs
(150 kg)3
Reduce the load on shorter roof carriers pro-
portionately. The maximum load per pair of roof
carrier supports is 110 lbs (50 kg).
Loading directions and other information con-
cerning load distribution and load securing can
be found in the "Transporting" section
(
Ypage 208).
Trailer tow hitch
General notes
We recommend that you have the trailer tow
hitch mounted at an authorized Sprinter Dealer. Use only a trailer tow hitch that has been tested
and approved specially for your vehicle by the
282Vehicle data
Technical data

distributor named on the inside of the front
cover. Only use a ball coupling that is approved
for your vehicle and Sprinter trailer tow hitch.
You can also find information on the permitted
dimensions of the ball coupling on the identifi-
cation plate of the trailer tow hitch.You can obtain advice from a qualified specialist
workshop. Also observe the information on tow-
ing a trailer in the "Driving and parking" section
(
Ypage 152).
Maximum permissible weights and loads
!On vehicles with a permissible gross vehicle weight of 11030 lbs (5003 kg), the permissible
gross combination weight is less than the total of the permissible gross vehicle weight and the
permissible trailer load. Exceeding the permissible gross combination weight can lead to damage
to the drivetrain, to the transmission or to the trailer tow hitch.
If the vehicle or the trailer is fully laden, the relevant value for the permissible gross vehicle weight
or the permissible trailer load is therefore lower. In this case, the trailer or the vehicle may only
be partially loaded.
Please make sure to comply with local trailer load regulations.
The permissible weights and loads which cannot be exceeded can also be found:
Rin your vehicle documents and
Ron the identification plates of the trailer tow hitch, trailer and vehicle (Ypage 272).
You will find the basic values approved by the manufacturer in the following table. If the values differ,
the lowest value applies.
Make sure that you adhere to the weight restrictions by having the weight checked on a calibrated
weighbridge.
Vehicle
typePermissi-
ble gross
weight
GVWRGross
front axle
load
GAWR
(FA)Gross rear
axle load
GAWR
(RA)Maximum
permissi-
ble gross
weight of
vehicle/
trailer com-
bination
13
GCWR
Trailer load,
braked14Maximum
permissi-
ble nose
weight
TWR
25008550 lbs
(3878 kg)3970 lbs
(1801 kg)5360 lbs
(2431 kg)13550 lbs (6146 kg)5000 lbs
(2268 kg)500 lbs
(227 kg)
35009900 lbs
(4490 kg)
Canada only4080 lbs
(1851 kg)7060 lbs
(3202 kg)14900 lbs
(6759 kg)155000 lbs
(2268 kg)15500 lbs
(227 kg)15
4410 lbs
(2000 kg)15250 lbs
(6917 kg)167500 lbs
(3402 kg)16750 lbs
(340 kg)16
9990 lbs
(4531 kg) USA only4080 lbs
(1851 kg)7060 lbs
(3202 kg)14990 lbs
(6799 kg)155000 lbs
(2268 kg)15500 lbs
(227 kg)15
4410 lbs
(2000 kg)15250 lbs
(6917 kg)167500 lbs
(3402 kg)16750 lbs
(340 kg)16
13Maximum permissible gross weight of the vehicle and trailer.14Maximum permissible gross weight of the trailer, if the trailer is equipped with a separate functional braking
system.
15Only for extra-long vehicles with an overall length of 289.2 in (7344 mm).16Not for extra-long vehicles with an overall length of 289.2 in (7344 mm).
Vehicle data283
Technical data
Z

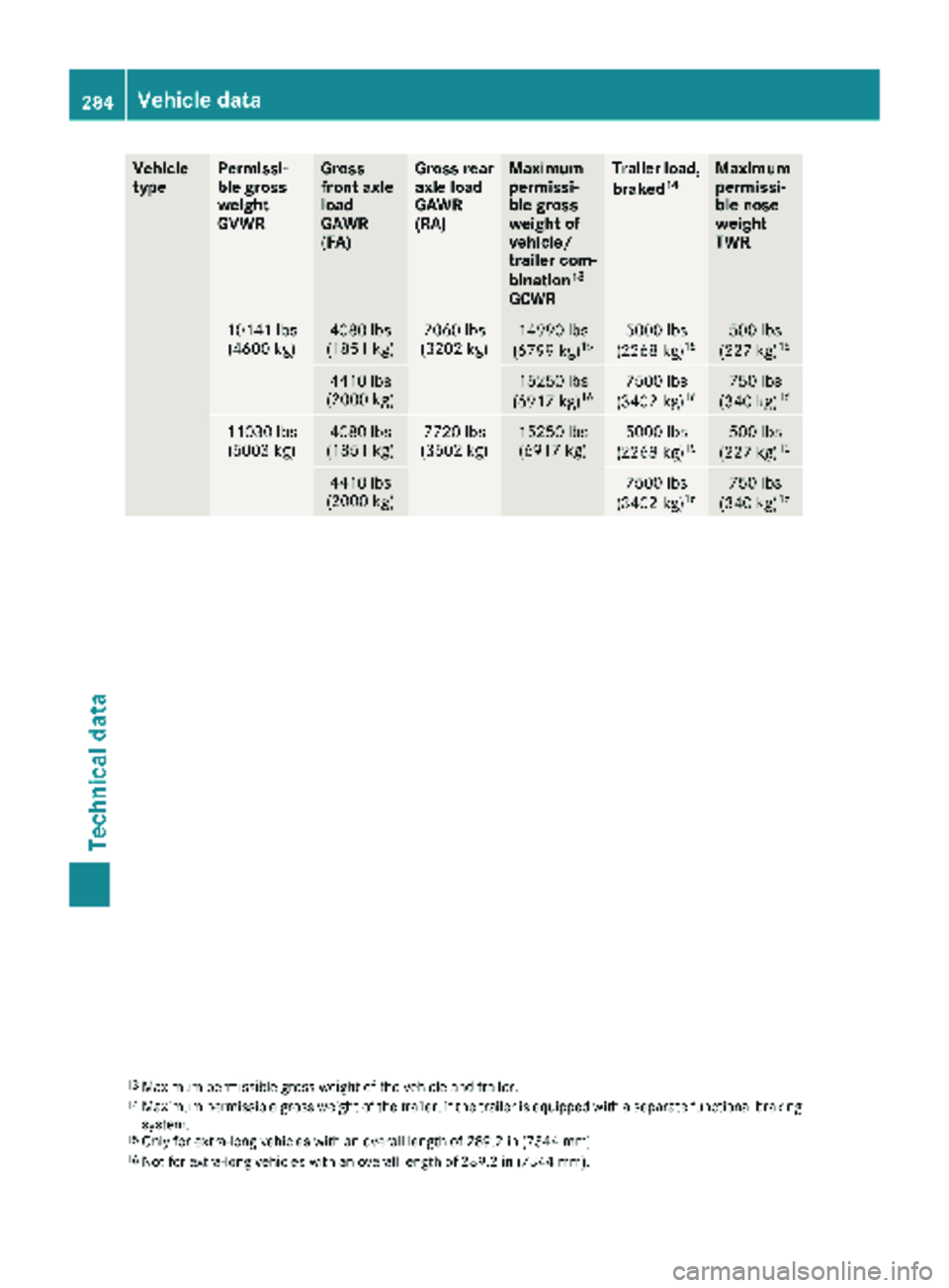

Vehicle
typePermissi-
ble gross
weight
GVWRGross
front axle
load
GAWR
(FA)Gross rear
axle load
GAWR
(RA)Maximum
permissi-
ble gross
weight of
vehicle/
trailer com-
bination
13
GCWR
Trailer load,
braked14Maximum
permissi-
ble nose
weight
TWR
10141 lbs(4600 kg)4080 lbs
(1851 kg)7060 lbs
(3202 kg)14990 lbs
(6799 kg)155000 lbs
(2268 kg)15500 lbs
(227 kg)15
4410 lbs
(2000 kg)15250 lbs
(6917 kg)167500 lbs
(3402 kg)16750 lbs
(340 kg)16
11030 lbs (5003 kg)4080 lbs
(1851 kg)7720 lbs
(3502 kg)15250 lbs (6917 kg)5000 lbs
(2268 kg)15500 lbs
(227 kg)15
4410 lbs
(2000 kg)7500 lbs
(3402 kg)16750 lbs
(340 kg)16
13Maximum permissible gross weight of the vehicle and trailer.14Maximum permissible gross weight of the trailer, if the trailer is equipped with a separate functional braking
system.
15Only for extra-long vehicles with an overall length of 289.2 in (7344 mm).16Not for extra-long vehicles with an overall length of 289.2 in (7344 mm).
284Vehicle data
Technical data
