After a malfunction has been rectified, the infor-
mation is deleted from the malfunction memory
or is continually overwritten.
When operating the vehicle, situations are con-
ceivable in which this technical data, in connec-
tion with other information (if necessary, under
consultation with an authorized expert), could
be traced to a person.
Examples include:
Raccident reports
Rdamage to the vehicle
Rwitness statements
Further additional functions that have been con- tractually agreed upon with the customer allow
certain vehicle data to be conveyed by the vehi-
cle as well. The additional functions include, for
example, vehicle location in case of an emer-
gency.
COMAND/mbrace
If the vehicle is equipped with COMAND or
mbrace, additional data about the vehicle's
operation, the use of the vehicle in certain sit-
uations, and the location of the vehicle may be
compiled through COMAND or the mbrace sys-
tem.
For additional information please refer to the
COMAND User Manual or the Digital Owners
Manual and/or the mbrace Terms and Condi-
tions.
Event data recorders
This vehicle is equipped with an event data
recorder (EDR). This vehicle is equipped with an
event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deploy-
ment or hitting a road obstacle, data that will
assist in understanding how a vehicle's systems
performed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less.
The EDR in this vehicle is designed to record
such data as:
RHow various systems in your vehicle were
operating
RWhether or not the driver and passenger
safety belts were buckled/fastened
RHow far (if at all) the driver was depressing theaccelerator and/or brake pedal and
RHow fast the vehicle was traveling.
These data can help provide a better under-
standing of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded
by your vehicle only if a non-trivial crash situa-
tion occurs; no data are recorded by the EDR
under normal driving conditions and no personal
data (e.g. name, gender, age and crash location)
are recorde d. Ho
wever, other parties, such as
law enforcement could combine the EDR data
with the type of personally identifying data rou-
tinely acquired during a crash investigation.
Access to the vehicle and/or the EDR is needed
to read data that is recorded by an EDR, and
special equipment is required. In addition to the
vehicle manufacturer, other parties that have
the special equipment, such as law enforce-
ment, can read the information by accessing the
vehicle or the EDR.
EDR data may be used in civil and criminal mat- ters as a tool in accident reconstruction, acci-
dent claims and vehicle safety. Since the Crash
Data Retrieval CDR tool that is used to extract
data from the EDR is commercially available,
Mercedes-Benz USA, LLC ("MBUSA") expressly
disclaims any and all liability arising from the
extraction of this information by unauthorized
Mercedes-Benz personnel.
MBUSA will not share EDR data with others
without the consent of the vehicle owners or, if
the vehicle is leased, without the consent of the
lessee. Exceptions to this representation
include responses to subpoenas by law enforce- ment; by federal, state or local government; in
connection with or arising out of litigation involv-
ing MBUSA or its subsid
iaries and affiliates; or,
as required by law.
Warning: The EDR is a component of the
Restraint System Module. Tampering with, alter-
ing, modifying or removing the EDR component
may result in a malfunction of the Restraint Sys-
tem Module and other systems.
State laws or regulations regarding EDRs that
conflict with federal regulation are pre-empted.
This means that in the event of such conflict, the
federal regulation governs. As of February 2013, 13 states have enacted laws relating to EDRs.
Data stored in the vehicle31
Introduction
Z

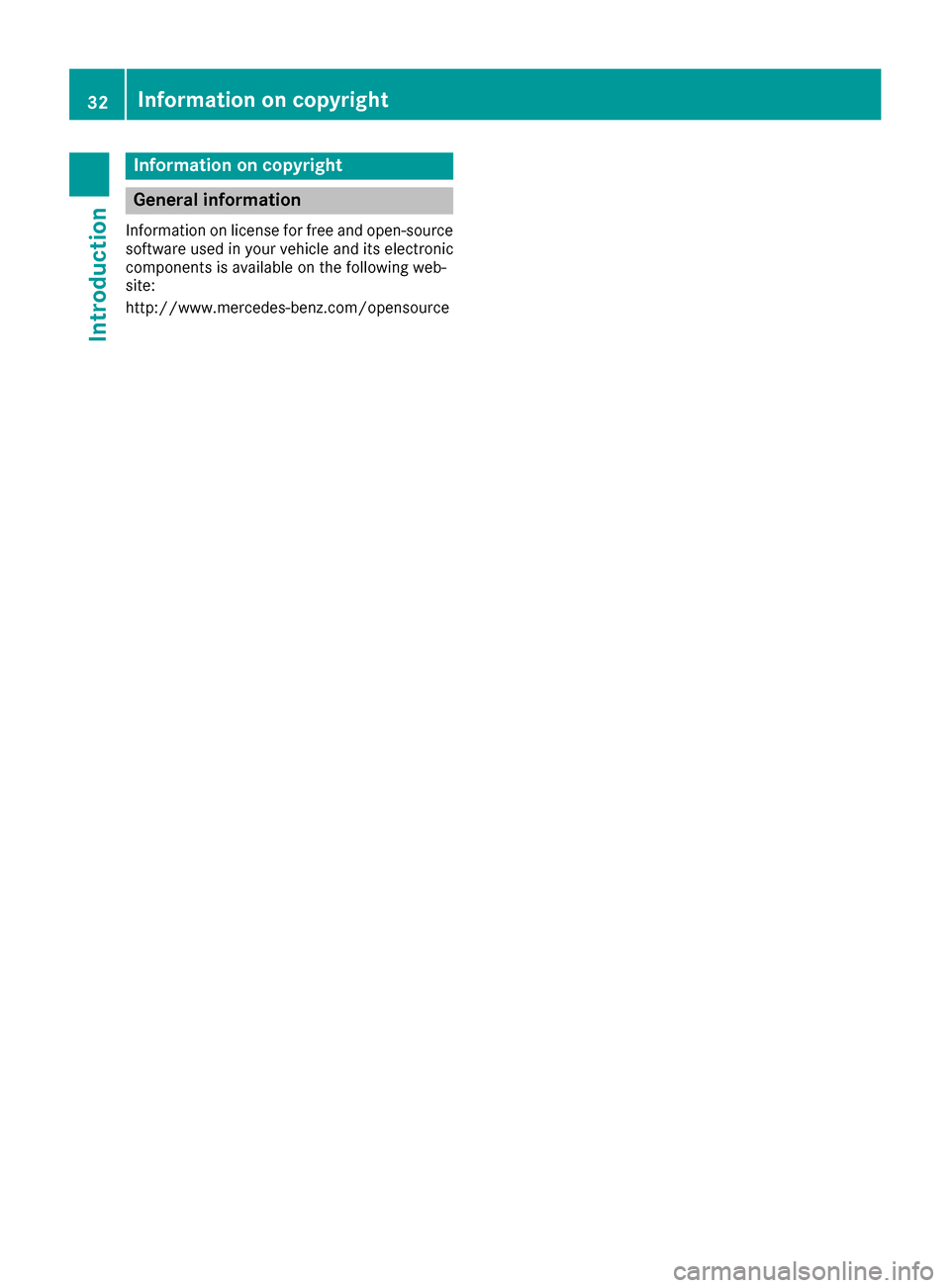

Information on copyright
General information
Information on license for free and open-source
software used in your vehicl eand it selectronic
component sis available on th efollowin gweb-
site:
http://www.mercedes-benz.com/opensource
32Information on copyright
Introduction

Cockpit
FunctionPage
0043Steering wheel paddle shift-
ers132
0044Combination switch105
0087Horn
0085Instrument cluster34
0083DIRECT SELECT lever128
0084Overhead control panel38
006BControl panel for:
00CALowering the rear seat
head restraints94
0094 Extending/retracting
the rear window roller sun-
blind
258
Moves the seat-belt extender
forwards44
PASSENGER AIRBAG indica-
tor lamps42
Adjusting the brightness of
the instrument lighting and
the multimedia system dis-
play
006CClimate control systems111
FunctionPage
006DIgnition lock121
Start/Stop button121
006EAdjusts the steering wheel98
Steering wheel heating98
006FCruise control lever146
0070Electric parking brake139
0071Diagnostics connection29
0072Opens the hood273
0073Light switch104
0074Control panel for:
Activating Steering Assist
and Stop&Go Pilot153
Switching on Active Lane
Keeping Assist183
Deactivating PARKTRONIC160
Switching on the 360° cam-
era171
Activating Night View Assist177
Switching on the head-up
display188
Cockpit33
At a glance

Instrument cluster
FunctionPage
0043Speedometer
Warning and indicator lamps:
0025 ABS234
00BB ESP®OF F234
00E5 ESP®23 4
00E9 Seat belt232
0075 Restrain tsystem42
0044Multifunction display18 8
Outside temperature display186
Warning and indicator lamps:
003E Turn signal, lef t105
0058 Low-beam headlamps105
0057 High-beam headlamps105
005E Rear fog lamp105
0060 Parking lamps, license
plat elamp sand instrumen t
cluste rlighting
10 5
003D Turn signal, right105
0087Tachometer186
Warning and indicator lamps:
FunctionPag e
00BA Distanc ewarning23 9
0024 Electric parking brak e
(yellow)23 6
Electric parking brak e(red)23 6
0049 USAonly
0024 Canad aonly
00B9 CheckEngin e237
00CC Powersteering24 1
Brake s(red)23 3
0027 USAonly
004D Canad aonly
004D Brakes(yellow)23 3
0085Coolan ttemperature gauge18 7
Warning and indicator lamps:
00AC Coolan t237
0083Fue llevel indicator
Warning and indicator lamps:
00B6 Reserve fuel level wit h
fuel filler flap location indica-
to r(right )
237
34Instrument cluster
At a glance

Multifunction steering wheel
FunctionPage
0043Instrument cluster with mul-
tifunction display188
0044Sets the brightness of the
instrument cluster and the
multimedia system display
186
0087Multimedia system display
0085DVD changer or single DVD
drive
0083Multimedia system control-
ler and buttons
00840076
Rejects or ends a call195
Exits the telephone book/
redial memory
0061
Makes or accepts a call
Switches to the redial mem-
ory
00810082
Adjusts the volume
0063
Mute
00E3
Switches on the Voice Con-
trol System
FunctionPage
006B00E2
Opens the menu list
00630064
Selects a menu or submenu
or scrolls through lists187
0076
Confirms a selection187
Hides display messages203
0038
Back187
00E1
Switches off the Voice Con-
trol System
Multifunction steering wheel35
At a glance

iAdditional information can be found:
Ron the multimedia system in the Digital
Operator's Manual
Ron the DVD changer or single DVD drive in
the Digital Operator's Manual
Ron the Voice Control System in the sepa-
rate operating instructions
36Multifunction steering wheel
At a glance

Center console
FunctionPage
004300D0Switches the multime-
dia system on/off243
0044Adjusts the volume243
008700D6 ECO start/stop func-
tion126
0085Touchpad244
Telephone keypad (see the
separate operating instruc-
tions)
008300CC Sets the vehicle level158
00840091Adjusts the suspension
settings159
006B00C9 Selects the drive pro-
gram/program selector but-
ton
131
Mercedes-AMG vehicles:
00CD Selects the drive pro-
gram/program selector but-
ton
131
FunctionPage
006C0038 Back button243
006D0050Seat adjustment but-
ton92
006E00BE Navigation button (see
Digital Operator's Manual)
006F002A Radio button (see Digi-
tal Operator's Manual)
0070002F Hazard warning lamps106
007100FDMedia button (see Dig-
ital Operator's Manual)
0072002B Telephone, address
book and Internet button;
see the Digital Operator's
Manual
007300D4 Vehicle functions/
system settings button (see
Digital Operator's Manual)
0074Controller243
Center console37
At a glance

Overhead control panel
FunctionPage
0043003DSwitches the left-hand
reading lamp on/off108
00440033 Switches the automatic
interior lighting control
on/off
108
00870053 SOS button262
0085004ASwitches the front inte-
rior lighting on/off108
00830042 Switches the rear inte-
rior lighting on/off108
0084003D Switches the right-
hand reading lamp on/off108
006B00D9 Info call button264
006CEyeglasses compartment254
006D0057Operates the roller sun-
blind for the panorama roof88
FunctionPage
006E00B7 Operates MAGIC SKY
CONTROL90
Vehicles without MAGIC SKY
CONTROL:
0057 Operates the roller sun-
blind for the panorama roof88
006FButtons for the garage door
opener269
0070Microphone for mbrace
(emergency call system),
telephone and the Voice
Control System; see the sep-
arate operating instructions
00710052 Breakdown assistance
call button263
38Overhead control panel
