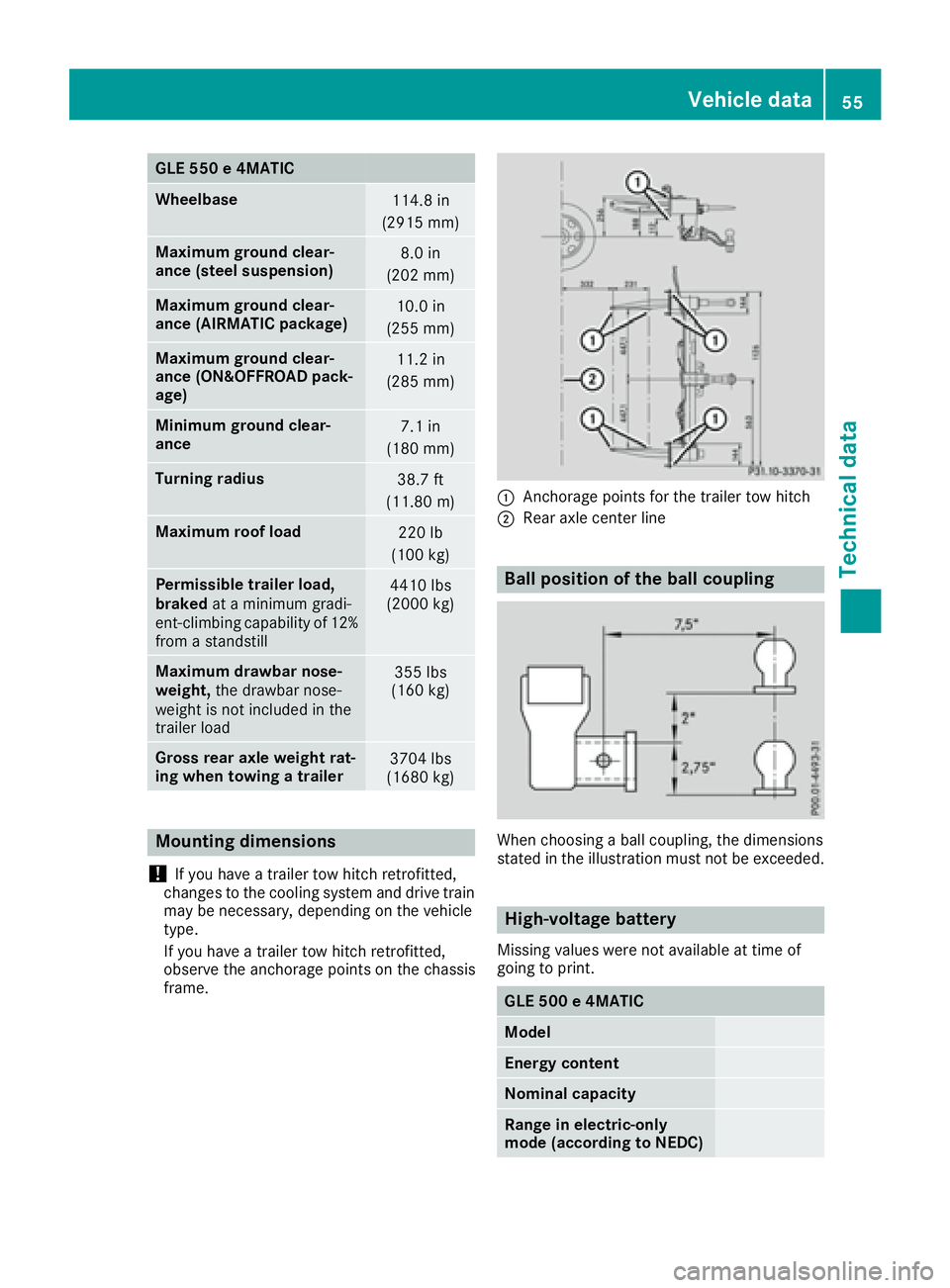

GLE 550 e 4MATIC
Wheelbase
114.8 in
(2915 mm)
Maximum ground clear-
ance (steel suspension) 8.0 in
(202 mm)
Maximum ground clear-
ance (AIRMATIC package) 10.0 in
(255 mm)
Maximum ground clear-
ance (ON&OFFROAD pack-
age) 11.2 in
(285 mm)
Minimum ground clear-
ance 7.1 in
(180 mm)
Turning radius
38.7 ft
(11.80 m)
Maximum roof load
220 lb
(100 kg)
Permissible trailer load,
braked at a minimum gradi-
ent-climbing capability of 12%
from a standstill 4410 lbs
(2000 kg)
Maximum drawbar nose-
weight, the drawbar nose-
weight is not included in the
trailer load 355 lbs
(160 kg)
Gross rear axle weight rat-
ing when towing a trailer 3704 lbs
(1680 kg)
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the cooling system and drive train
may be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chassis
frame. C
Anchorage points for the trailer tow hitch D
Rear axle center line
Ball position of the ball coupling
When choosing a ball coupling, the dimensions
stated in the illustration must not be exceeded.
High-voltage battery Missing values were not available at time of
going to print.
GLE 500 e 4MATIC
Model
Energy content
Nominal capacity
Range in electric-only
mode (according to NEDC) Vehicle data 55
Technical data
