▼Keyless Entry System/Immobilizer System
CX-5_Leaflet_030-17_Edition1.fm Page 2 Wednesday, July 5, 2017 11:00 AM

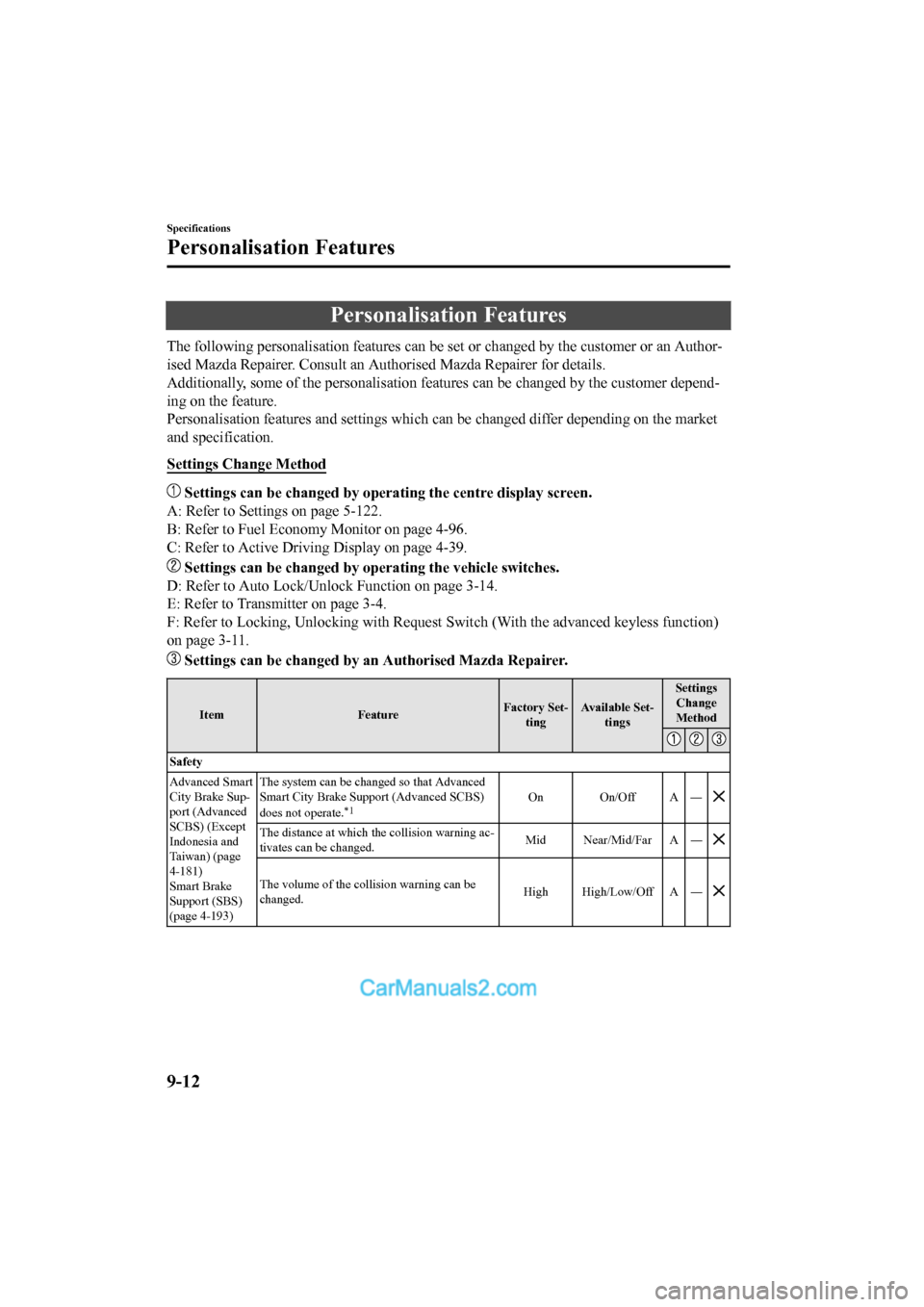

Personalisation Features
The following personalisation features can be set or changed by the customer or an Author-
ised Mazda Repairer. Consult an Authorised Mazda Repairer for d etails.
Additionally, some of the personalisation features can be changed by the customer depend-
ing on the feature.
Personalisation features and se ttings which can be changed diff er depending on the market
and specification.
Settings Change Method
Settings can be changed by oper ating the centre display screen.
A: Refer to Settings on page 5-122.
B: Refer to Fuel Economy Monitor on page 4-96.
C: Refer to Active Driving Display on page 4-39.
Settings can be changed by op erating the vehicle switches.
D: Refer to Auto Lock/Unlock Function on page 3-14.
E: Refer to Transmitter on page 3-4.
F: Refer to Locking, Unlocking with Request Switch (With the ad vanced keyless function)
on page 3-11.
Settings can be changed by an Authorised Mazda Repairer.
ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Safety
Advanced Smart
City Brake Sup-
port (Advanced
SCBS) (Except
Indonesia and
Ta i w a n ) ( p a g e
4-181)
Smart Brake
Support (SBS)
(page 4-193) The system can be chan
ged so that Advanced
Smart City Brake Support (Advanced SCBS)
does not operate.
*1On On/Off A ―
The distance at which the collision warning ac-
tivates can be changed. Mid Near/Mid/Far A ―
The volume of the collision warning can be
changed.High High/Low/Off A ―
Specifications
Personalisation Features
9-12
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemFeatureFactory Set-
ting Available Set-
tings Settings
Change
Method
Blind Spot Mon-
itoring (BSM)
(page 4-115) The system can be changed so that Blind Spot
Monitoring (BSM) does not operate.*1On On/Off A ―
Warning beep volume*2High
High/
Low/ Off A―
Distance Recog-
nition Support
System (DRSS)
(page 4-127) The system can be changed so that Distance
Recognition Support System (DRSS) does not
operate.*1On On/Off A ―
The distance at which the vehicle ahead indi-
cated in the display illuminates in amber can be
changed.
Near
Far/Medium/
Near A―
Driver Attention
Alert (DAA)
(page 4-131) The system can be changed so that Driver At-
tention Alert (DAA) does not operate.
*1On On/Off A ―
Traffic Sign
Recognition
System (TSR)
*3
(page 4-120)The Traffic Sign Recognition System (TSR)
can be set to inoperable.
*1On On/Off A ―
The warning pattern of the excessive speed
warning can be changed.
OffOff/
Vi s u a l /
Audio & Visual A―
The activation timing for the excessive speed
warning can be changed.00/5/10
A―
Parking sensor
system (page
4-232) Display/non-display
On On/Off A ―
Ve h i c l e
Door locks
(page 3-14)Operation condition of auto lock/unlock func-
tion Lock: Driv-
ing, Unlock: IGN Off Off/
Lock When Driving/
Lock: Driving, Unlock: IGN Off/
Lock When
Shifting Out Of P/
Lock: Shift
From P, Unlock: In P/
Lock: Driving, Unlock: In P AD
Keyless entry
system (page 3-
3)
Time for locking door automatically
30 seconds90 seconds/
60 seconds/
30 seconds A―
Specifications
Personalisation Features
9-15
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
A
Accessory Socket............................ 5-144
Active Driving Display..................... 4-39
Adaptive Front Lighting System
(AFS)............................................... 4-108
Adaptive LED Headlights (ALH)... 4-112
Add-On Non-Genuine Parts and
Accessories.......................................... 8-3
Adjustable Speed Lim iter (ASL).... 4-174
Activation/deactivation..............4-178
Adjustable Speed Limiter (ASL)
display........................................4-176
Adjustable Speed Limiter (ASL)
main indication (white)............. 4-177
Adjustable Speed Limiter (ASL) set
indication (green)...................... 4-177
Setting the system..................... 4-179
Speed limiter warning beep....... 4-177
Temporarily cancelling the
system........................................ 4-180
Adjustable Speed Limiter (ASL)
Display.............................................. 4-28
Advanced Key Advanced keyless entry system..... 3-8
Operational range.......................... 3-9
Advanced Keyless Entry System........ 3-8
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-181 Collision warning.... .................. 4-183
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-183
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-184
Air Bag Systems............................... 2-41
Air Bag/Seat Belt Pr etensioner System
Warning Beep.................................... 7-63
Air-Conditioning System .................... 5-4
Fully Automatic Type..................5-11
Manual Type.................................. 5-7
Operating Tips............................... 5-4
Vent Operation...............................5-5
Ambient Temperature Display.......... 4-27
Antilock Brake System (ABS).......... 4-90
Armrest Box.................................... 5-149
Ashtray............................................ 5-152
Audio Control Switch
Adjusting the Volume.................. 5-15
Mute Switch................................ 5-15
Seek Switch................................. 5-16
Audio Set [Type A (non-touchscreen)] AUX.............................................5-31
Bluetooth®.................................. 5-38
CD Player.................................... 5-27
Clock............................................5-22
Error Indications.......................... 5-37
iPod mode....................................5-35
Power/Volume/Sound Controls... 5-20
Radio............................................5-23
Radio (RDS)................................ 5-23
Troubleshooting.......... ................. 5-67
USB............................................. 5-32
Voice Recognition.... ................... 5-63
Audio Set [Type B (touchscreen)] Applications............................... 5-124
AUX.............................................5-89
Bluetooth®.................................. 5-95
CD Player.................................... 5-83
Digital Audio Broadcasting (DAB)
Radio............................................5-81
DVD Player................................. 5-86
Radio............................................5-78
Radio (RDS)................................ 5-78
Settings...................................... 5-122
Troubleshooting........... .............. 5-125
USB............................................. 5-90
Voice Recognition......................5-118
Volume/Display/Sound
Controls....................................... 5-76
Audio System
Aerial........................................... 5-19
10-2
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
Instrument Panel Illumination...........4-26
Interior Care...................................... 6-66Active driving display
maintenance................................. 6-68
Cleaning the window interiors.....6-69
Instrument panel top (Soft pad)
maintenance................................. 6-68
Leather upholstery
maintenance................................. 6-67
Panel maintenance....................... 6-69
Plastic part maintenance.............. 6-68
Seat belt maintenance..................6-67
Upholstery maintena nce.............. 6-67
Vinyl upholstery maintenance..... 6-67
Interior Lights................................. 5-142 Luggage compartment light.......5-142
Map lights..................................5-142
Overhead light........................... 5-142
Overhead lights..........................5-142
i-ACTIVSENSE.............................. 4-105 Active safety techno logy........... 4-105
Adaptive Front Lighting System
(AFS)......................................... 4-108
Adaptive LED Headlights
(ALH)........................................ 4-112
Adjustable Speed Limiter
(ASL)......................................... 4-174
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-181
Blind Spot Monitoring (BSM)... 4-115
Camera and sensors................... 4-106
Distance Recognition Support System
(DRSS).......................................4-127
Driver Attention Alert (DAA)... 4-131
Forward Sensing Camera
(FSC)......................................... 4-196
High Beam Control System
(HBC)........................................ 4-109
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-163Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-149
Mazda Radar Cruise Control
(MRCC)..................................... 4-137
Pre-crash safety technology.......4-106
Radar sensors (rear)...................4-204
Radar sensor (front)...................4-201
Rear Cross Traffic Alert
(RCTA)...................................... 4-133
Smart Brake Suppor t (SBS)...... 4-193
Smart City Brake Support [Forward]
(SCBS F)................................... 4-185
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-189
Traffic Sign Recognition System
(TSR)......................................... 4-120
Ultrasonic sensor (rear)............. 4-206
i-ACTIV AWD Operation...............4-103
i-ELOOP............................................4-94
Control status display.................. 4-94
Display......................................... 4-94
i-stop.................................................. 4-12 Indicator light (Green).................4-19
i-stop OFF switch........................ 4-17
Vehicle roll prevention
function........................................ 4-18
Warning light (Amber)................ 4-19
i-stop warning beep...........................7-66
J
Jack.................................................... 7-17
Jump-Starting.................................... 7-32
K
Keyless Entry System......................... 3-3
Keys.....................................................3-2 Key suspend function.................... 3-7
Transmitter..................................... 3-4
10-6
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)............................... 7-65
Key Left-in-vehicle Warning Beep (With
the advanced keyless function)......... 7-65
Key Removed from Vehicle Warning
Beep...................................................7-64
Key Suspend Function........................ 3-7
L
Label Information............................... 9-2
Lane Departure Warning sound........ 7-68
Lane-change Signals......................... 4-71
Lane-Change Signals........................ 4-70
Lane-keep Assist System (LAS) & Lane
Departure Warning System
(LDWS)........................................... 4-163
Leaving Home Light......................... 4-67
Liftgate.............................................. 3-19Luggage compartment cover....... 3-26
When liftgat e cannot be
opened..........................................7-70
Lighting Control................................4-63
Lights-on Reminder.......................... 7-63
Light Bulbs Replacement................................ 6-47
Specifications.................................9-8
Lubricant Quality ................................ 9-6
Luggage Compartment....................5-150 Cargo Securing Loops............... 5-150
Cargo Sub-Compartment........... 5-150
Luggage Compartment Light.......... 5-142
M
Maintenance
Information.................................... 6-2
Scheduled.......................................6-3
Maintenance Monitor........................ 6-17
Map Lights...................................... 5-142
Mazda ERA-GLONASS..................... 7-2
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function).......................................... 4-149 Close proximity warning........... 4-153
Cruise control function.............. 4-160
Display indication......................4-152
Setting the system..................... 4-153
Stop hold control....................... 4-159
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function) System Warnings............... 7-67
Mazda Radar Cruise Control
(MRCC)...........................................4-137
Close proximity warning........... 4-140
Cruise control function.............. 4-146
Display indication......................4-139
Setting the system..................... 4-140
Shift-up/shift-down request
display........................................4-146
Mazda Radar Cruise Control (MRCC)
System warnings............................... 7-67
Message Indicated in Multi-information
Display.............................................. 7-59
Message Indicated on Display.......... 7-61
Meters and Gauges............................4-22
Mirrors Outside mirrors..... ....................... 3-36
Rearview mirror.......................... 3-38
Mirror Defogger......... ....................... 4-76
Multi-information Display................ 4-31 Adjustable Speed Limiter (ASL)
Display......................................... 4-38
Average fuel econom y.................4-36
Blind Spot Monitoring (BSM)
Display......................................... 4-37
Cruise Control Set Vehicle Speed
Display......................................... 4-38
Current fuel econom y..................4-36
Distance Recognition Support System
(DRSS) display............................ 4-37
Distance-to-empty....................... 4-35
10-7
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
Fuse..............................................6-54
Key battery.................................. 6-41
Light bulbs...................................6-47
Tyres............................................ 6-45
Wheel........................................... 6-46
Wiper........................................... 6-33
Request Switch Inoperable Warning
Beep (With the advanced keyless
function)............................................ 7-64
Roadside Emergency Triangle Retaining
Strap.................................................. 7-14
Rocking the Vehicle.......................... 3-56
Running-In........................................ 3-53
S
Saving Fuel and Protection of the
Environment...................................... 3-53
Scheduled Maintenance...................... 6-3
Seats.................................................... 2-5
Driving position memory.............. 2-7
Front seat....................................... 2-5
Front seat warmer..........................2-6
Head restraint.............................. 2-15
Rear seat........................................ 2-9
Rear seat warmer......................... 2-14
Seat Belt System Emergency locking...................... 2-19
Pregnant women.......................... 2-19
Seat belt precautions................... 2-17
3-point type................................. 2-20
Seat Belt Warning Beep.................... 7-63
Security System Immobilizer system..................... 3-47
Theft-deterrent system................. 3-49
Smart Brake Support (SBS)............ 4-193 Collision warning...................... 4-194
Smart Brake Support (SBS) indicator
light (red)................................... 4-194
Stopping the Smart Brake Support
(SBS) system operation............. 4-195
Smart City Brake Support [Forward]
(SCBS F)......................................... 4-185Collision warning...................... 4-187
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-187
Stopping the Smart City Brake
Support [Forward] (SCBS F) system
operation.................................... 4-188
Smart City Brake Support [Reverse]
(SCBS R)........................................ 4-189
Stopping the Smart City Brake
Support [Reverse] (SCBS R) system
operation.................................... 4-192
Spare Tyre......................................... 7-17
Specifications...................................... 9-5
Speedometer...................................... 4-23
Speed Limiter Warning Beep............ 7-68
SRS Air Bags Front passenger occupant
classification system.................... 2-58
How the SRS air bags work........ 2-50
Limitations to SRS air bag.......... 2-56
Monitoring................................... 2-63
SRS air bag deployment
criteria.......................................... 2-54
Supplementary restraint system
components.................................. 2-48
Starting the Engine..............................4-5
Steering Wheel.................................. 3-35
Horn............................................. 4-78
Storage Compartments.................... 5-148
Armrest box............................... 5-149
Centre console........................... 5-149
Glove compartment................... 5-149
Luggage Compartment.............. 5-150
Overhead console...................... 5-148
Rear coat hooks......................... 5-152
Sunroof.............................................. 3-44
Sunshade............................................3-46
Sunvisors......................................... 5-142
10-9
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Index
T
Tachometer........................................ 4-25
Theft-Deterrent System..................... 3-49
Three-flash Turn Signal.................... 4-71
To w i n gHook.............. .............................. 7-41
Towing Caravans and Trailers
(Europe/Russia/Turkey/Israel/South
Africa)..........................................3-61
Towing Description........................... 7-39
Traction Control System (TCS)........ 4-91
TCS OFF Indicator Light............ 4-92
TCS OFF switch..........................4-92
TCS/DSC indicator light............. 4-91
Traffic Sign Recognition System
(TSR)............................................... 4-120
Transmitter.......................................... 3-4
Trip Computer................................... 4-28
Trip Meter......................................... 4-24
Trouble Battery runs out........................... 7-32
Emergency starting...................... 7-35
Emergency towing....................... 7-39
Flat tyre....................................... 7-15
Overheating................................. 7-37
Parking in an emergency............. 7-14
Warning/indicator lights and warning
sounds.......................................... 7-43
When liftgate cannot be
opened..........................................7-70
Turn and Lane-Change Signals......... 4-70
Tyres.................................................. 6-43
Flat tyre....................................... 7-15
Replacing a tyre...........................6-45
Replacing a wheel....................... 6-46
Snow tyres................................... 3-57
Specifications.................................9-9
Temporary spare tyre...................6-45
Tyre chains.................................. 3-57
Tyre inflation pressure.................6-43
Tyre rotation................................ 6-44
Tyre Inflation Pressure Warning
Beep...................................................7-66
Tyre Pressure Monitoring System... 4-212
U
Ultrasonic Sensor (Rear)................. 4-206
USB Power Outlet.......................... 5-146
V
Vanity Mirrors................................. 5-142
Vehicle Information Labels................. 9-2
Vehicle Speed Alarm........................ 4-30
W
Warning Indication/Warning
Lights.................................................4-42
Warning Sound is Activated............. 7-63 Air bag/seat belt pr etensioner system
warning beep............................... 7-63
AUTOHOLD Warning Beep....... 7-66
Blind Spot Monitoring (BSM)
warning beep............................... 7-67
Collision warning...... .................. 7-69
Electric Parking Brake (EPB)
Warning Beep.............................. 7-66
Electronic steering lock warning
beep..............................................7-65
Excessive speed warning.............7-68
Ignition not switched off (STOP)
warning beep............................... 7-64
i-stop warning beep..................... 7-66
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-65
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-65
Key removed from vehicle warning
beep..............................................7-64
10-10
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
